SPECIFICATIONS

APP: SMART LIFE&TUYA

Accuracy: ±0.5 ℃

Ambient Temp.: 0~45 ℃

Brand Name: SHOJZJ

Buttons: Capactve Touch Buttons

Certification: CE,FCC,RoHS,UL,weee

Control mode: Mobile APP, remote control,

Fan Relay Amps Resistance: 5A; Inductive: 3A

High-concerned chemical: None

Model Number: TYBHP-6000 C

Origin: Mainland China

Power Supply: 24VDC/AC +10%

Sensor: NTC3950, 10K

Storage Temp.: -5~ 45 ℃ Timing Error: < 1%

Type1: Fan coil Unit

Type2: Air Conditioner Parts

Type3: local Weather

Valve Relay Amps Resistance 3A; Inductive 1A: 3A; Inductive: 1A

Wattage: 5W

Working with 3: Air Energy

Working with 4: Radiant Floor Heat

Working with 1: Alexa,Heat Pump

Working with 2: Google,Boiler

name: HVAC Thermosta

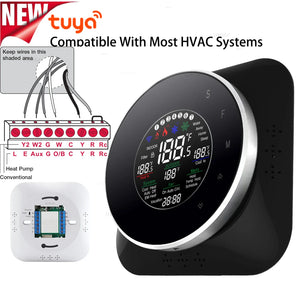

TUYA WIFI 24VAC AIR SOURCE Heat Pump Thermostat for HVAC System - Compatible withBoiler, Air Energy, and Radiant Floor Heating Works with Alice, Alexa, Google  - Easy Control and Energy Savings"

Notice: For power supply without C line,
Please use a C-wire converter.

Thank you for your purchase.

Your new thermostat will provide uniform and comfortable

temperature Control throughout every room in your peoperty.

We bring together technology craftsmanship and the highest

quality materials to provide you with a safe, reliable

productcombined with sleek, contemporary design. Please read

this installation/programming manual for comprehensive

instructions on installing and operating your thermostat.

Please also ensure a suitably qualified person installs your

thermostat and complies with all local regulations.

1. Negative black sceen will bring you to a secret world.

2. Large circular screen display area to create your colorful life.

3. Touch buttons to make simple operation.

4. Amazing Silver Frame opens your modern life.

5. Wall mount installation. The visiable thickness above the wall is only 2cm.

6. The snap connection allows you to easily install.

7. Wall mounted or suitable for the installation of Europe, China, Japan, USA and Italy.

8. White, black or brushed stainless steel for your selection.

9. Wrap-around cooling holes help heat to escape quickly and avoid affecting temperature detection.

On Functionality

1. Powerful functions are available such as WIFI etc,.

2. 1℉/0.5℃acuracy keeps temperature within the level you set.

3.℃ or ℉ choice.

4. 7 days four periods programmable.

5. Temporary programmable.

6. Holiday mode.

7. All setting languages sunchronize your time zone, address and language.

8. No limit to add thermostats in App.

9. Support Smart Scene.

10. Support to make two stage grouops.

11. Support device sharing.

Syetem mode:Display the current system mode.tap it to swich the mode.

Fan mode: Display the current fan mode. Tap it to swich the mode.

Hold mode: Display’s the current hold mode,Tap it to swich the mode.

Targe temperture: Turn up/down the target temperature.

Setting:You can edit the setting of device, such as Schedule,Holiday

mode,fan run time etc.

Thermostat *1;

Marking tape *1;

Screws *2;

Power Module *1 (optional if there is no C voltage, please purchase);

QC Passed *1;

User Guide *1;
