Inefficient Soldering Hazards

Micro-component repair demands absolute clarity to prevent heat damage and trace bridges on dense circuit boards. When your vision is limited by inadequate magnification, you risk wasting expensive components and valuable technician hours.

The Professional Precision Solution

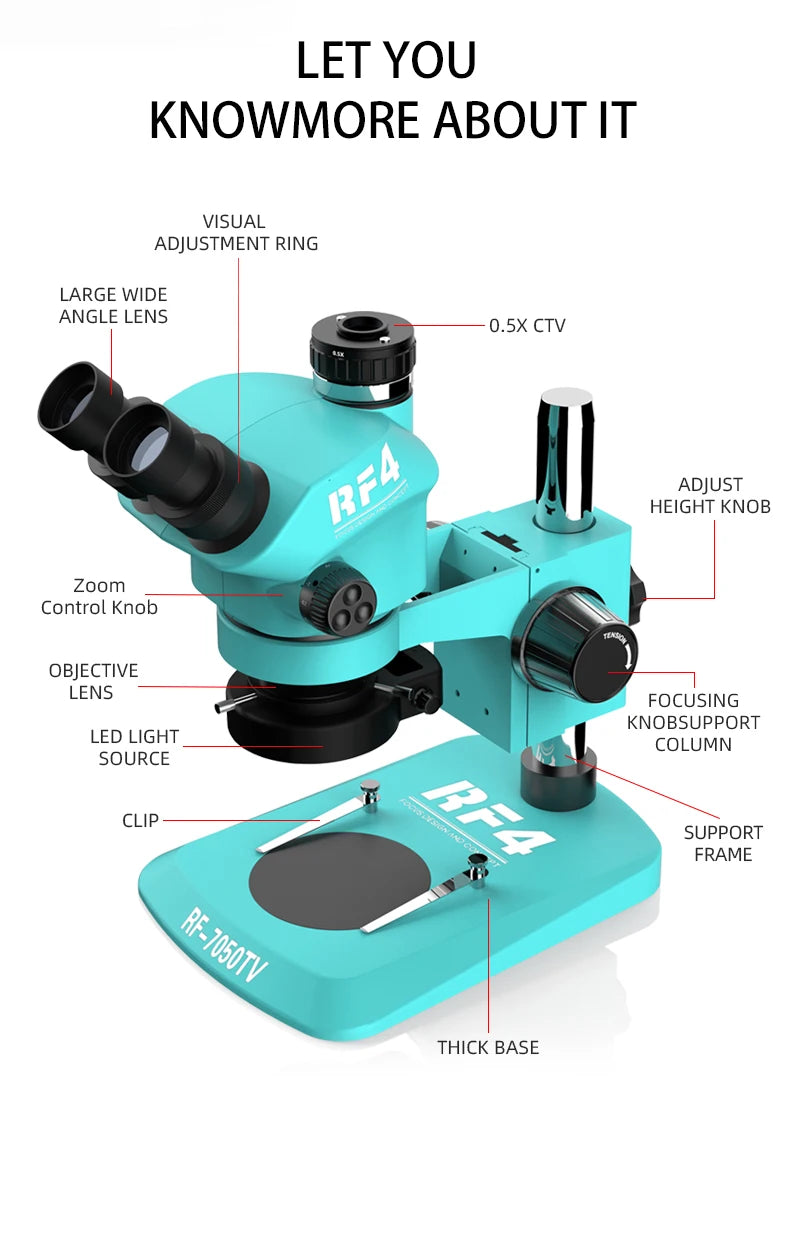

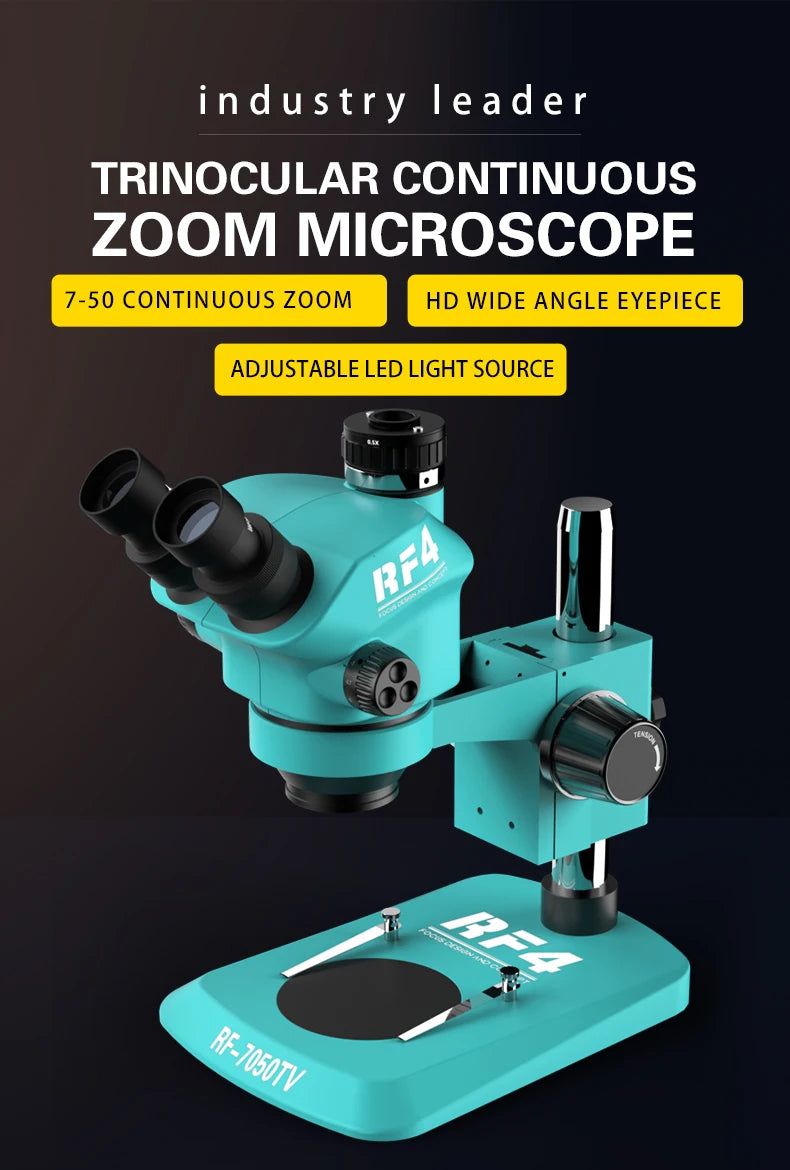

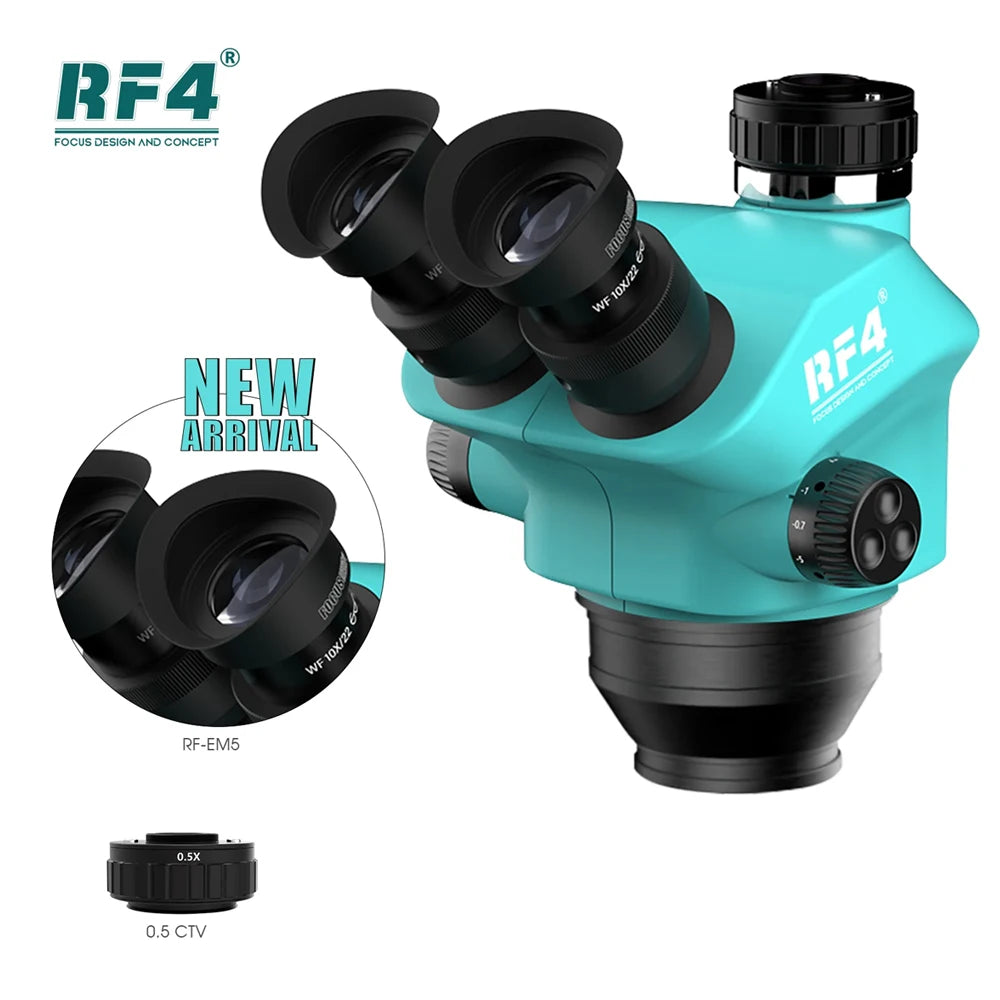

The Tidesmit 7-50X Trinocular Stereo Microscope serves as the industry-standard visual interface for advanced micro-soldering and inspection. Featuring a continuous 7-50X zoom range, this unit provides the optical depth required for complex SMD soldering, wire bonding, and microscopic surface analysis.

Key Features

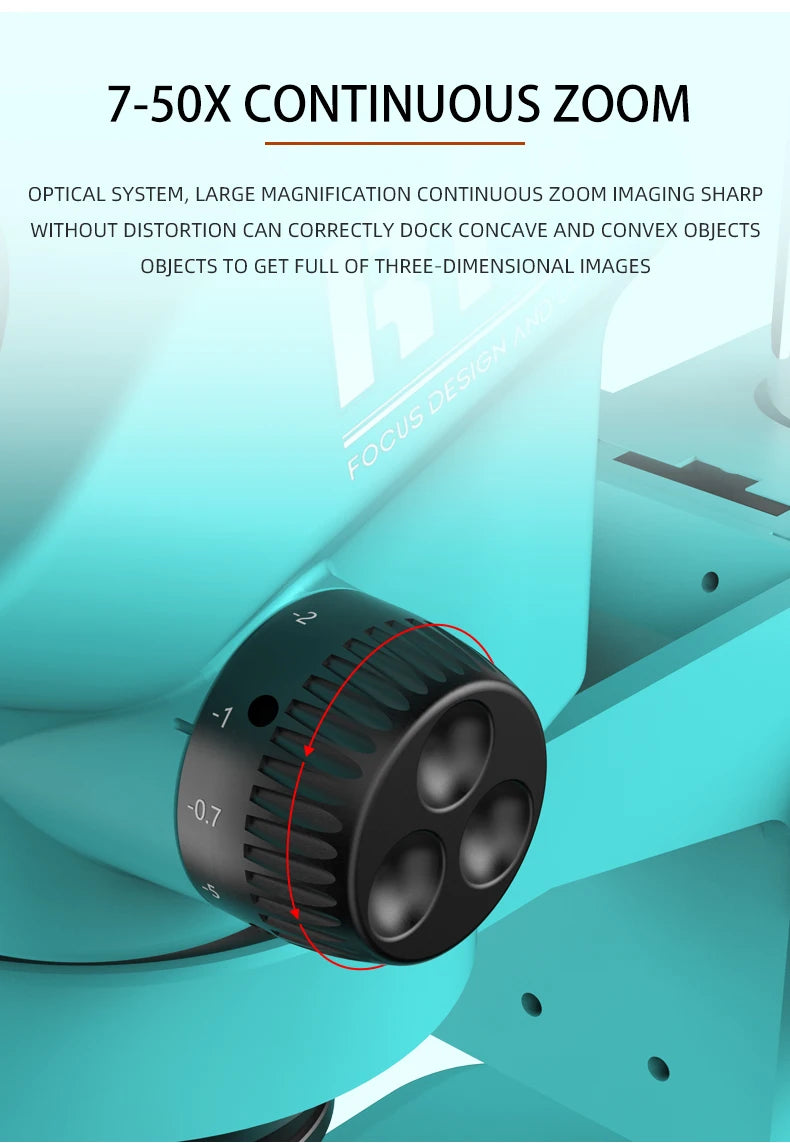

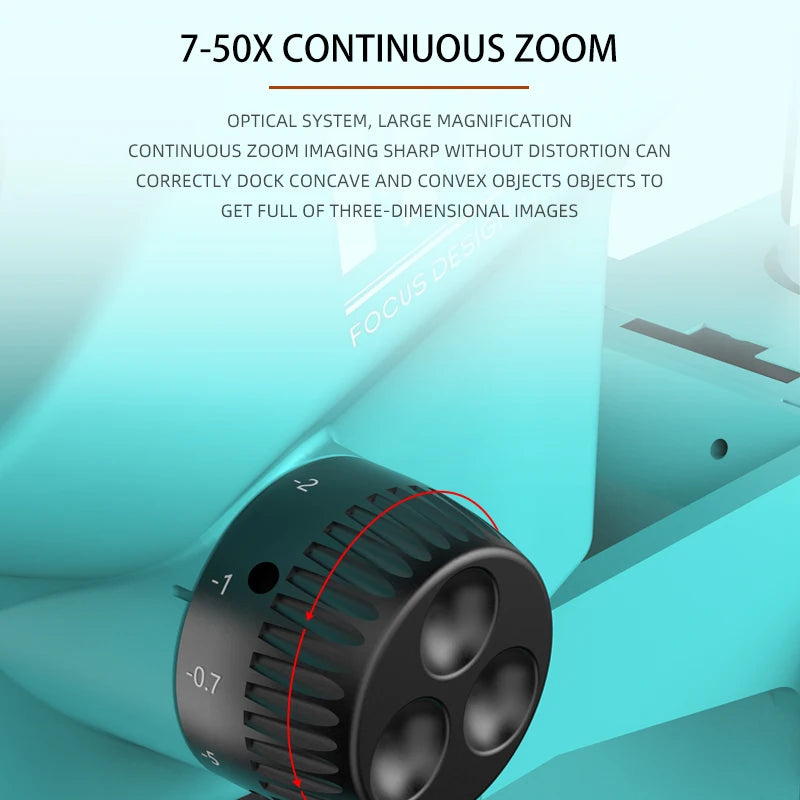

• Continuous Optical Zoom - 7-50X range - ensures seamless focus transitions

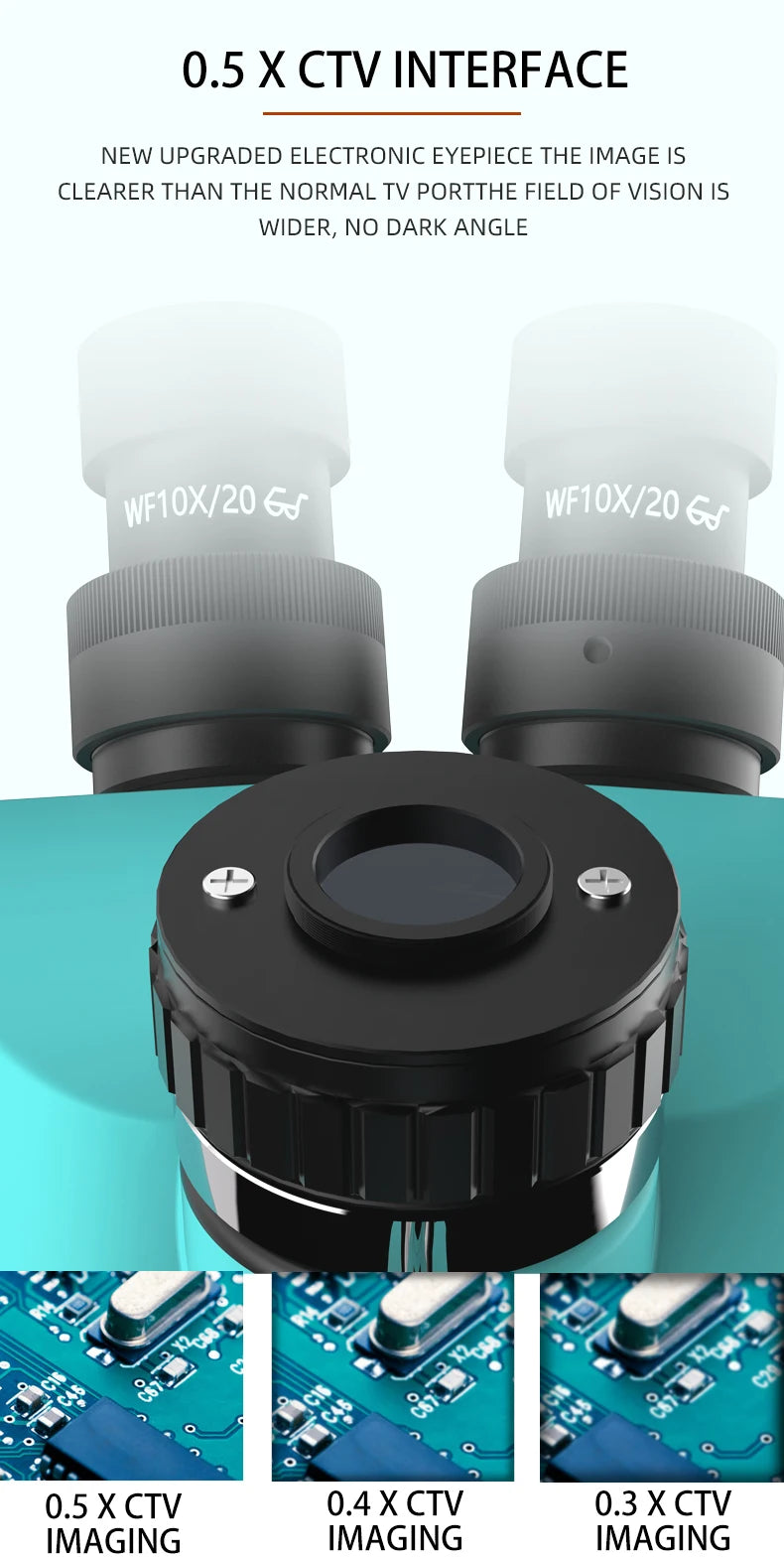

• 0.5CTV Adapter - reduces magnification for wider field-of-view - provides better spatial awareness
• Trinocular Port - dedicated camera mount - allows for real-time digital documentation

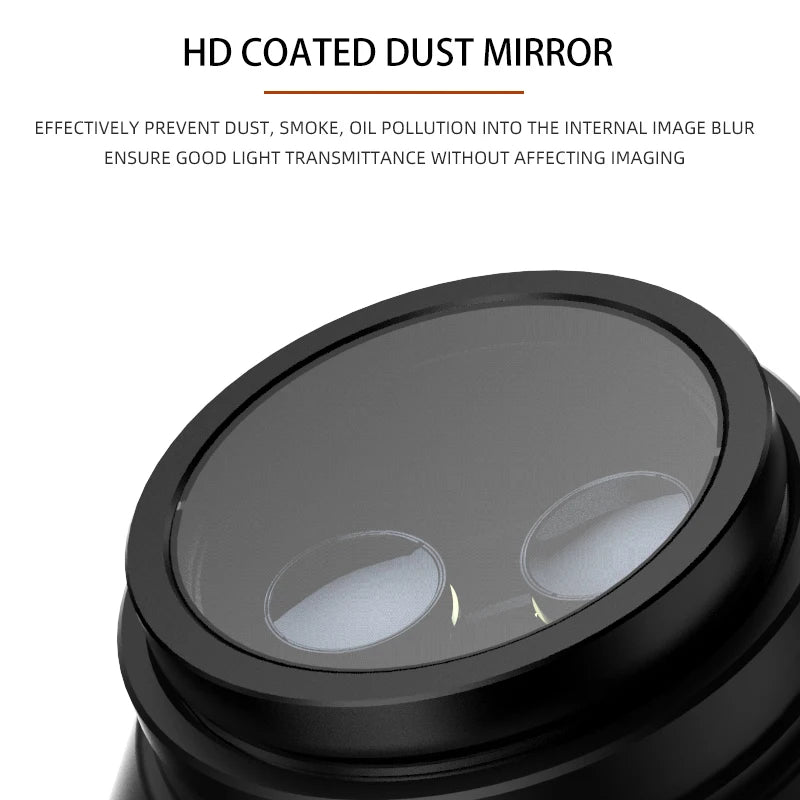

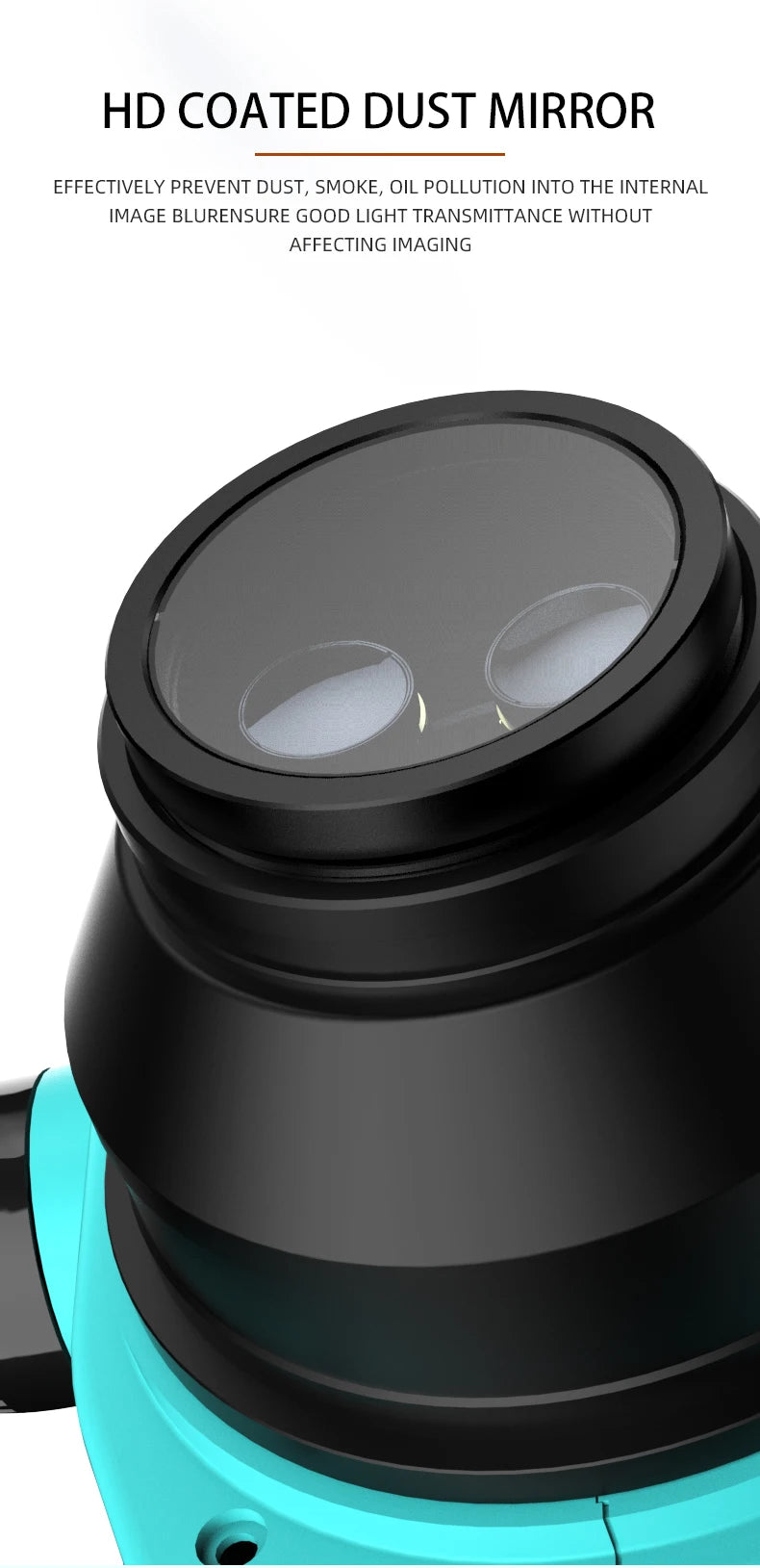

• High-Resolution Optics - multi-coated glass - delivers crisp high-contrast imaging

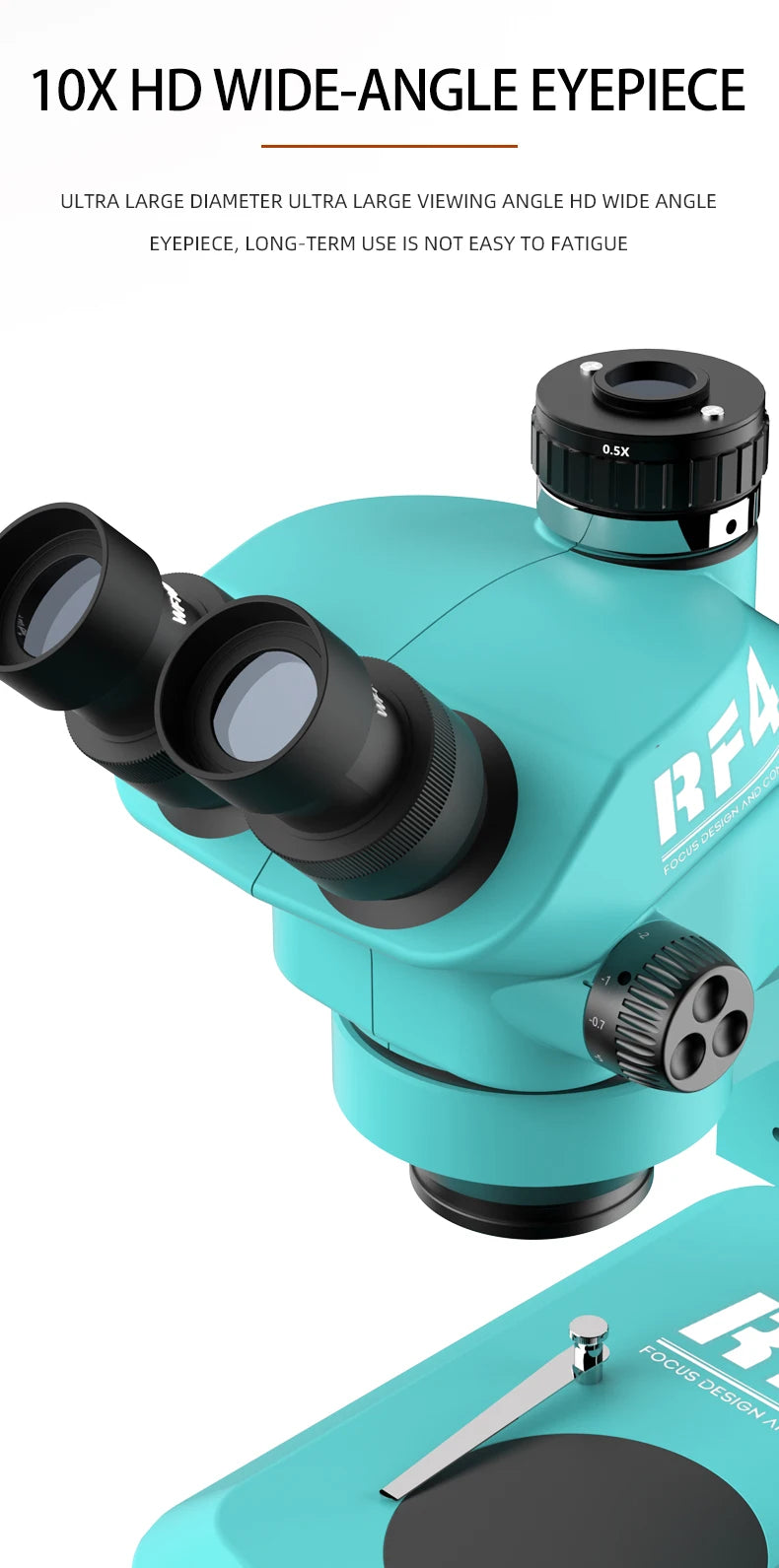

• Ergonomic Eyepiece Adjustment - 54mm-75mm interpupillary distance - reduces eye fatigue
• Adjustable LED Ring Light - 56 individual diodes - eliminates board shadows

Technical Specifications

• Zoom Ratio: 1:7
• Field of View: 20mm
• Working Distance: 100mm
• Head Tilt: 45-degree binocular viewing
• Connection: 0.5CTV camera interface
• Illumination: 56-LED variable intensity ring
• Compatibility: Universal microscope boom stands
• Certification: CE, FCC, RoHS
• Housing: High-grade aluminum alloy
• Colour: Industrial white and black

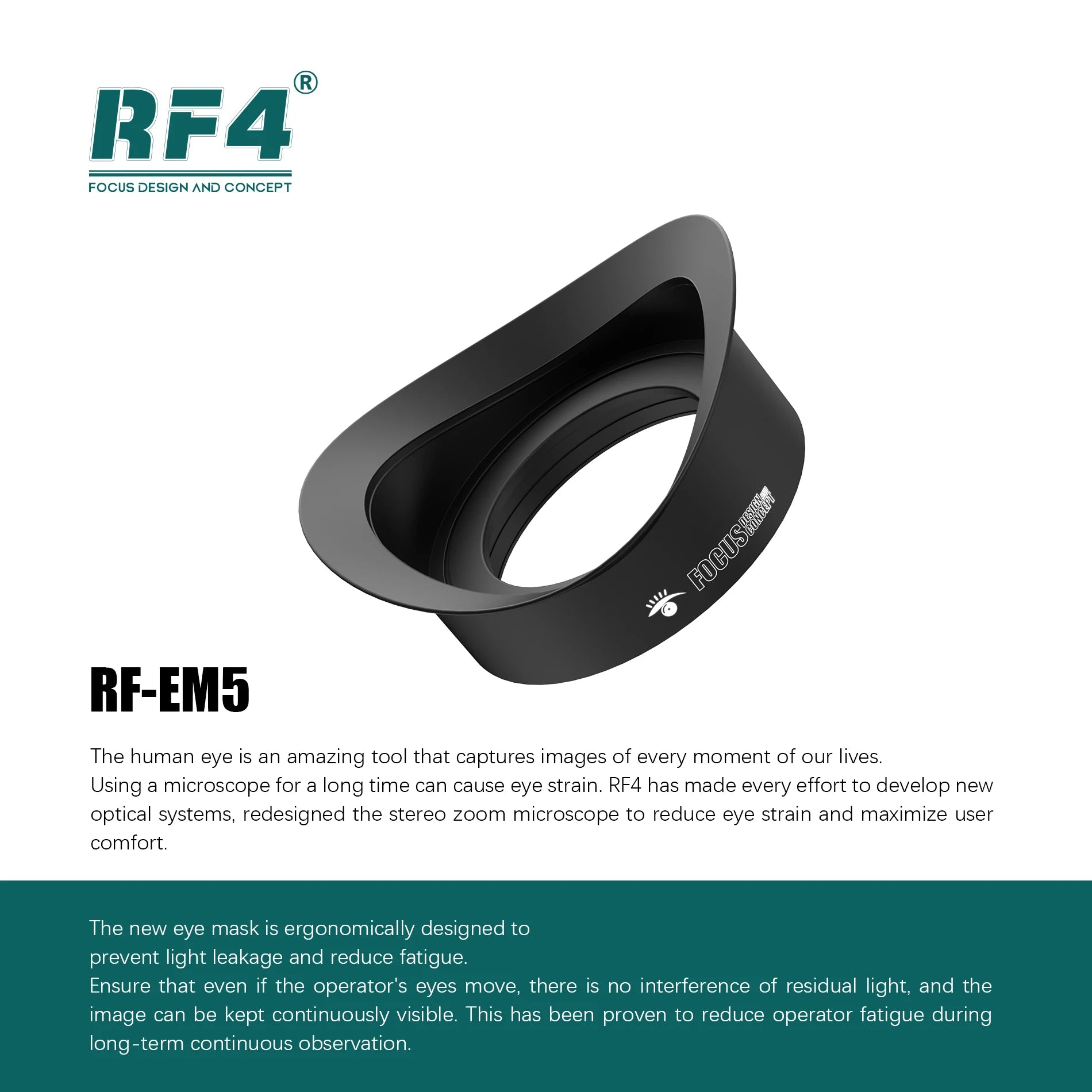

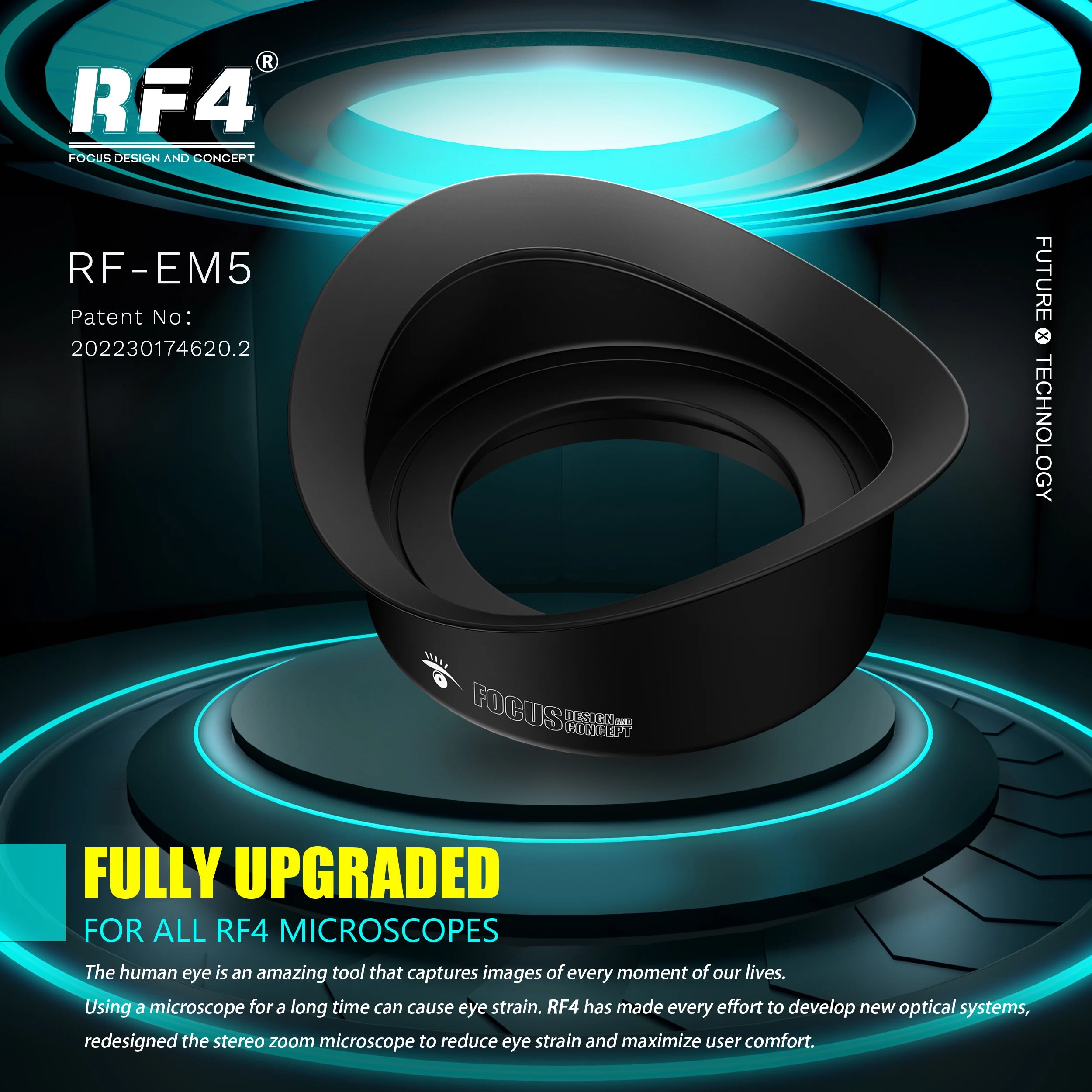

• Box Contents: Microscope head, 0.5CTV lens, rubber eyeguards, dust cover

Who Is This For

This microscope is engineered for electronics repair technicians, quality assurance inspectors, and laboratory researchers requiring high-fidelity imaging. It is the essential instrument for those managing micro-soldering and professional electronics diagnostic workflows while seeking superior depth-of-field precision.

Frequently Asked Questions

Does this microscope require additional software for image output?
The optical head is a purely analog unit; however, the 0.5CTV port allows for seamless integration with any standard digital microscope camera to stream directly to your Windows or macOS workstation for high-definition monitoring.

Equip your workstation with the precision tools required to master complex electronic repair cycles.
