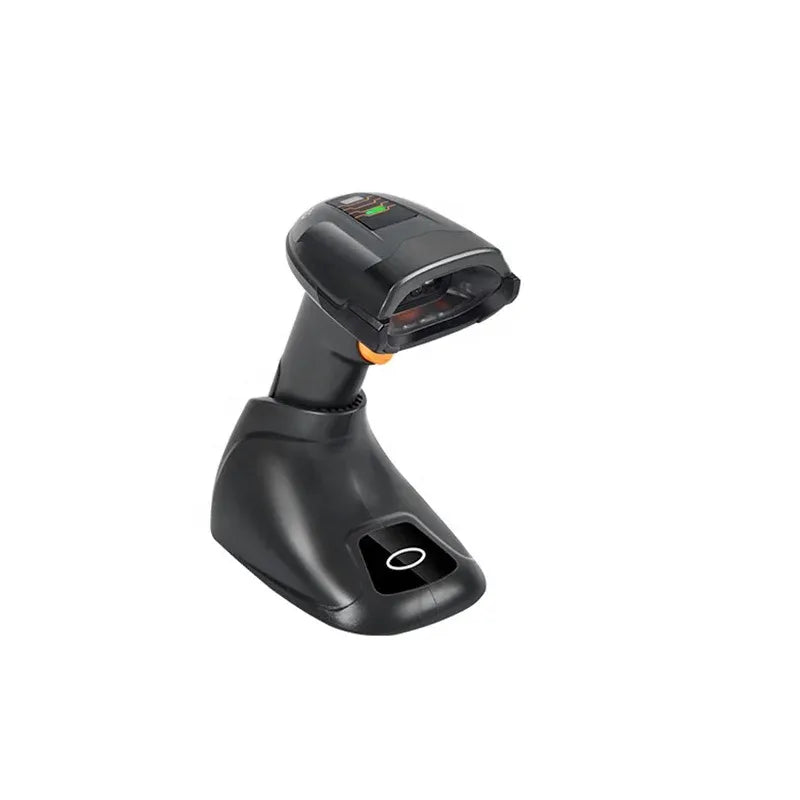

Handheld barcode scanner with black plastic body and orange trigger button

Portable 1D 2D Laser QR Code Barcode Scanner Handheld Supermarket Inventory Serial Port Wired Modbus Profinet Tcp/IP USB

Plastic
€64,32 €96,48
Skip to product information
Handheld barcode scanner with black plastic body and orange trigger button
  • Handheld barcode scanner with black plastic body and orange trigger button

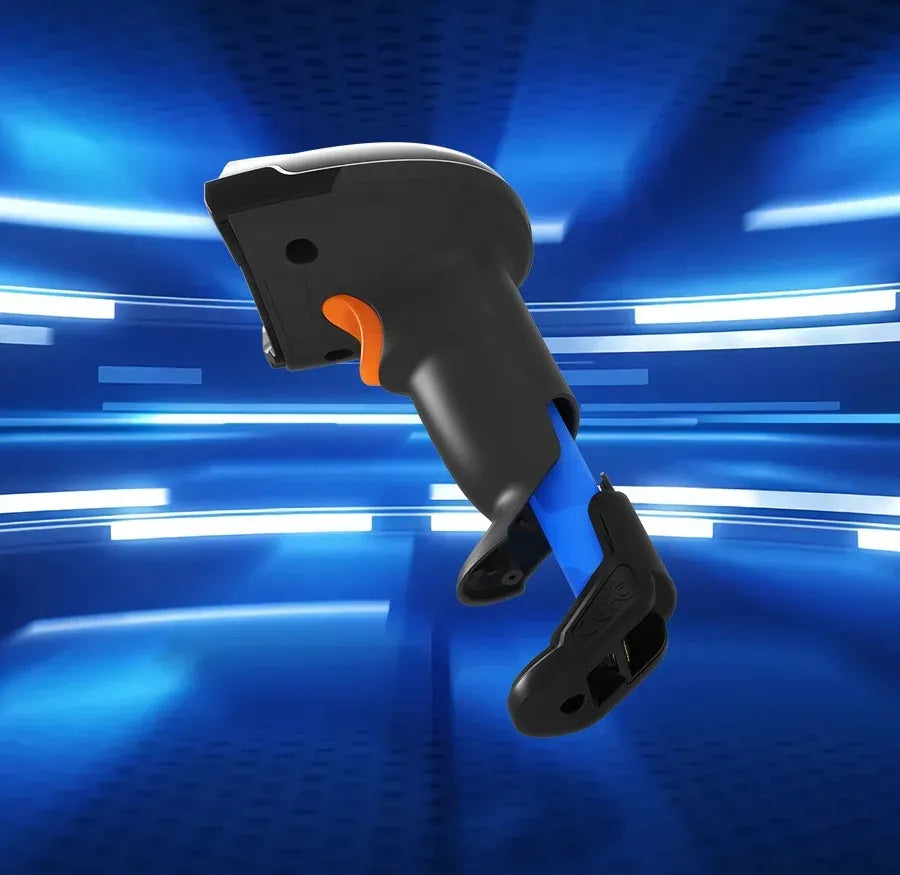

  • Handheld barcode scanner angled view with orange scan trigger

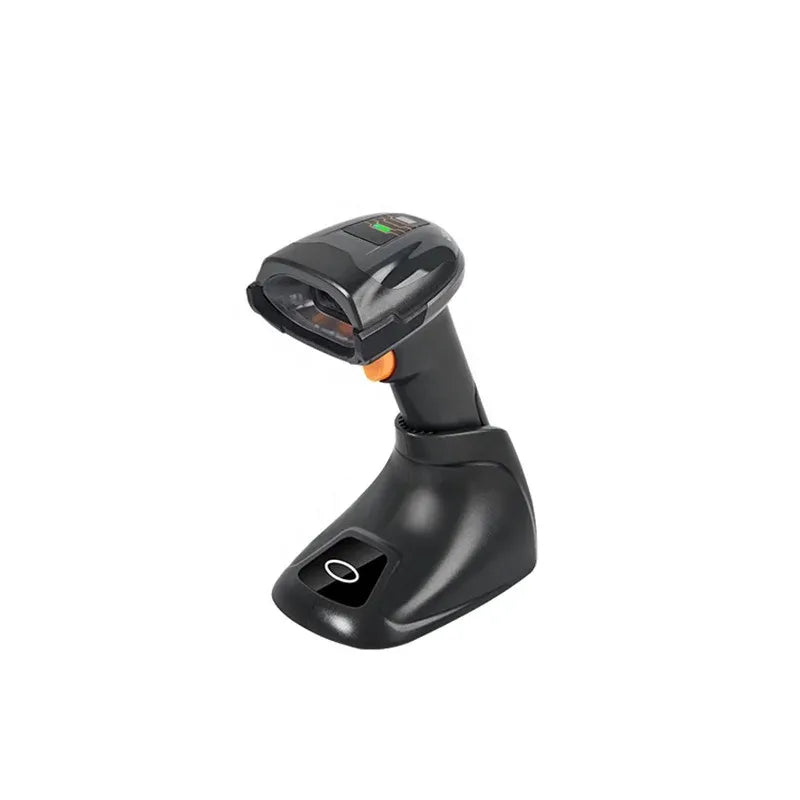

  • Handheld barcode scanner with scanning window on top and orange trigger

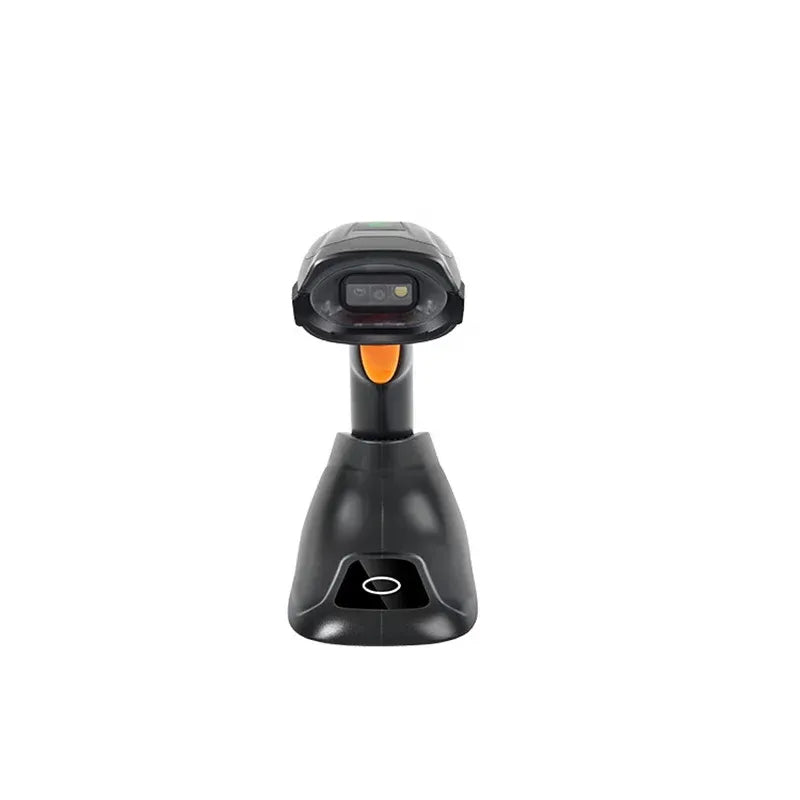

  • Handheld barcode scanner front view with top scan window and orange button

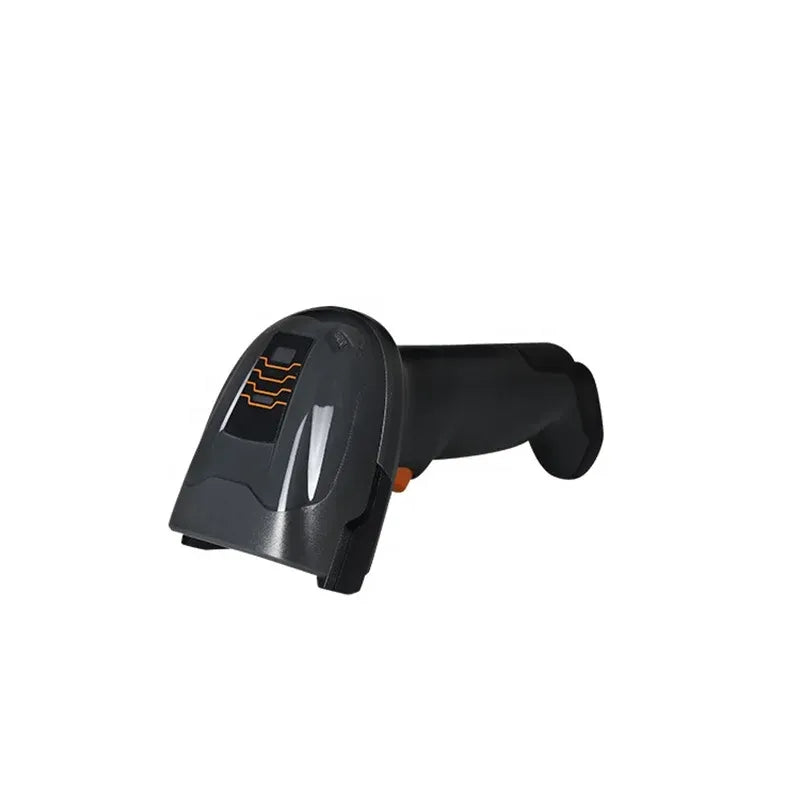

  • Handheld barcode scanner side view with scan window and black grip

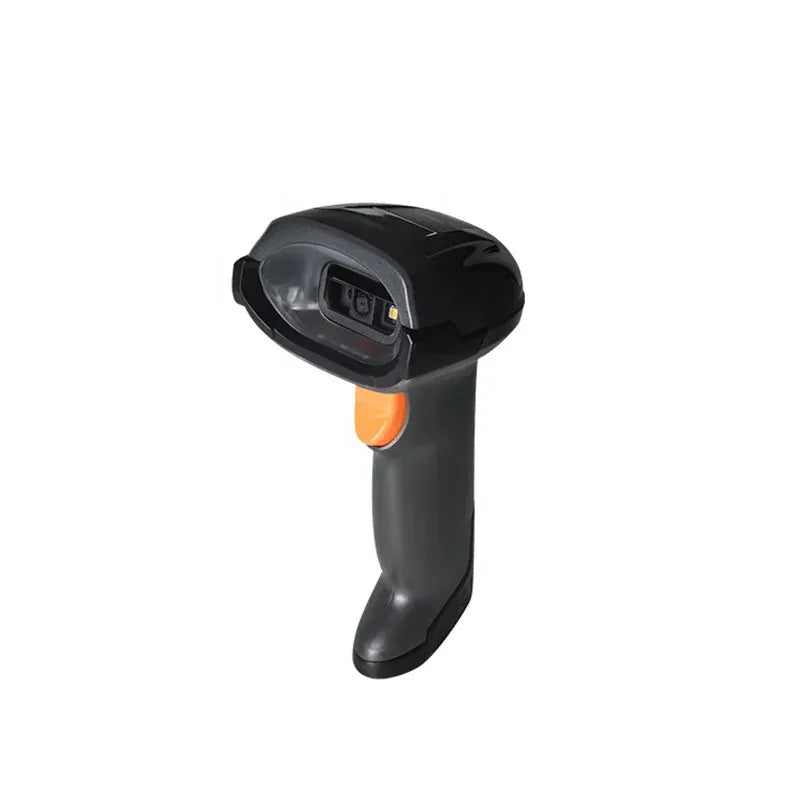

  • Handheld barcode scanner close-up with orange trigger and top scanning window
  • Blue banner reading “CLICK HERE TO VIEW MORE”
  • Screenshot of device dashboard with service status bars and panels
  • Shipping and delivery logos: UPS, EMS, FedEx Express, TNT, DHL
  • Industrial robotic assembly line with robotic arm and control equipment
  • Industrial barcode scanner with orange housing and metal mounting
  • Industrial barcode scanner near technicians in white protective suits
  • Industrial barcode scanning station with technicians working at benches
  • Barcode scanner control console with blue screen and indicator buttons
  • Barcode scanner control panel with blue touchscreen and switch controls
  • Handheld barcode scanner with black plastic body and orange trigger button
  • Handheld barcode scanner angled view with orange scan trigger
  • Handheld barcode scanner with scanning window on top and orange trigger
  • Handheld barcode scanner front view with top scan window and orange button
  • Handheld barcode scanner side view with scan window and black grip
  • Handheld barcode scanner close-up with orange trigger and top scanning window
  • Blue banner reading “CLICK HERE TO VIEW MORE”
  • Screenshot of device dashboard with service status bars and panels
  • Shipping and delivery logos: UPS, EMS, FedEx Express, TNT, DHL
  • Industrial robotic assembly line with robotic arm and control equipment
  • Industrial barcode scanner with orange housing and metal mounting
  • Industrial barcode scanner near technicians in white protective suits
  • Industrial barcode scanning station with technicians working at benches
  • Barcode scanner control console with blue screen and indicator buttons
  • Barcode scanner control panel with blue touchscreen and switch controls
Portable 1D 2D Laser QR Code Barcode Scanner Handheld Supermarket Inventory Serial Port Wired Modbus Profinet Tcp/IP USB

Portable 1D 2D Laser QR Code Barcode Scanner Handheld Supermarket Inventory Serial Port Wired Modbus Profinet Tcp/IP USB

€64,32 €96,48
Material

SPECIFICATIONS

Certification: CE,FCC,RoHs

Decoding lighting: 12 red high-brightness LED light sets

Humidity: 5% ~ 95%RH

Indicator System: LED Indicator,Beeper

Model Number: FRD-SN-041

Power: 5V

Product Name: FRD-SN-041 1D 2D laser Barcode Scanner

Resolution: 1280 x 800 pixes

Type: Global Exposure

Weight: About 520g

place of origin: China

FRD-SN- 041product description
FRD-SN-041 is a general-purpose handheld scanner designed for government agencies, retail, warehousing, light manufacturing, medical and other industries. The work efficiency of these industries depends entirely on the performance and quality of the tools used;

SPECIFICATIONS
Model
FRD-SN-041
Barcode Type
1D:Codabar,Code11,Code128,ISBT128,Code32,Code39,TLC39,Code93/9
3i,BC412,UK Plessey,Anker Plessey,EAN-13,EAN-8,GS1,MSI,Telepen,Pharma,PatchCode,UPC-A,
UPC-E,2 fo 5(China Post, Interleaved 2 of 5,Matrix 2 of 5,NEC 2 of 5,Straight 2 of 5 iATA,Straight 2 of 5 Industrial)Pharmacode.RSS-14,RSS-LIMITED,RSS-EXPANDED,Industrial 2 of 5,Telepen,Trioptic Code, UPC-A,UPC-E

2D: Aztec Code,Han Xin,Data Matrix,MaxiCode,QR,Micro
QR,rMQR,Dot Code,Grid Matrix, Codablock A,Codablock
F,PDF417,Micro PDF417
Postal: Korea Post,China Post,Australia Postal,Royal INFOMAIL,Japan
Postal,KIX,PLANETCODE, POSTNET,Britain Postal,UPU,USPS
4STATE
Barcode Min
Precision
1D: 3 mils/0.076mm;
2D: 8 mils/0.203mm;
Depth of field
EAN13(13 mil): 40mm~450mm;
QR(20 mil):20mm-480mm;
Type
CMOS Global shutter
Resolution
1280 x 800 pixes
Field of View
H: 46°V: 36°
Detection Angle
slope ±60°,Deflection angle: ±60°, Rotation angle: 360°
contrast value
15%
Maximum power Communication
Stand By: 0.7W 5 VDC
Working Mode: 1.37W 5 VDC
Wireless
Frequency
2.4G
Indicator System
LED(Green),Beeper
Ambient Lighting
0 ~ 100000 lux(fluorescent lamp)
0-8600lux(fluorescence)
Interface
USB Keyboard Port, USB Virtual Serial Port,RS232 Serial Port;
Customized RS485 Interface, Ethernet Port;
Decoding
lighting
White LED
Decoding Sight
Green LED
Weight
About 134g(only device)
Temperature
Working Temperature: -20℃-50 ℃
Humidity
5%-95%RH No condensation
Fall resistance
Concrete floor 1.5m X20 times
Certification
CE,FCC,RoHS
Inquiry
Certifications

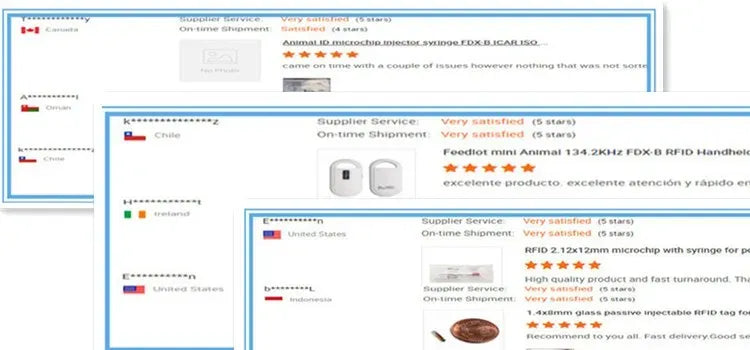

Worldwide Comments

Real comments from our customer as below link:

Packing & Delivery

Our Logistics Partners:

1.Fast: FEDEX,DHL,UPS,TNT express.(It takes 3-7 days, depending on your country)
2.Economic:EMS,Epacket, China post etc.(it takes 10-35days, depending on your country)
We can get long-term contracted prices to ensure the most economic prices for you.

Our Company

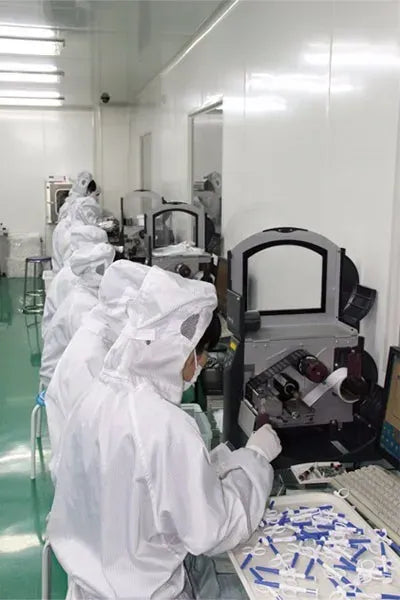

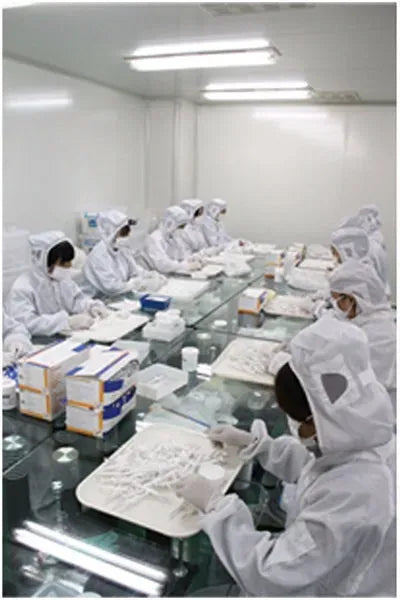

Workshop

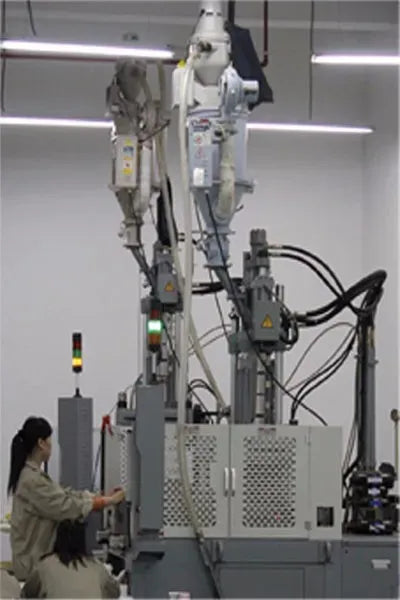

Injection Molding

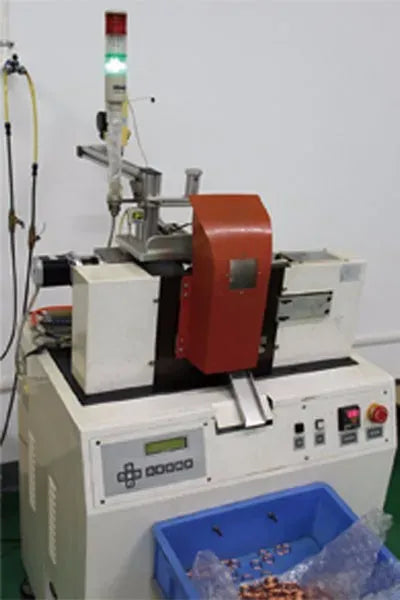

Coil Wiring
