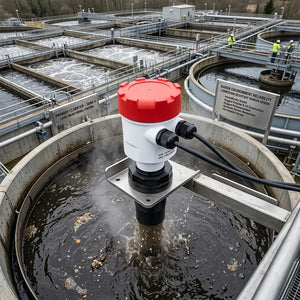

Managing fluid levels in water and oil tanks can present continuous measurement challenges when traditional equipment fails to deliver reliable accuracy across fluctuating environmental conditions. The Tidesmit ultrasonic level sensor provides an advanced electronic monitoring solution engineered to accurately gauge liquid heights while compensating for temperature variations in the surrounding air. Designed for diverse liquid storage applications, this meter integrates reliable internal processing to support consistent operational performance.

Key Specifications & Features

• Accuracy: 0.5%FS
• Model Number: QDY70B-C3
• Measurement Range: 5m, 10m, 15m, 20m customized options
• Output Signal Options: 4-20mA (two wires) or 4-20mA+RS485 (four wires)
• Power Supply: DC24V
• Waterproof Rating: IP65
• Working Temperature: -20℃ to 50℃
• Overload Capacity: 150%FS
• Display: LCD Display

Built with built-in protection functions for input and output lines including lightning protection and short circuit prevention, the device actively measures gas temperature to compensate for the velocity of sound during operation. This ensures precise readings whether monitoring water, oil, or sanitary olive oil containers within the specified thermal limits.

For further assistance or to discuss customized parameters for your setup, please feel free to reach out to our support team.
