SPECIFICATIONS

Brand Name: NONE,YG

Bucket Capacity: 0.3m³

Bucket capacity: 0.3

Certification: CE

Charge Status: No

Color: Yellow

Condition: New

Core Components: PLC, Motor, Engine

Departure angle: 17°

Dimension(Long * Breadth * High): 7600*2260*2890mm

Engine Brand: Briggs & Stratton

High-concerned chemical: None

Hydraulic Cylinder Brand: YG

Hydraulic Pump Brand: Kawasaki

Hydraulic Valve Brand: YG

Machine Weight: 5000 kg

Machinery Test Report: Provided

Make: YG

Max Dumping Angle: 53°

Max Dumping distance: 100 mm

Max Dumping height: 1423 mm

Max pin height: 1951 mm

Max working height: 2504mm

Moving Type: Crawler Loader

Operating Load: 8000Kg

Origin: Mainland China

Place of Origin: Henan, China

Power Type: Diesel

Power(W): 10KW, 18KW

Rated Power: 76KW

Rollback of bucket on ground: 32°

Type: Mini Loader, Backhoe Loader

UNIQUE SELLING POINT: High operating efficiency

Video outgoing-inspection: Provided

Warranty: 2 Years

PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !!!
Simple(Sales Manager)
Email:3343644180 @qq.com
Whatsapp/Wechat/Mobile: +86 19837121092

Product Description

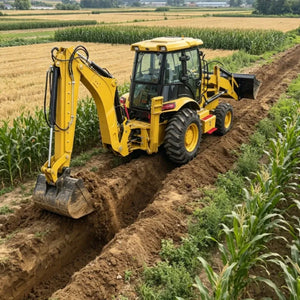

Backhoe Loader – Your Ultimate Job Site Companion!

Maximize productivity with the Backhoe Loader, engineered to tackle the toughest construction, excavation, and material-handling challenges. Whether you're digging trenches, loading aggregates, or breaking through rugged terrain, this machine delivers unmatched performance and reliability.

Specification

Parameter	360	430	450
Max working height (H3)	2504mm	2473 mm	2474 mm
Max pin height (H2)	1951 mm	1900 mm	1977 mm
Max Dumping height (H1)	1423 mm	1458 mm	1275 mm
Max Dumping distance(E)	100 mm	594 mm	175 mm
Max Dumping Angle (a3)	53°	35°	70°
Rollback of bucket on ground (a2)	32°	25°	25°
Departure angle (a1)	17°	22°	23°
Total height (H)	1210 mm	1330 mm	1300 mm
Ground clearance (F)	133.5 mm	122 mm	120 mm
Wheel base (L1)	653 mm	757 mm	890 mm
Overall length without bucket (L3)	1552 mm	1753 mm	1767 mm
Total width (B2)	1050 mm	1090 mm	1030 mm
Bucket width (B1)	1080 mm	1150 mm	1070 mm
Total length with bucket (L)	1992 mm	2215 mm	2319 mm
Turn radius forward turning (R)	1205 mm	1336 mm	1440 mm
Engine	Briggs & Stratton	Briggs & Stratton	Briggs & Stratton
Rated Power (KW)	10KW(13.5HP)	18.2KW(23HP/25HP)	18.2KW(23HP)
Rotating speed (rpm)	3600	3600	3600
Noise (Db)	≤95	≤95	≤95
Pressure (Mpa)	17	17	17
Raise	4	4	4
Dump	1.3	1.3	1.3
Lower	3.2	3.2	3.2
Operating Load	260 Kg	380 Kg	390 Kg
Bucket Capacity	0.08 m³	0.1 m³	0.13 m³
Max Lifting Force	300 Kg	430 Kg	450 Kg
Travel Speed	0-6 Km/h	0-5.5 Km/h	0-4.5Km/h
Operating Weight	640 Kg	900 Kg	960 Kg
