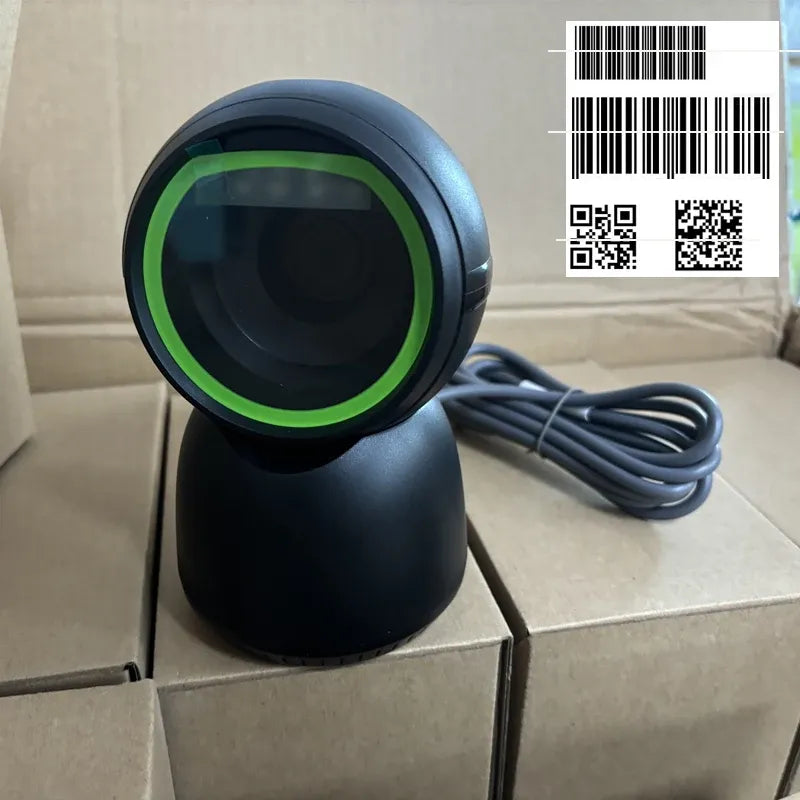

Hands-free desktop barcode and QR code scanner, black base with green illuminated ring
  • Hands-free desktop barcode and QR code scanner, black base with green illuminated ring

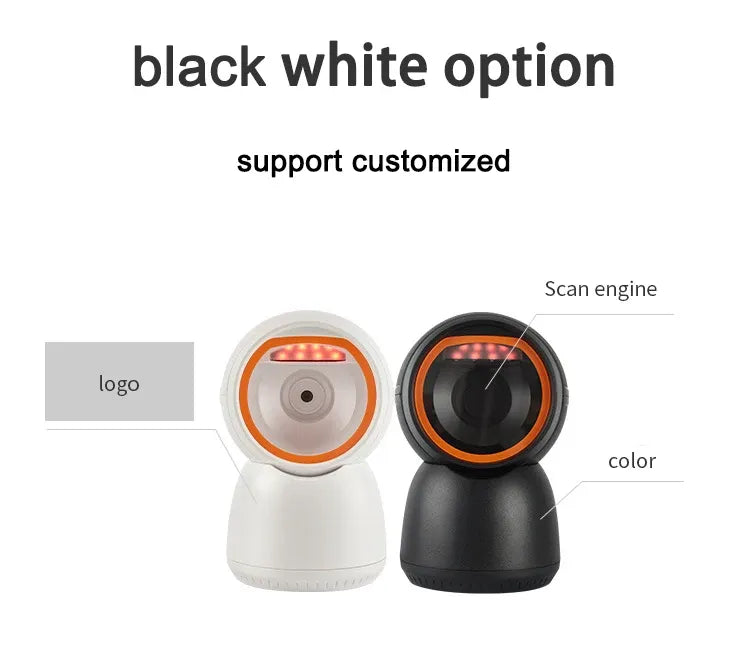

  • Desktop barcode and QR code scanner set: white and black models with ring lights
  • Close-up desktop barcode and QR code scanner with orange illuminated scan ring
  • White desktop barcode and QR code scanner with orange illuminated scan ring

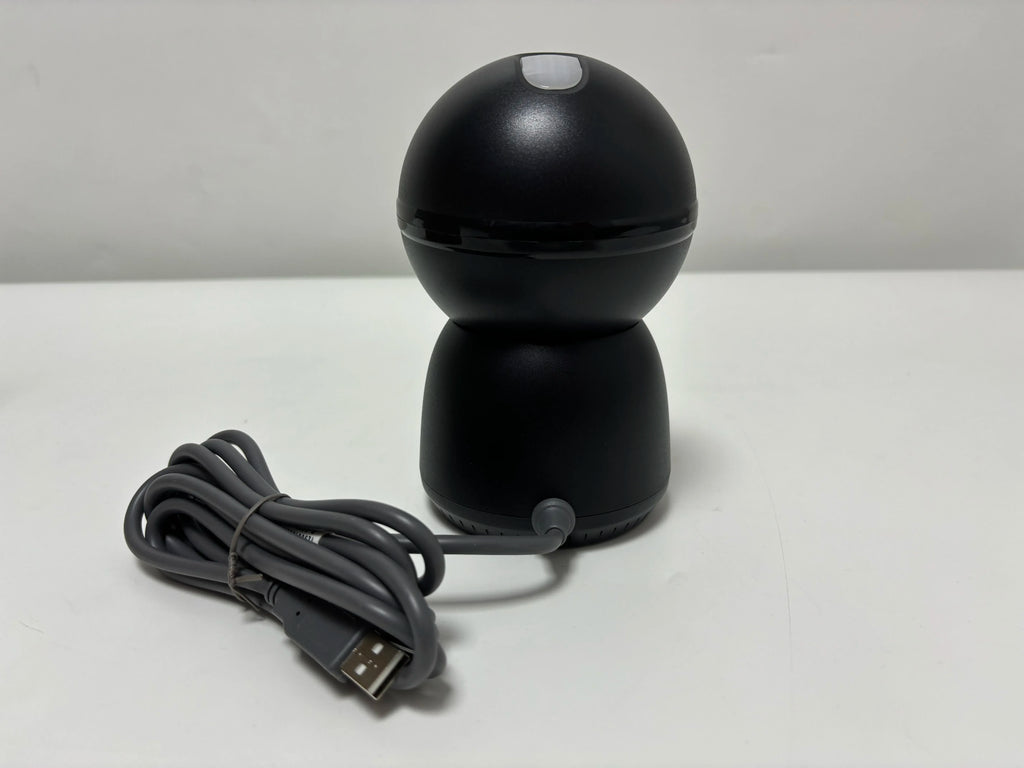

  • Black desktop barcode and QR code scanner with USB cable
  • Barcode scanner packaging box with scanner and protective plastic inside
  • Blue banner button graphic reading "CLICK HERE TO VIEW MORE"
  • Screenshot of a product page with charts and service survey layout
  • Collage of shipping carrier logos: UPS, EMS, FedEx, TNT, DHL
  • Industrial robotics station with mechanical arm and control hardware
  • Barcode scanner workstation with orange scan head and control panel
  • Hands-free barcode scanner unit with screen and protective housing on lab bench
  • Desktop barcode scanner on worktable with display, used by lab technicians
  • Barcode scanner console with blue touchscreen, buttons, and monitor arms
  • Barcode scanner console close-up with blue screen, keypad, and tool holder
  • Hands-free desktop barcode and QR code scanner, black base with green illuminated ring
  • Desktop barcode and QR code scanner set: white and black models with ring lights
  • Close-up desktop barcode and QR code scanner with orange illuminated scan ring
  • White desktop barcode and QR code scanner with orange illuminated scan ring
  • Black desktop barcode and QR code scanner with USB cable
  • Barcode scanner packaging box with scanner and protective plastic inside
  • Blue banner button graphic reading "CLICK HERE TO VIEW MORE"
  • Screenshot of a product page with charts and service survey layout
  • Collage of shipping carrier logos: UPS, EMS, FedEx, TNT, DHL
  • Industrial robotics station with mechanical arm and control hardware
  • Barcode scanner workstation with orange scan head and control panel
  • Hands-free barcode scanner unit with screen and protective housing on lab bench
  • Desktop barcode scanner on worktable with display, used by lab technicians
  • Barcode scanner console with blue touchscreen, buttons, and monitor arms
  • Barcode scanner console close-up with blue screen, keypad, and tool holder
Custom logo Desktop Barcode Scanner 1D 2D QR Code Reader USB Hands-Free Scanner Resolution 640x480 Black Orange for

Custom logo Desktop Barcode Scanner 1D 2D QR Code Reader USB Hands-Free Scanner Resolution 640x480 Black Orange for

€64,32 €96,48
Default Title

SPECIFICATIONS

Appearance color: Black and Orange

Decoding lighting: 8 red high-brightness LED light sets

Humidity: 10% ~ 90%RH

Indicator System: LED Decode Indicator,Beeper

Model Number: FRD-SN-031

Power Voltage: 4.5-5.5VDC

Product Name: FRD-SN-031 Desktop Barcode Scanner

Resolution: 640 x 480 pixes

Type: Global Exposure

Weight: About 320g

place of origin: China

FRD-SN- 031product description

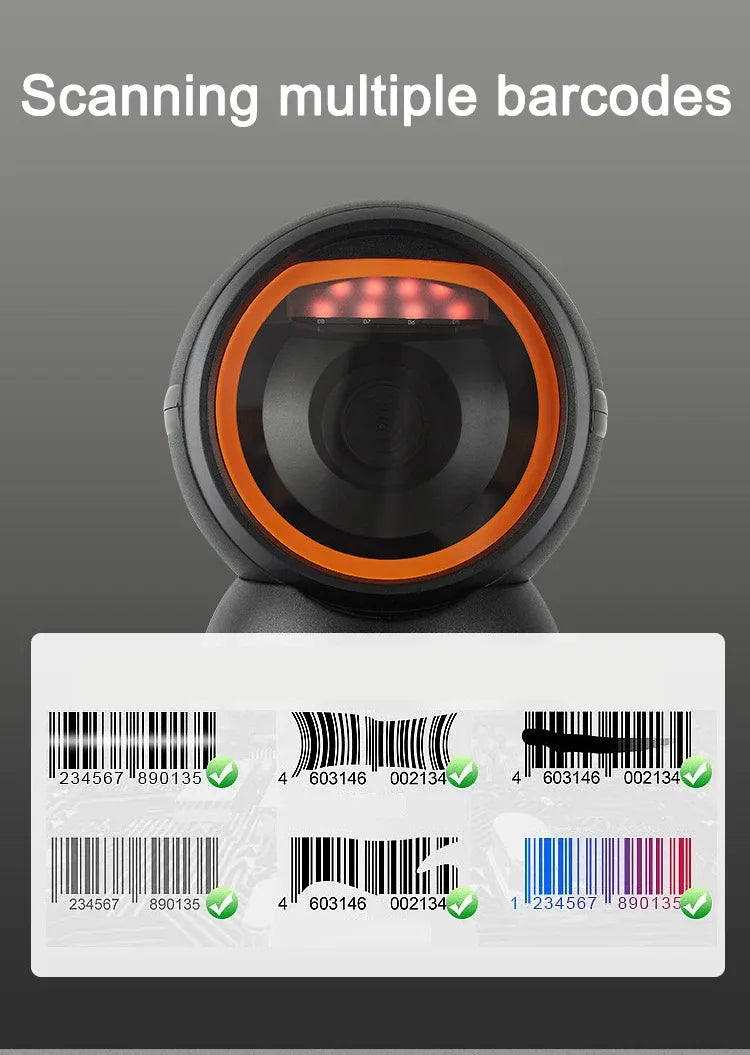

The FRD-SN-031 scanner is a desktop barcode scanning model launched for general industry applications. It has a compact and convenient appearance and does not take up too much space on the counter. It is suitable for different levels from convenience stores to large supermarkets. In terms of performance, the FRD-SN-031 desktop barcode scanner can scan most barcodes on the market, covering application industries such as retail, supermarkets, medical, municipal administration.It has long-term reliability requirements and can be used all-day. And it won’t reduce the performance of your scanning device at all.

SPECIFICATIONS
Model
FRD-SN-031
Barcode Type
1D: EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,Interleaved 2
of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey GS1 Databar,Code 11,Industrial 25, Standard 25,Plessey Matrix 2 of 5
2D: QR Code,Mrico QR, Data Matrix, PDF417,Mrico PDF417,Aztec
Barcode Min
Precision
1D: 4 mils/0.102mm;
2D: 10 mils/0.254mm;
Type
Global Exposure
Reading Distance
1D: 0mm-200mm(EAN-13-barcode density: 0.33mm/13mil)
2D: 0mm-130mm(QR code-barcode density:0.508mm/20mil)
Resolution
640 x 480 pixes
Field of View
H: 48°V: 36°
Detection Angle
slope ±60°,Deflection angle: ±60°, Rotation angle: 360°
contrast value
above 0.15/15%
Communication Method between
Scanner and
Terminal Device
USB (HI-D,COM) or RS232(Optional)
Port Choice
between
Scanner and
Terminal Device
USB(A type) or D-Sub 9 Female(Optional)
Indicator System
LED Decode Indicator,Beeper
Ambient Lighting
0 ~ 100000 lux(fluorescent lamp)
Weight
About 320g
Temperature
Working Temperature: 0℃-50 ℃
Humidity
10%-90%RH No condensation
Fall resistance

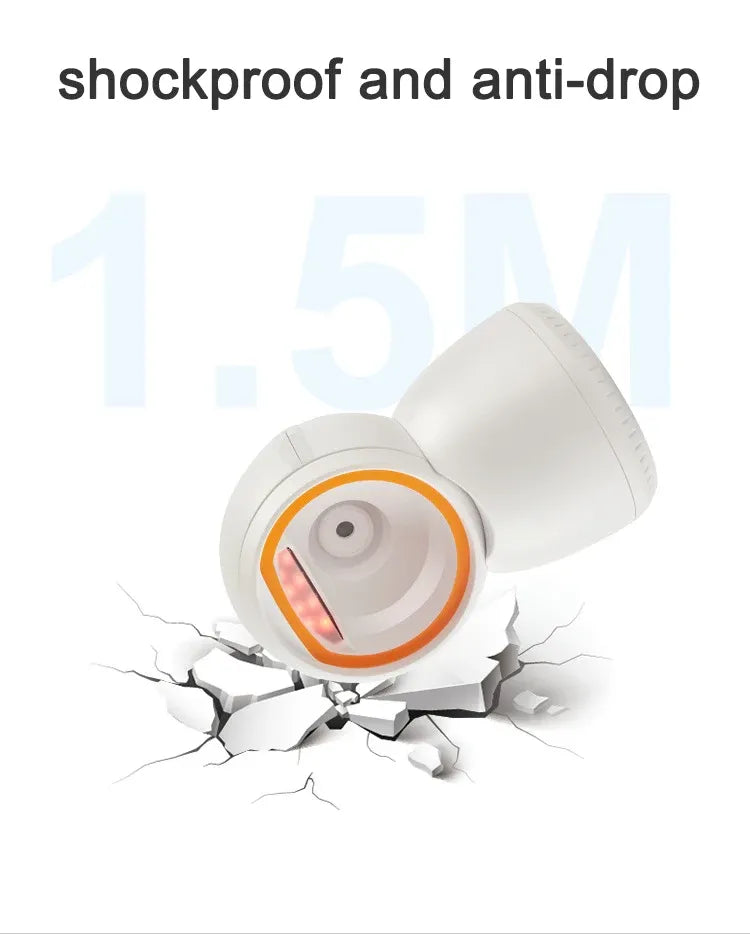

withstand multiple drops from 1.5 meters to concrete ground
Consumption
Current
Reading 180mA
Stand by:116mA
Power Voltage
4.5-5.5VDC
Decoding
lighting
8 red high-brightness LED light sets
Dimension
98mm*95mm*153mm
Appearance
color
Black and Orange
Certifications
Worldwide Comments

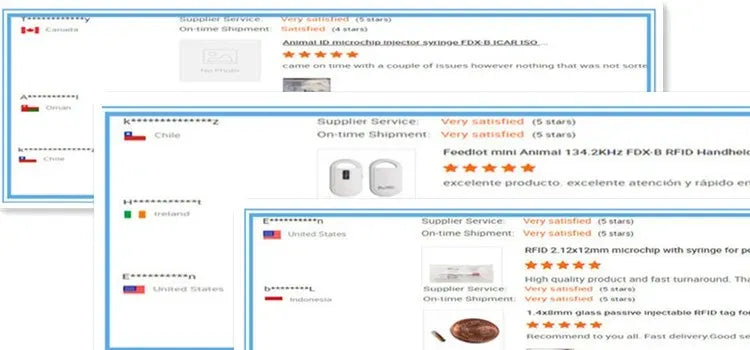

Real comments from our customer as below link:

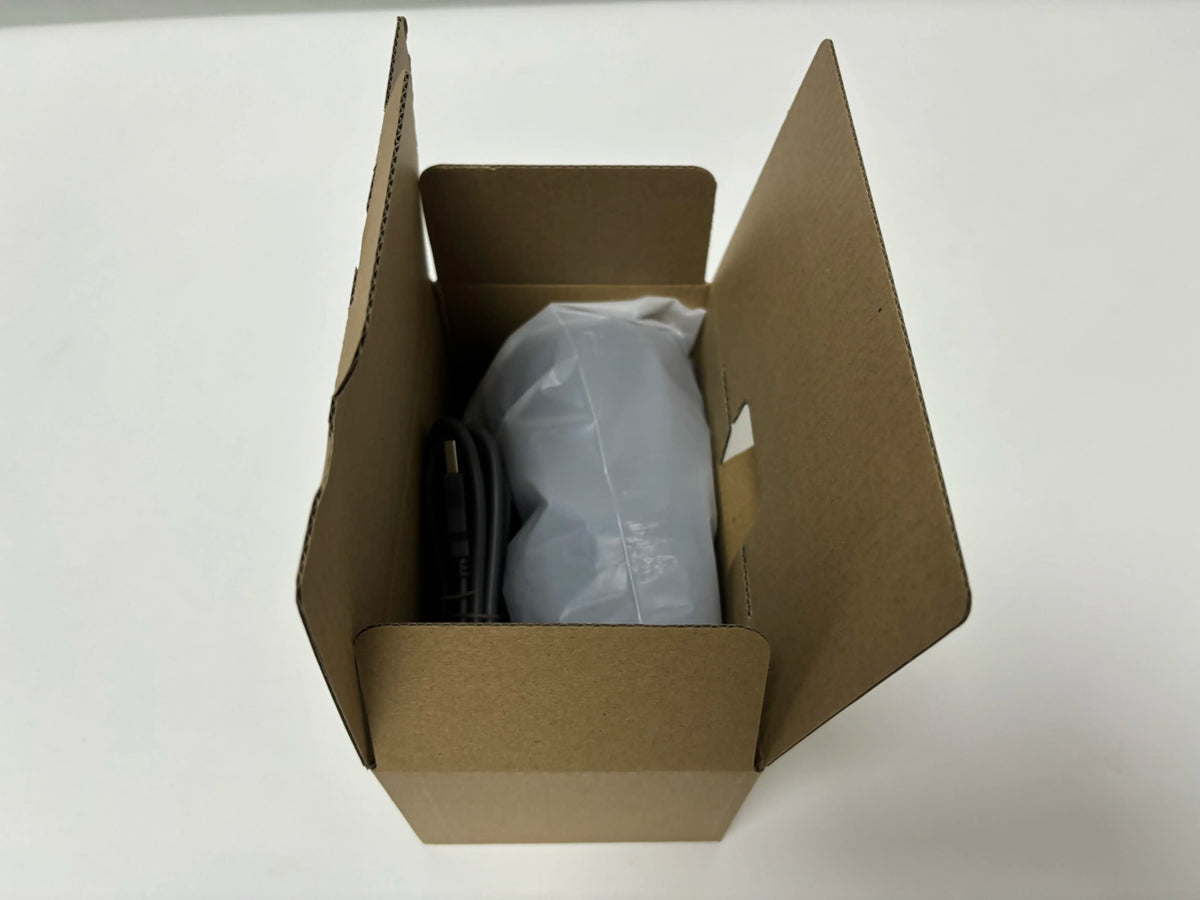

Packing & Delivery

Our Logistics Partners:

1.Fast: FEDEX,DHL,UPS,TNT express.(It takes 3-7 days, depending on your country)
2.Economic:EMS,Epacket, China post etc.(it takes 10-35days, depending on your country)
We can get long-term contracted prices to ensure the most economic prices for you.

Our Company

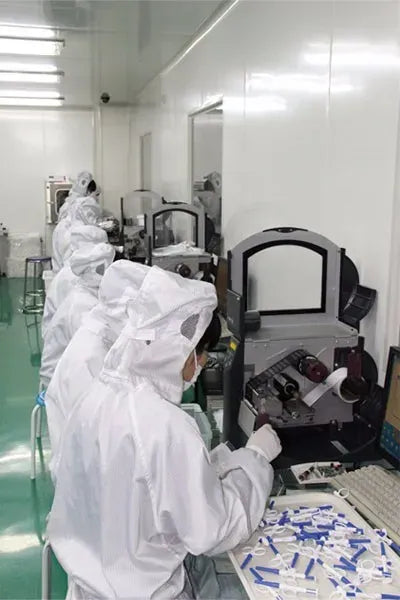

Workshop

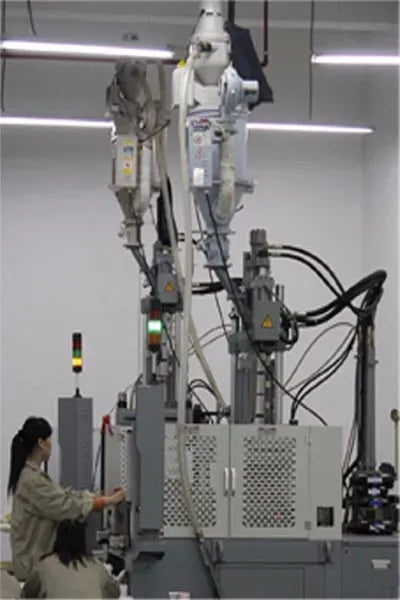

Injection Molding

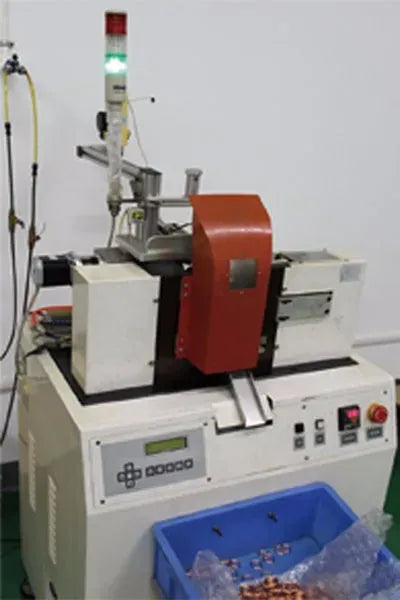

Coil Wiring

Chip Programming

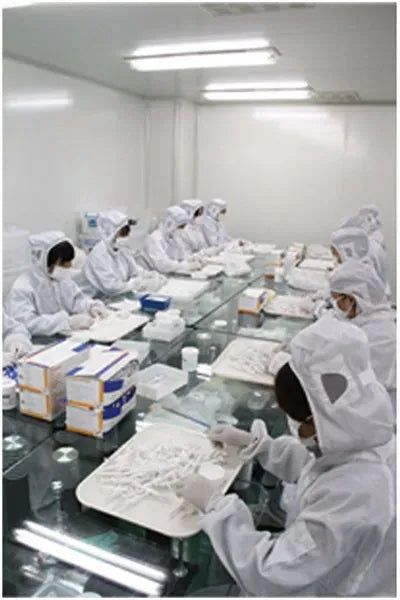

Injector Assembly

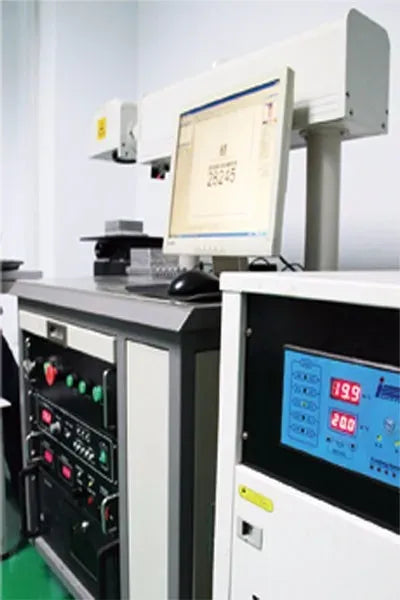

Laser Printing

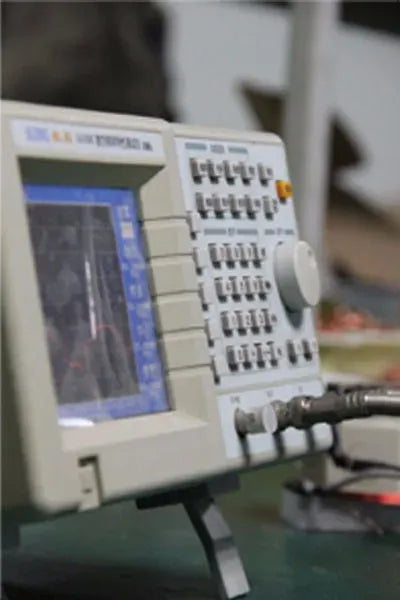

Q-value and Frequency Testing
