SPECIFICATIONS

Applicable Pipe Size: 3/16", 1/4", 5/16", 3/8", 4.75mm, 6mm

Application: Automotive Brake Line, Fuel Line, Hydraulic Tubing Repair

Brand Name: HTL

Capacity: -

Flare Angle: 37 Degree & 45 Degree

Flare Type: Single Flare, Double Flare, Bubble Flare

High-concerned chemical: None

Material: High Carbon Steel

Model Number: Y1113

Number of Pieces: 1set

Origin: Mainland China

weight: 5.6kg

• 37° & 45° dual-angle flaring tool creates single/double/bubble flares for stainless steel, steel & soft metal tubing.

• High precision forming prevents brake & hydraulic line leakage, great for auto repairmen and DIY maintenance.

⚠️ Must be mounted on a bench vise for use; handheld operation is not supported.

Wide Compatibility

• Fits tubing: 3/16", 1/4", 5/16", 3/8", 4.75mm, 6mm.

• Ideal for car brake lines, transmission cooling lines, fuel pipelines and other hydraulic tubes.

Operation Steps for Die Head:

• Single Flare → OP.0 → OP.2

• Bubble Flare → OP.0 → OP.1

• Double Flare → OP.0 → OP.1 → OP.2

Durable Quality

• Made of high-strength steel with heat treatment and anti-oxidation treatment.

• Hard, wear-resistant and long-lasting. Strict testing ensures stable accuracy for standard flaring.

Simple Operation

• Fix the tool tightly on a vise with flat die installed.

• Choose matched split die, place tubing inside the die.

• Align OP.0 to pre-press the pipe opening.

• Use OP.1 for primary flaring, then OP.2 to finish molding.

Usage Tips

• Remove burrs and metal scraps inside & outside the tube before flaring.

• Apply anti-seize grease on tube cutting end and a little oil on OP.1 & OP.2 cones.

• Install pipe fittings with flared end outward after processing.

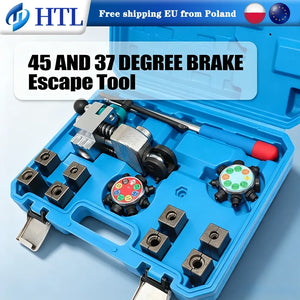

Package Contents

• 1 × Vise-type flaring tool main body

• 1 × 37° rotary die head

• 1 × 45° rotary die head

• 1 × Lever handle

• 5 × 45° split dies: 3/16"(4.75mm), 1/4"(6.35mm), 5/16"(8mm), 3/8"(9.5mm), 6mm

• 4 × 37° split dies: 3/16"(4.75mm), 1/4"(6.35mm), 5/16"(8mm), 3/8"(9.5mm)

• 1 × 3/16'' 37° die head replacement drill bit

• 1 × Portable storage case
