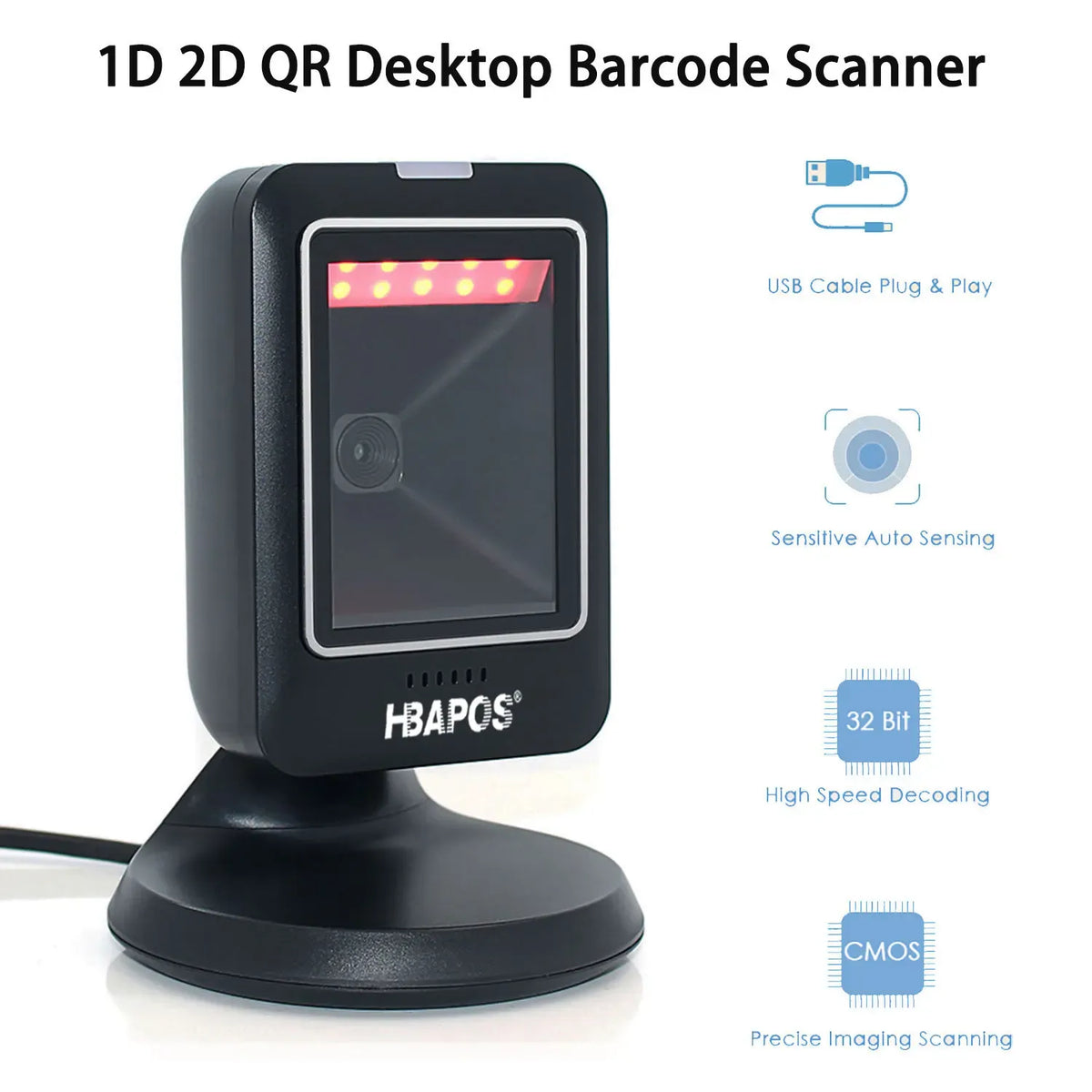

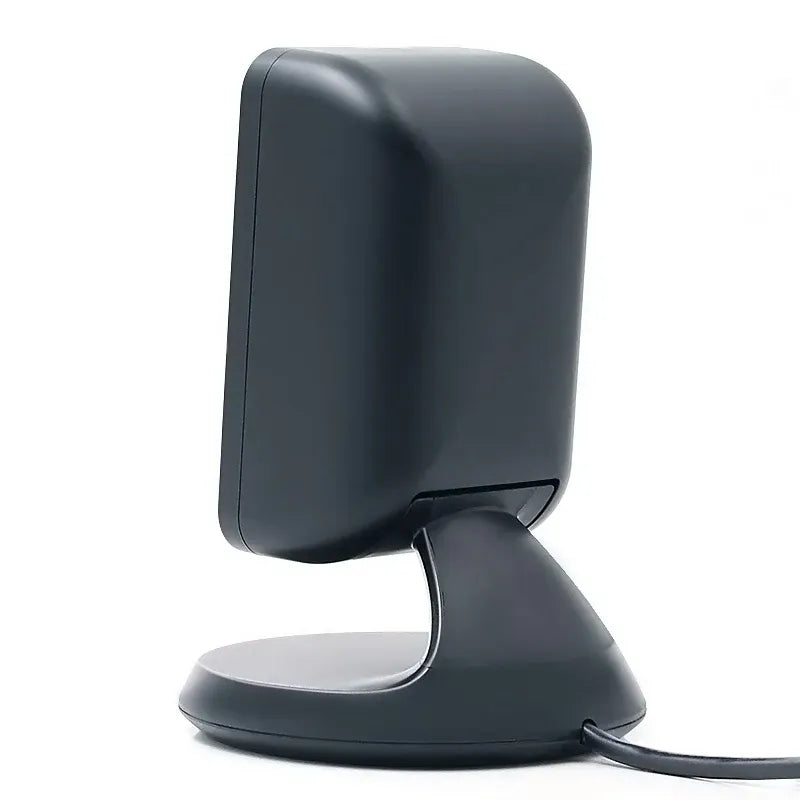

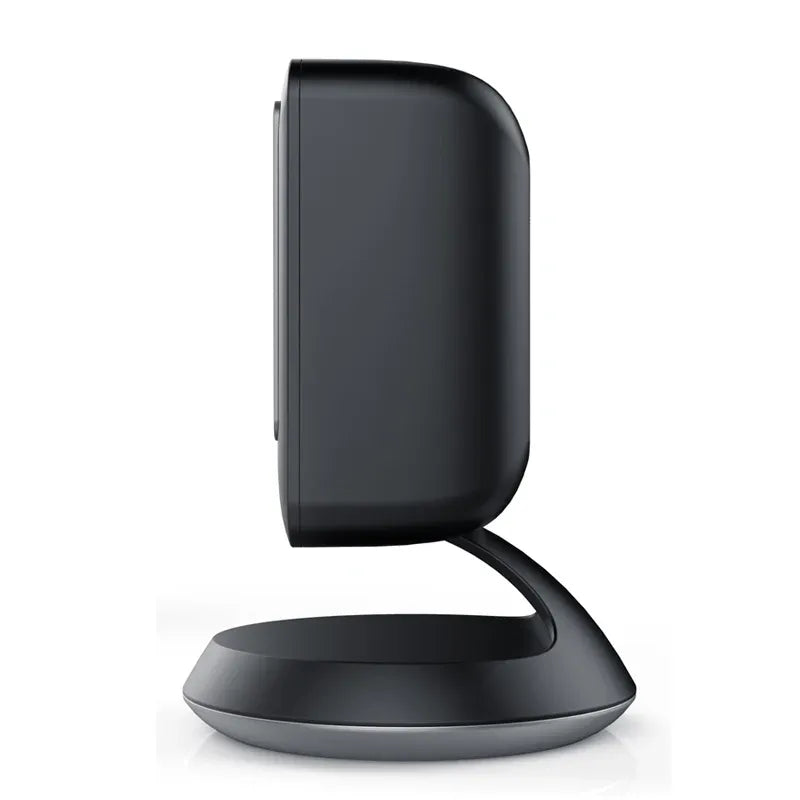

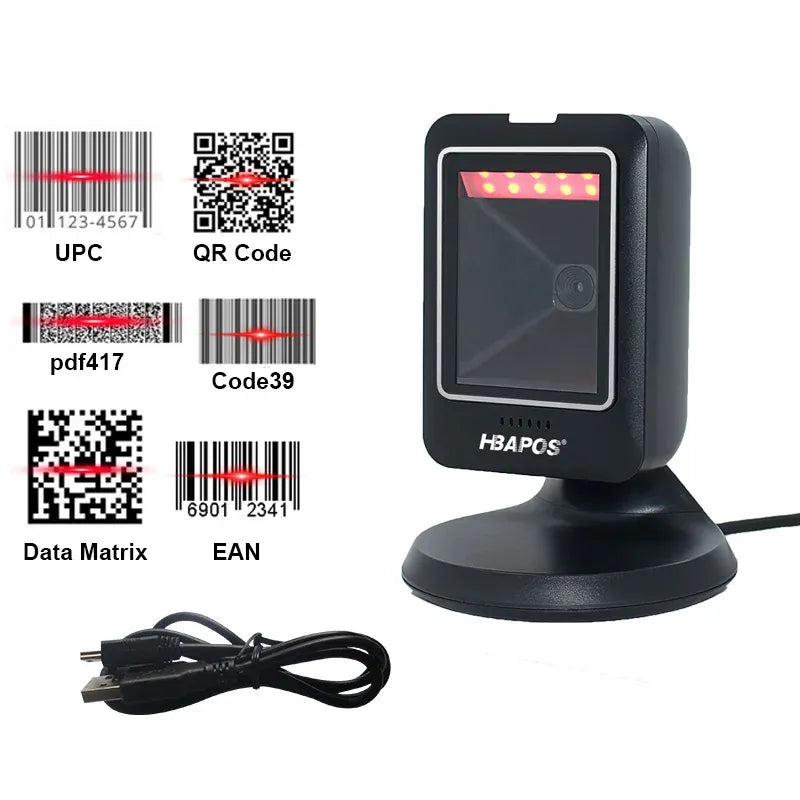

Bar code scanner Omni Barcode Scanner 1D/2D Bar code Scanner Ticketing QR Code Scanner Desktop Auto Sense Data Matrix Reader

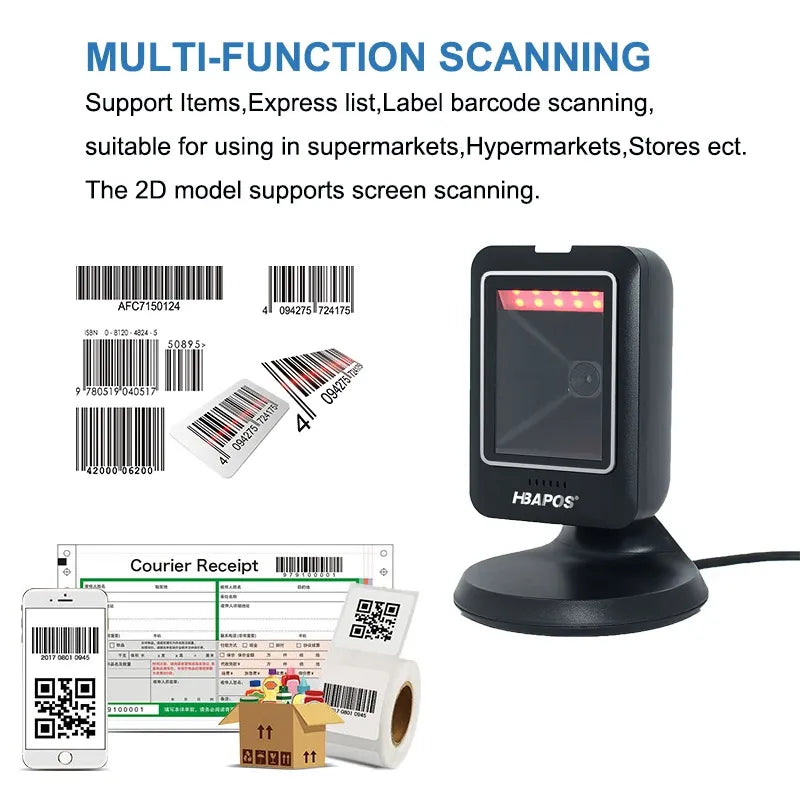

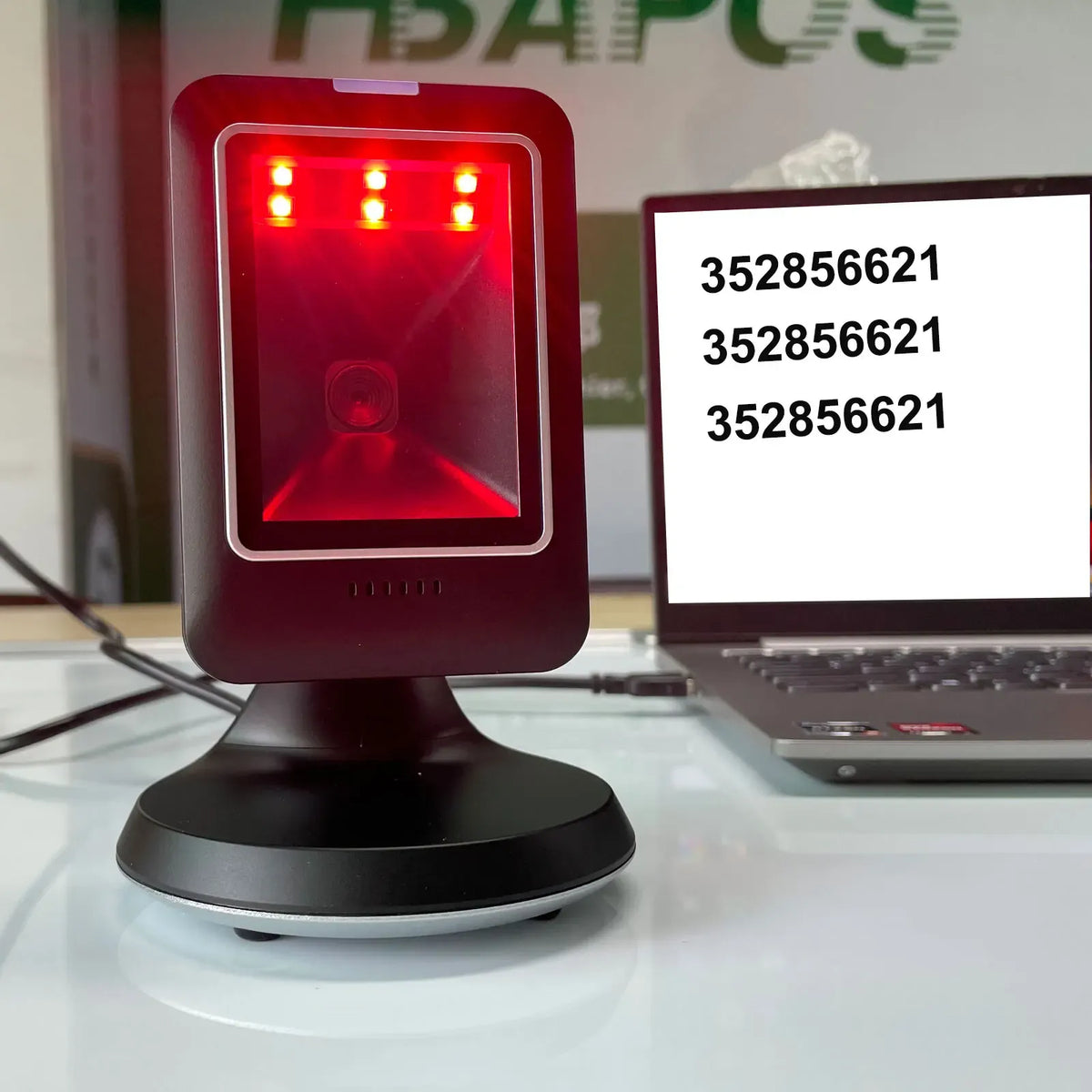

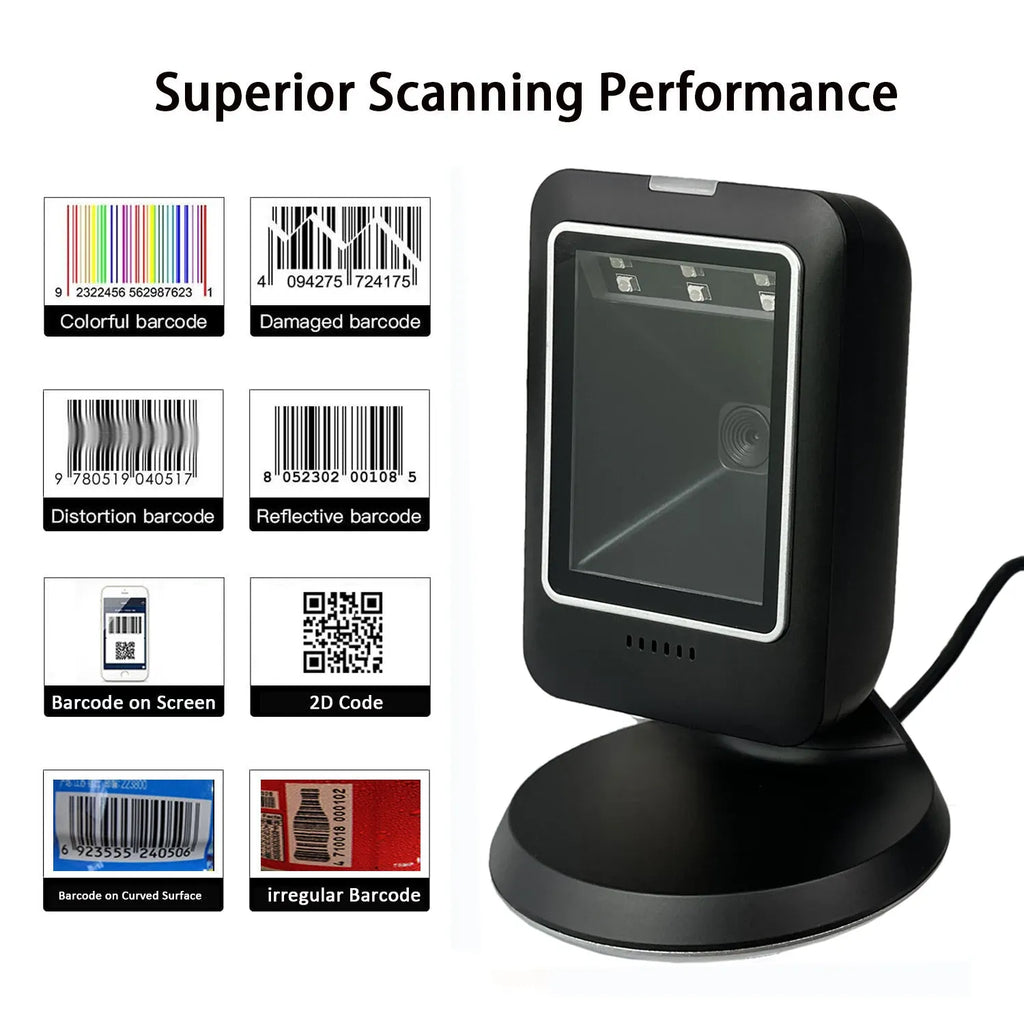

Screen decoding: can directly decode barcodes on mobile phones and computer screens

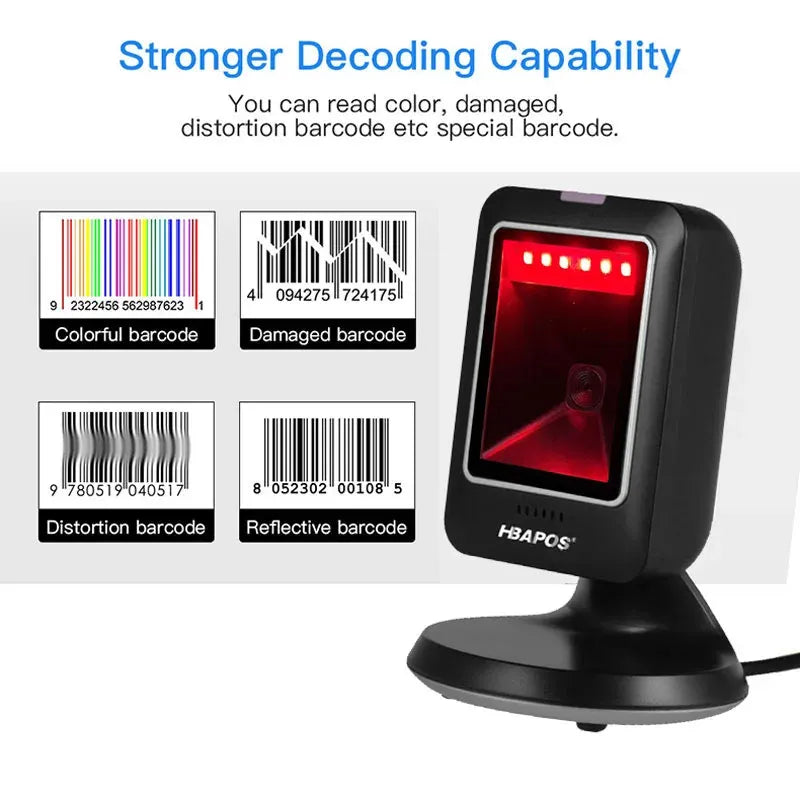

Paper decoding: using NTFAST decoding algorithm to interpret all kinds of bar codes accurately and at high speed
Decoding ability: mobile phone and paper can be scanned (lights do not flicker)
Other functions: support direct Chinese under Linux

Voltage：5V
Stand-by Current：125mA
Starting Current：193mA
Work Current：300mA
Performance Characteristics
Image (Pixels)：CMOS 640 pixels (H) x 480 pixels (V)

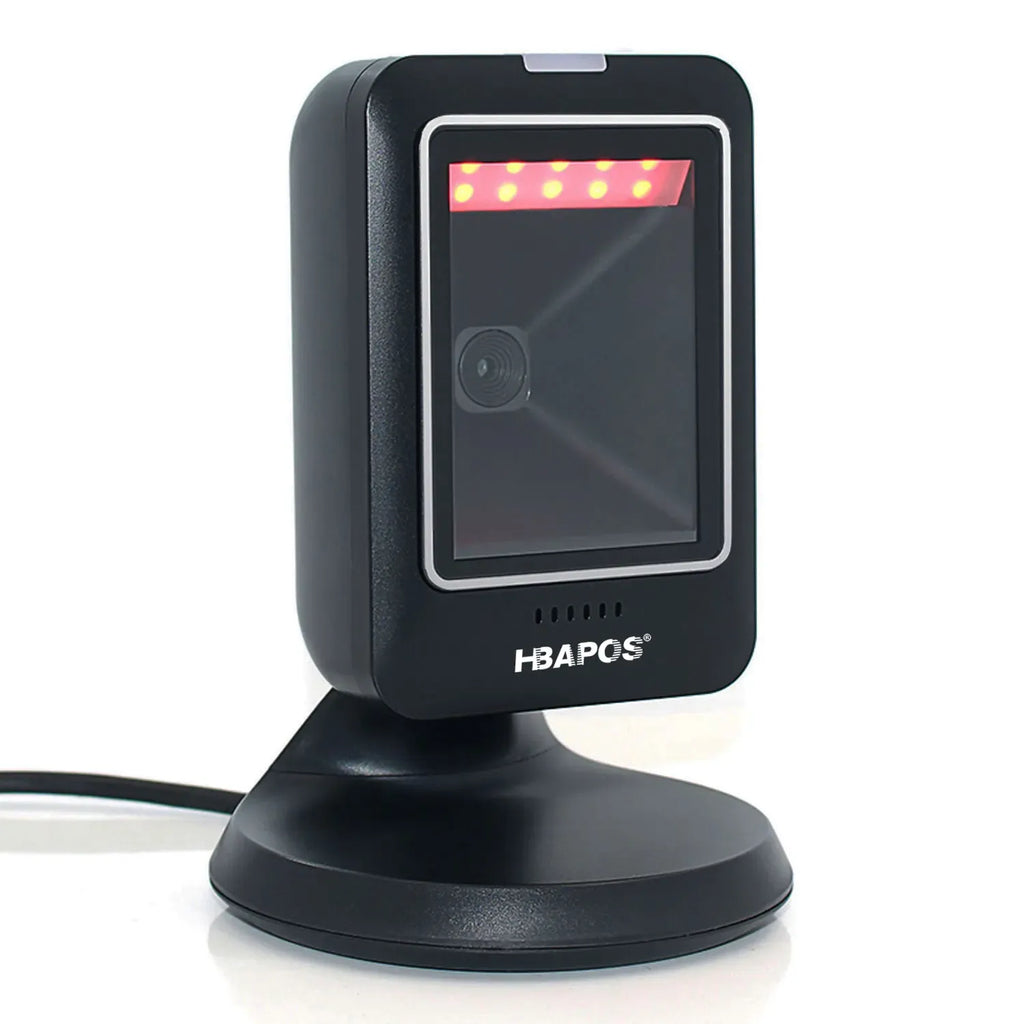

Light Source： Red color LED
Field of View：39°(H) X29°(V)
Roll / Pitch / Yaw：360°, ±65° , ±65°
Print Contrast：20% minimum reflective difference
Interfaces Supported：USB
Resolution：≥3mil

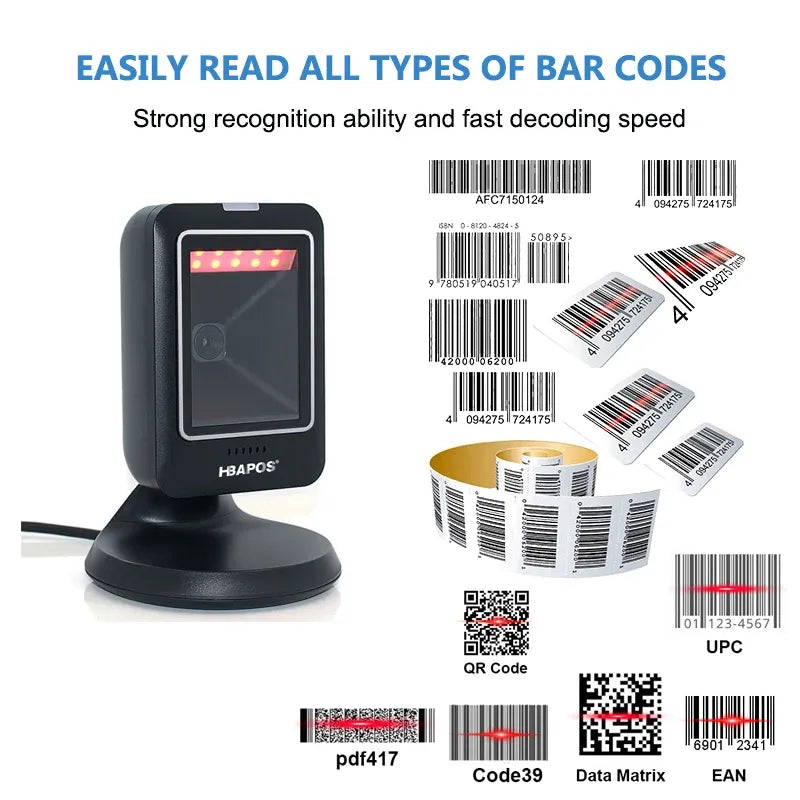

Symbology Decode Capability
1D: Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post.
2D: DOT Code, Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode、Aztec、HANXIN.
Standard code: Codabar、Code39、Interleaved2of5、NEC2of5、Code93、Code128、GS1-128、UPC-A、UPC-E0、EAN/JAN-13、EAN/JAN-8、GS1-DataBar、PDF417、QR、DM、Aztec
User Environment
Operating Temperature：-20°C to 60°C
Storage Temperature：-30°C to 70°C
Humidity：5% to 95% relative hum idity,non-condensing
Shock Specifications：Designed to withstand 1.2m(5’) drops
Ambient Light Immunity：0-100,000 Lux.
Decode Ranges
Code39(5mil)：0-9cm
Code39(13mil)：0-17.5cm
UPC-A(13mil)：1-17cm
Performance may be impacted by bar code quality and environmental conditions
