SPECIFICATIONS

APP: Tuya Smart App

Brand Name: The original brand

Camera type: WIFI IP66 Outdoor Bullet Camera

Certification: CE FCC ROHS

Customized support: Online Technical Support,Customized Logo,OEM, ODM

Data Storage Options: Full HD,NVR

Feature: Mobile Surveillance

Function: Waterproof / Weatherproof,Wide Angle,Night Vision

IR Distance: 20m

Lens: 3.6mm

Model Number: TY-S2-104-01A

NVR: 4ch(default not with hard disk)

Network: Wi-Fi

Place of Origin: Shenzhen

Product name: Security Camera System Wireless

Resolution: 1920 x 1080,1920*1080P

Sensor: CMOS

Special Features: Night Vision,Motion Detection,Waterproof / Weatherproof,Vandal-Proof

Video Compression Format: H.265+

Warranty: 1 Year

Waterproof: IP 66

Products Description

Key Features

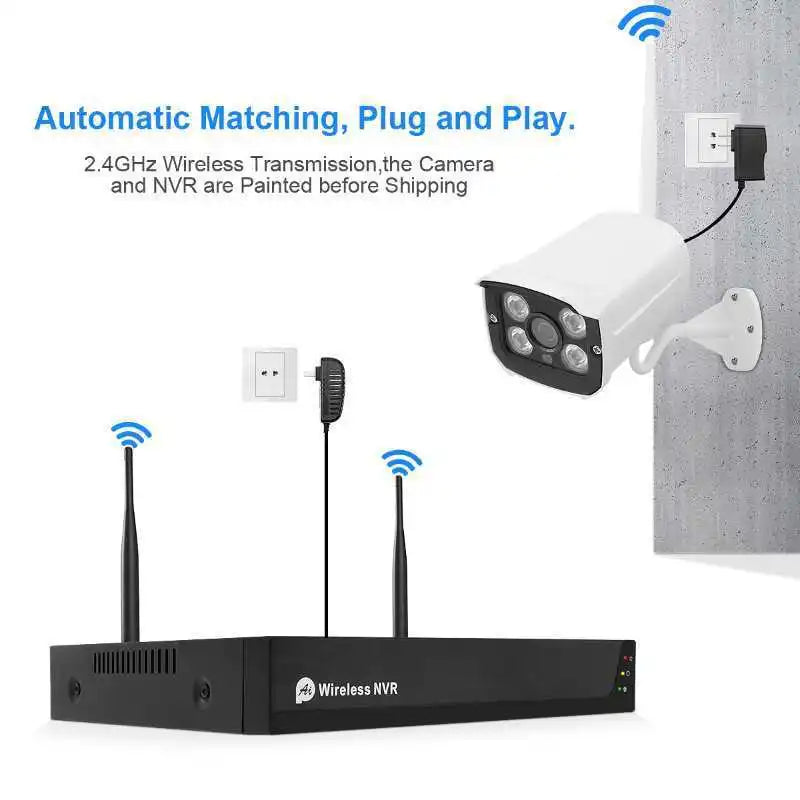

* Automatic Wireless Connection, plug and play

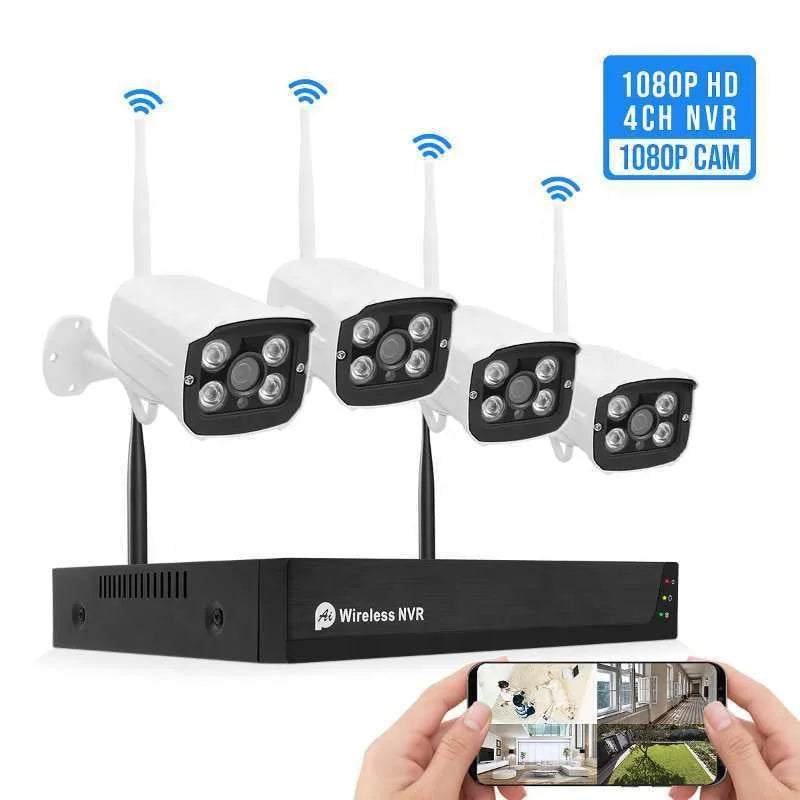

* 1080P H.265+ wireless network recorder and 4 1080P wireless cameras
* In open space without interfere transmission distance up to 500 meters
* Insert professional surveillance Wireless board, with stronger anti-interfere ability
* One-push to configure
* Support alarm push motion detection and alarm output(voice/email/ FTP etc.)
* AI Human detection
* Support Android/Apple cell phone or pad by LAN & WAN visit and control
* P2P IP PRO, fluent and fast remote access
* Suit to homes, offices, small businesses & retail stores
* Easy to Install, User-Friendly Operation

2.0Mp Wireless IP Camera
Image sensor	1/2.9" 2.0M Pixel CMOS
Lens	4 mm, horizontal field of view: 75°
Lens Mount	M12
Min. Illumination	Color：0.01Lux@(F1.2，AGC ON) B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON)
S / N ratio	≥39dB
Shutter speed	1/5 - 1/20,000s，
Day & Night	Day / Night / External control（IR Cut Filter）
AGC	Auto / Manual
White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Wide dynamic range	Digtal Wide dynamic range
Digital noise Reduction	2DNR,3DNR
Video Compression	H.265 Main Profile/H.264 Main Profile/M-JPEG
Audio Compression	G711，PCM
Max.Image Resolution	1920x1080@15fps
Image Resolution	Main stream （1920x1080、1280×960、1280×720、720×576、640×480）
		sub-stream （640×480、352×288、320×240、176×144）
Bitrate	CBR/VBR, bitrate：32Kbps~10Mbps variable
Motion detect	Support
AI	Human detection
Privacy Zone Masking	4 privacy masks programmable
P2P	Android、IOS
Protocols	TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P
Onvif	Non- Support
Wireless	Frequency:2.4G
		Transmission distance :More than 800 meters with no obstacle， More than 30 meters if penetrate the wall， The actual transmission distance according to the situation
Power	12VDC@1A
Dimensions	38x38x5mm
Working Temperature	-30°C ~60°C, Humidity≤90%RH(Unsupport-condensing)

4CH Wireless 1080P HD-NVR
System	Operating System	Embedded Linux
Video	Video compression	H.265 High Profile/ H.264 Main Profile
		Video output	720P60,XGA,1080P60
		Video input(IP)	4*1080P/4*960P/4*720P
Audio	Audio compression	G.711
		intercom	None
Record & playback	Recording mode	Manual/Alarm/Video Detection/Continuous
		Local Playback	1*1080P
Storage & Backup	Record Storage	network
		Backup mode	Network backup, USB hard disk
Network Control	Protocol	TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P
Wireless	Frequency	2.4G
		Antenna Structure	2 × 2MIMO
		Distance	More than 800 meters with no obstacle，more than 30 meters if penetrate the wall， the actual transmission distance according to the situation
Interface	Video output	1ch HDMI, 1ch VGA output
		Audio I/O	None
		Alarm I/O	None
		Network interface	1*RJ45 10M/100M Adaptive Ethernet port
		USB	2*USB 2.0 port
		Hard disk	1 SATA(Up to 4TB)
Other	Power supply	DC +12V /2A
		Power Consumption	5W（Without HDD）
		Work environment	Temperature:-10℃－＋55℃, Humidity:10%-90%RH
