SPECIFICATIONS

Brand Name: NONE

Certification: ce,FCC,ROHS,CE,RoHs

Choice: yes

Color Temp(K): RGB

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: Yes

Item Type: Strip

LED Chip Model: SMD5050

LEDs Number/M: 60LED

Luminous Flux: 249-2000

Nominal Voltage: 5V/12V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: light

Power Source: DC

Specifications (light beads / m): 60

Strip type: SMD

Voltage: 5V

Waterproof: No

semi_Choice: yes

**Please Note:**

1. The price only includes the LED strip. Power supplies and Pixels controllers are not included.

2. For LED LIGHT use the corresponding 5V/12V power supply and pixel controller based on the voltage of the LED strip.

3. There are solder joints every 0.5 meters, which is normal in electronic products and not a quality issue.

4. The LED strip can be cut between each LED to customize the length. Avoid sharp bends.

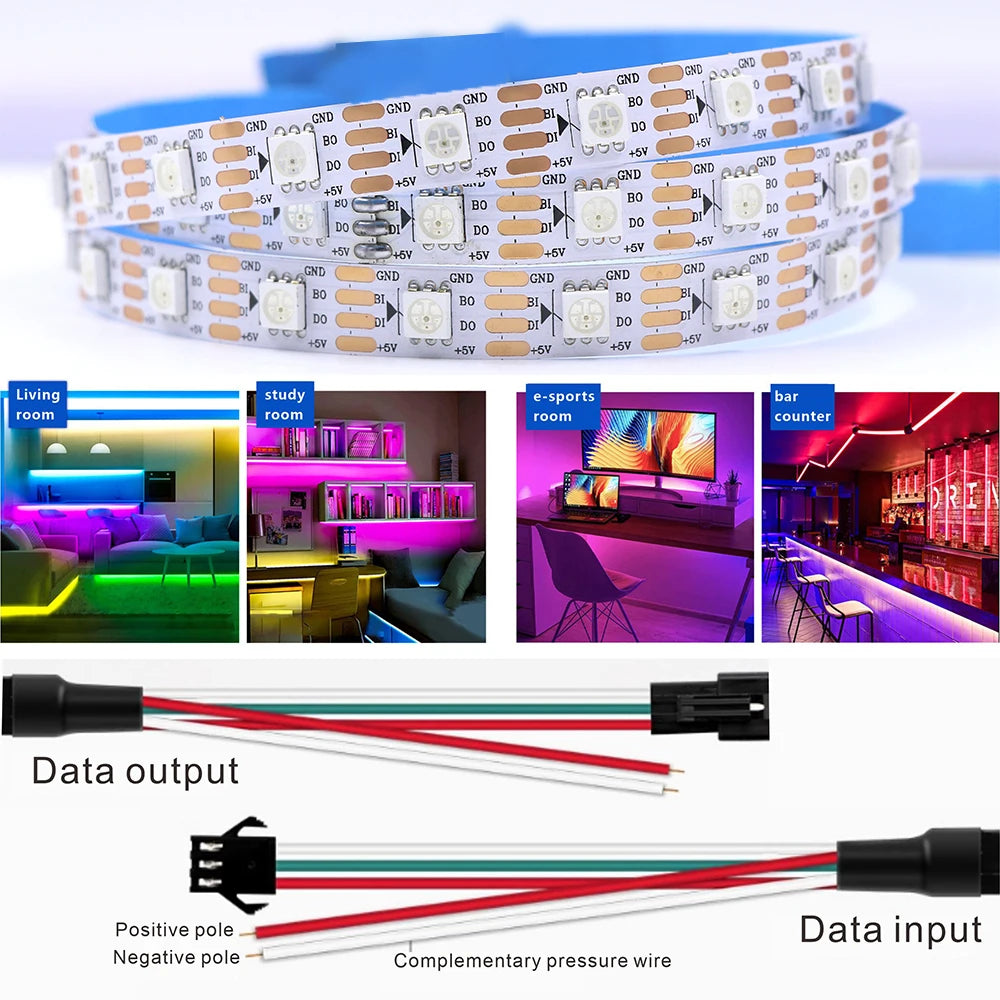

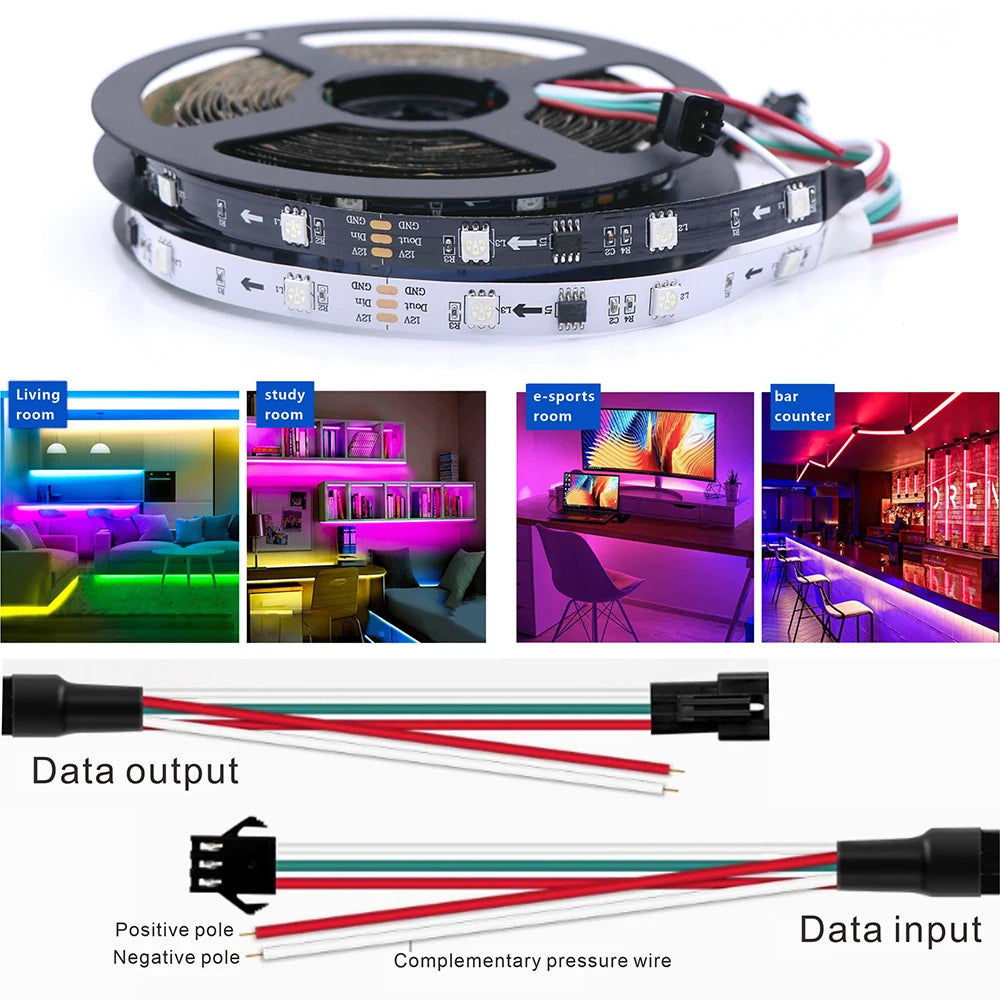

5. The 3-pin SM connector of the LED strip includes: Red: VCC, White: GND, Green: DATA.

6. The PCB of the LED strip has adhesive tape on the back (except for IP67). Please ensure the installation surface is smooth, clean, and dry.

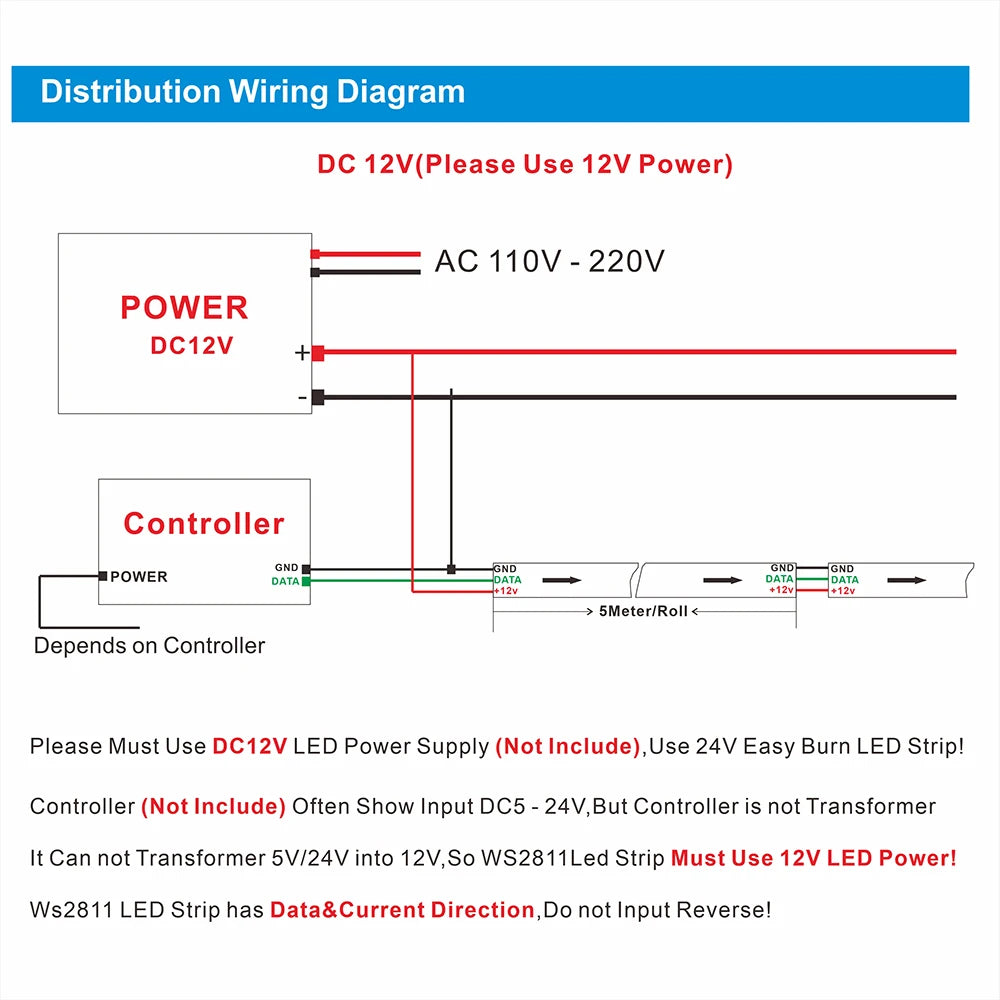

7. To extend the LED strip wiring, add power to the 2-pin power cords at both ends to reduce voltage drop.

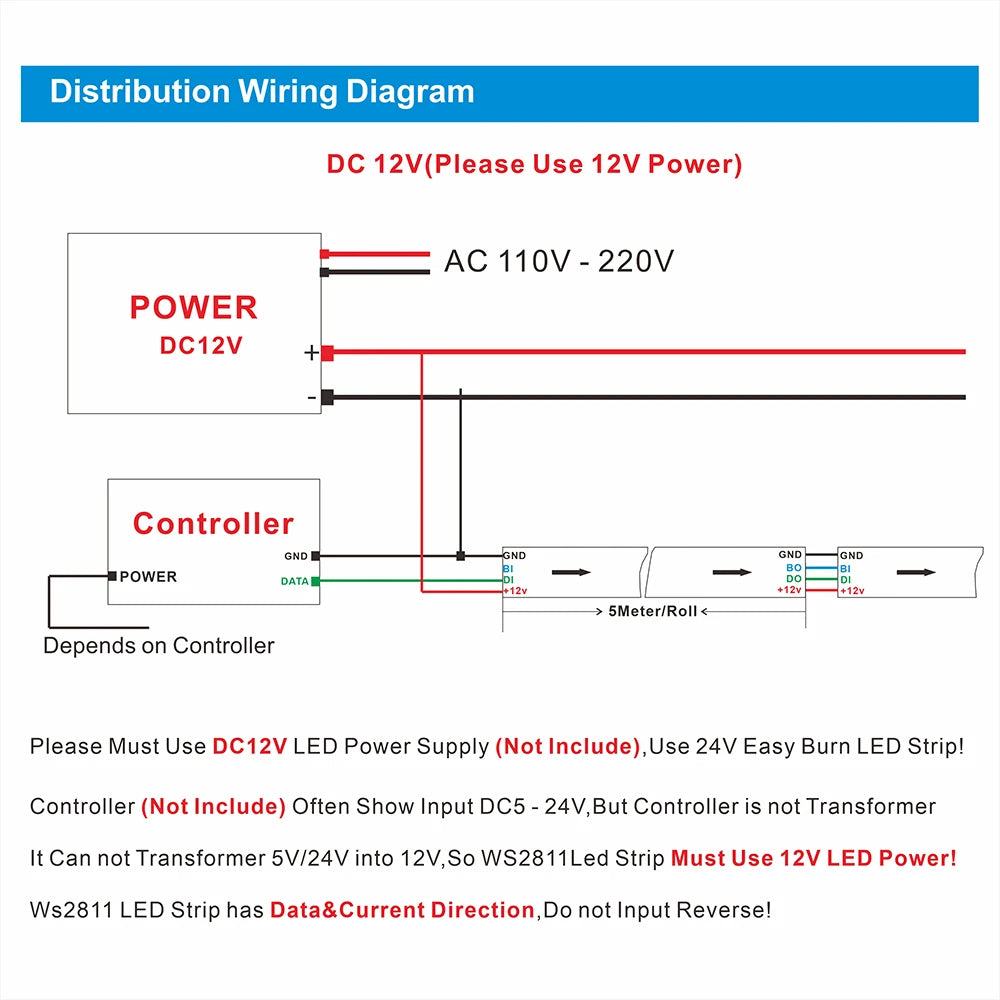

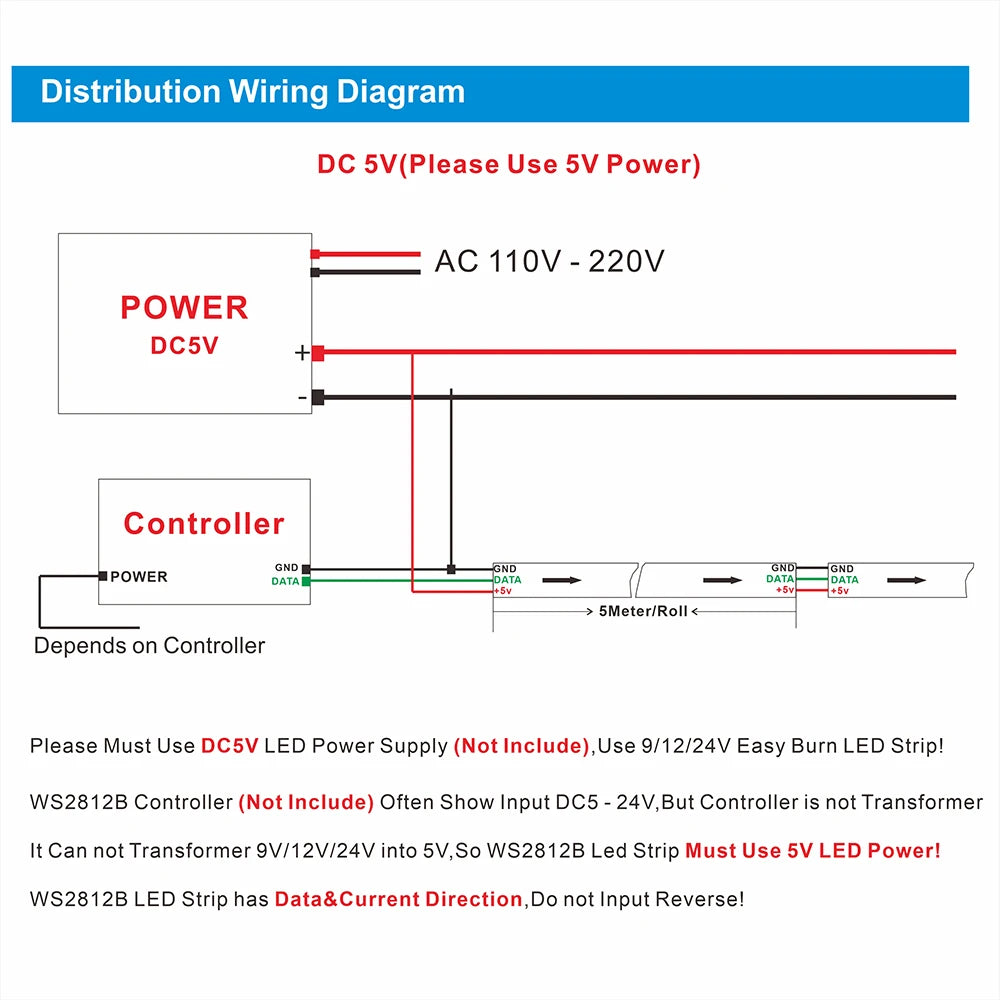

**How to Choose an LED Power Supply and Pixels Controller?**

First, calculate the power of the entire LED strip.

Each LED chip is approximately 0.3W. For example, if you buy a 5-meter strip with 60 LEDs per meter (300 LEDs in total), the total power is 0.3W * 300 = 90W.

Then, select a suitable LED power supply.

If this LED strip supports DC5V power supply, then 90W / 5V = 18A (at least 18A or higher).

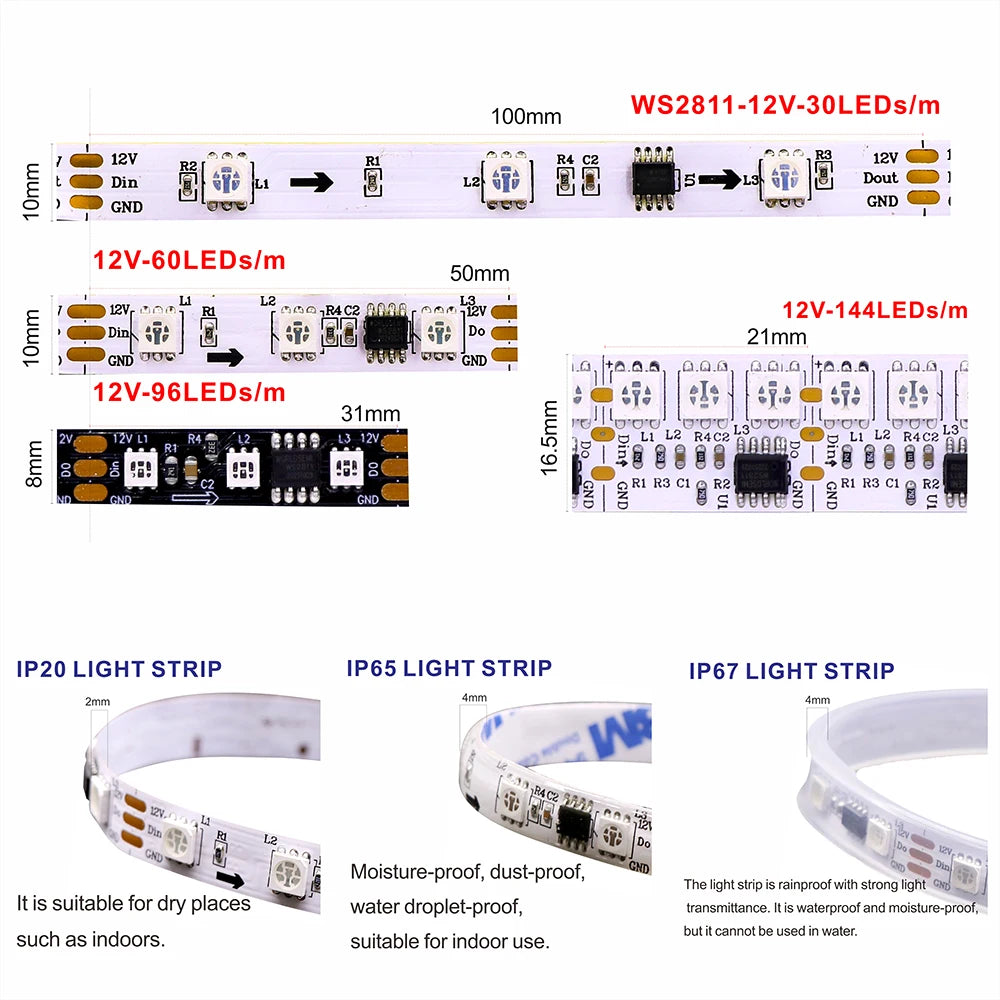

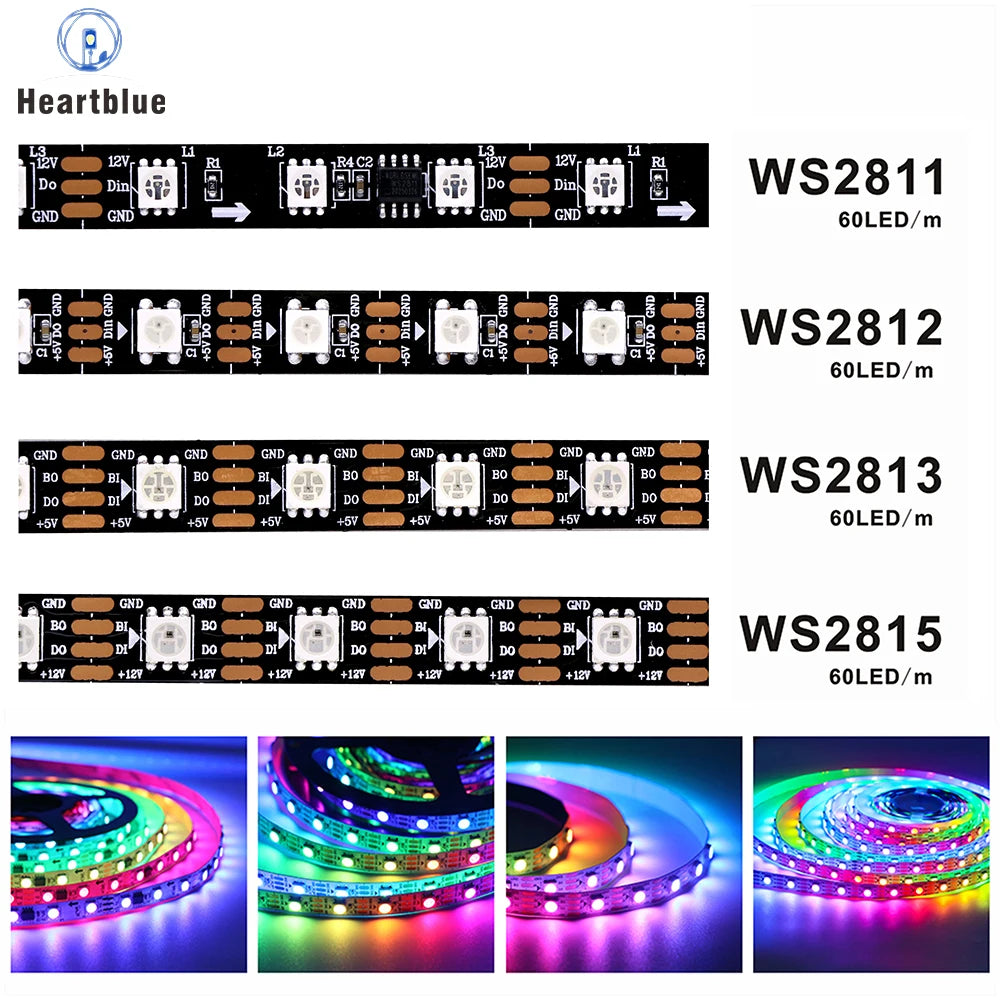

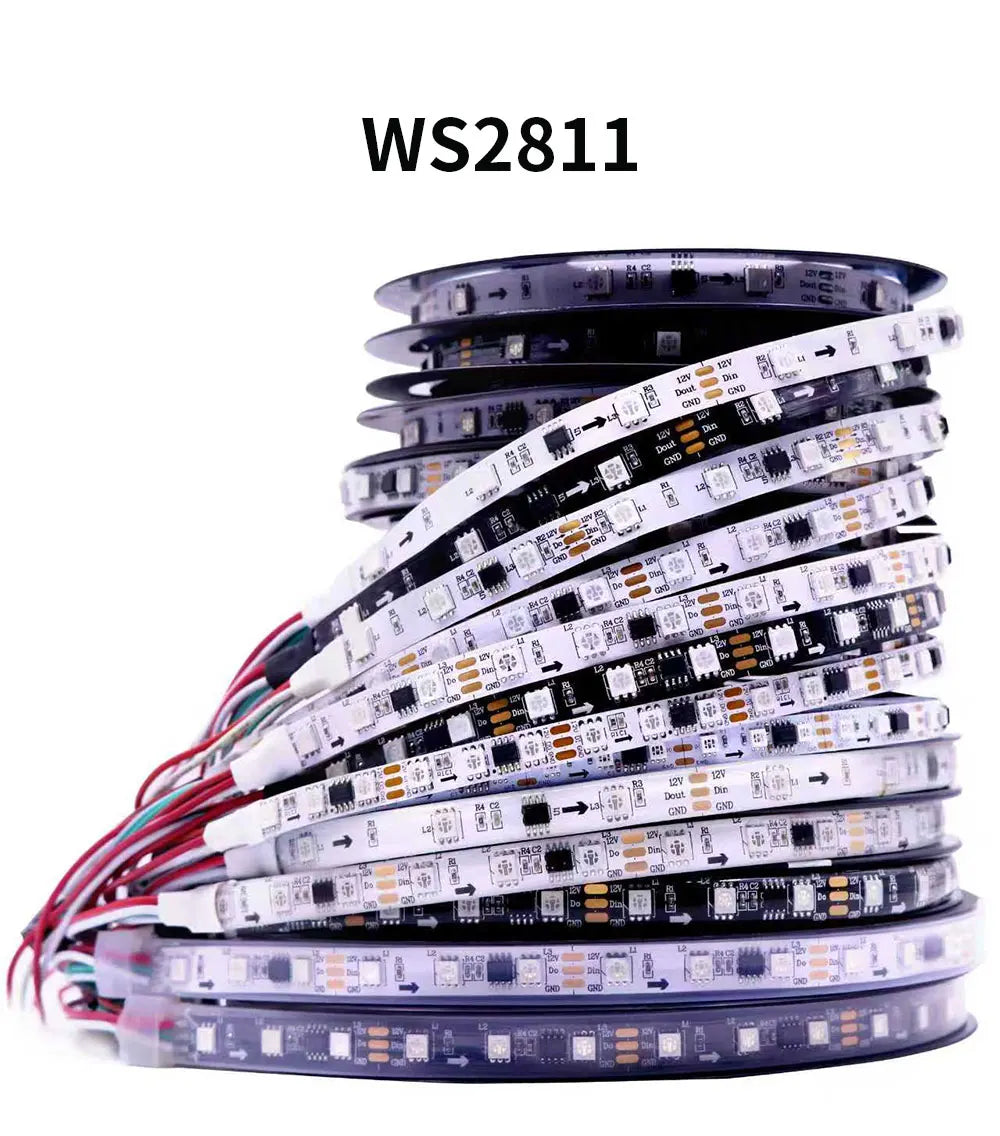

### DC12V WS2811 LED Strip:

(1) Operating Voltage: DC12V

(2) LED Source: SMD 5050 RGB

(3) Number of LEDs: 30led/m; 48leds/m; 60led/m; 84leds/M; 96 leds/M

(4) Number of ICs: 10/16/20/24/32

(5) Power: 7.5/12/14.5/21/24W/M

(6) Gray Scale: 256 / Colorful

(7) Cuttable: 3 LEDs per cut (similar to WS2811, 1 IC controls 3 LEDs)

(8) Beam Angle: 120°

(9) Color Modes: 133 Patterns & 100 Speeds

(10) IP Rating: IP30 Non-waterproof / IP65/67 Waterproof

(11) Dimensions: 5000 x 10 x 2.4 mm

(12) Packaging: Anti-static bag, 3M tape on the back for IP30/IP65 (no 3M tape for IP67)

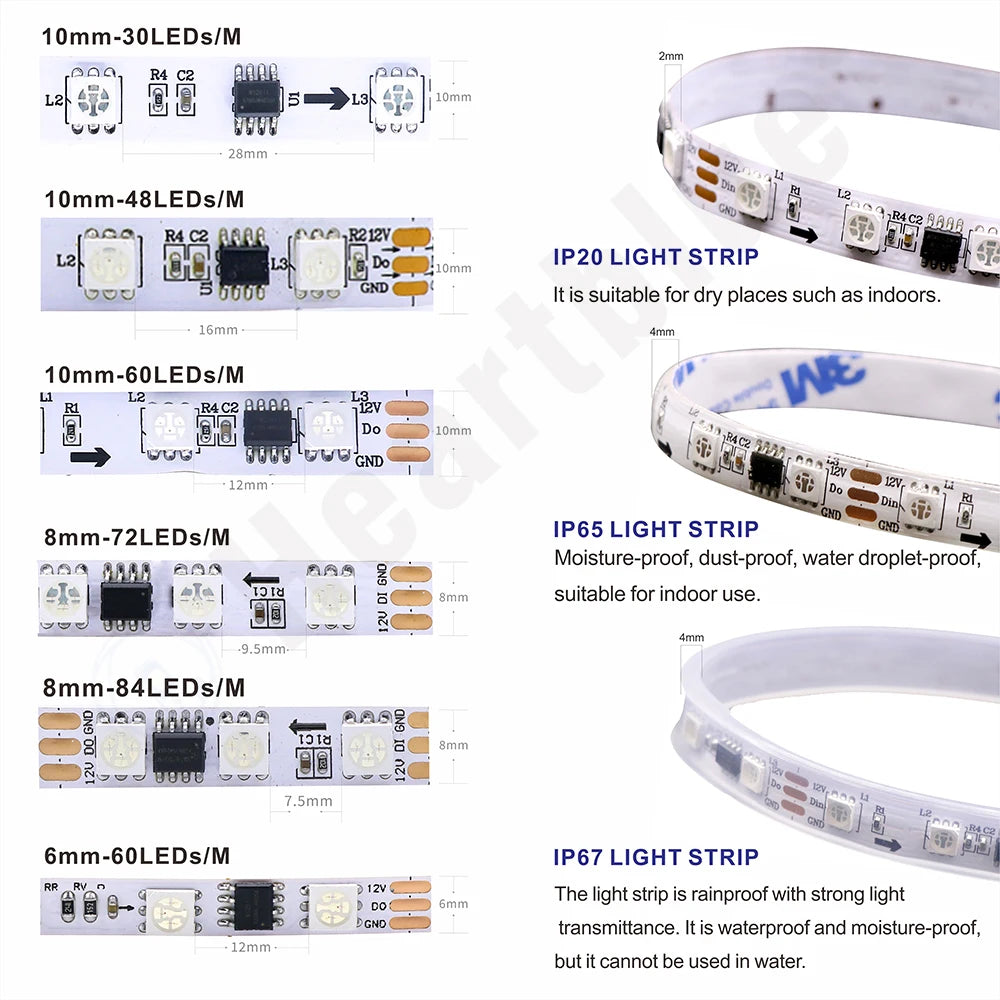

(13) FPC Width:

- 30 LED/M - 10 mm

- 48LEDs/M - 10 mm

- 60 LED/M - 10mm

- 84 LED/M - 8mm

- 96 LED/M - 8mm

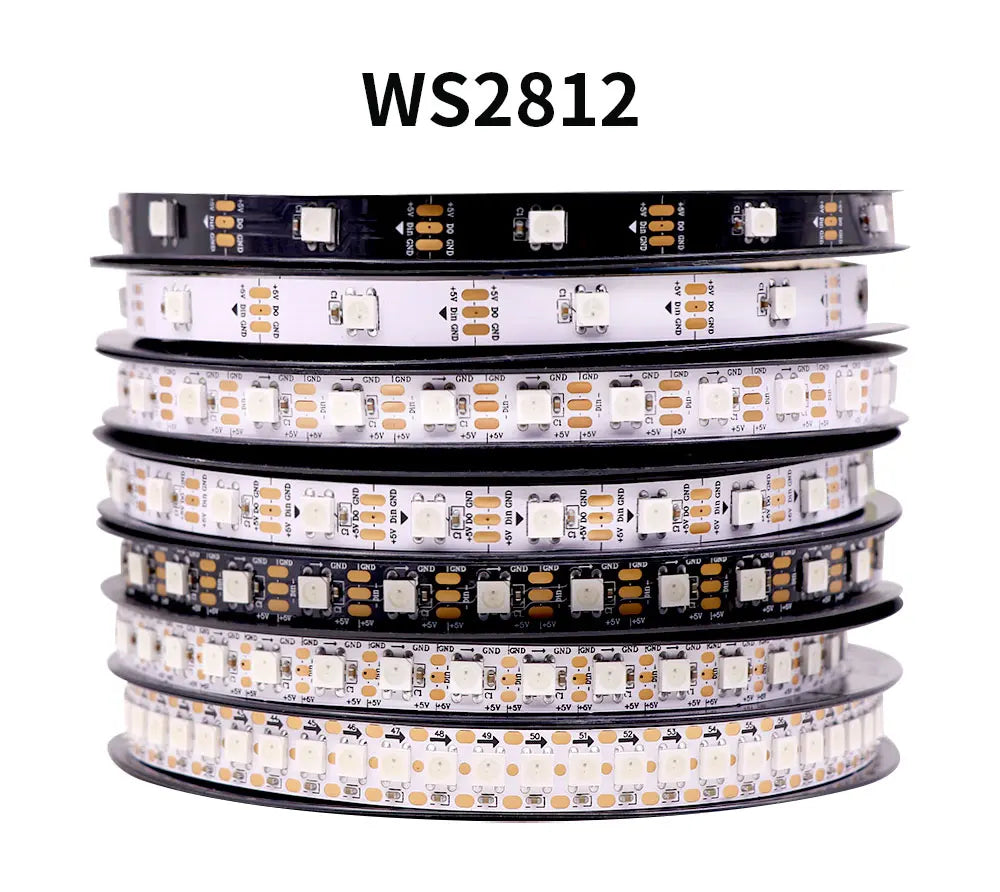

### WS2812 LED Strip Lights:

Input Voltage: DC5V/12V

LED Source: WS2812B LED

LEDs: Each LED is individually controllable

IC Type: WS2812 IC (built-in 5050SMD RGB LED)

Number of ICs: 1 IC drives 1 LED chip

Pixels (Number of LEDs): 30leds/60leds/74leds/ 96leds/144ledsM

Power: 9/18/21/25/35W/M

Pitch: 16.6mm(1000/60)

Gray Scale: 256

Bits per Color: 8 bits per color

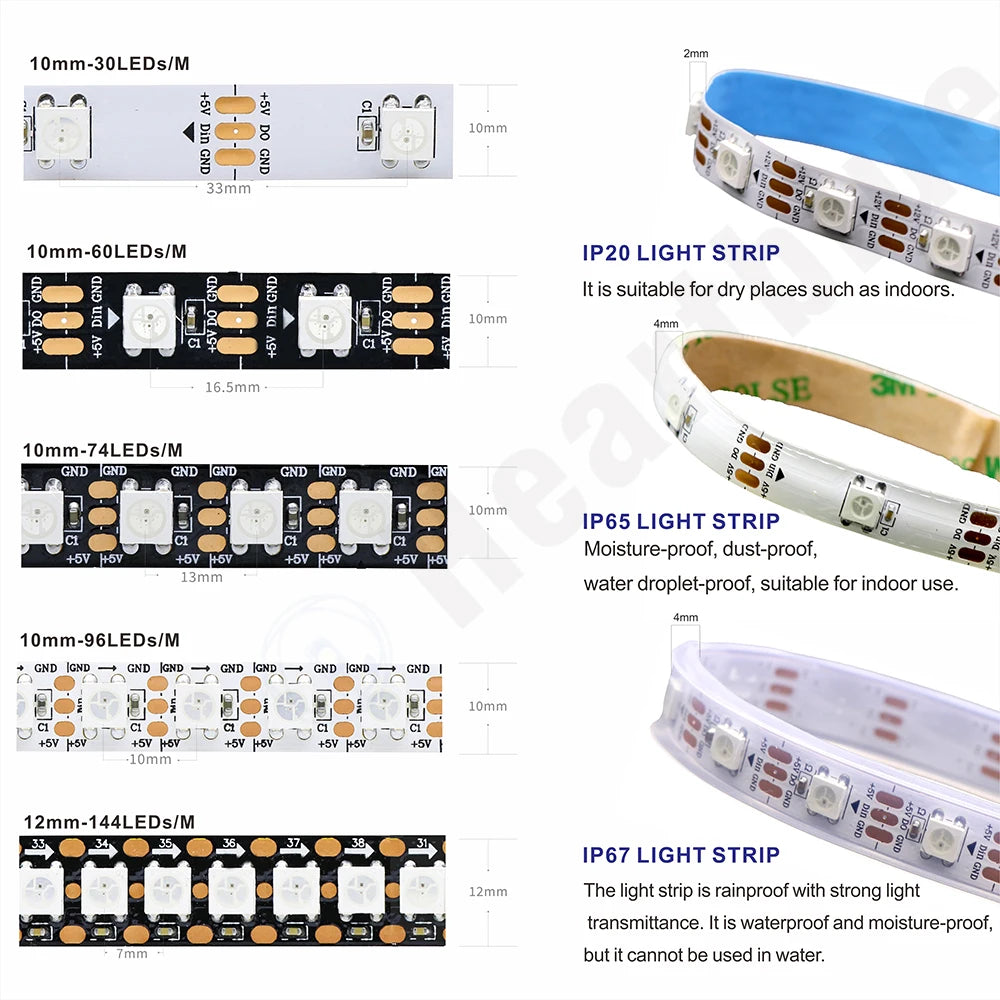

FPC Width:

- 30 LEDs/m - 10mm

- 60 LED/M - 10mm

- 74 LED/M - 10mm

- 96 LED/M - 12mm

- 144 LED/M - 12mm

FPC Color: Black / White

Protection Rating: IP30 Bare Board / IP65 with Silicon Coating / IP67 Waterproof

Colors: Full RGB Color, Dreamy Color Changing

Cuttable: Each LED is cuttable

Packaging: Anti-static bag, 3M tape on the back for IP30/IP65 (no 3M tape for IP67)

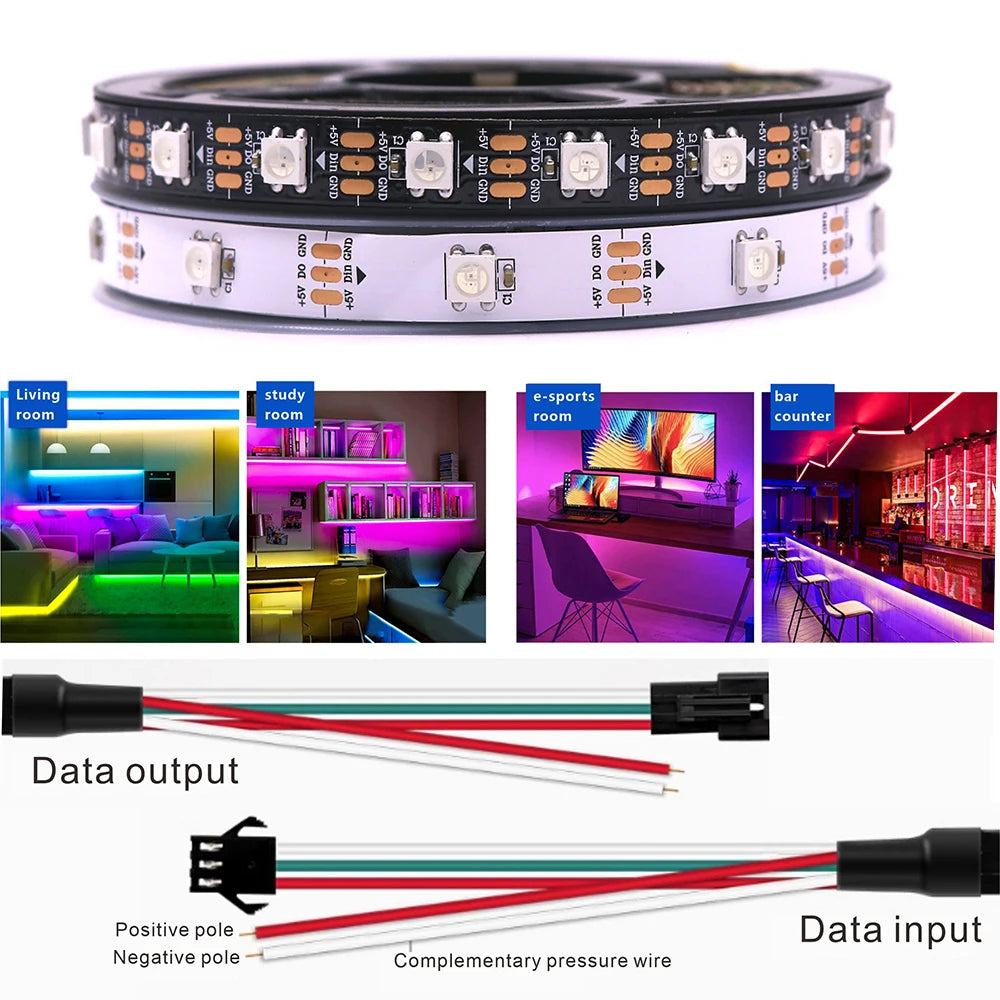

Connector: 3PIN Connector Terminal Pair (Red: Positive, Green: Signal Line, White: Negative)

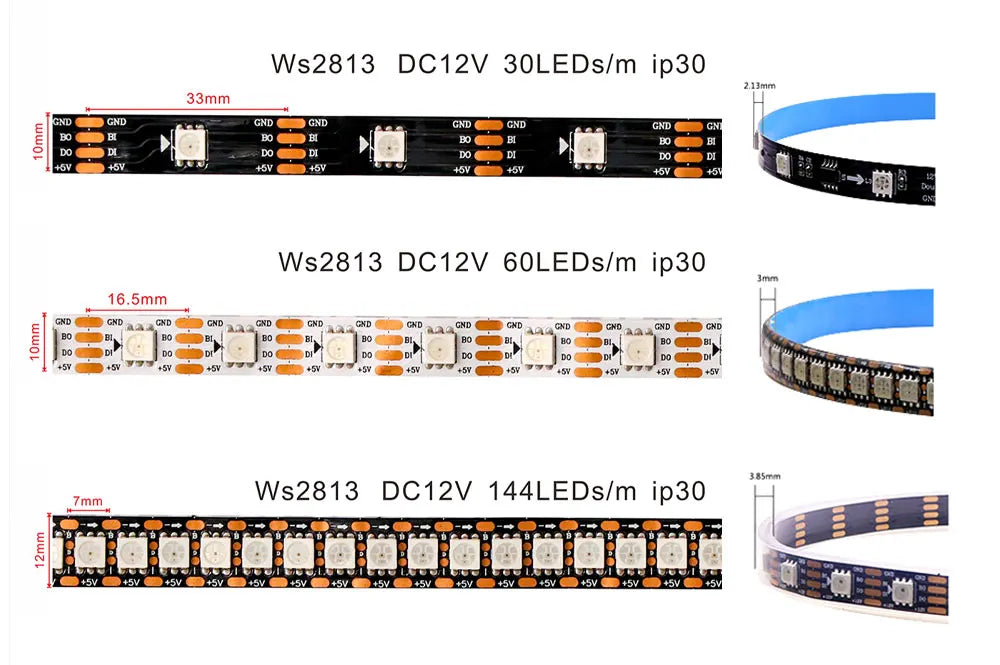

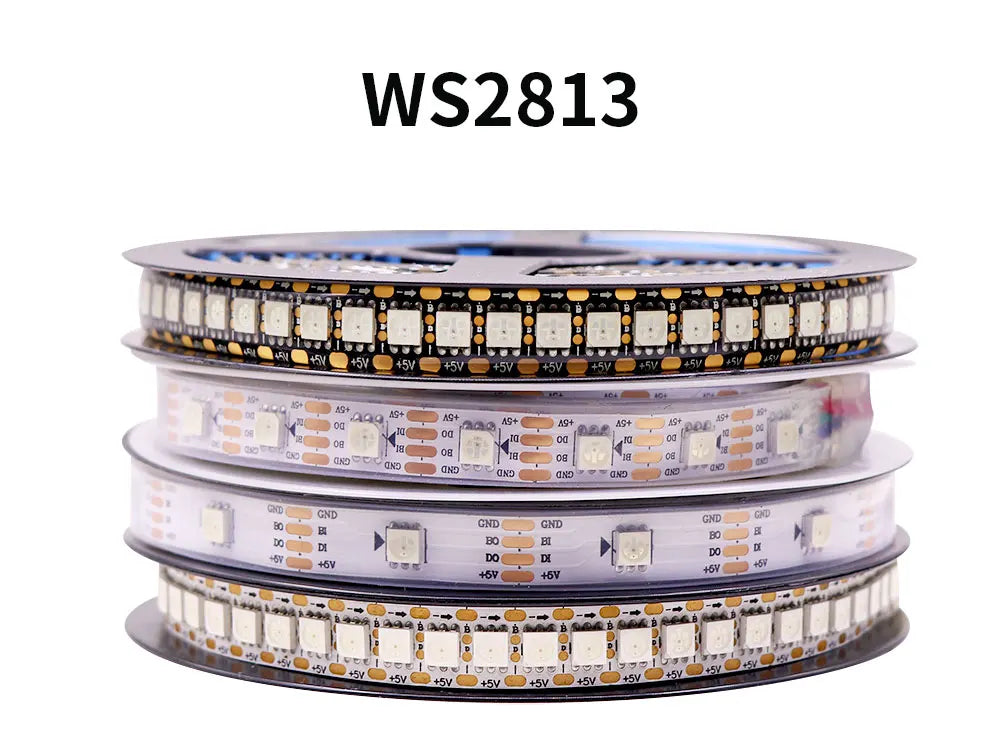

### DC5V WS2813 LED Rainbow Lights:

Input Voltage: DC5V

Pixels (Number of LEDs): 30leds/60leds/74leds/ 96leds/144ledsM

Power: 9/18/21/25/35W/M

Pitch: 16.6mm(1000/60)

LED Source: WS2813 LED

LEDs: Each LED is individually controllable

IC Type: WS2813 IC (built-in in 5050 SMD RGB LED)

ICs: (1 IC drives 1 LED chip)

Gray Scale: 256

Colors: Full RGB Color, Dreamy Color Changing

Bits per Color: 8 bits per color

FPC Color: Black / White

FPC Width:

- 30 Leds/M --10 mm

- 60 Leds/M -- 10 mm

- 144 Leds/M --12 mm

Protection Rating: IP30 Non-waterproof / IP65 Waterproof with Silicon Coating / IP67 Waterproof with Silicon Tube

Cuttable: All LEDs are cuttable

Packaging: In anti-static bag, 3M tape on the back for IP30 and IP65 (no 3M tape for IP67)

Operating Temperature: -40 - 70 °C

Storage Temperature: -50 - 80 °C

Source Lifespan: 50,000 hours

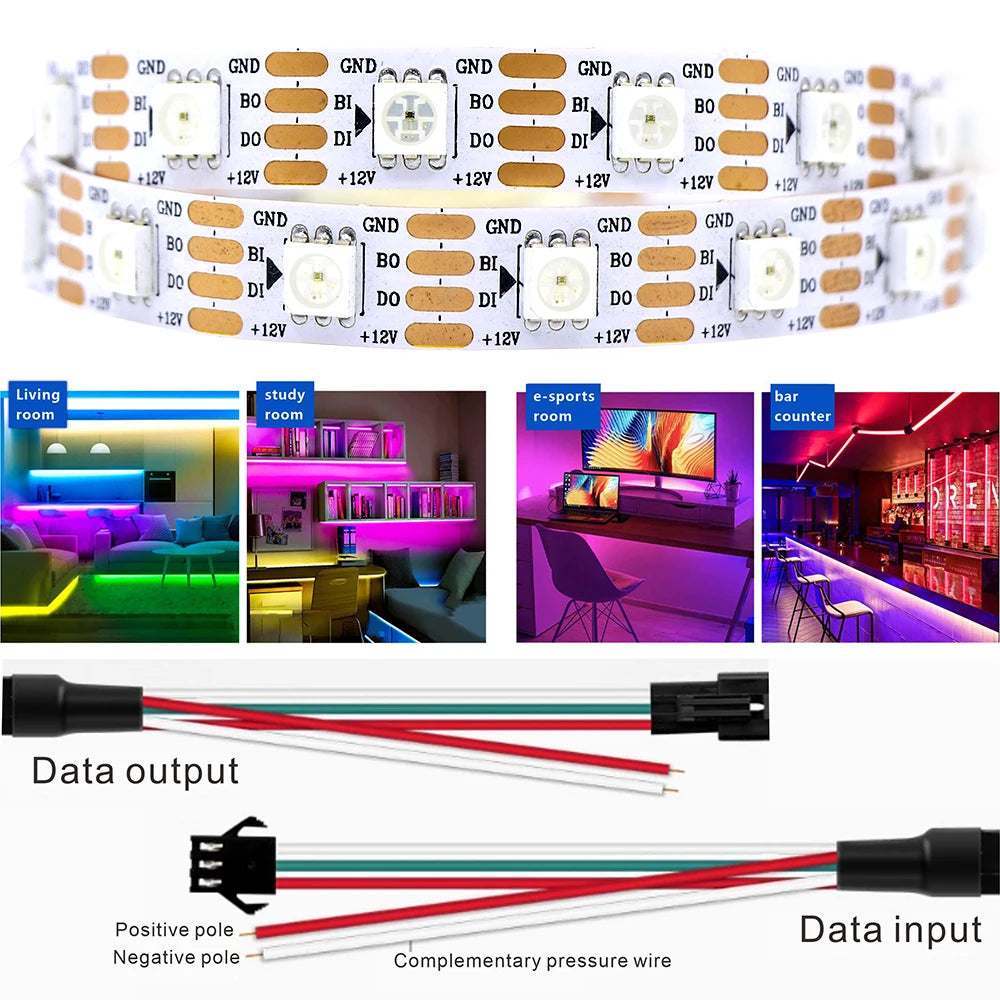

Connector: 4PIN Connector Terminal Pair (Red: Positive, Green: Signal Line, Blue: Secondary Signal Line, White: Negative)

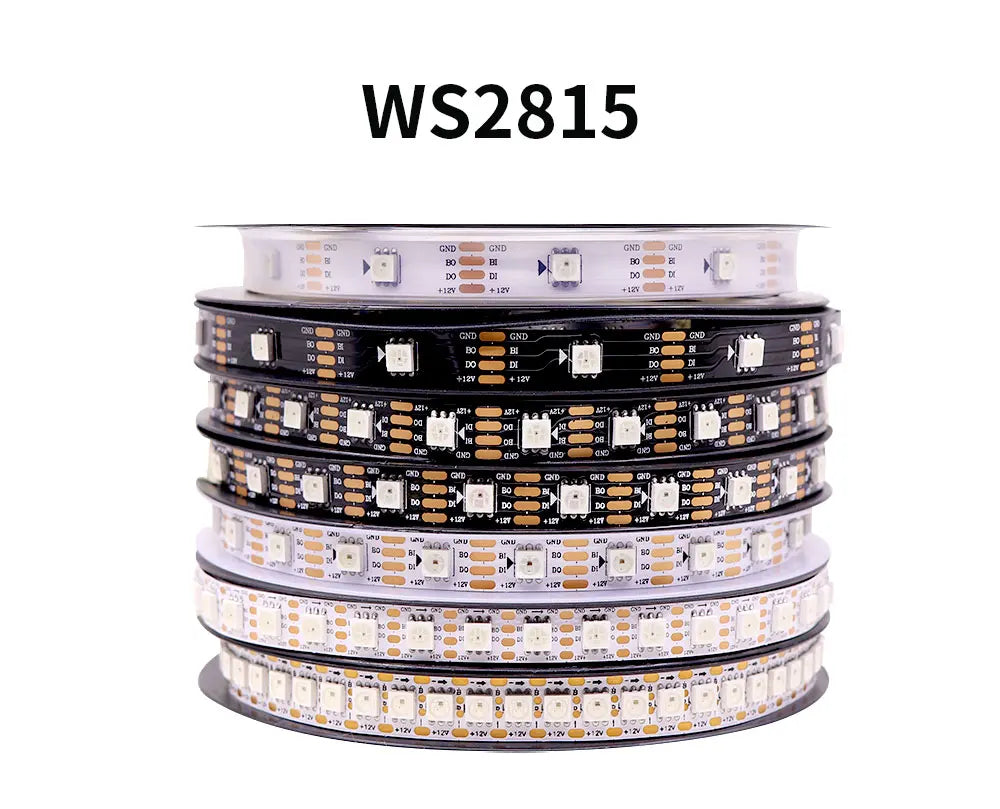

### DC12V WS2815 LED Lights:

Input Voltage: DC12V

Pixels (Number of LEDs): 30leds/60leds/96leds/144ledsM

Power: 9/18/25/35W/M

Pitch: 16.6mm(1000/60)

LED Source: WS2815 LED (5050 SMD RGB LED)

LEDs: Each LED is individually controllable

IC Type: WS2815 IC (built-in in 5050 SMD RGB LED)

ICs: (1 IC drives 1 LED chip)

Number of Pixels: 30/60/96/144 LEDs per meter

Gray Scale: 256

Bits per Color: 8 bits per color

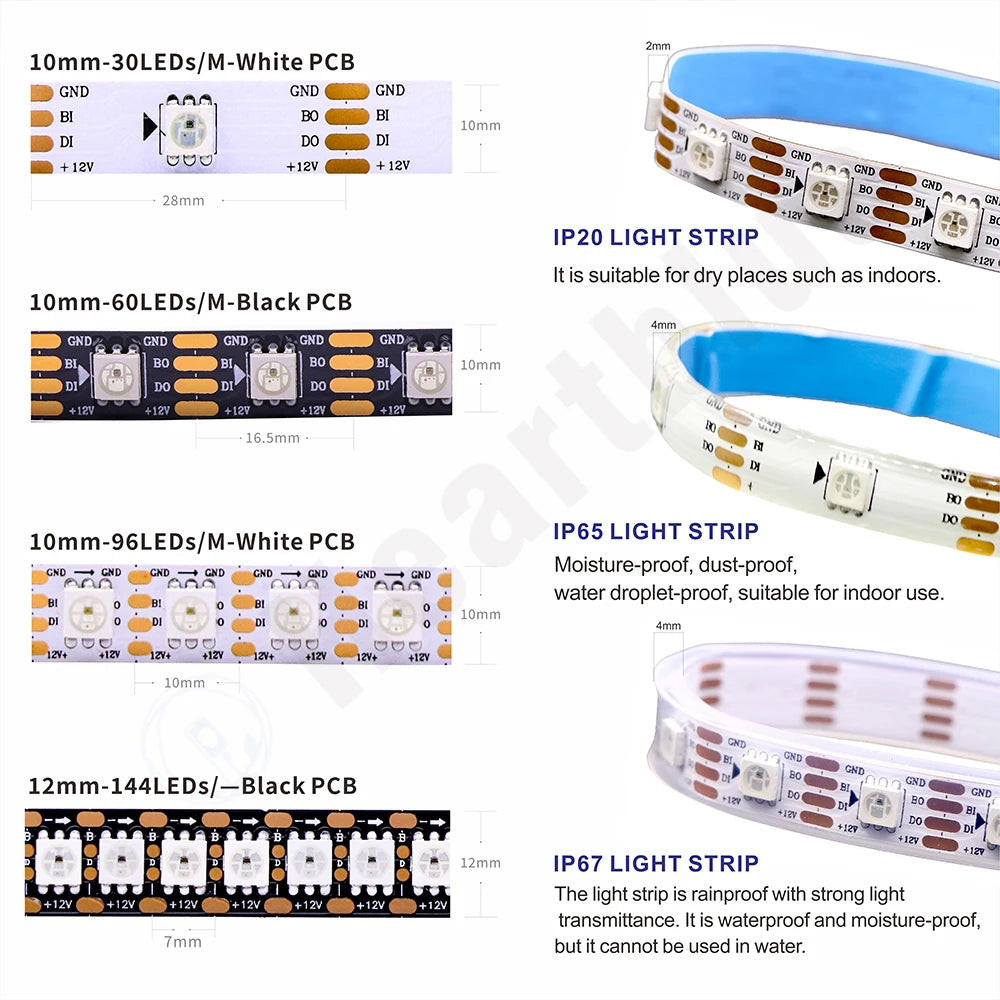

FPC Width:

- 30 LEDs/m - 10mm

- 60 LED/M - 10mm

- 96 LED/M - 12mm

- 144 LED/M - 12mm

FPC Color: White PCB/Black PCB

Protection Rating: IP30 / IP65 / IP67

Colors: Dreamy Color Changing; Full RGB Color

Cuttable: All LEDs are cuttable

Packaging: In anti-static bag, 3M tape on the back for IP30 and IP65 (no 3M tape for IP67)

Operating Temperature: -40 ~ 70 °C

Storage Temperature: -50 ~ 80 °C

Source Lifespan: 50,000 hours

Connector: 4PIN Connector Terminal Pair (Red: 12V Power, Green: Data Line, Blue: Standby Data Line, White: GND)
