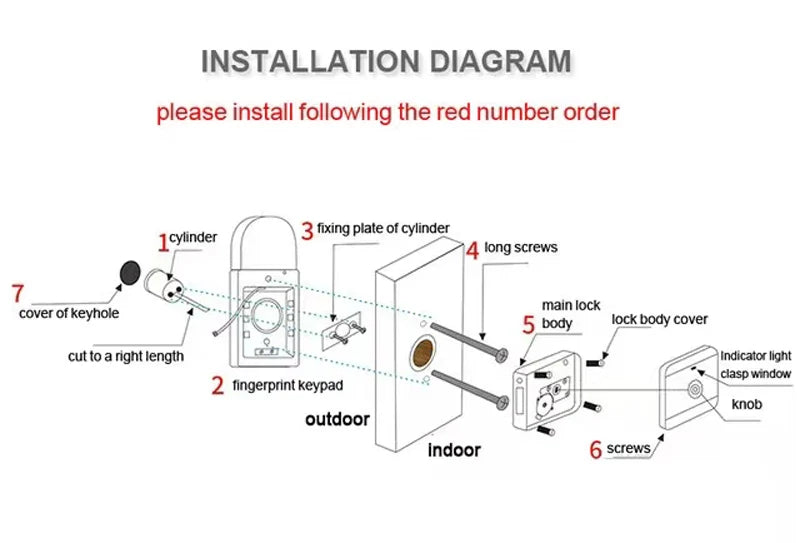

G23 Smart Lock installation and Tuya Wifi connection video:

No Wiring IP66 Waterproof Outdoor Fingerprint Door Lock, Best For Outdoor Front Gate Door.

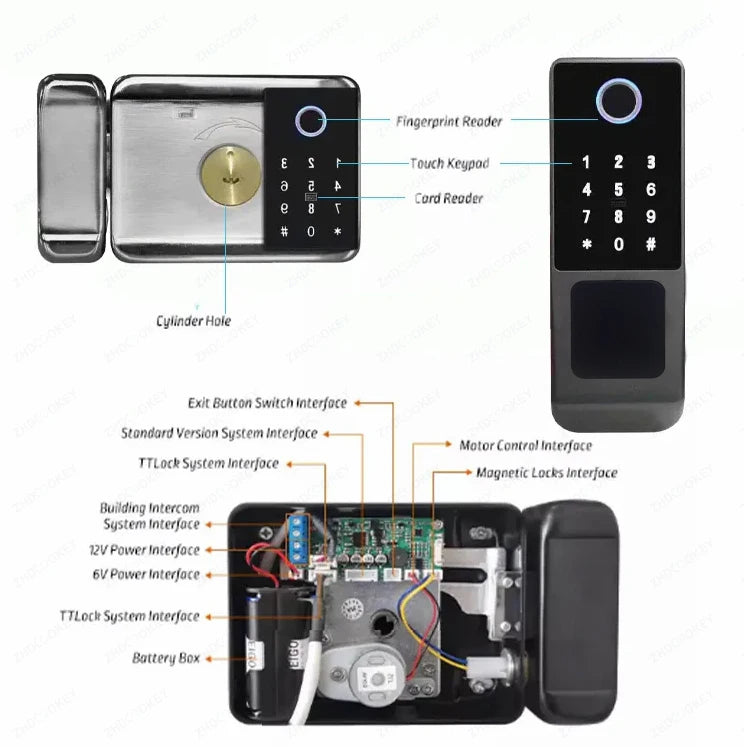

1. Waterproof mask

2. Waterproof silicone pad

3. The Motherboard inside fully filled with waterproof glues.

4. Battery compartment with rubber sleeve.

5. The lock can be exposed directly to rain and sunshine

Features:

Advanced Multi-Mode Access

Unlock effortlessly via biometric fingerprint scanning, RFID cards, a tactile keypad, mobile app control, or physical keys. Enjoy versatile entry options tailored to your lifestyle and security needs.



Waterproof & Durable Design

Built with IP66-rated waterproofing, this smart lock withstands rain, dust, and extreme weather, making it ideal for both indoor and outdoor installations.



Seamless Smart Home Integration

Compatible with Tuya WiFi or TTLock ecosystems that enabling voice control via Alexa/Google Assistant(If with TTlock gateway), and real-time monitoring through dedicated apps for unified smart home management.



Real-Time APP Remote Control

Manage access anytime, anywhere via the app—grant temporary permissions, check unlock logs, or lock/unlock doors remotely for enhanced convenience and security.



Military-Grade Encryption

Protect your home with AES-128 encryption, anti-tamper alerts, and anti-peep keypad technology, ensuring unauthorized users cannot bypass the system.

Noted: Tuya WiFi version support 9 languages voice( English, Vietnamese, Portuguese, Arabic, Russian, Thai, Spanish, Indonesian, French);

TTLock version support English voice only.



Specifications:

Material: Zinc Alloy

Available color: Black+Grey

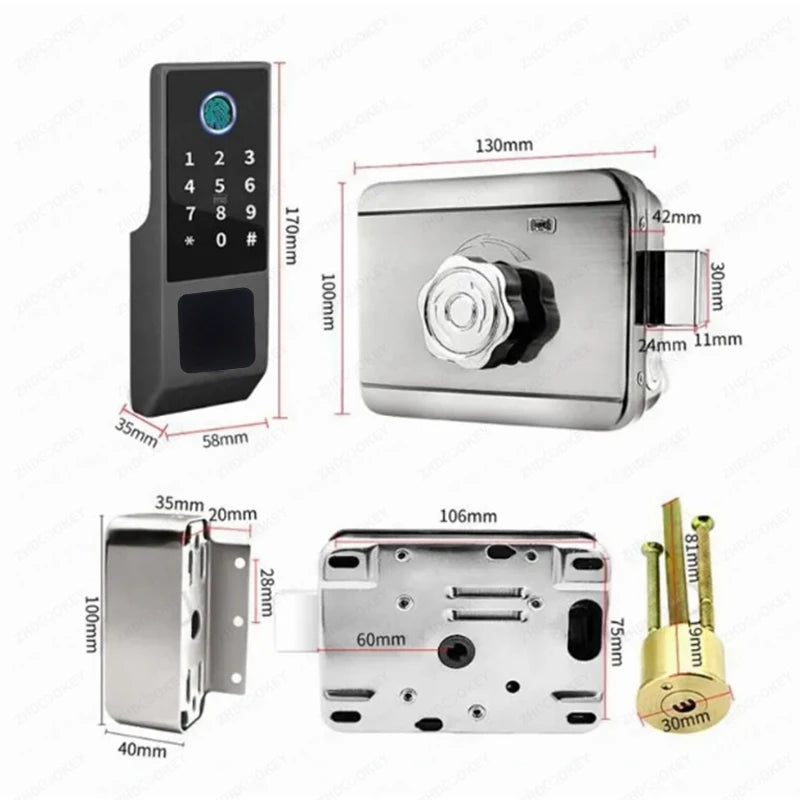

Panel Sizes: 168(mm)*34(mm)*60(mm)

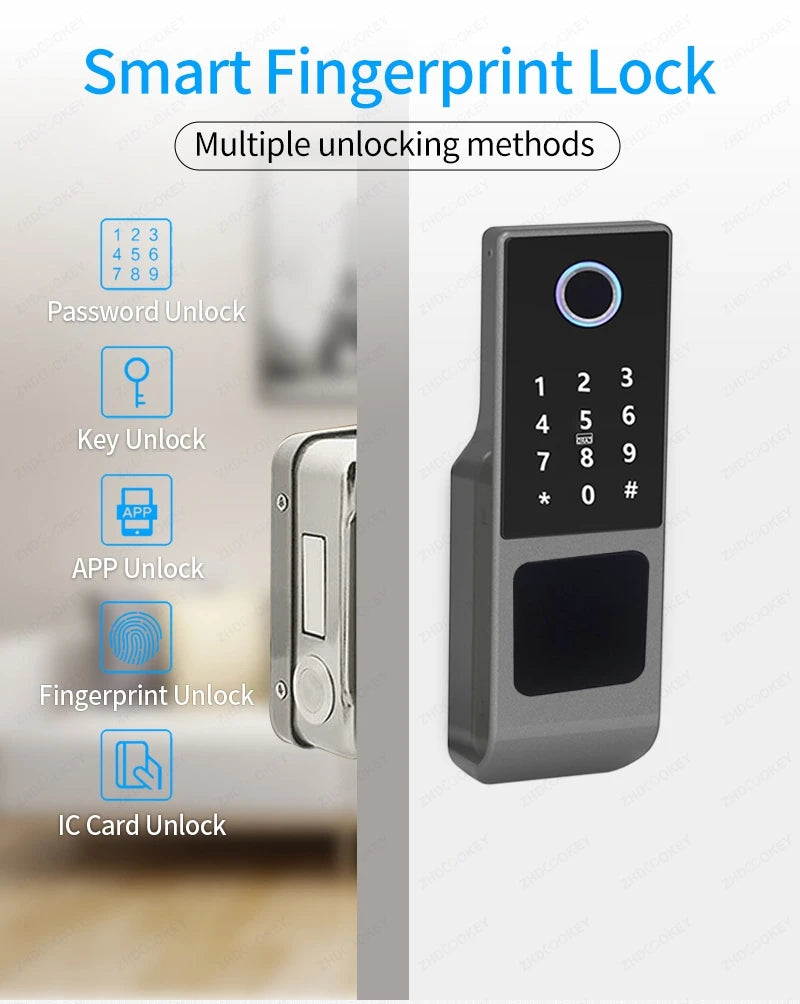

Unlock Ways: Fingerprint /Password /IC Card / APP / Mechanical Key

Support APP: Tuya app or TTLock APP

Fingerprint recognition time: 0.25S

Fingerprint Capacity: 100pcs

Card Users: 100pcs

Password Users: 100pcs

Power supply1: 4pcs AA batteries(not include)

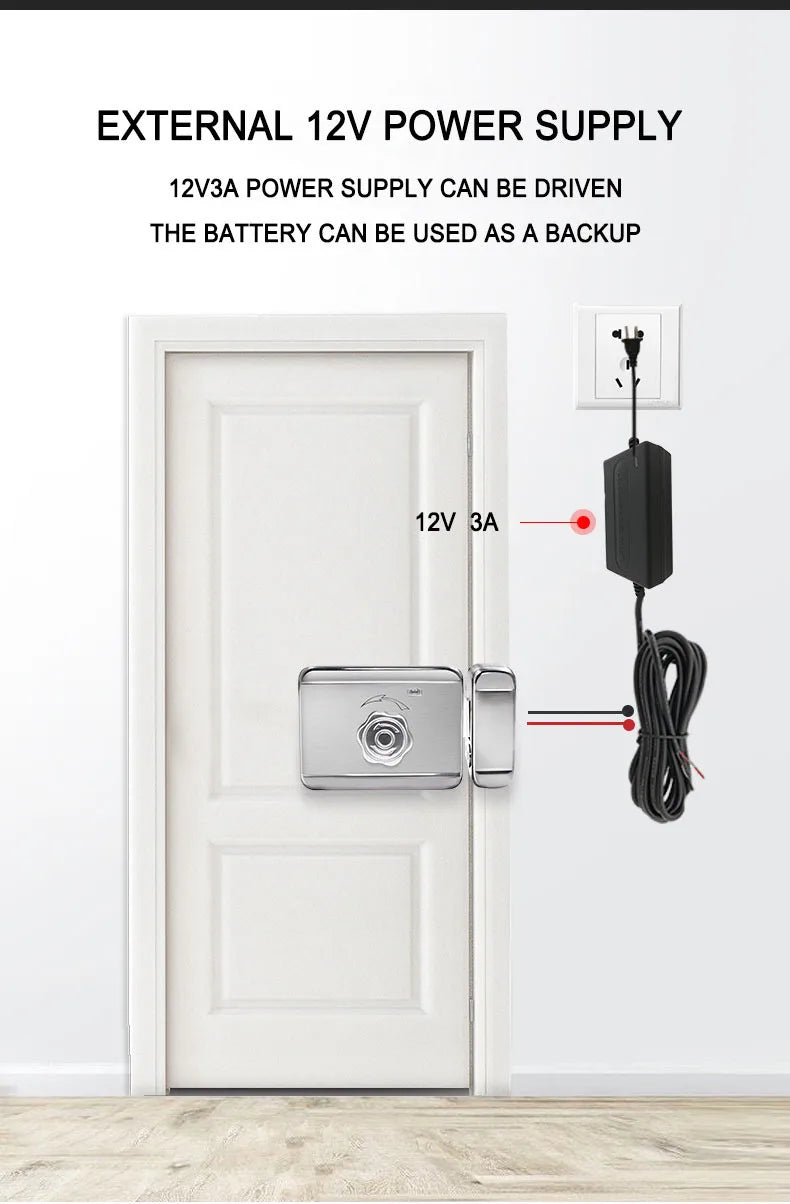

Power supply2: DC 12V adapter for Power supply (Not include, External power supply:12V, 3A)

Operating temperature: -25 to 55 Centigrade

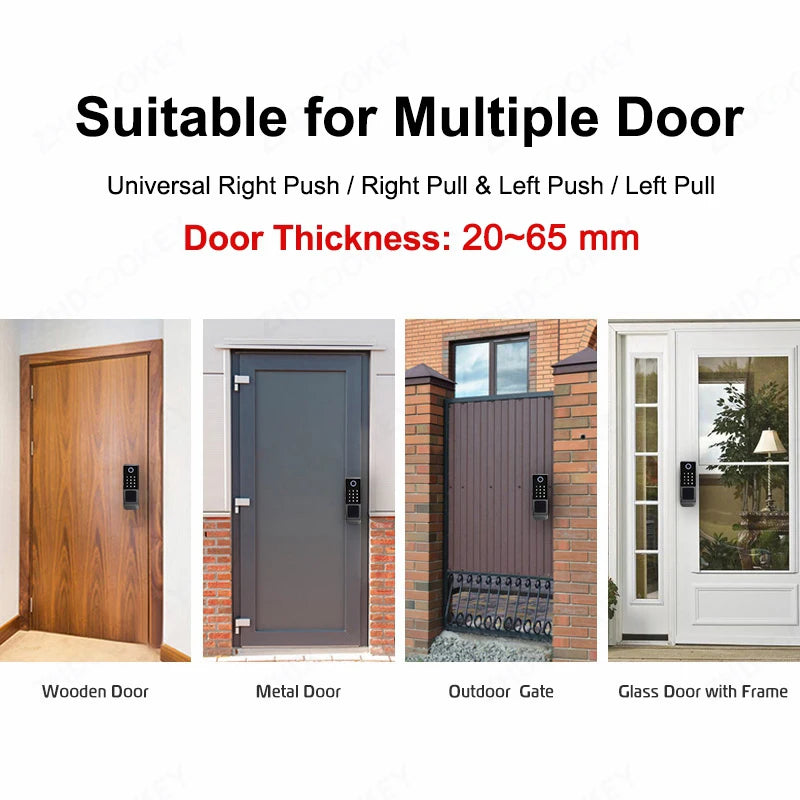

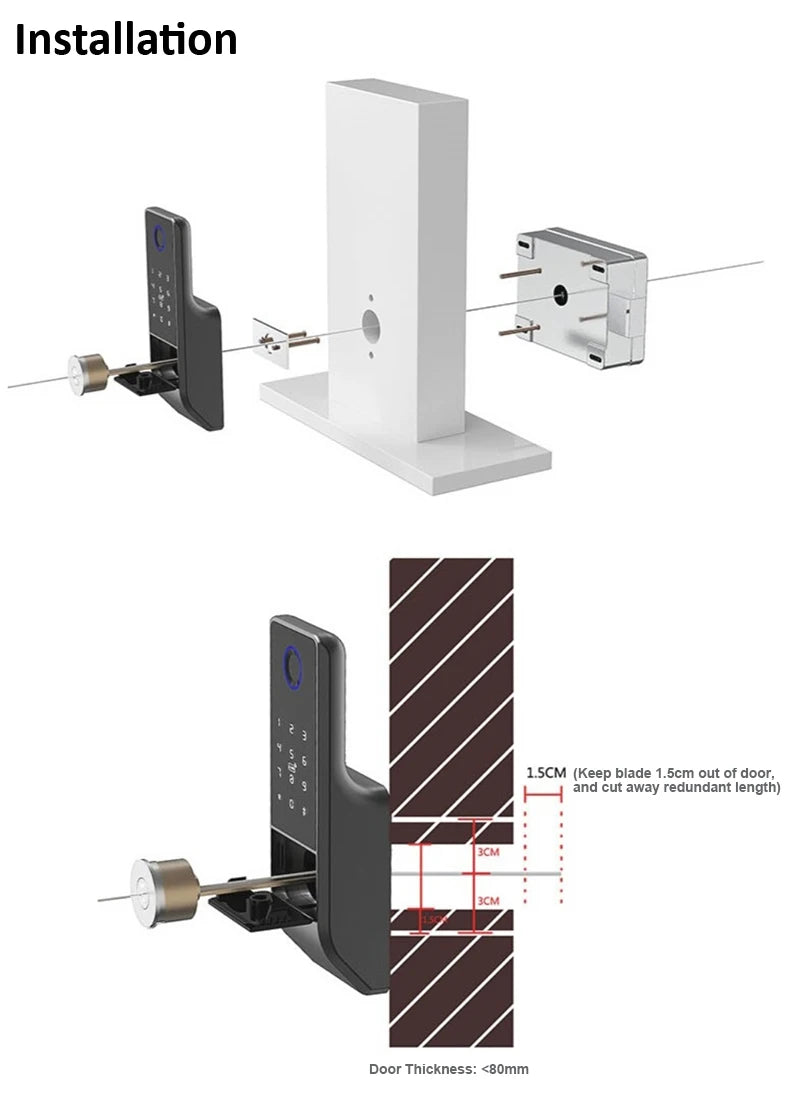

Suitable door thickness: 20-65mm( Wooden door, Steel door, Iron door, other metal doors)

Waterproof:IP66 outside

Emergency Power Supply:1x Micro USB charge

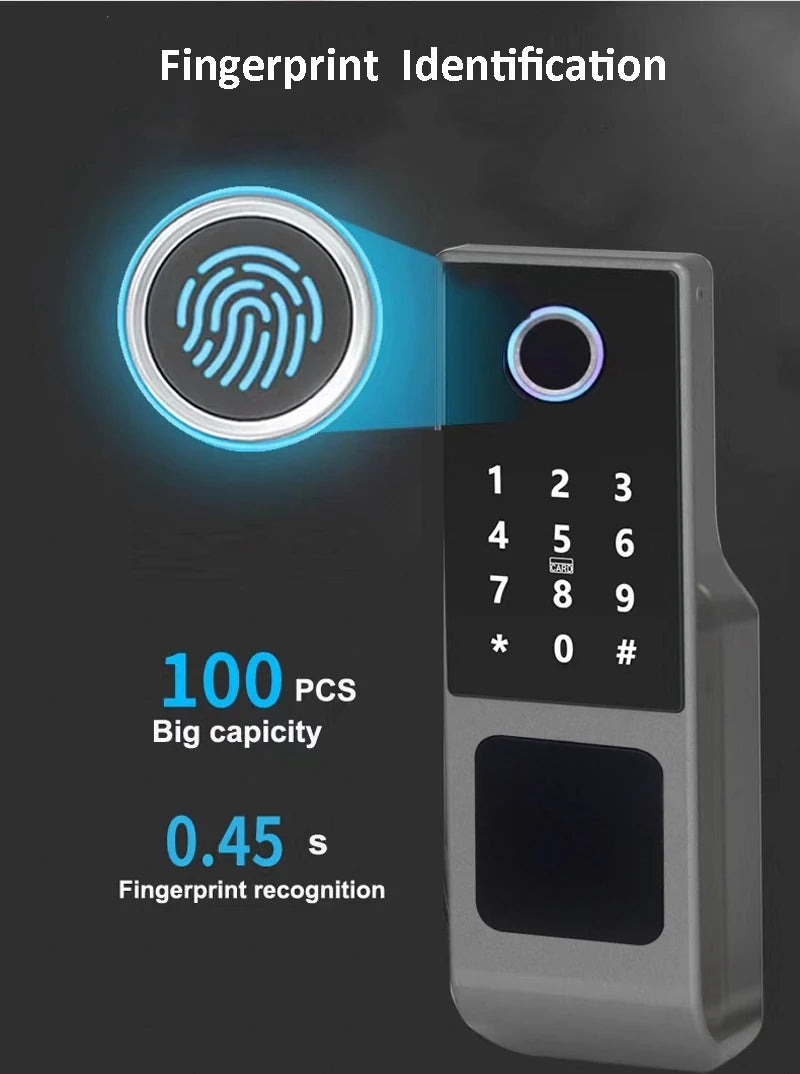

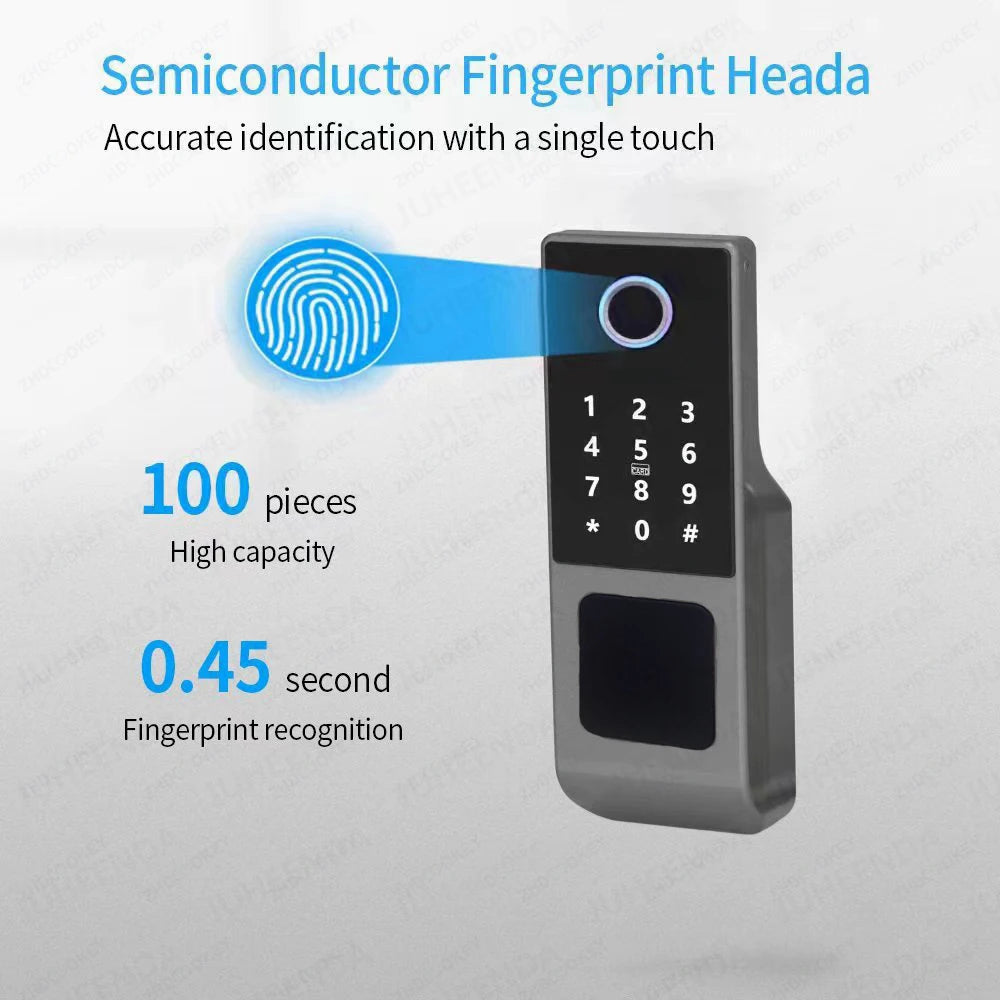

The fingerprint door lock built-in 360° biometric fingerprint sensor, which with fingerprint recognition speed and high accuracy.

Support 100pcs fingerprints to unlock.

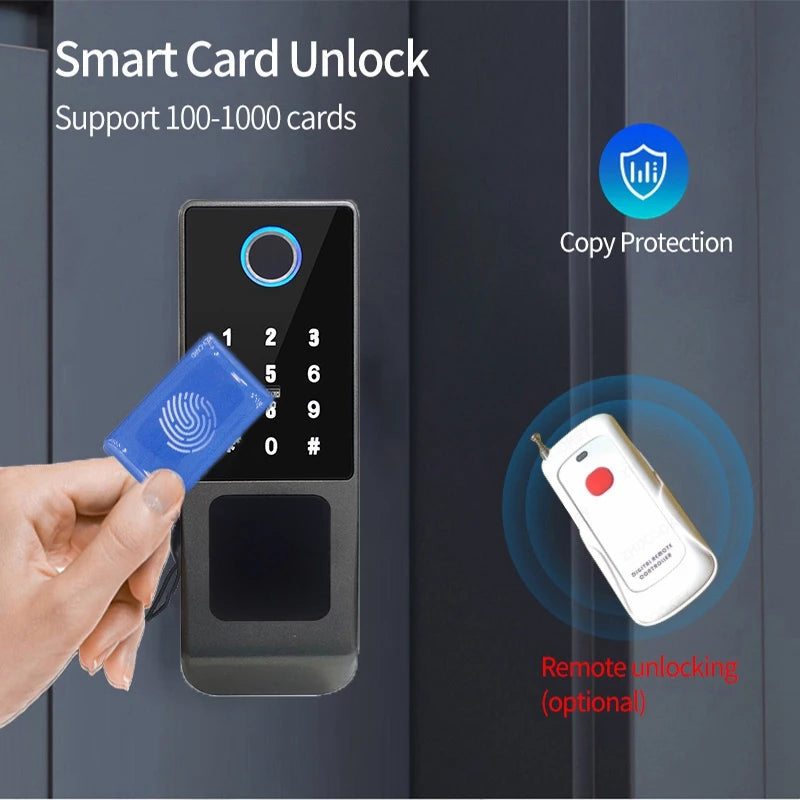

The IC Card door lock built-in high-sensitivity card reader chip. high recognition rate and high accuracy.

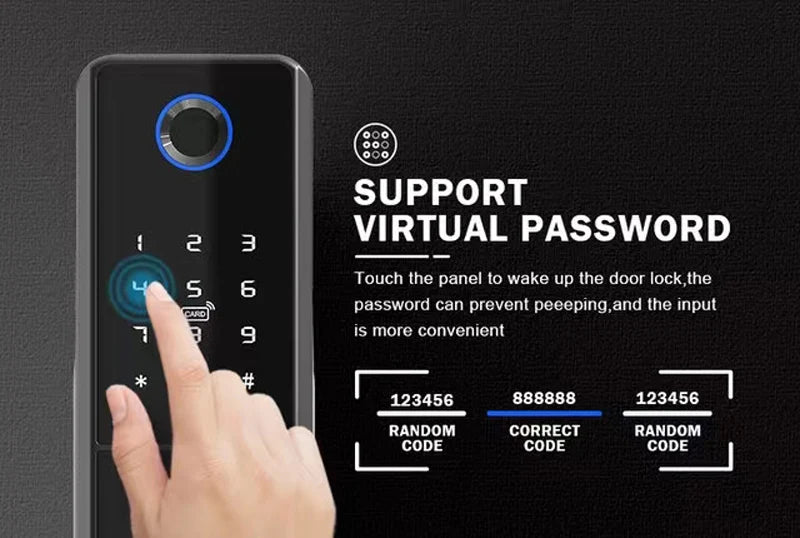

The password lock supports anti-peeping password. You can enter any number before and after the correct password.

Prevent others from peeping at the unlock code.

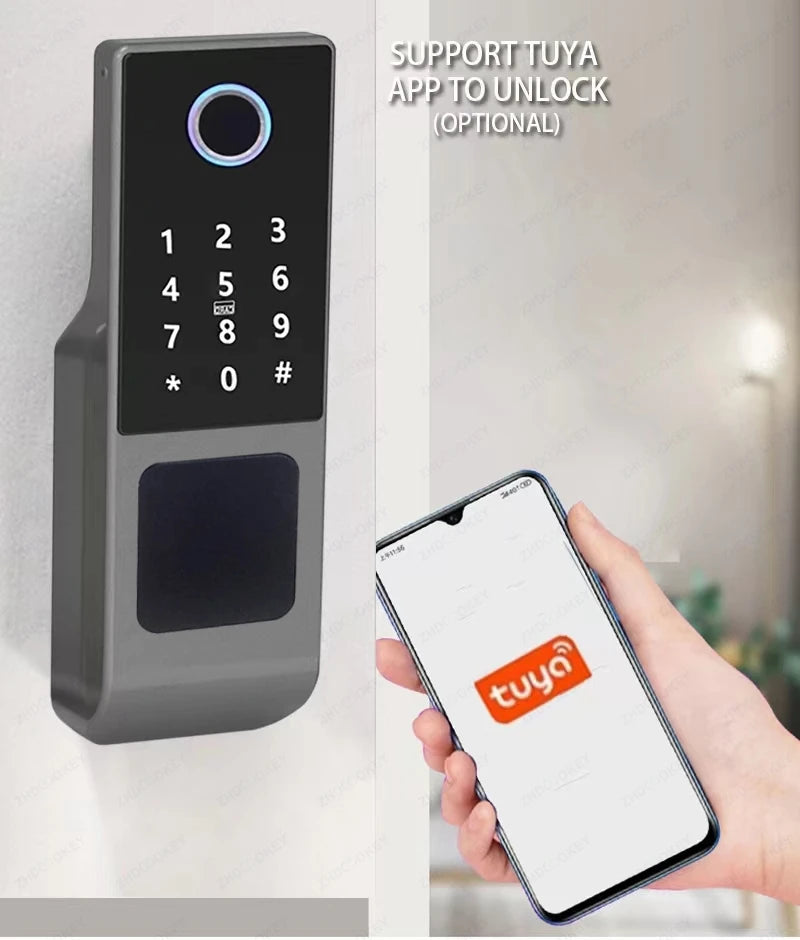

The smart lock supports WIFI connection and uses the Tuya App to manage the door lock

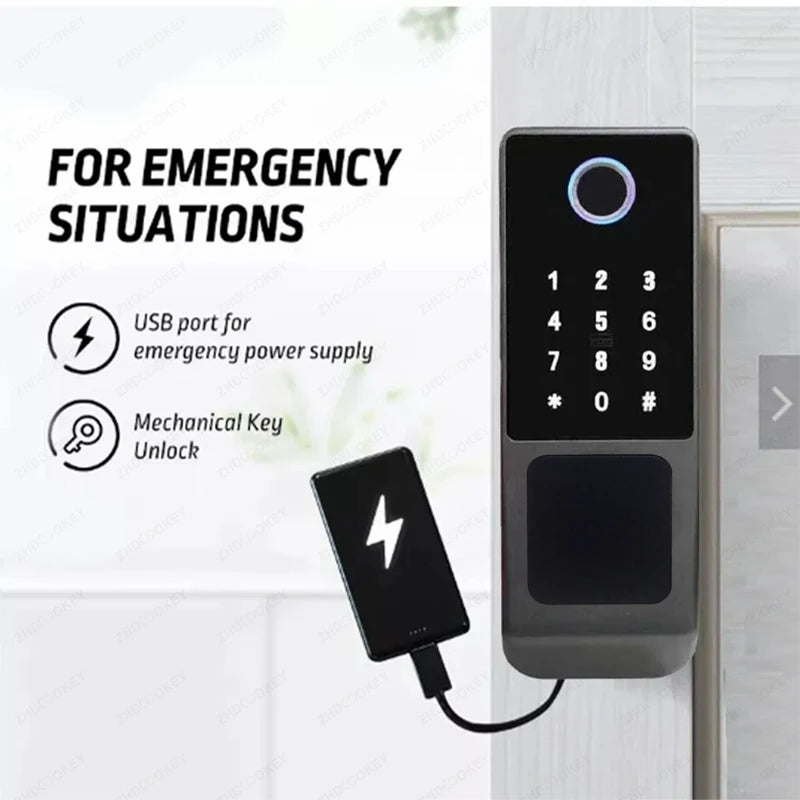

The smart door lock supports two emergency unlocking methods, mechanical key and USB emergency supply.

When the door lock is out of power, you can use the power bank to charge it.

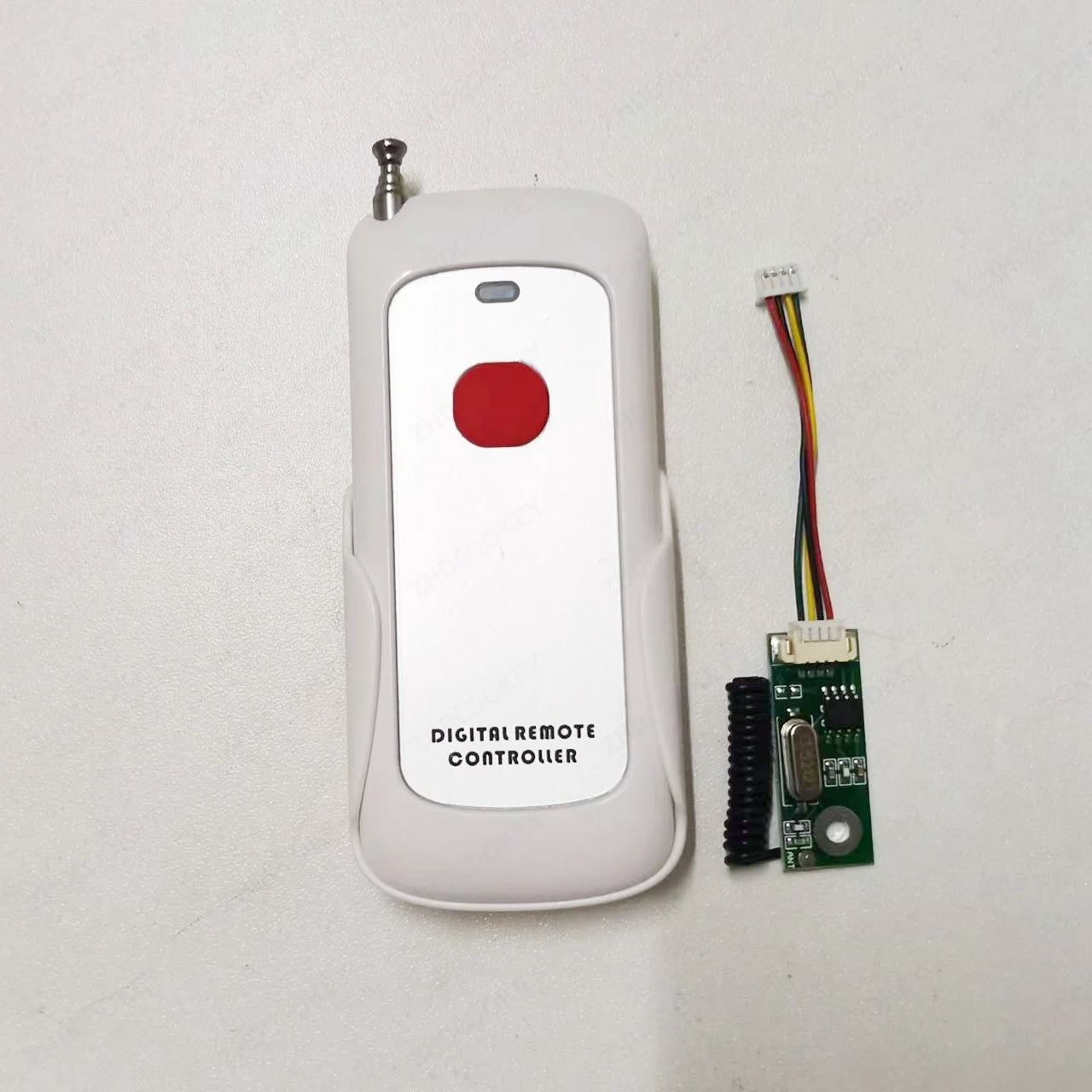

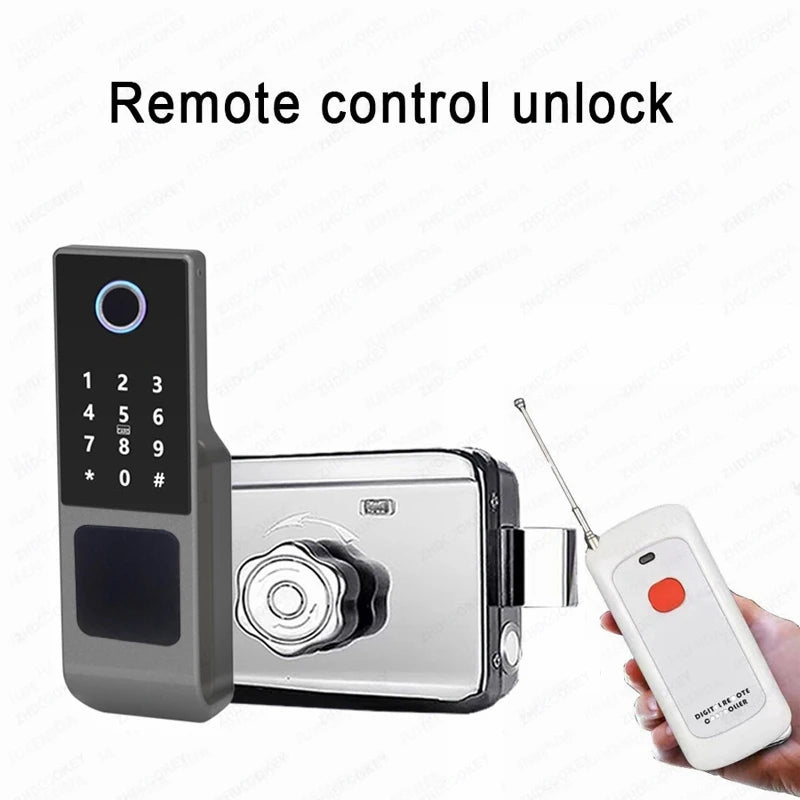

About the remote control

Provides a remote door opening function. The door lock will be locked automatically after closing the door.

The maximum recognition distance is 30m without any obstacles.

The maximum numbers of remote controllers that can be added to each door lock is 20pcs.

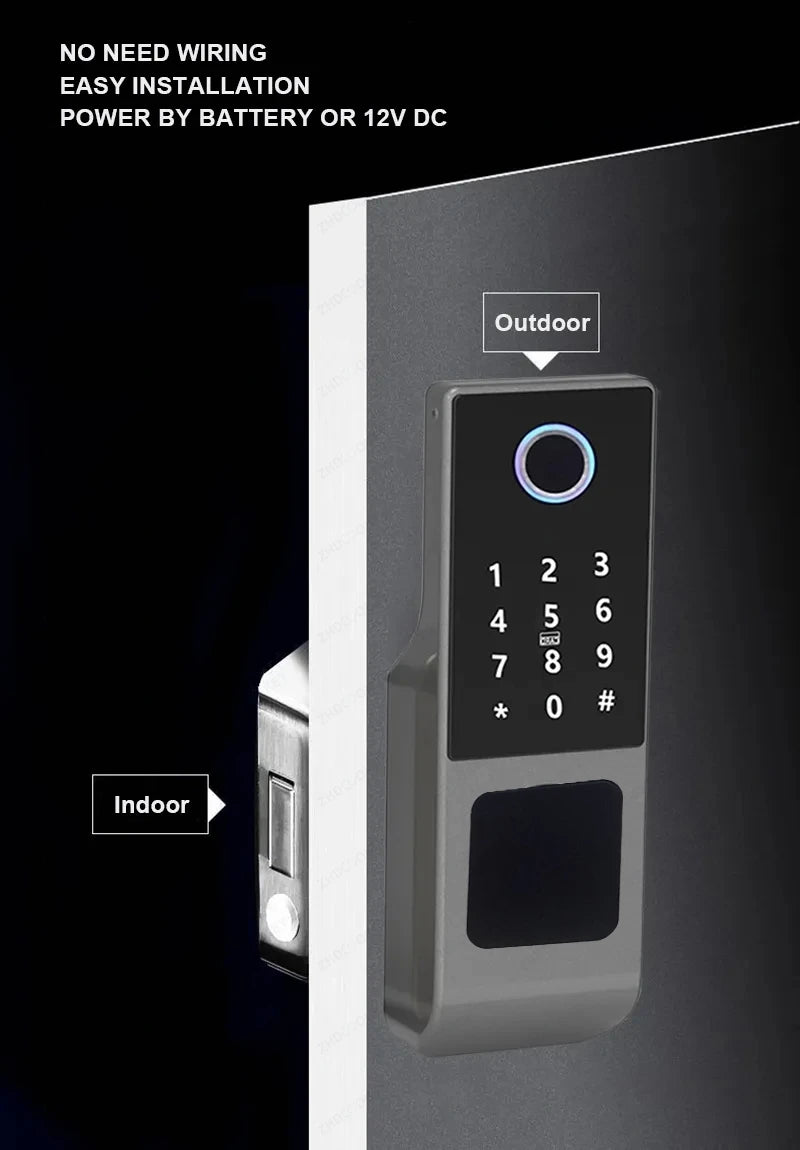

No Wiring Outdoor Fingerprint Door Lock, easy to install and no need extra wiring

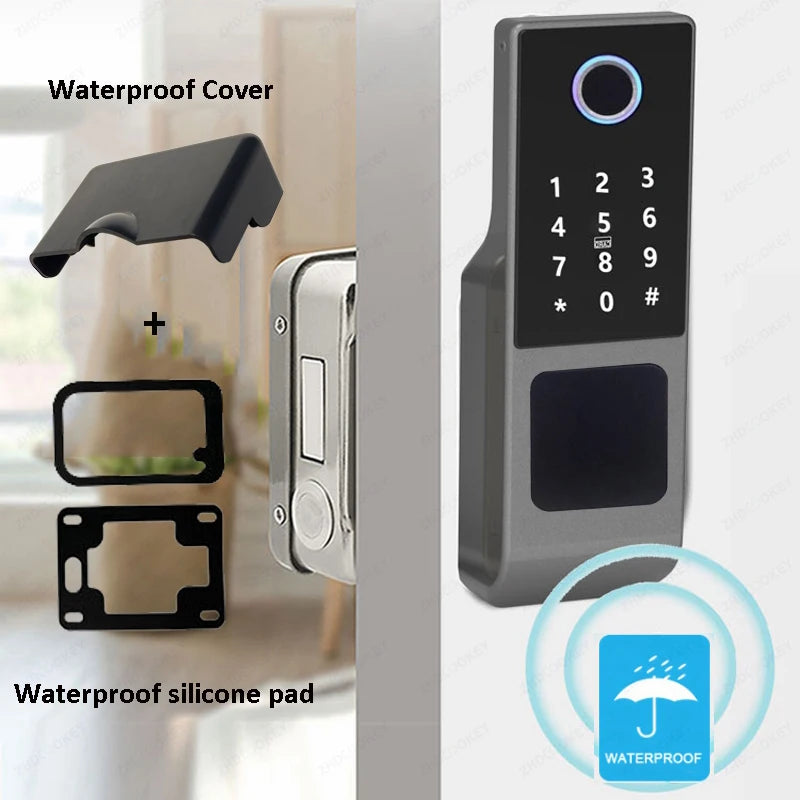

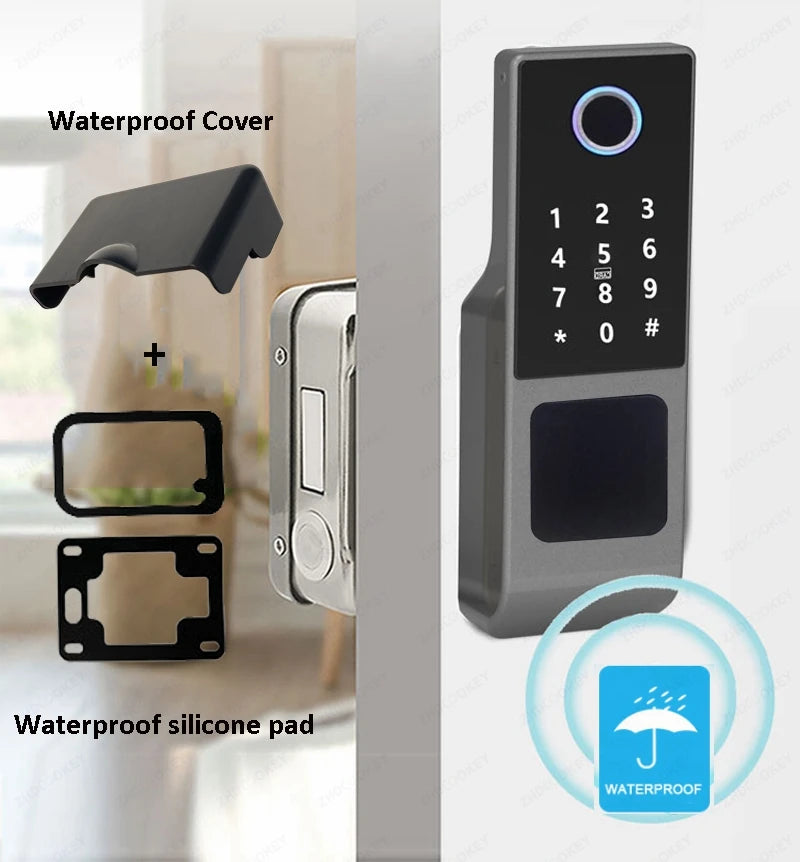

Front Waterproof Cap and Waterproof Silicone Sleeve, Double Security.

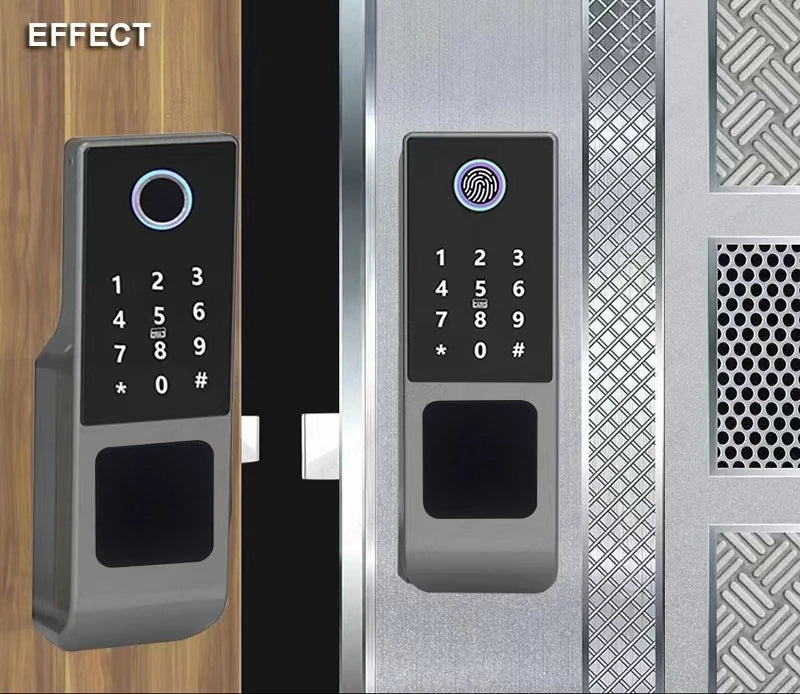

The smart lock is suitable for both left and right opened door



The smart door lock powered by 4pc AA batteries with a battery life of 8-12 months (battery is not included in the package).

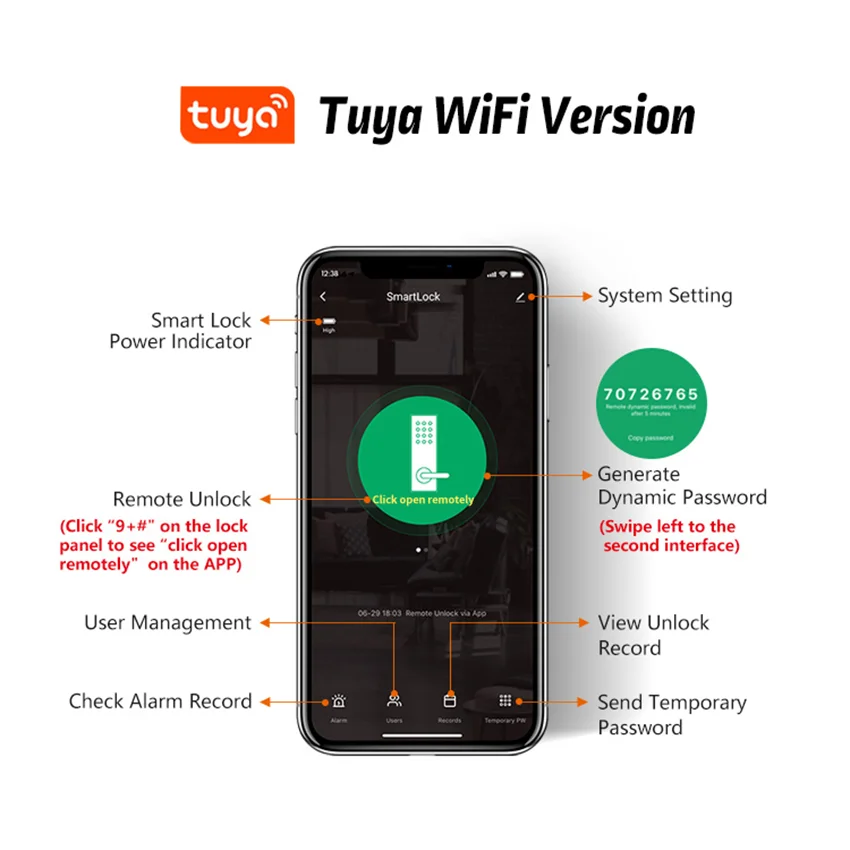

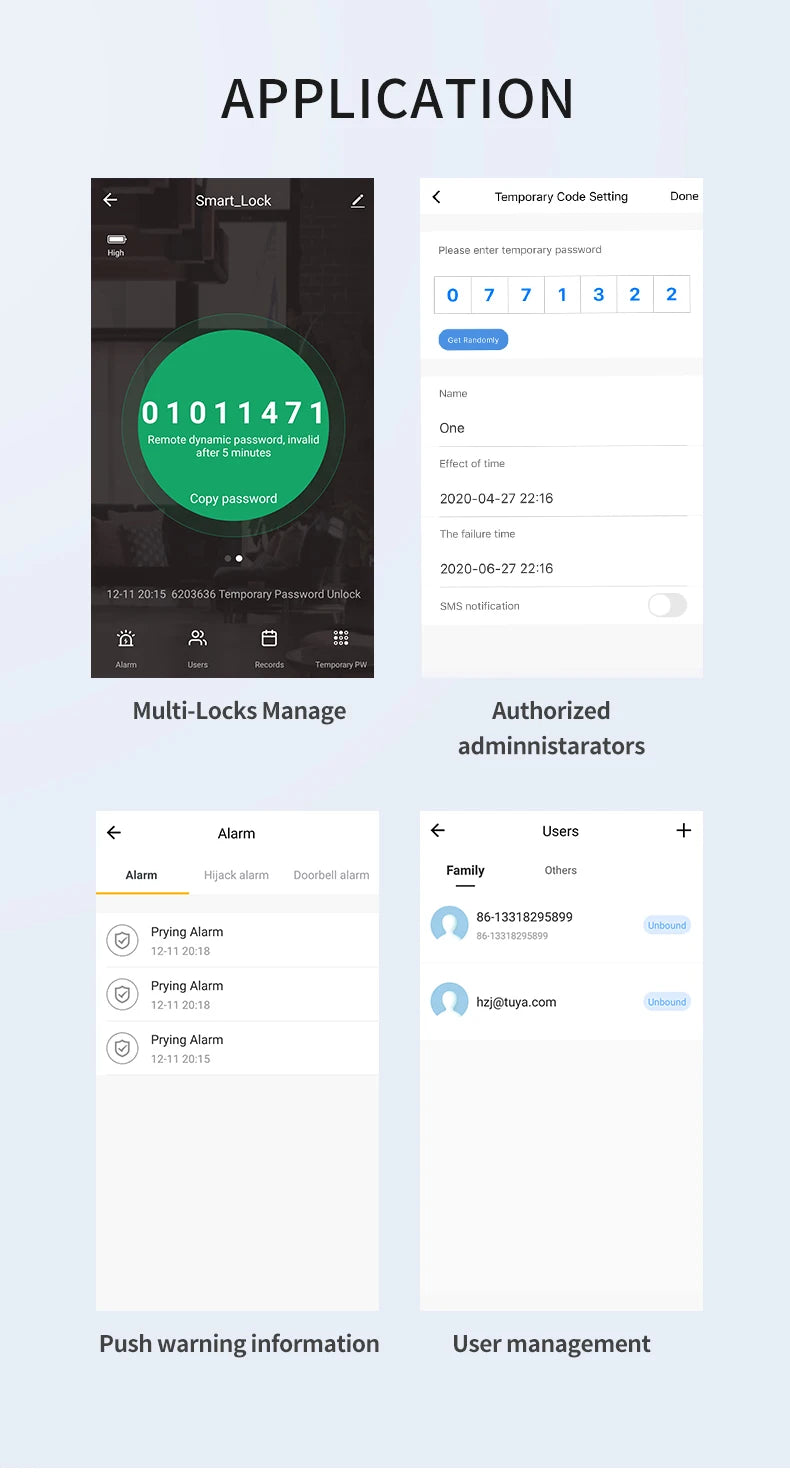

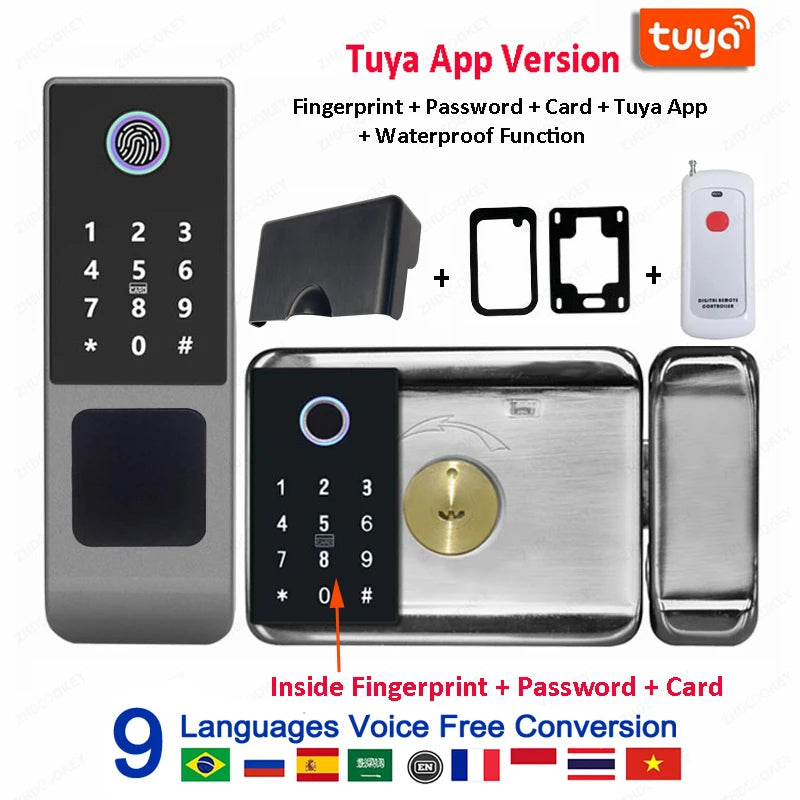

Tuya APP Functions:

1.Press9# on lock panel to request open, unlock remotely by phone App

2.Copy password to unlock

3.Send temporary password unlock remotely

4.Checking the unlock records remotely

5.Connect to the WIFI directly, no need any gateway

How to install and use Tuya App. With the Tuya smart gateway, it can link other smart devices.

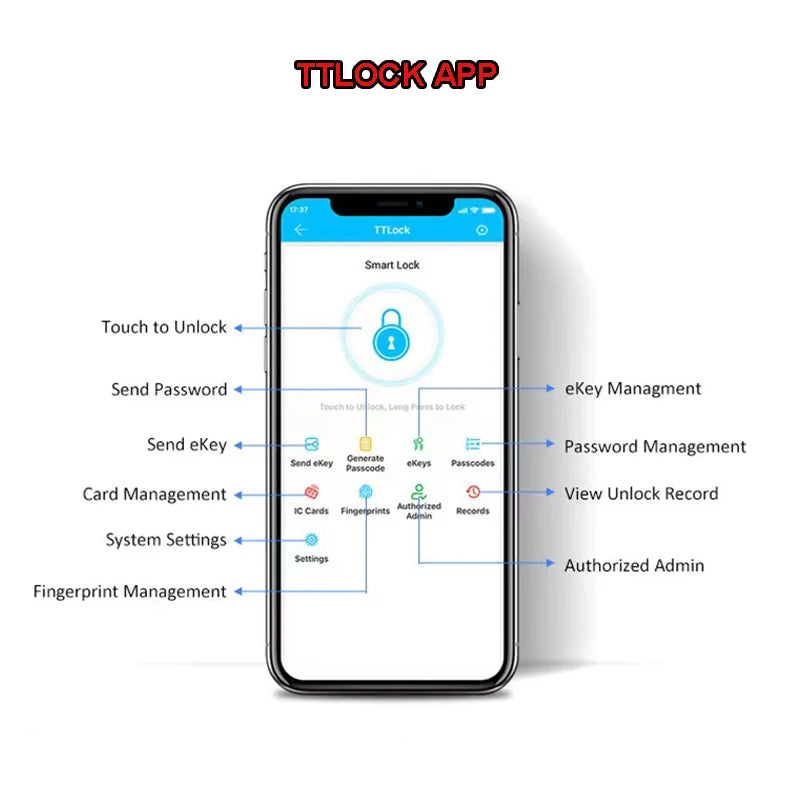

TTLock App Functions :
1. Open lock by phone App remotely

2. Add fingerprint, password, IC card, ekey on phone app, no need operate on lock.

3.Send temporary password /ekey unlock remotely

4. Savethe unlock records

5.Connect to the lock by bluetooth

6.If add a gateway that can connect to Wifi, can delete users, open locks, checking unlock records remotely without distance limitation. (Gateway buy extra).

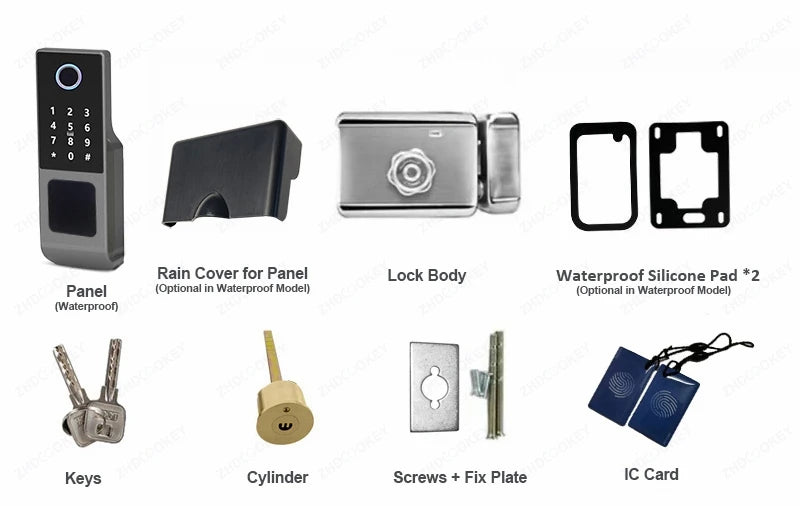

Package Include:

1x front lock panel

1x rear lock panel

1 x lock mortise

2 x RFID cards

1 x screws kits

3 x mechanical keys

1x waterproof mask

2x waterproof silicone pad

1 x user manual



FAQ(Frequently Asked Questions):

Q1:Is the G23 lock waterproof and sun-proof?

A:Yes, the G23 lock support waterproof and sun-proof, because it is made of waterproof and high temperature resistant materials.

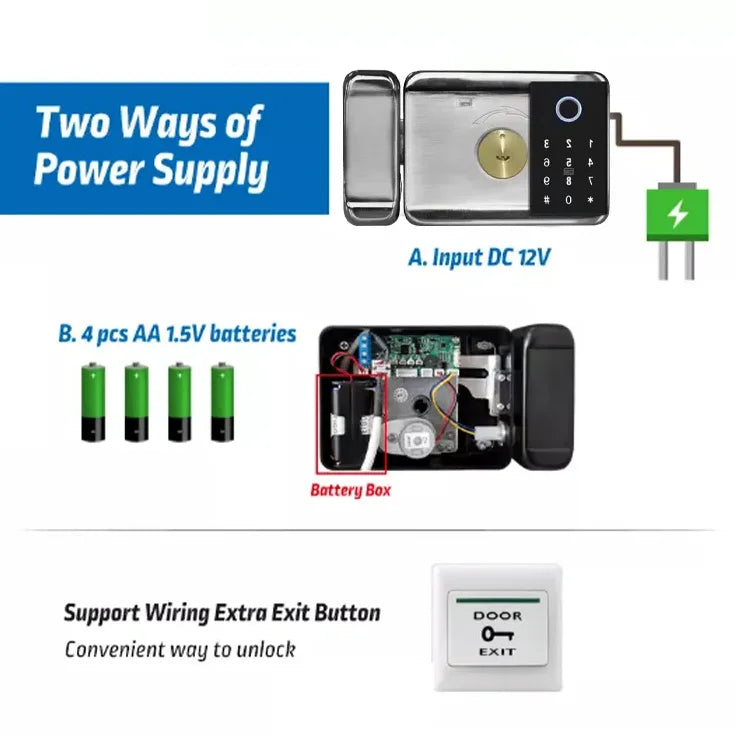

Q2:How to connect Power supply?

A: There are two ways of Power supply:

1) Install 4pcs AA batteries;

2) DC 12V adapter for Power supply (External power supply:12V, 3-5A).

Q3:What should I look for before setting up Tuya WiFi?

A:1) Whether the smart lock inserted a Tuya WiFi module correctly,

2) Whether change the original administrator password before setting Tuya WiFi.

3)Please note it has no APP function on rear panel, you need to set Tuya APP on front panel.

Q4:Does it support connecting Alexa and Google Assistant?

A:Yes! You need to select TTLock version and G2 TTLock Gateway.

Q5:How to set remote control?

A:1) Install batteries inside the smart lock and remote control,

connect the cable of front panel and the receiver module of the remote control to the main PCB;

2) Press the set button of the remote control for 5 seconds (5 beeps will be emitted),

then the red indicator light will flash and enter the configuration mode.

Press the red button of the remote control for 2 seconds to make the remote control pair with the smart lock;

3) Wait for the red indicator light to stop flashing, use the magnet to suck out the latch,

press the button on remote control to try to open the lock.

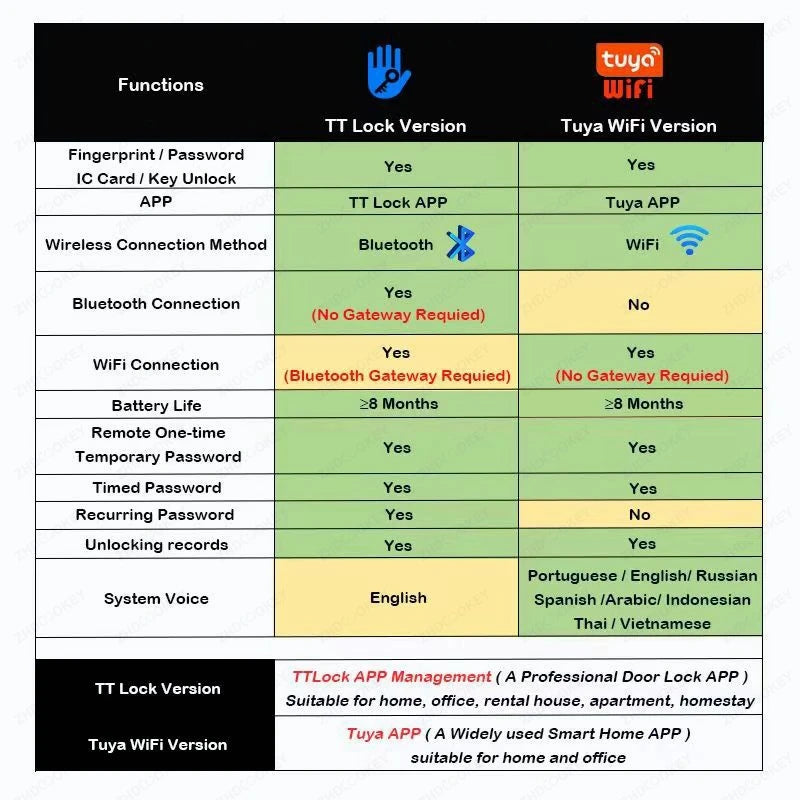

Q6:How to choose Tuya and TTlock version? What're the difference between Tuya and TTlock?

A:Generally, Tuya version needs to press 9#, then the APP will receive a request to open the door remotely;

TTlock version can open the door by Phone APP directly.
