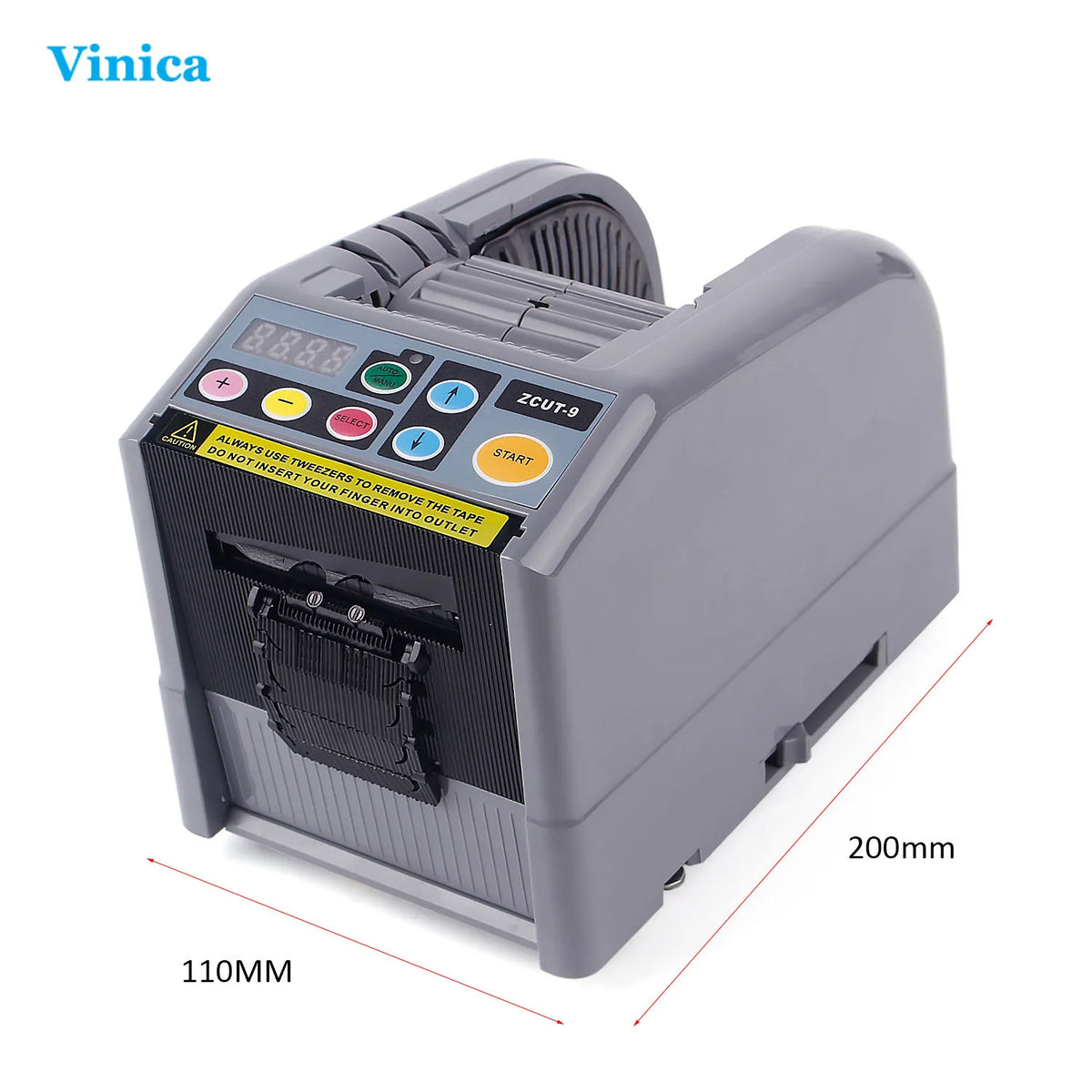

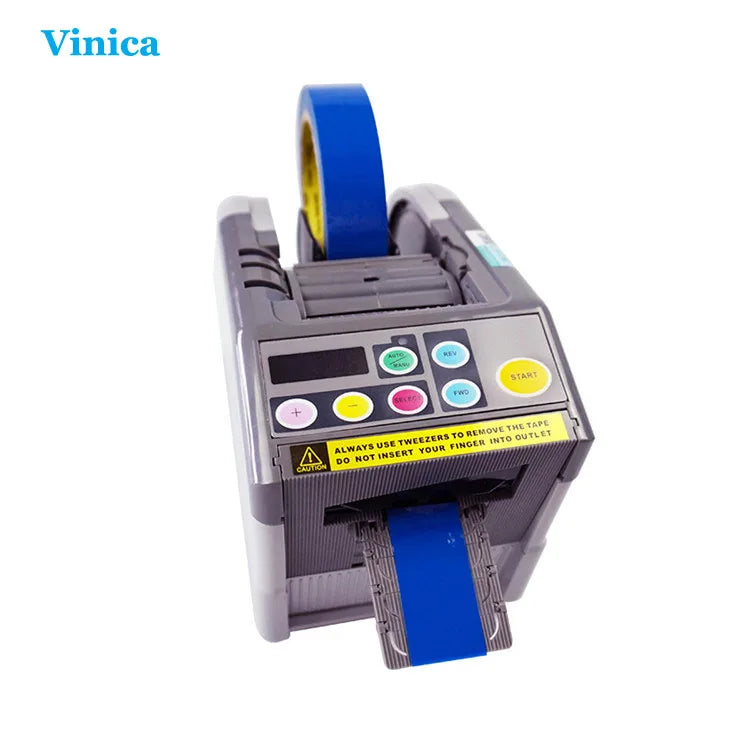

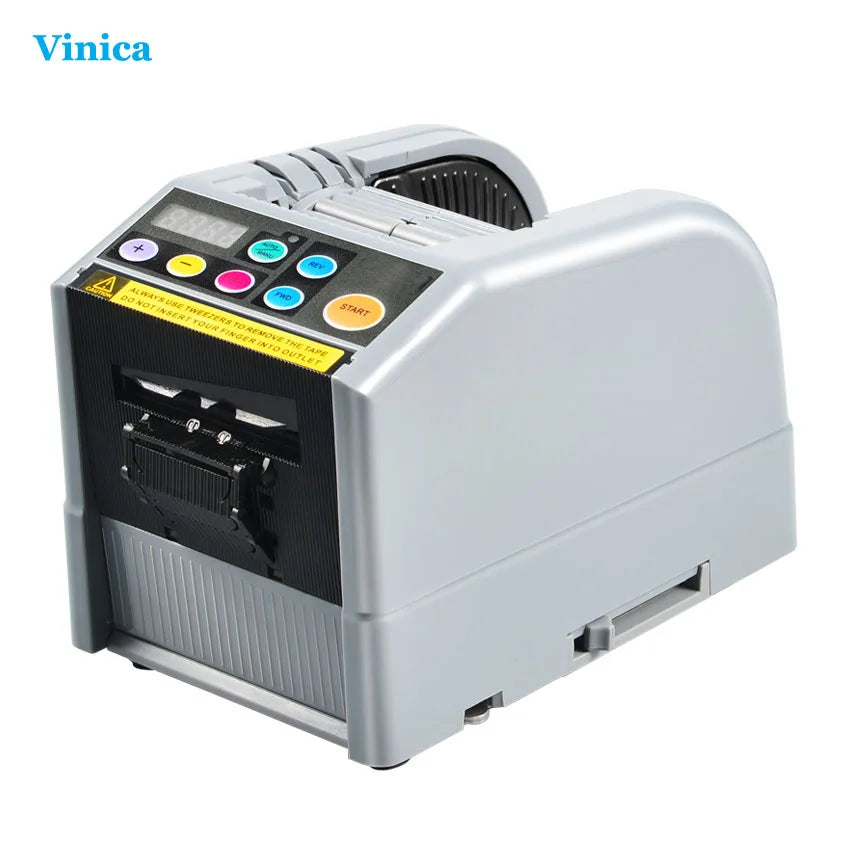

Vinica ZCUT-9 Automatic Electronic Tape Dispenser 6-60mm Width
The Vinica ZCUT-9 is a semi-automatic electronic tape dispenser designed to cut various adhesive and non-adhesive materials with high precision. Featuring a durable ABS plastic body, an electric motor drive, and adjustable cutting lengths from 5mm to 999mm, this machine accommodates tape widths between 6mm and 60mm. It supports dual-roll operation, features a memory function for six distinct programs, and includes built-in safety protections around the blade and mechanism.
Key Features & Operation

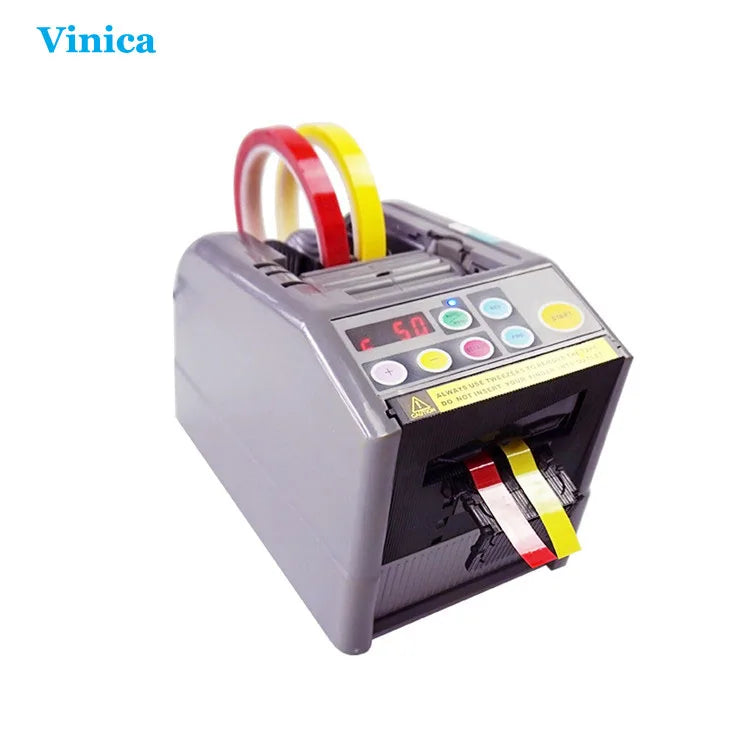

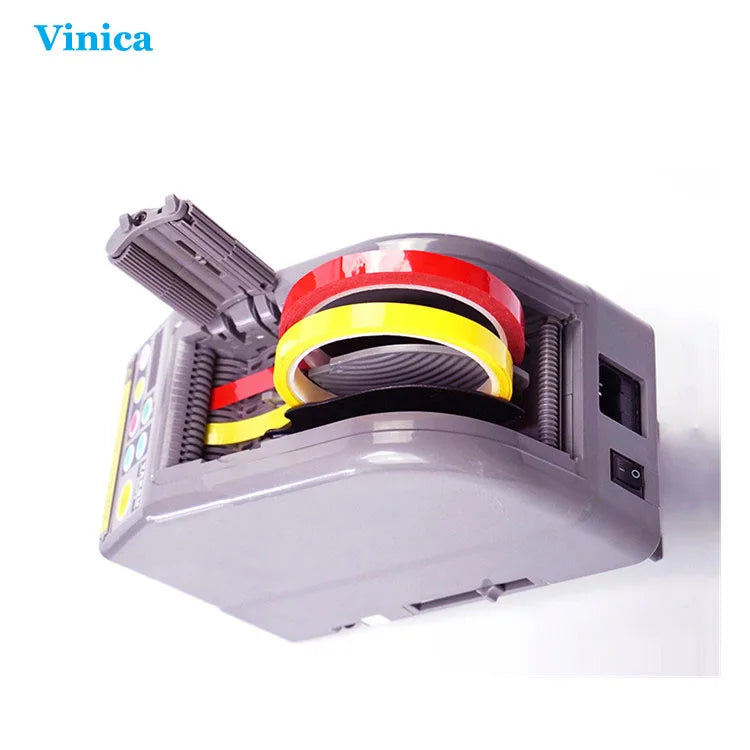

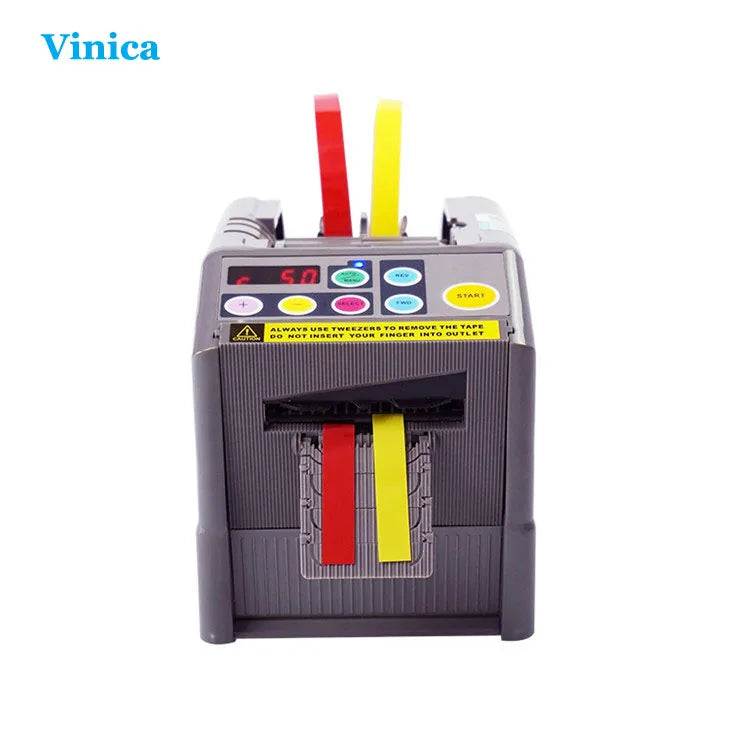

- Dual Roll Capability: Enables the use of two rolls simultaneously for increased throughput.
- Memory Function: Stores up to six different preset lengths for quick and efficient switching between tasks, supporting preset, circulating, and working memory modes.
- Enhanced Safety: Designed without roll wheels to improve user security, accompanied by a protective safe board at the blade edge.
- Flexible Control: Supports both automatic and manual operation types to suit different workspace requirements.
Technical Specifications
- Brand: VINICA
- Model: ZCUT-9
- Body Material: ABS Plastic
- Driven Type: Electric (Semi-Automatic grade)
- Core Components: Motor
- Power: 150W (AC100V 50Hz / AC220V 60Hz compatible)
- Voltage: 110/220V
- Tape Width: 6 - 60mm
- Tape Cutting Length: 5 - 999mm (freely adjustable)
- Max Roll Outside Diameter (OD): 300mm
- Inner Core of Roll: Suitable for any size
- Dimensions & Weight: 116W x 213D x 140H mm, 2.5kg
- Place of Origin: Henan, China
- Warranty: 1 Year
Compatible Materials
- Usable Adhesive Tapes: 3M tapes, Double-Sided tape, Transparent tape, Kapton tape, Acetate cloth, Fiber tape, Masking tape, Normex, and more.
- Usable Non-Adhesive Materials: Protection Film, PET Film, Insulation Film, Paper Tape, Aluminum Foil, Copper Foil, etc.
Applications & Packaging
- Industry Applications: Food, Beverage, Commodity, Chemical, Machinery & Hardware, Apparel, and Textiles.
- Packaging Types: Cartons, Bags, Film, Foil, Belt, Case
- Included Components: Main machine (1x), Instruction manual (1x), Power cable (1x), Silicon oil (1x, Note: usually excluded from air shipments due to liquid transport restrictions).
