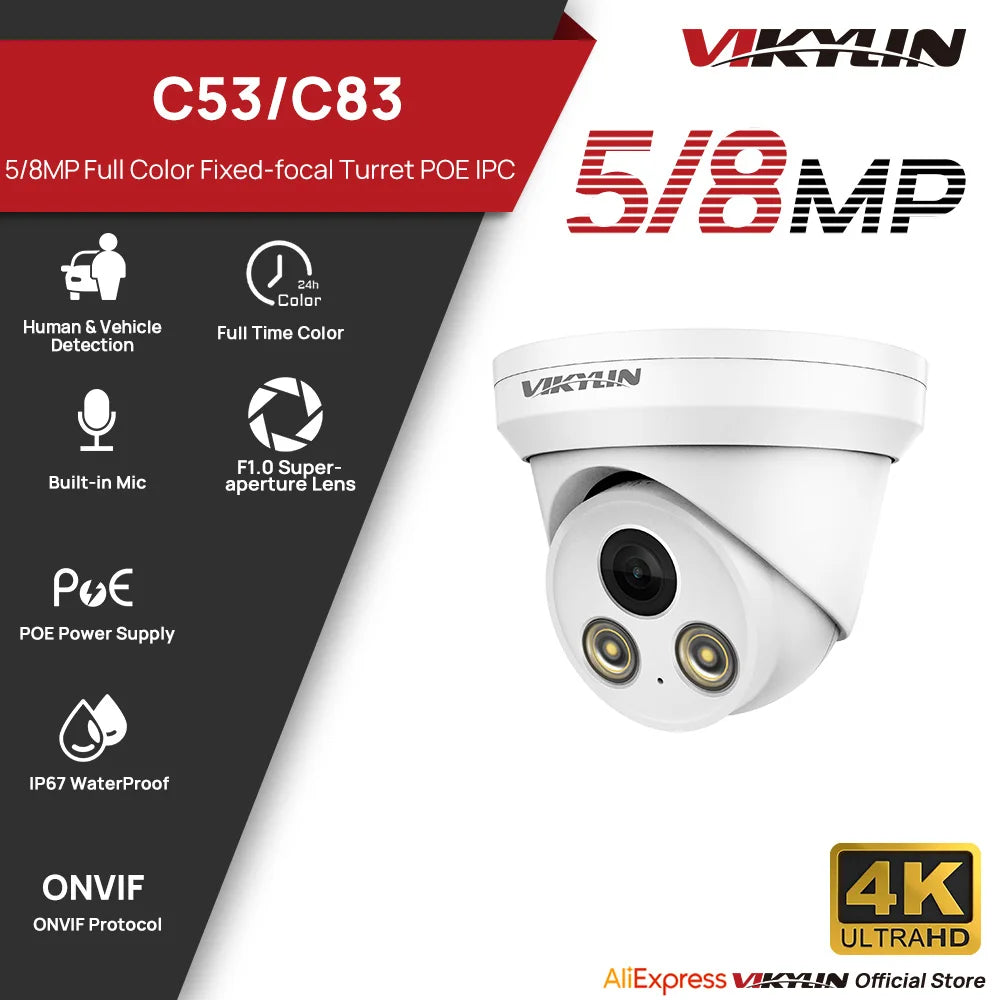

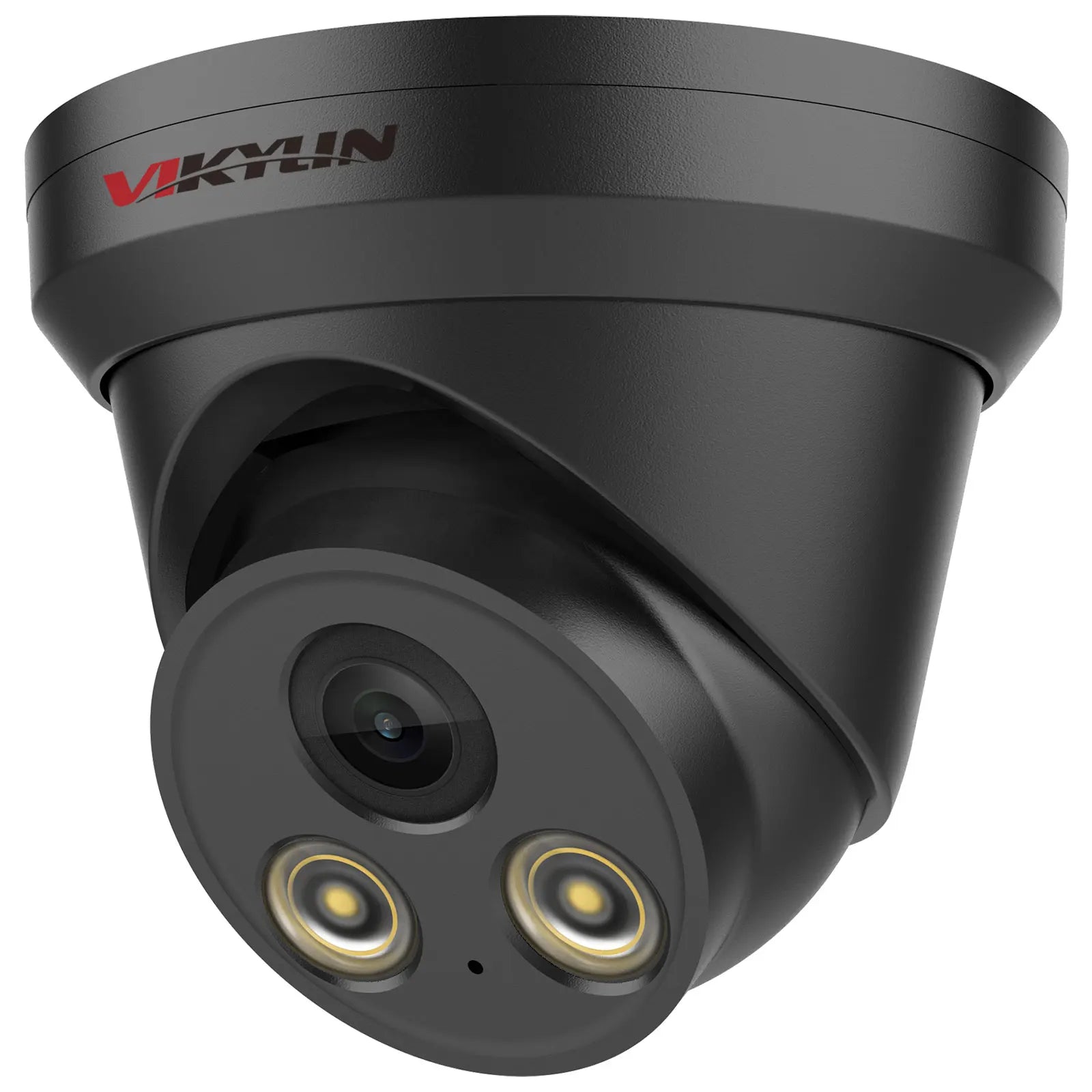

VIKYLIN 5/8MP Full Color IP Camera Outdoor POE Onvif Wide Angle 2.8mm AI Humanoid Detection Home CCTV Surveillance Camera IP67
SPECIFICATIONS
AI Functions: Motion Detection
Alarm Type: telefon Alarm,Local Alarm,FTP Photo
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Aperture: F1.0
App name: Other
Audio Compression: G.711U/G.711A/AAC
Basic Event: Motion detection
Bit Rate Control: CBR, VBR
Brand Name: VIKYLIN
Built-in Microphone: Yes
Choice: yes
Client: AjDevtools, LMS, Videolink
Color Night Vision: Yes
Connectivity: IP/Network Wireless
DORI: 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
Day & Night: 24/7 Color imaging
Day/Night Switch: Day, Night, Auto, Schedule
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Focal Length & FOV: 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
H.264 Type: Base Profile, Main Profile, High Profile
H.265 Type: Base Profile, Main Profile, High Profile
High Definition: 8.0 Megapixels
High-concerned chemical: none
IP Rating: IP67
IR Wave length: 850 nm
Image Sensor: 1/2.7" Progressive Scan CMOS/ 1/3" Progressive Scan CMOS
Image Settings: Brightness, saturation, contrast, rotate mode, white balance, BLC, HLC, 3D DNR, WDR adjustable by client software or web browser
Installation: Ceiling
Internal Storage: None
Iris Type: Fixed
Language: English, Russian, German, Italian, Turkish, Korean, Traditional Chinese, Simplified Chinese, Ukrainian
Lens (mm): 2.8mm
Lens Mount: M12
Lens Quantity: Single Lens
Linkage: Upload to FTP/ send email, trigger recording, trigger capture
Main Stream: 50 Hz: 20fps@3840 * 2160, 25fps@3072 * 3048, 30fps@(2592 * 1944, 2560 * 1440, 2304 * 1296, 1920 * 1080, 1280 * 720); 60 Hz: 20fps@3840 * 2160, 25fps@3072 * 3048, 30fps@(2592 * 1944, 2560 * 1440, 2304 * 1296, 1920 * 1080, 1280 * 720)
Material: Metal & Plastic
Max. Resolution: 2880 * 1620/ 3840 * 2160
Megapixels: 8MP
Min. Illumination: Color: 0.01 Lux @ (F1.0), 0 lux with warm light
Model Number: C53/C83
Operating Conditions: -30 °C to 85 °C (-22 °F to 185 °F). Humidity 95% or less (non-condensing)
Optical Zoom: NONE
Origin: Mainland China
Power: 12 VDC ± 25%, 0.4 A, max. 5 W, 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, max. 6.5 W
Power Mode: Mains Electricity
Power Source: With Poe,Normal
Power Supply: With Poe
Power Supply(V): DC 12V
Privacy Mask: 4 programmable polygon privacy masks
Protection: IP67
Protocols: TCP/IP, DHCP, DNS, HTTP, ONVIF, RTP, RTSP, NTP, UDP, FTP, SMTP
Scene: Indoor and outdoor
Sensor: CMOS
Shell Material: Metal
Shutter Time: 1/10 s to 1/10,000 s
Smart Event: Human & Vehicle detection
Smart Supplement Light: Yes
Special Features: Waterproof / Weatherproof
Storage Conditions: -30 °C to 85 °C (-22 °F to 185 °F). Humidity 95% or less (non-condensing)
Style: Turret Camera
Sub-Stream: 50 Hz: 30 fps@(720 * 480, 640 * 480, 640 * 360, 480 * 360,CIF ) 60 Hz: 30 fps@(720 * 480, 640 * 480, 640 * 360, 480 * 360,CIF )
Supplement Light Range: Up to 30 m
Supplement Light Type: Warm Light
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows XP,Windows 7,macOS,Windows 8,Windows 10
TF Card: None
User/Host: Up to 10 users 3 user levels: administrator, operator, and user
Video Bit Rate: 64 Kbps to 12 Mbps
Video Compression: Main stream: H.265+/H.265/H.264 Sub-stream: H.265+/H.265/H.264
Video Compression Format: H.264,H.265
Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+,Microsoft Edge
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: NONE
Zoom type: none
is_customized: Yes
Customer support
Please Contact Us Before Requesting a Return.
Most issues are caused by configuration settings and can be resolved quickly by our technical support team.

Setup & Guides for PG and YC series
Video link:
https://www.youtube.com/watch?v=7gzSDx-OBFY&list=PLHnanNJL7osTbCCVS9bfDegy5NqUeS2na

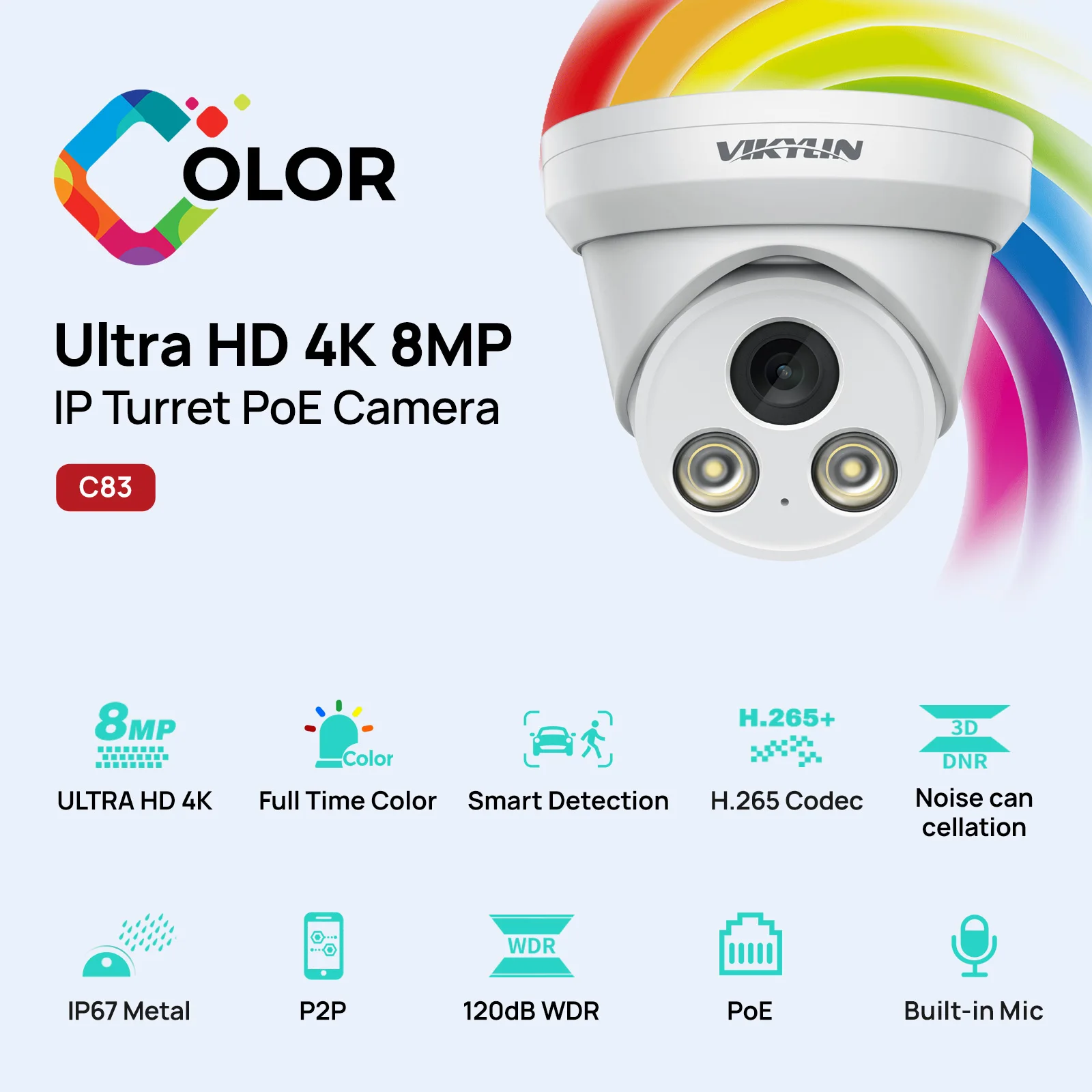

An Incredible 8MP 4K Super HD IP Camera
With a high resolution of 8megapixels (3840 x 2160), this 8MP HD IP surveillance camera is able to capture videos in 3840p HD quality. It is a huge advancement compared to 720p HD or 1080p Full HD. you never miss a single detail of your loved ones. which enables you to see all objects very clearly.

Specifications:
5MP realtime resolution 2880x1620@25fps
8MP realtime resolution 3840x2160@20fps
Warm Light range to 30m(98ft)
Motion Detection, Human & Vehicle detection
H.265+ & H.265 & H.264
Built in Mic
Built-in reset button and memory card slot
Support Alarm Snapshot to Email, FTP
Water and dust resistant (IP67)
RTSP and Onvif compatible with many third-party NVR

Full Color 24/7 Monitoring
When daylight is out, the colorvu camera with built-in LED lights continues to record in full color. This will bring more visual details that help identify people and cars than black-and-white videos.
Using F1.0 large aperture lens, the amount of incoming light isgreatly increased up to 4 times. With wide dynamic and backlight compensation technology, it can output HD images and restore the real scene.

Smart Human & Vehicle Motion Detection
Triggers alerts for moving objects in monitored areas; also supports human and vehicle detection.

F1.0 Super-Aperture Lens
Brings in more light for brighter and clearer low-light performance.

Built-in Microphone
Delivers real-time clear audio for comprehensive monitoring.

H.265 Smart Compression
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Easy PoE Installation
The PoE security IP camera uses a single cable to transmit both data and power. Simplified wiring means easier and clean installation. It is the best choice for DIY enthusiasts.

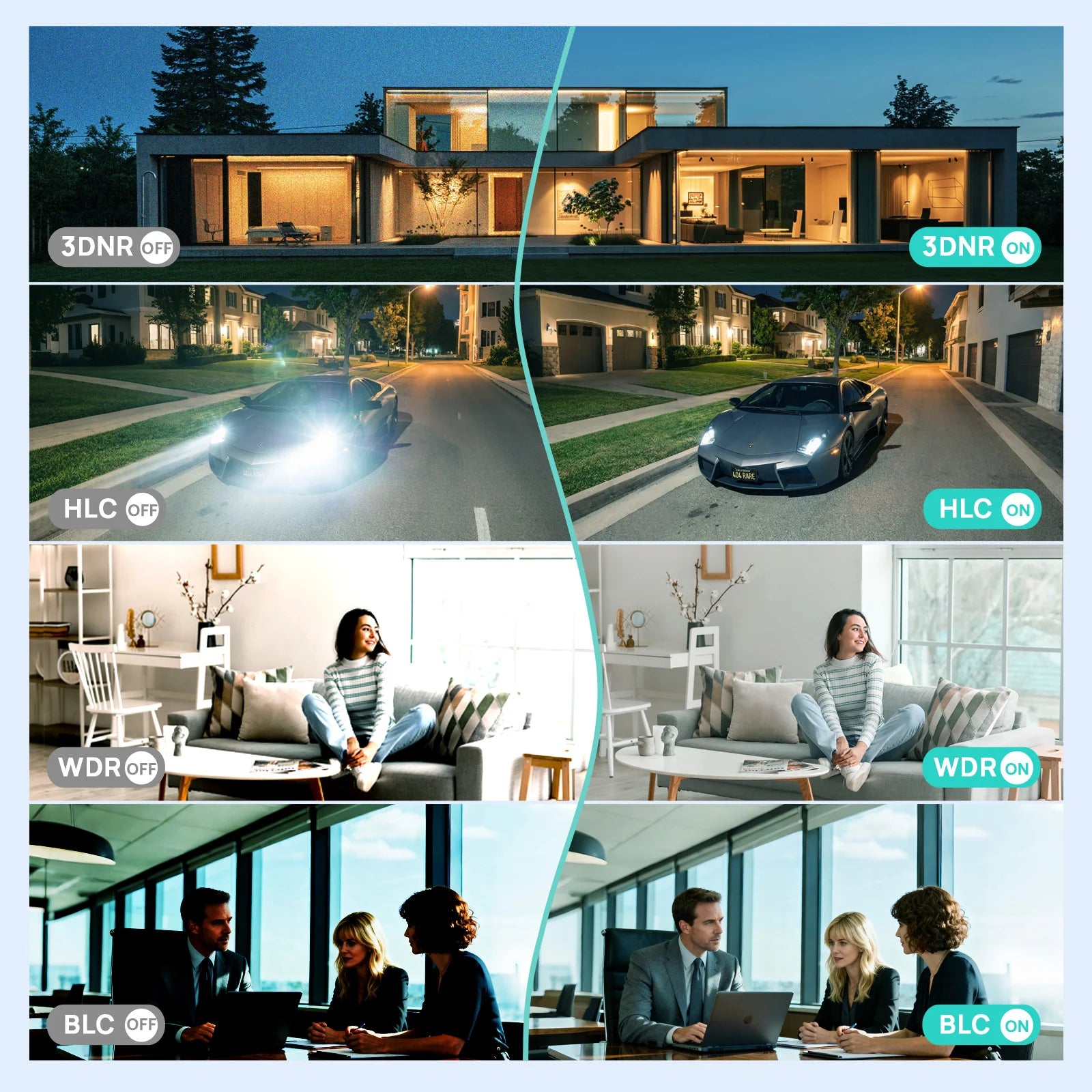

3DNR Enhanced Clarity in Low-Light Situations
Your camera uses DNR (Digital Noise Reduction) technology to filter out noise from low-light settings as well any noise caused by motion. By eliminating graininess, your camera provides a cleaner, more accurate image with better clarity, sharpness, and improved motion detection, enhancing your HD experience even in the dark! Not only does DNR reduce noise, but it reduces video file sizes as well, giving you greater disc space for storage.
WDR (Wide Dynamic Range) technology: Using short shutter exposure in the background area, and enabling.Using a long shutter exposure to generate a composite image can not only reveal the details in the dark areas of the image, but also prevent the bright areas from being overexposed. Wide dynamic range
The state-of-the-art technology can achieve clearer and more vibrant images than the backlight compensation technology.
BLC (Backlight Compensation) technology: It allows the camera to find the reference brightness for capturing the best image, and then automatically provides an appropriate amount of light compensation to help users identify objects with strong backlighting effectively. Backlight compensation is often effective for specific areas of the target image.
HLC (Highlight Compensation) technology: It detects the presence of bright spots and then applies appropriate suppression to the bright areas to obtain a clear image. This function is useful for reading license plates at night.

Motion Detection
Alerts for activity in monitored areas.also support human/verhicle detection.

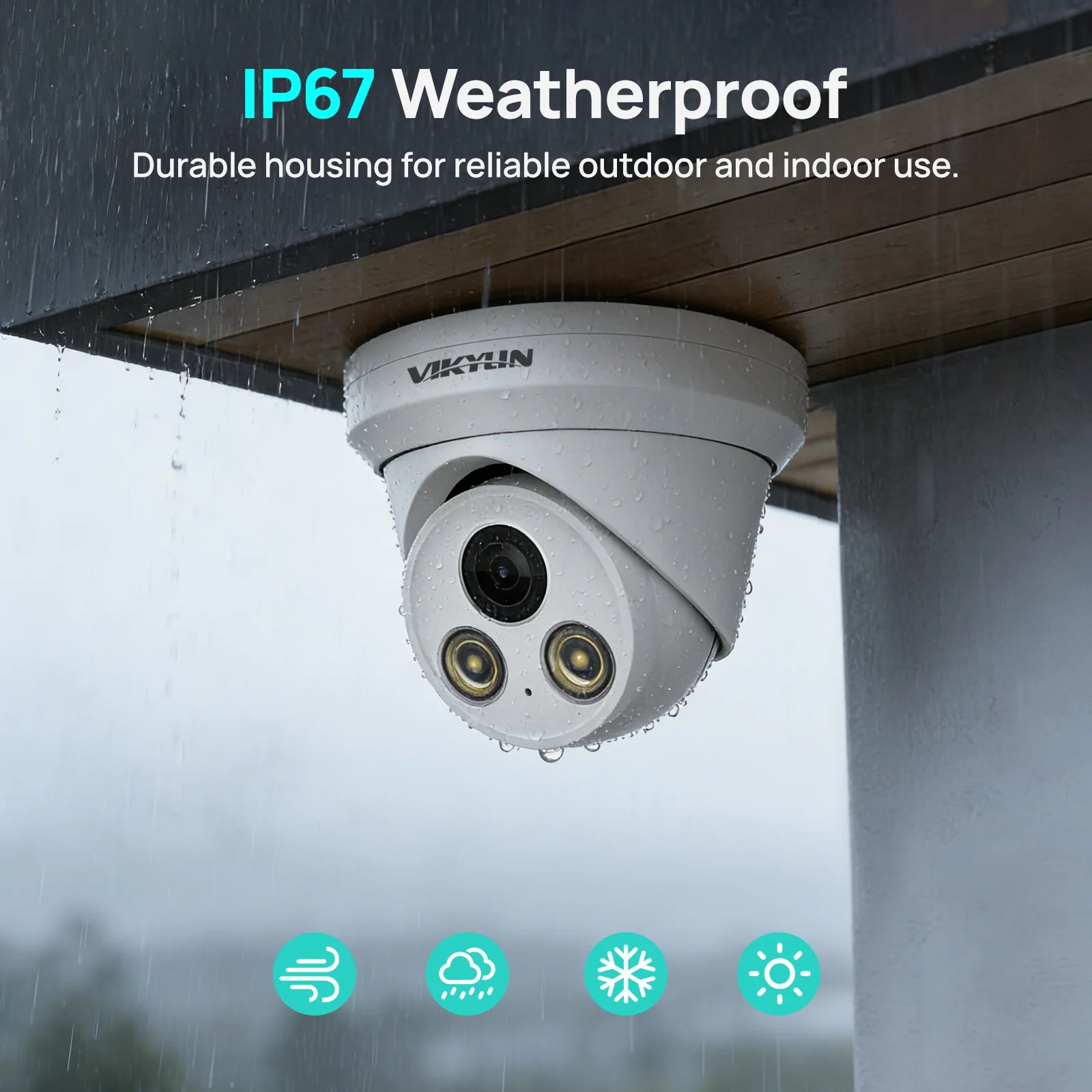

IP67 Weatherproof
The IP67 protection rating provides excellent protection for your equipment. Whether it's a dusty environment, an accidental splash or even a short immersion, there's no need to worry.

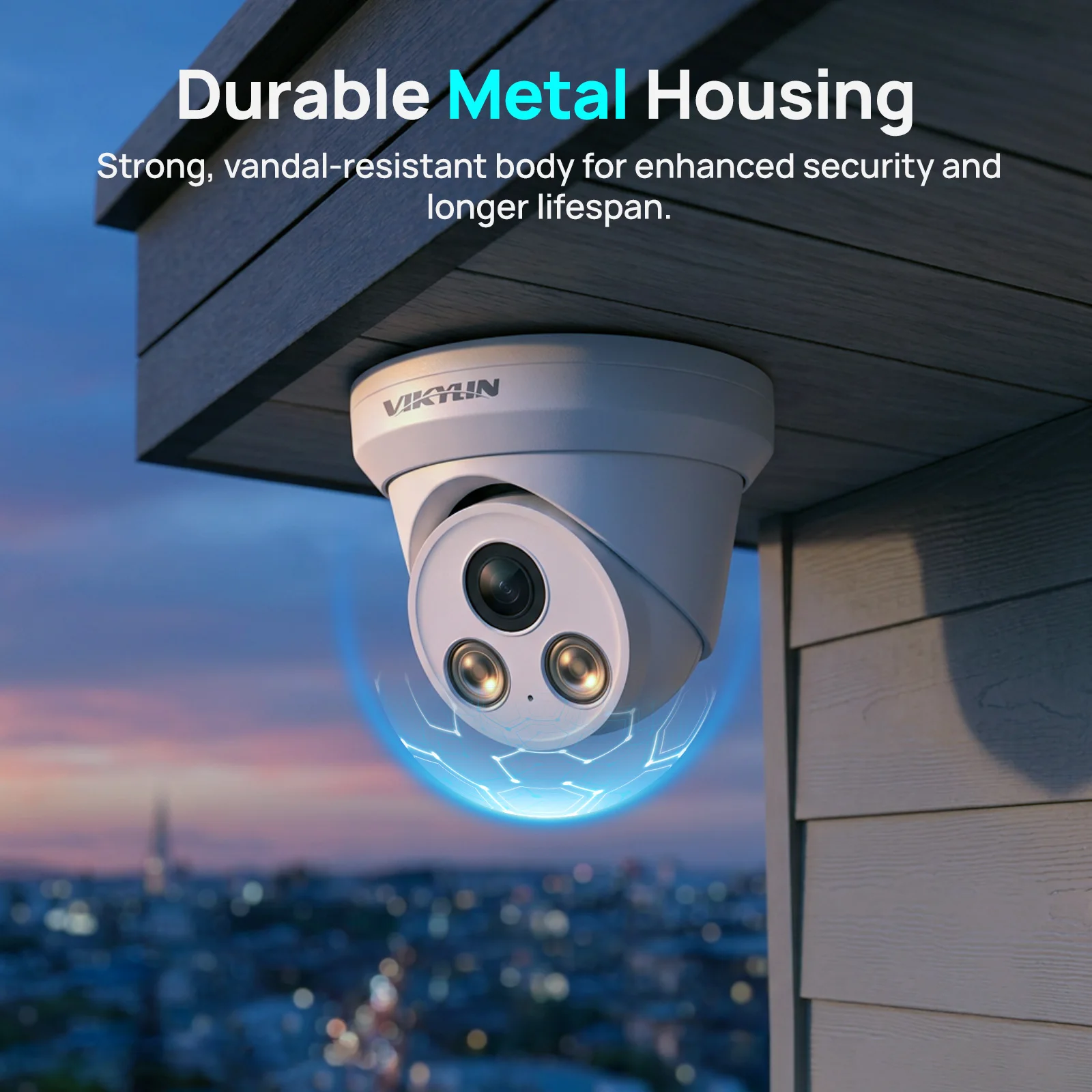

Durable Metal Housing
Delivers superior strength, impact resistance, and long-lasting
outdoor reliability.

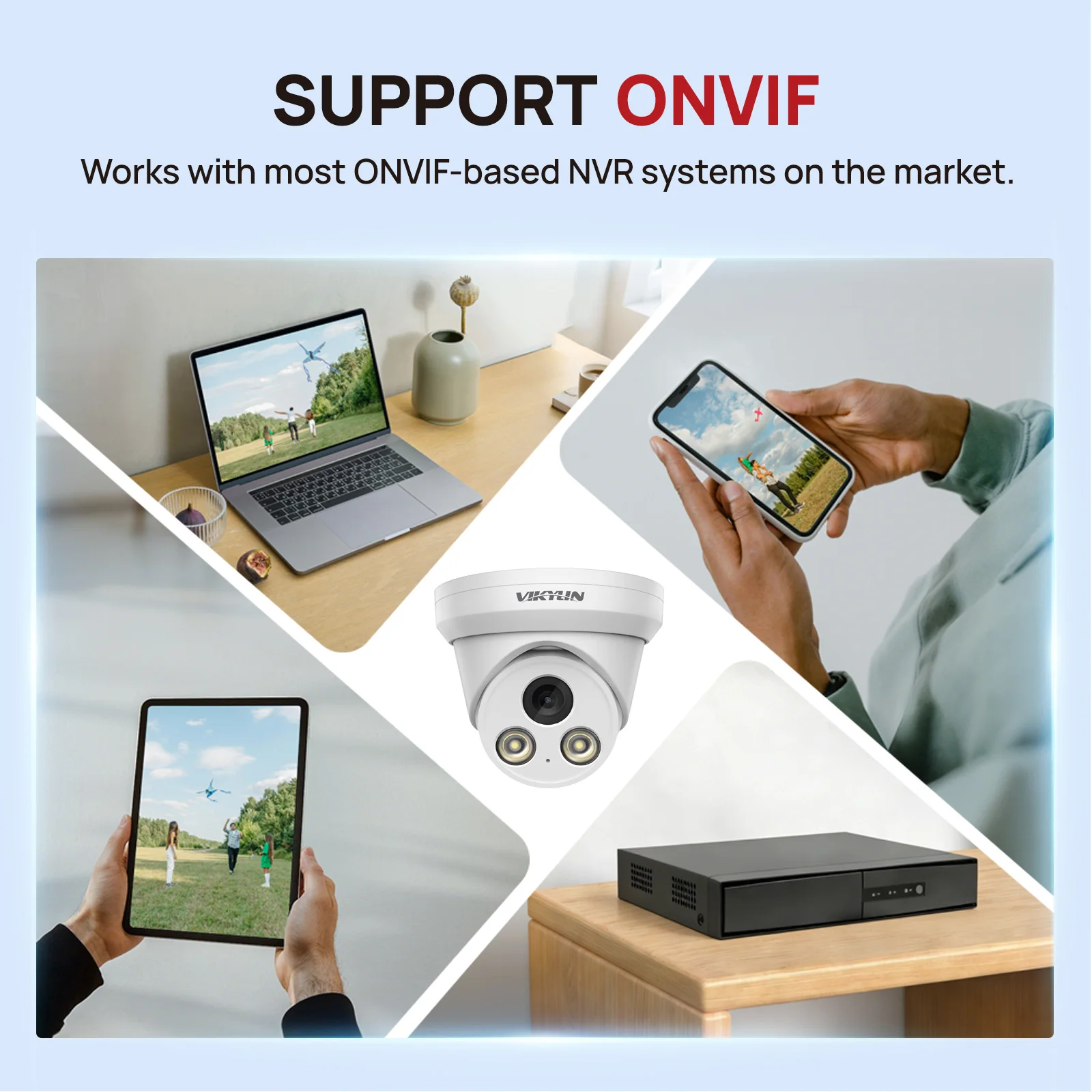

SUPPORT ONVIF
Works with most ONVIF-based NVR systems on the market.

4 Programmable Privacy Masks
Help comply with privacy regulations and shield sensitive areas.

Engineered for Blue Iris & VMS
No protocol conflicts. Just configure and record.

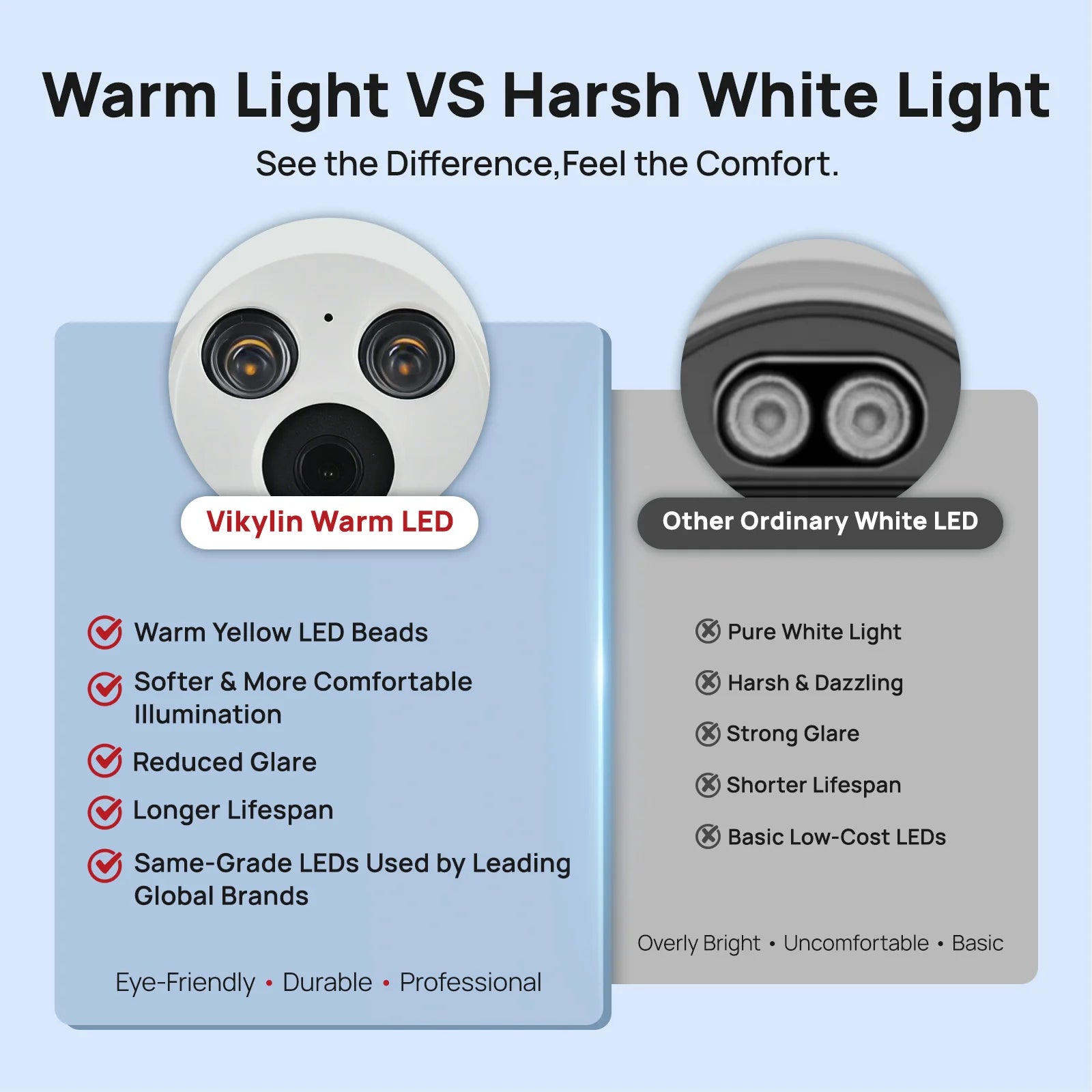

Warm Light VS Harsh White Light
See the Difference,Feel the Comfort.

POE Connection, Don't need Power Supply,No POE need USE 12v Power
A real play and plug security! It features POE (Power over Ethernet), with a single cable connecting each IP camera to the NVR for both power supply and video and single transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts and beginners

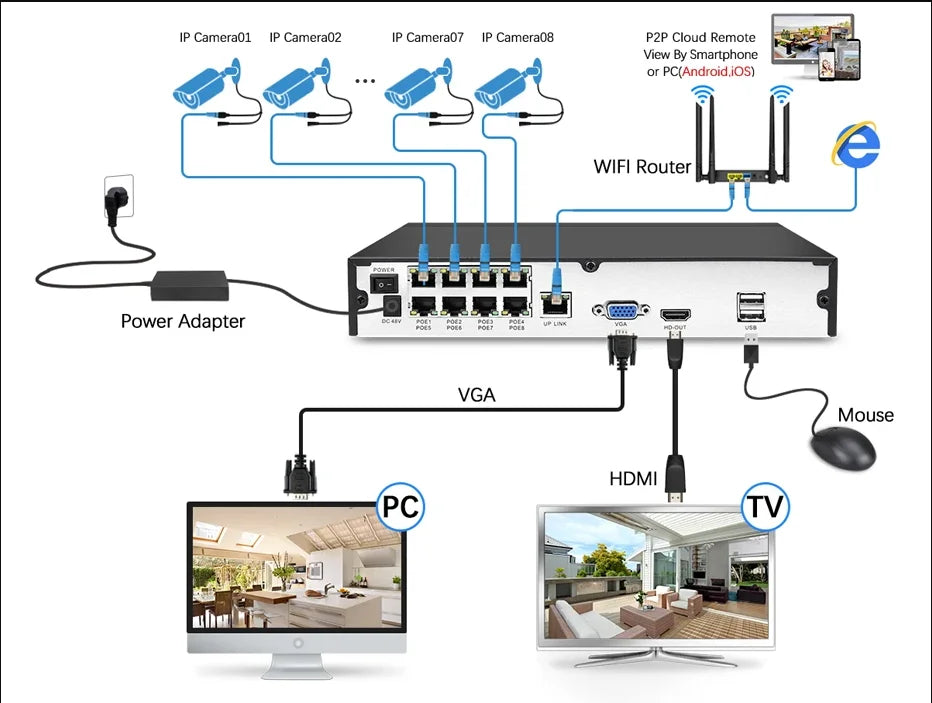

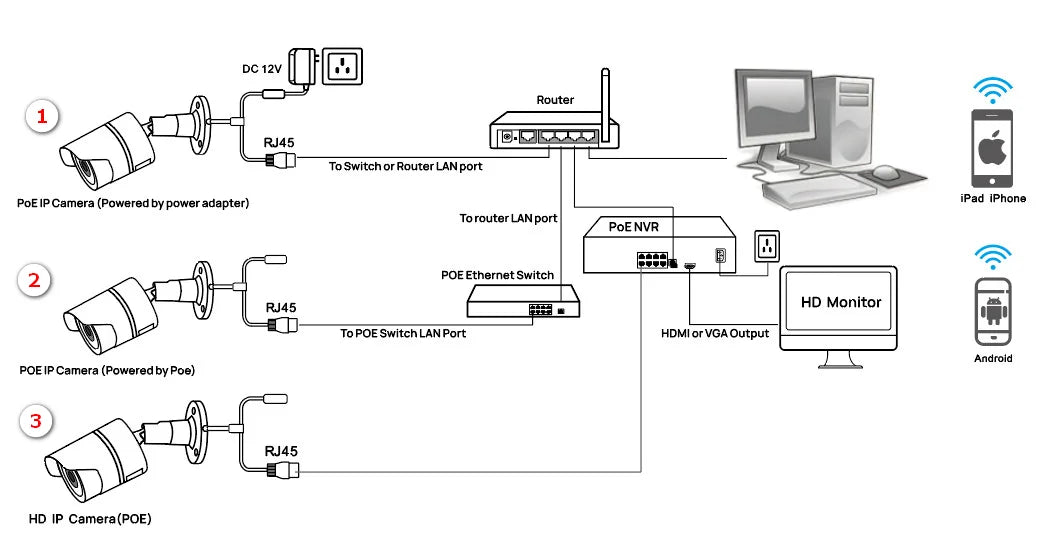

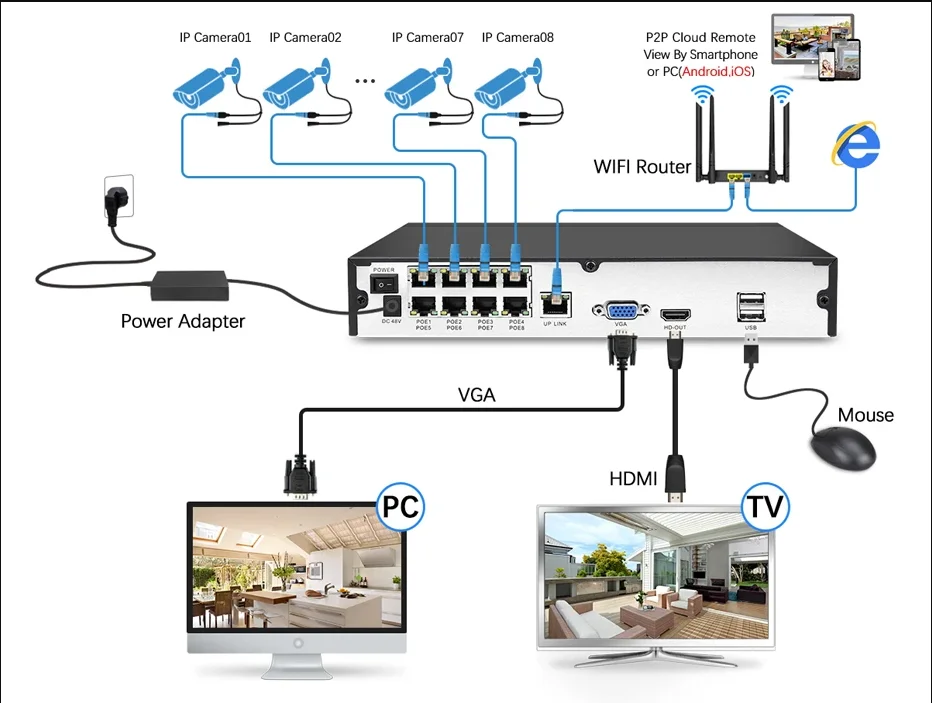

Connection Method

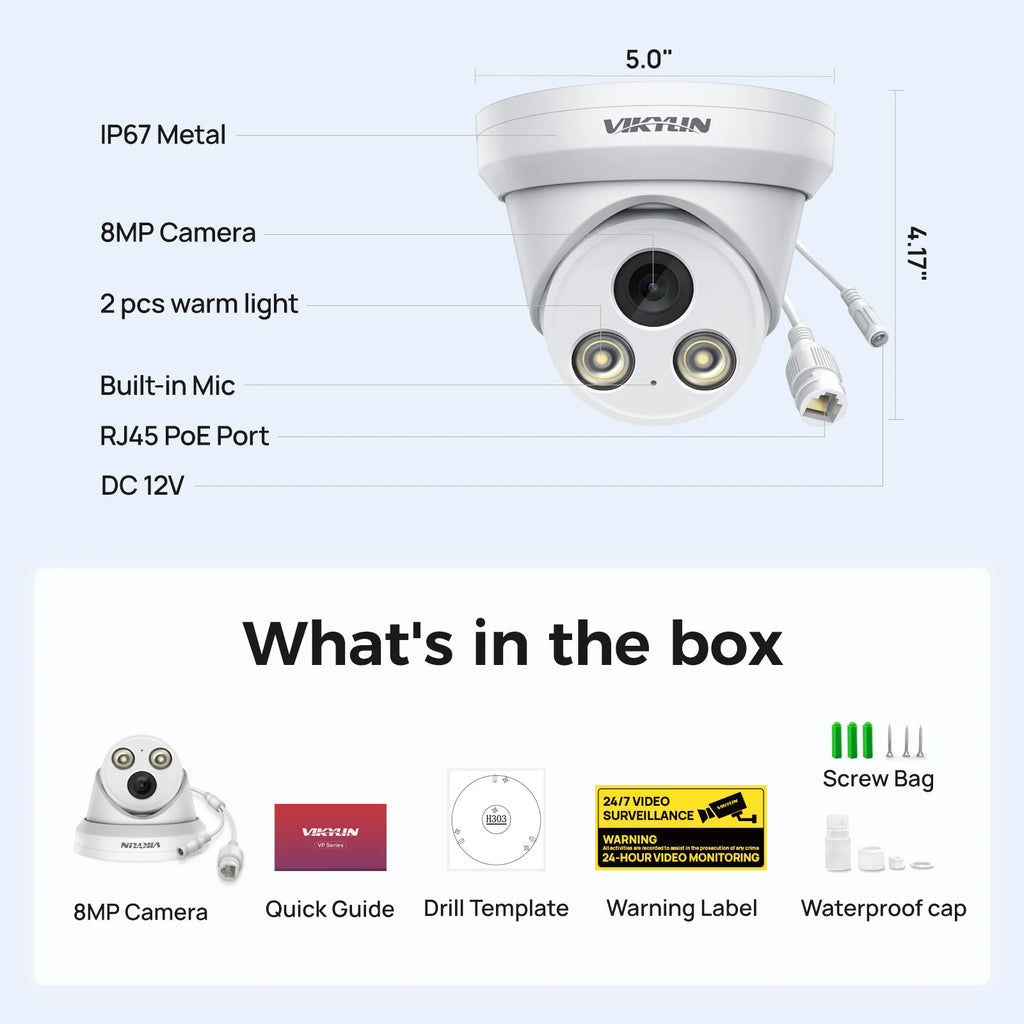

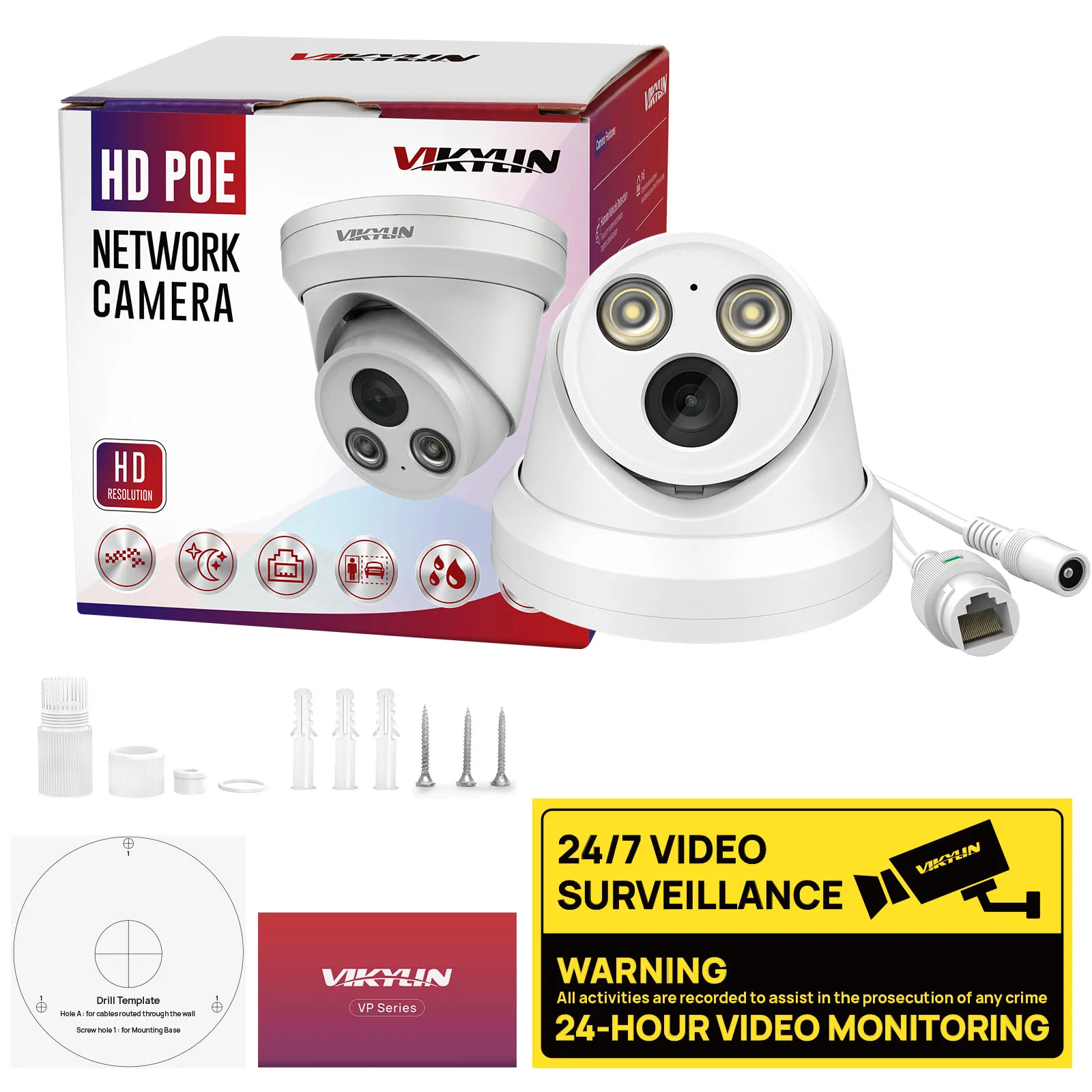

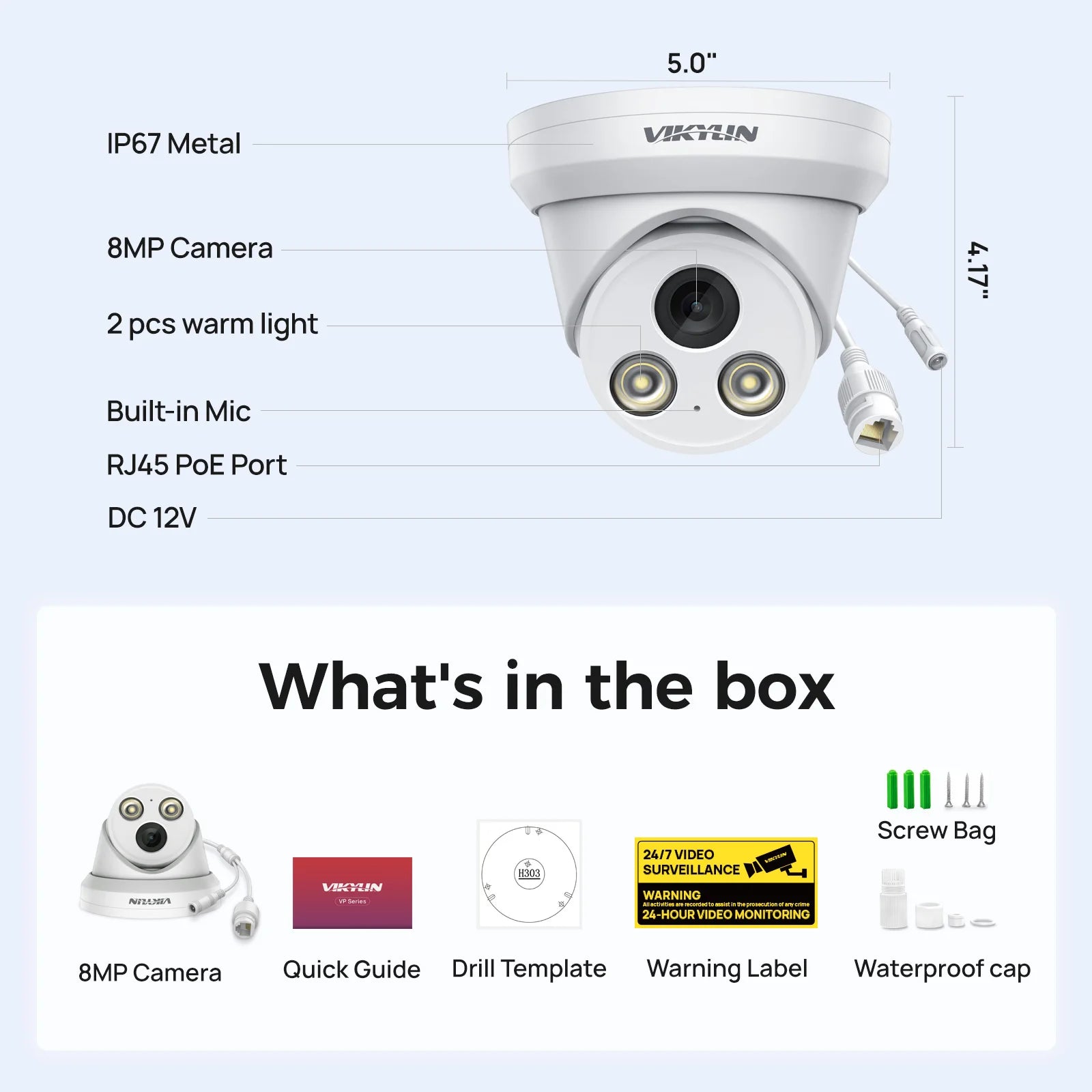

Package list

Frequently Asked Questions:
1.Why can’t I open the default IP address 192.168.1.110 via web browser ?
A:The default IP address may not match your LAN’s IP scheme. Check your
computer’s IP address before accessing the camera. If the IP address does not match
the 192. 168. 0.x scheme, please install the IP search tool from the download website
to modify the camera’s IP address. Make sure the IP address of the camera matches
the LAN IP scheme. For example, if the your LAN is 192. 168.1.xxx(192. 168.2.xxx)...,
then set the IP camera to 192. 168.1. 123(192. 168.2.123)... and so on.
For details about how to change the IP address, please refer to 3.1
2.How to reset the password ?
A:The default Username: admin, Password: 123456. If you lost the password or want to
reset the camera’s setting, please install the search tool Ajdev to search the
camera IP and click Batch Reset button.
3.How to upgrade the IP camera ?
A:①Ask the supplier for the suitable firmware.
②You can use the web browser, Ajdevtools, or PC client to upgrade the camera.
③Go to the Configuration > System >update, click browse and select the firmware,
then click Upgrade button and wait for the operation to complete.
4.How to fetch the RTSP video stream and http snapshot ?
A:①Main Stream : rtsp://admin:123456@IP address/stream0
②Sub Stream: rtsp://admin:123456@IP address/stream1
③Main stream snapshot:
http://192.168.20.131/snapshot.cgi?stream=1&username=admin&password=123456
④Sub Stream snapshot:
http://192.168.20.23/snapshot.cgi?stream=0&username=admin&password=123456
5.Why does the NVR not show image after adding your IP camera ?
A:①Make sure you selected the right protocol and enter the correct username and
password when adding the cameras
②Make sure the NVR and IP camera are the same IP segement.(eg. NVR:192.168.1.x,
and IP camera:192.168.1.y).
③Try changing the camera encode mode to H.264 if the NVR can’t support
H.265. (Configuration -> Camera -> Video > Encode mode: H.264)
