SPECIFICATIONS

Access Control: None

Answering Mode: Hands-free

Brand Name: SmartYIBA

Camera: color

Camera Sensor type: CMOS

Certification: CE

Communication Interface: Wired

Connection Method: Wired

Display Screen Size(inch): 7

Display Screen Type: Color Touch Screen

Doorbell: Yes

High-concerned chemical: None

IP Camera Interface: No

Installation: Wall Mounting

Kit Configuration: One to Two video doorphone

Material: ABS

Model Number: PQ-BTJ13-M31-1V2

Origin: Mainland China

Plug Type: EU Plug,US Plug,AU Plug,UK Plug

Power: 11V-240v

Power (W): 220v

Resolution: 1000

Samrt Home Interface: Yes

Sensor Size(Inch): 1/4

Size: 7inch

Smart home platform: NONE

Technology: ANALOG

Type: intercom system

Viewing Angle (°): 92

Waterproof: Yes

Zone Input: None

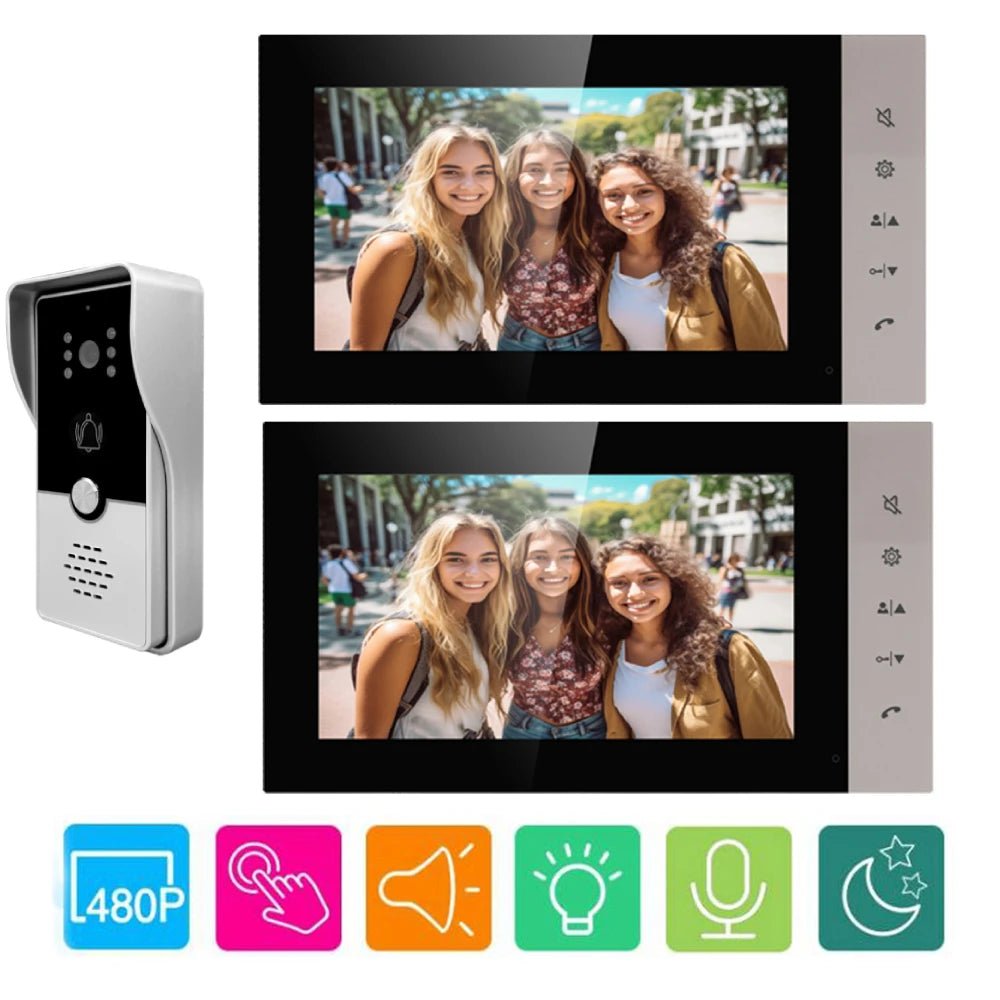

7 inch video door phone.

No radiation, low power consumption and high definition.

IR Camera with Night Vision.

>>>introduction:

1. Ultra-thin design luxurious style indoor machine, leading the new trend of color video door phones.

2. Waterproof, anti oxidation and wear resistance outdoor unit, equipped with rain-proof cover, support embedded installation and hanging garment two modes.

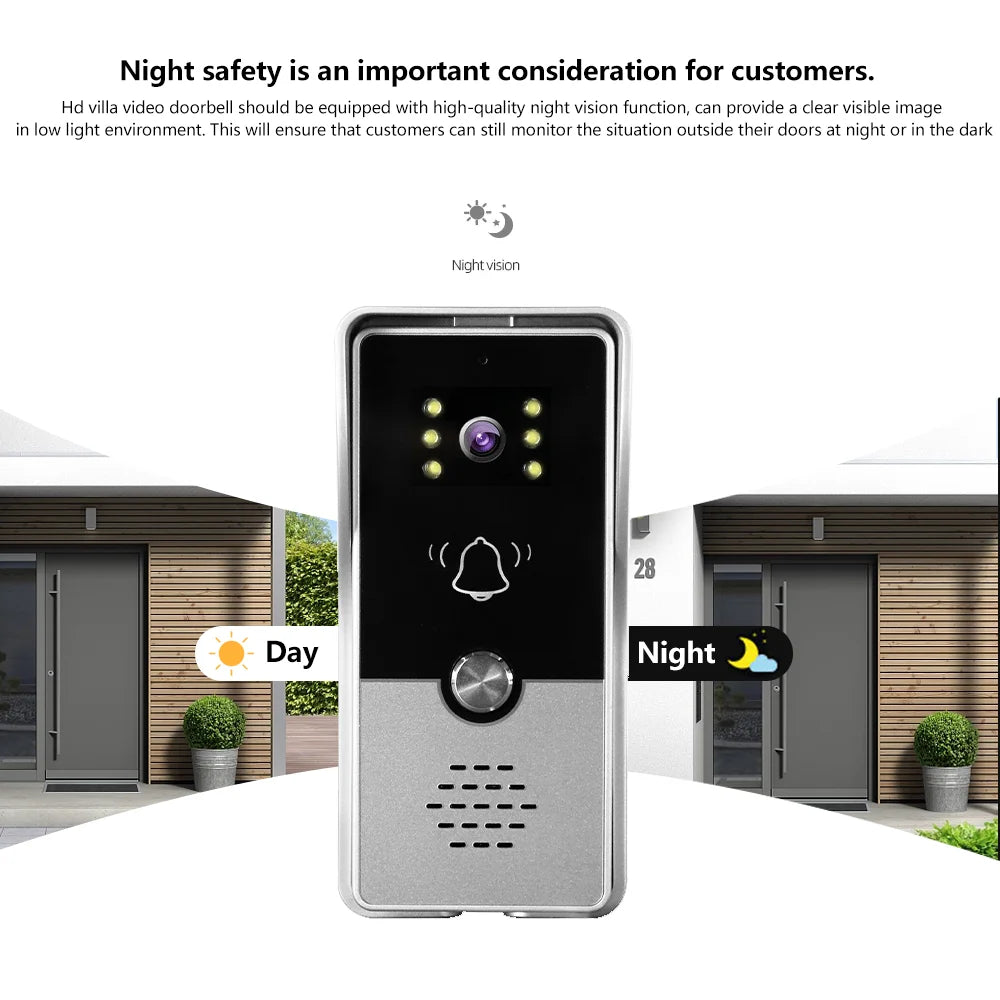

3. With IR night vision function, IR distance is about 1-3 meter.

4. No radiation, low power consumption, high definition 7 inches color images.

5. Monitor, intercom, unlock,hands-free, chord rings choice.

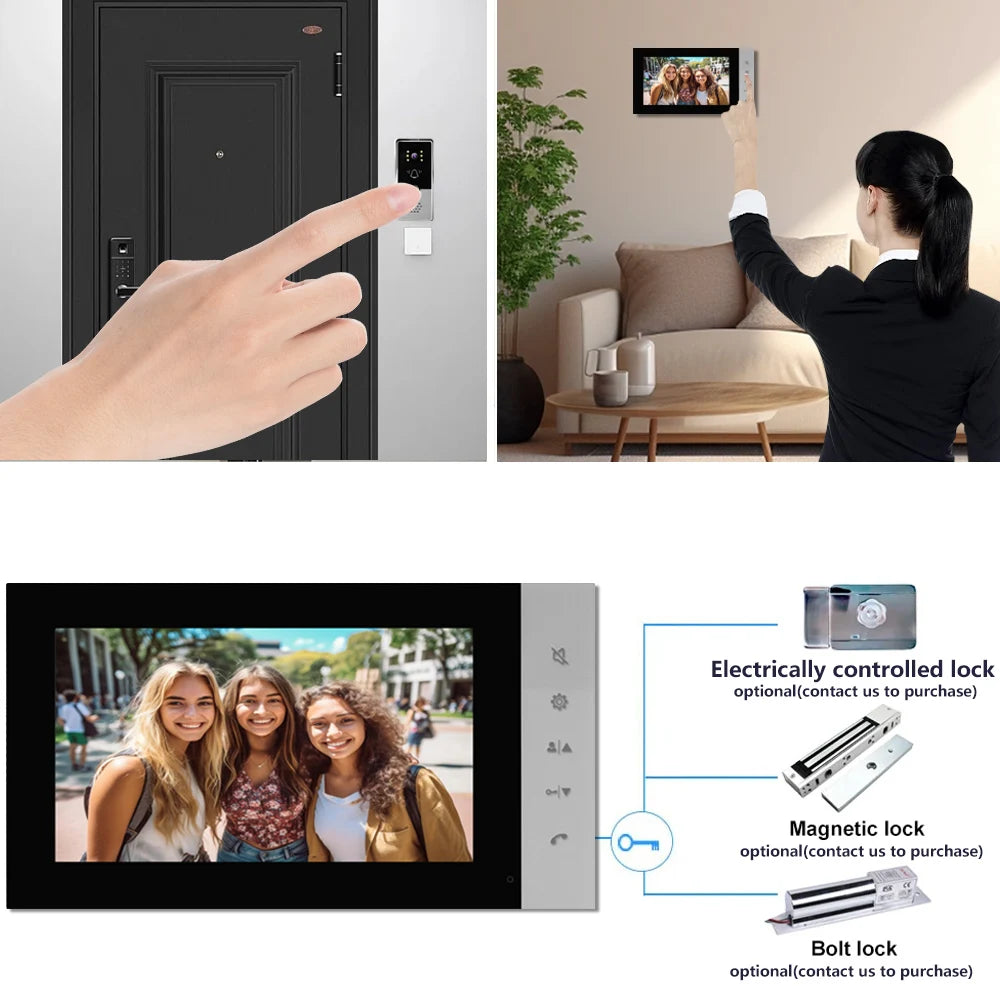

6. With unlock function(Please add an access control power for power off unlock)

7. Volume, brightness & contrast adjustable.

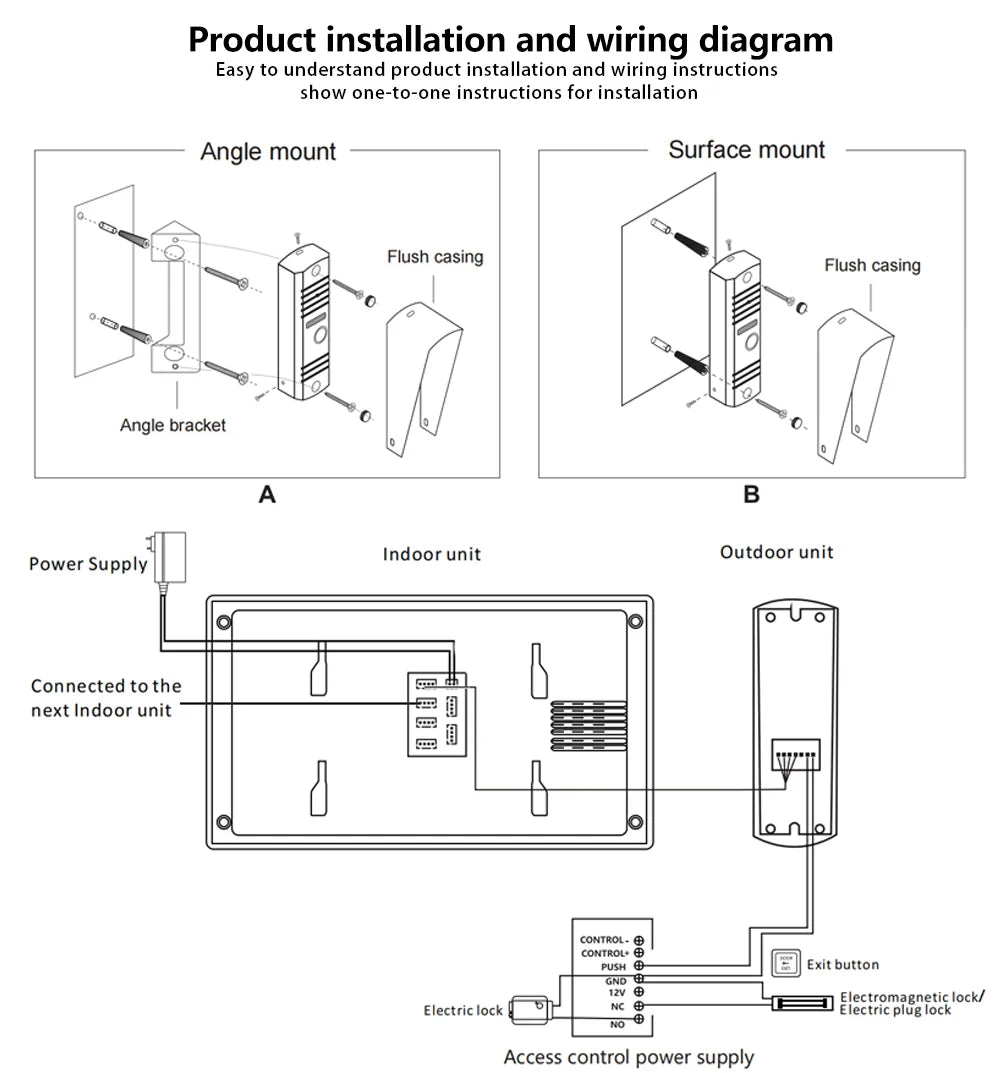

8. 4 cores wire connection between indoor monitor and outdoor camera

9. Match can up to 1&1, 1&6, 2&1, 2&6 systems.

>>>Operation Instruction:

(1)  Connect cable and electric lock according to the User Manual, check whether wiring is errorless and then proceed to next step.

(2)  Turn on the indoor unit power, check whether the power indicator of the indoor unit works normally.

(3)  Press the calling button, then the indoor monitor will hear the ringtones and show the image.

(4)  Adjust brightness/ chroma/ volume/ optimum talkback location (ex-factory test).

(5)  Press the talkback key and check whether indoor and outdoor talkback works normally.

(6)  Indoor monitor under the standby mode, press the monitor button to check whether the monitoring key works normally.

(7)  For more than 2 indoor monitors, press the  intercom button of the first indoor monitor, every indoor monitor shows blue screen,the press the intercom button of second indoor monitor to talk.

(8)  Under the intercom mode, press the unlock button to check whether unlock works normally.

(9)  You can safely use the product upon passed acceptance mentioned above.

>>>Specification:

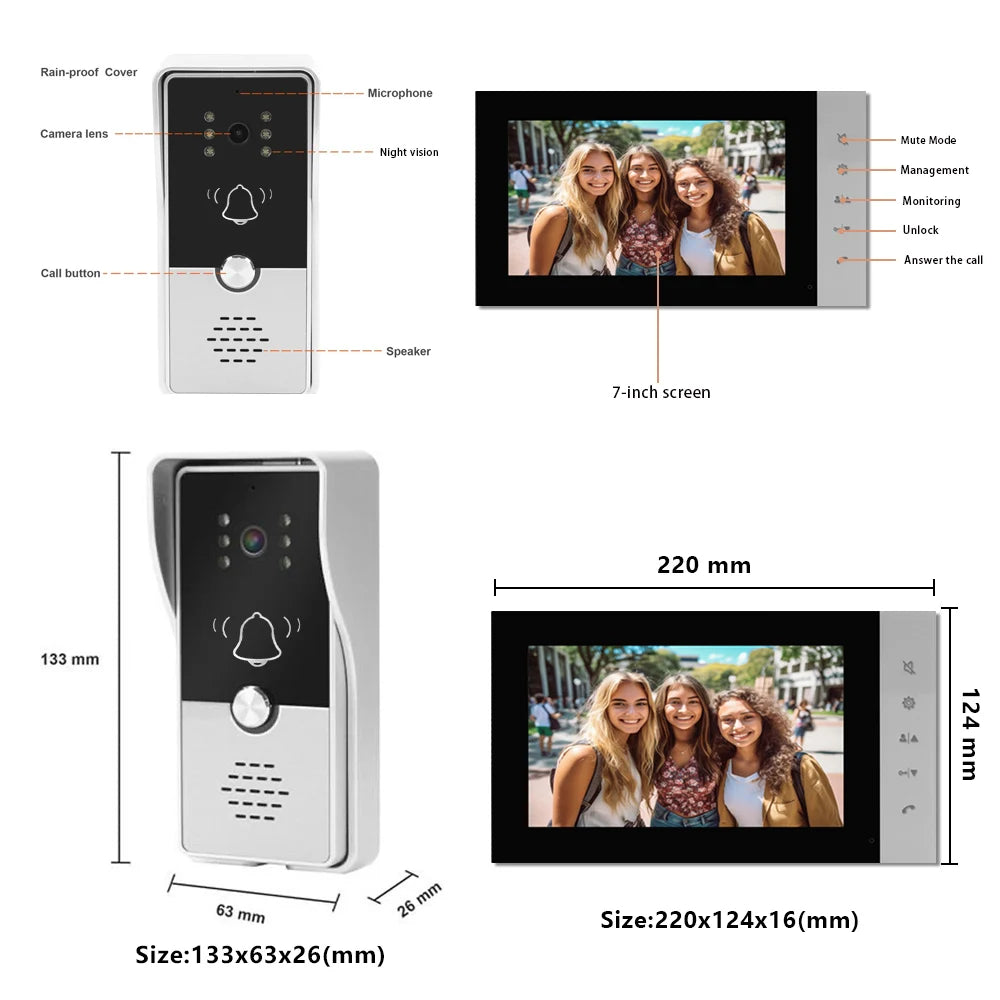

Outdoor Camera

Camera: 1/4" CMOS

Min. Illumination: 0.5Lux

Video output: 1Vp-p/75Ω

Adapter input: AC100~240V, 50/60Hz

Adapter output: DC15V/1.2A

Installation: Wall mounted

Material: ABS plastic & aluminum alloy

Wires for Lock-camera connection.

Monitor

Screen: 7" TFT/LCD

Material: ABS plastic & aluminum alloy

Power source: AC100V-240V / 50-60Hz

Resolution: 1024*600

Conversation delay:120S±10S

Monitoring delay:60S±10S

Operating temperature:-25-60degree

Power consumption:Standby: 0.5W, in-service: 8W

Connection mode:Four-wire, 5-core wire is added to extension
