SPECIFICATIONS

Brand Name: U'King

Certification: CE,FCC,RoHS

Control channel: 9/11CH

High-concerned chemical: none

Installation Method: self-contained

Is Batteries Included: Yes

Is Bulbs Included: Yes

Item Type: Moving head light

Light source: 1PCS 60W LED

Luminous Flux: 2000-82000

Model Number: 60W Moving Head Light

Nominal Voltage: 220V

Occasion: Professional Stage & DJ

Origin: Mainland China

Power (W): 60W

Power Source: DC

Style: DMX Stage Light

Voltage: 90-240V

Specifications:

Color: White

Material: aluminum alloy +plastic

Input voltage: AC110-220V, 50-60HZ

Rated power: 60W

Light source: 1PCS 60W LED

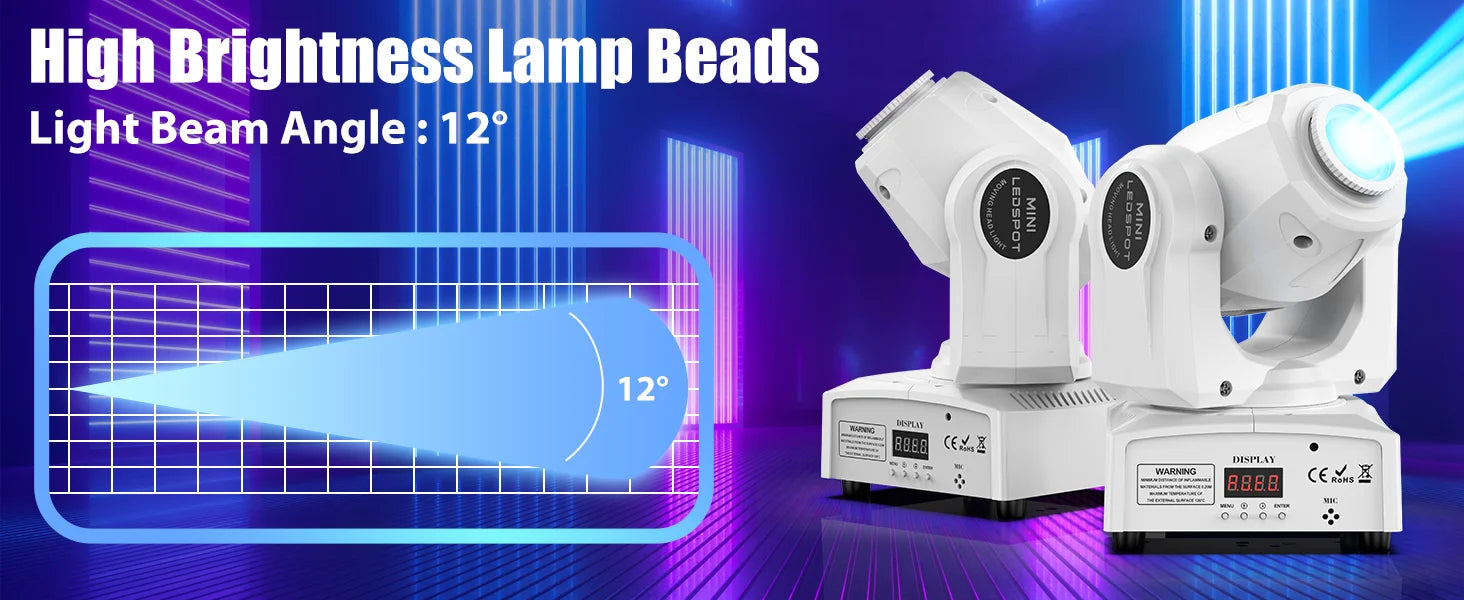

Angle of light: 12°

Color temperature: 8000K

Display color index: Ra ≥ 90

Illuminance: 420@LUX5m

LED average life: 20000H

Strobe: 1-18Hz

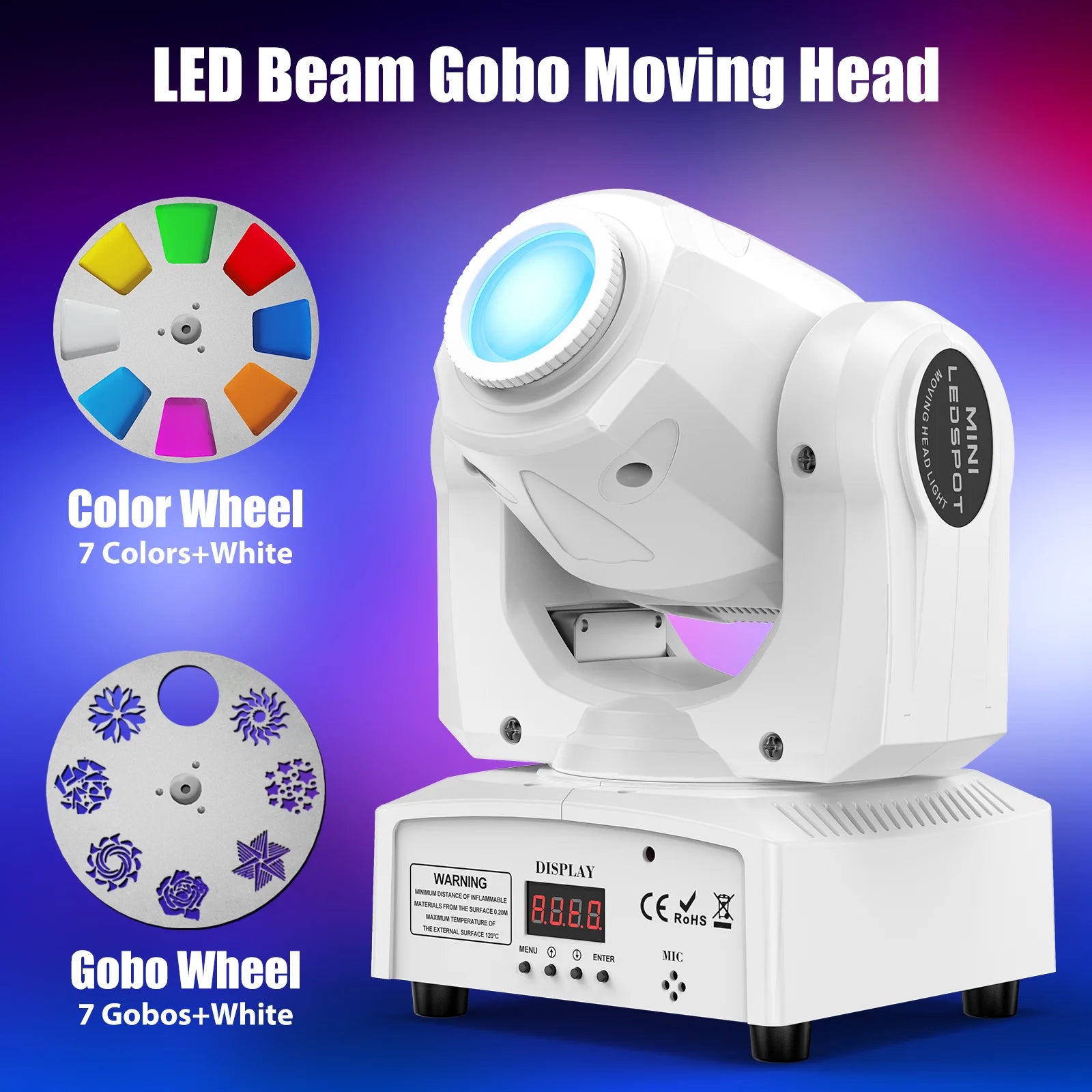

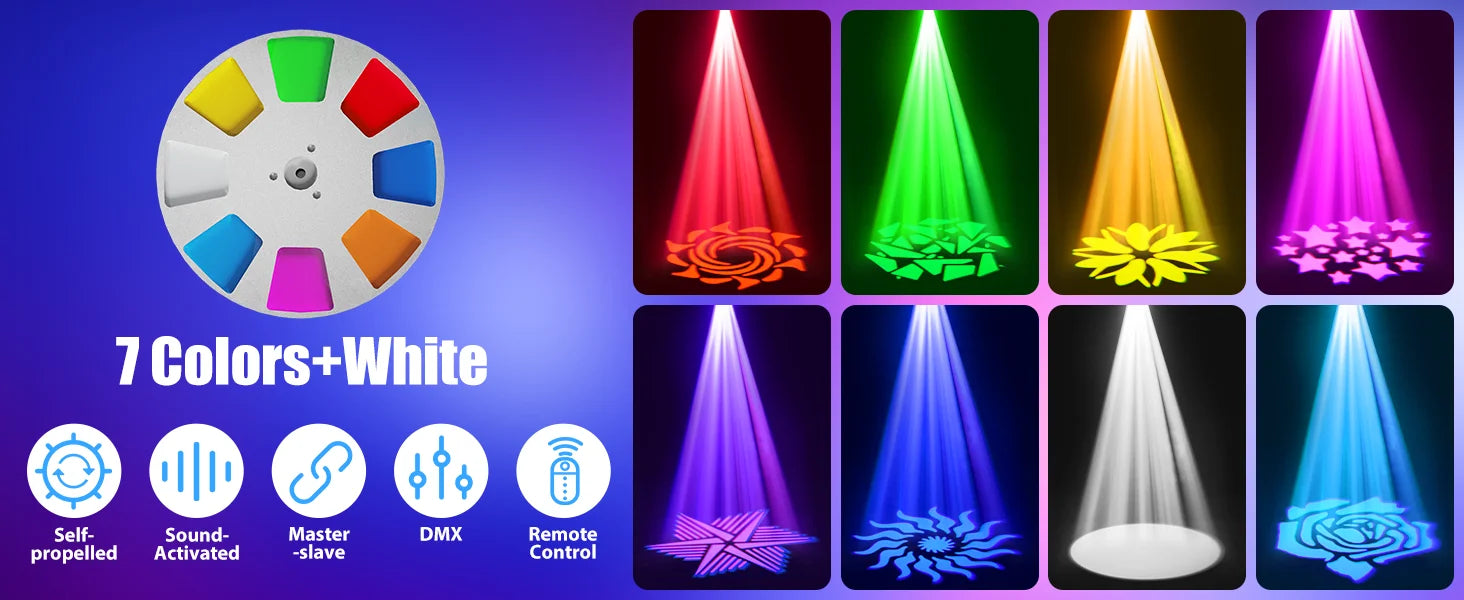

Color plate: 7 colors + white light

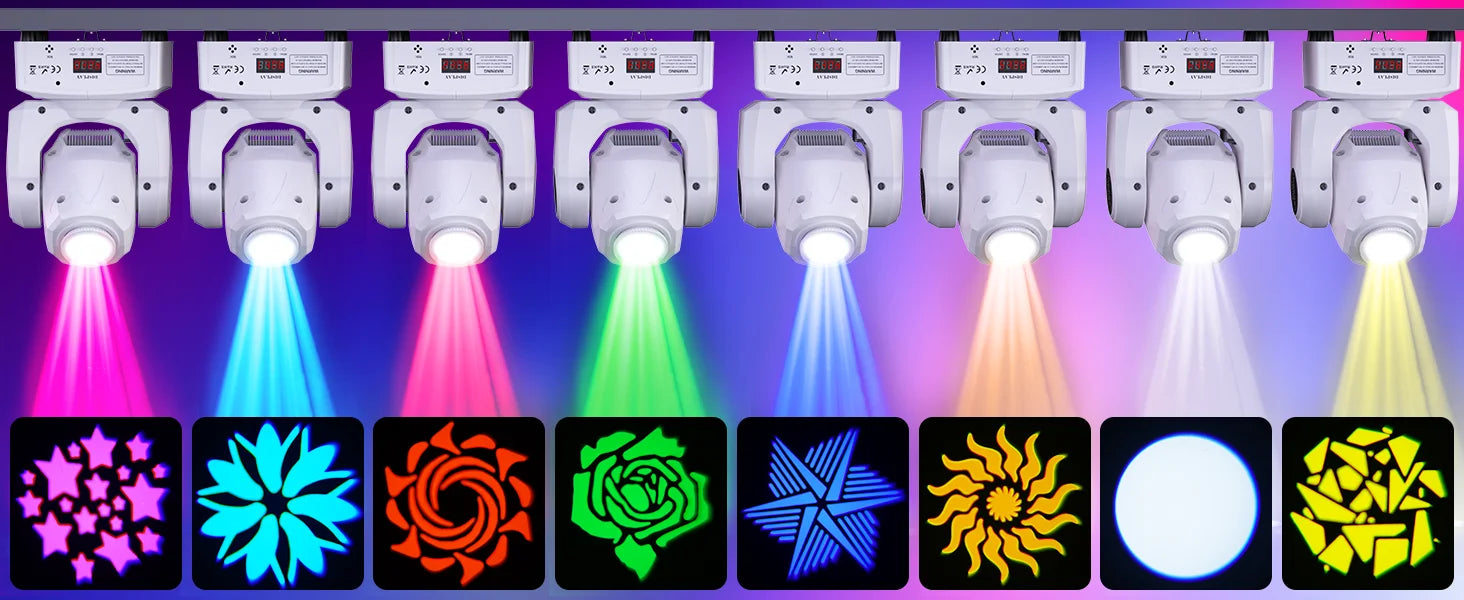

Fixed gobo disk: 7 patterns + white light

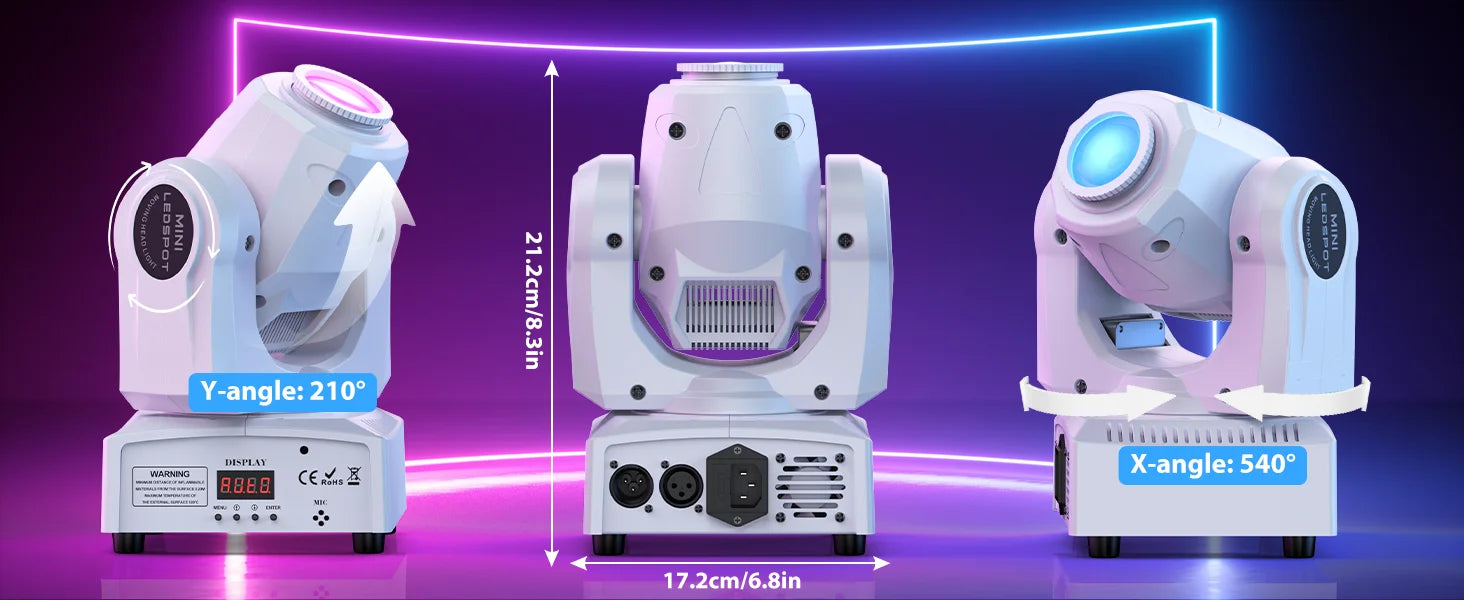

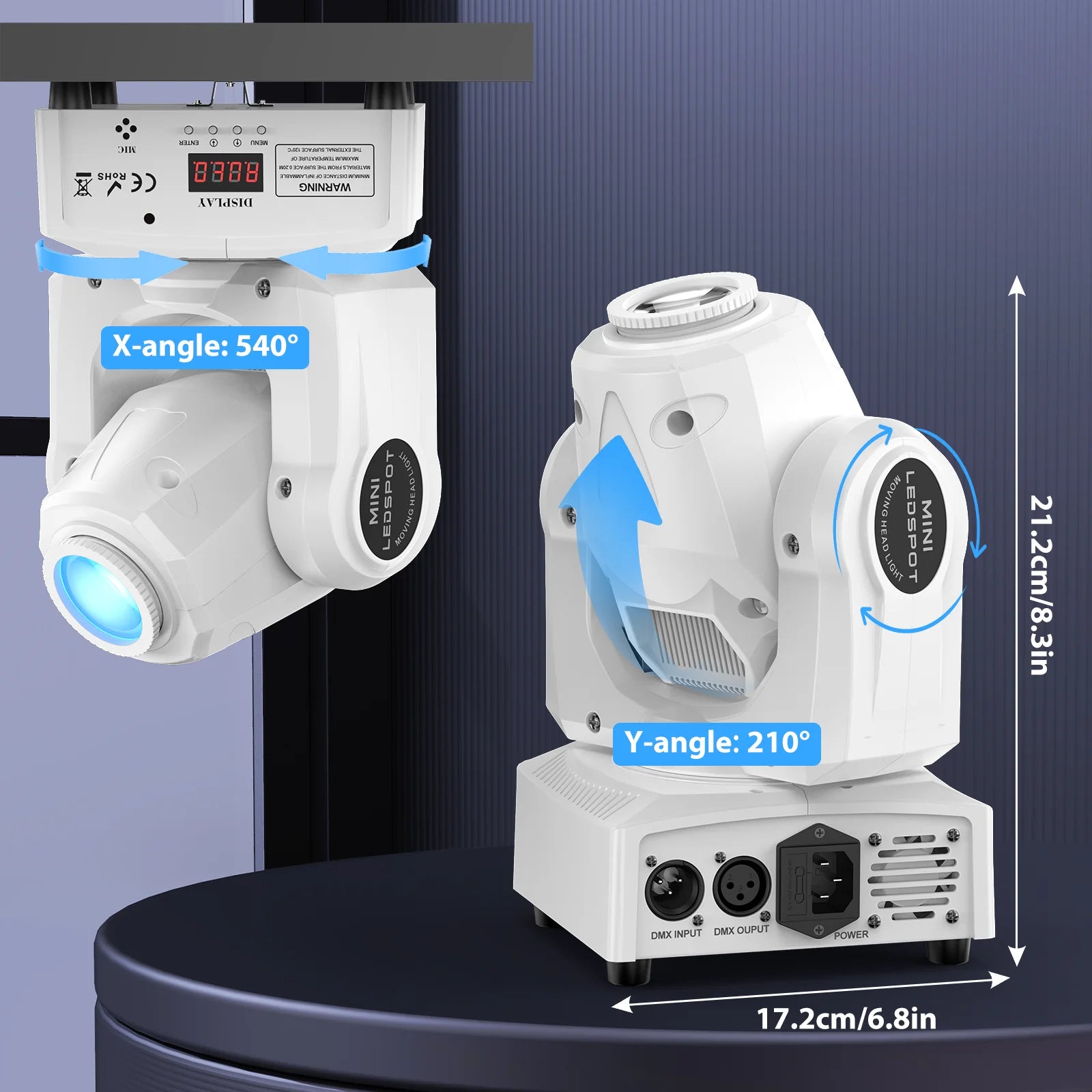

X-axis: 540°accuracy 2.11°/step, fine-tuning accuracy 0.008°.

Y-axis: 210° precision 1.05°/step, fine-tuning precision 0.004°

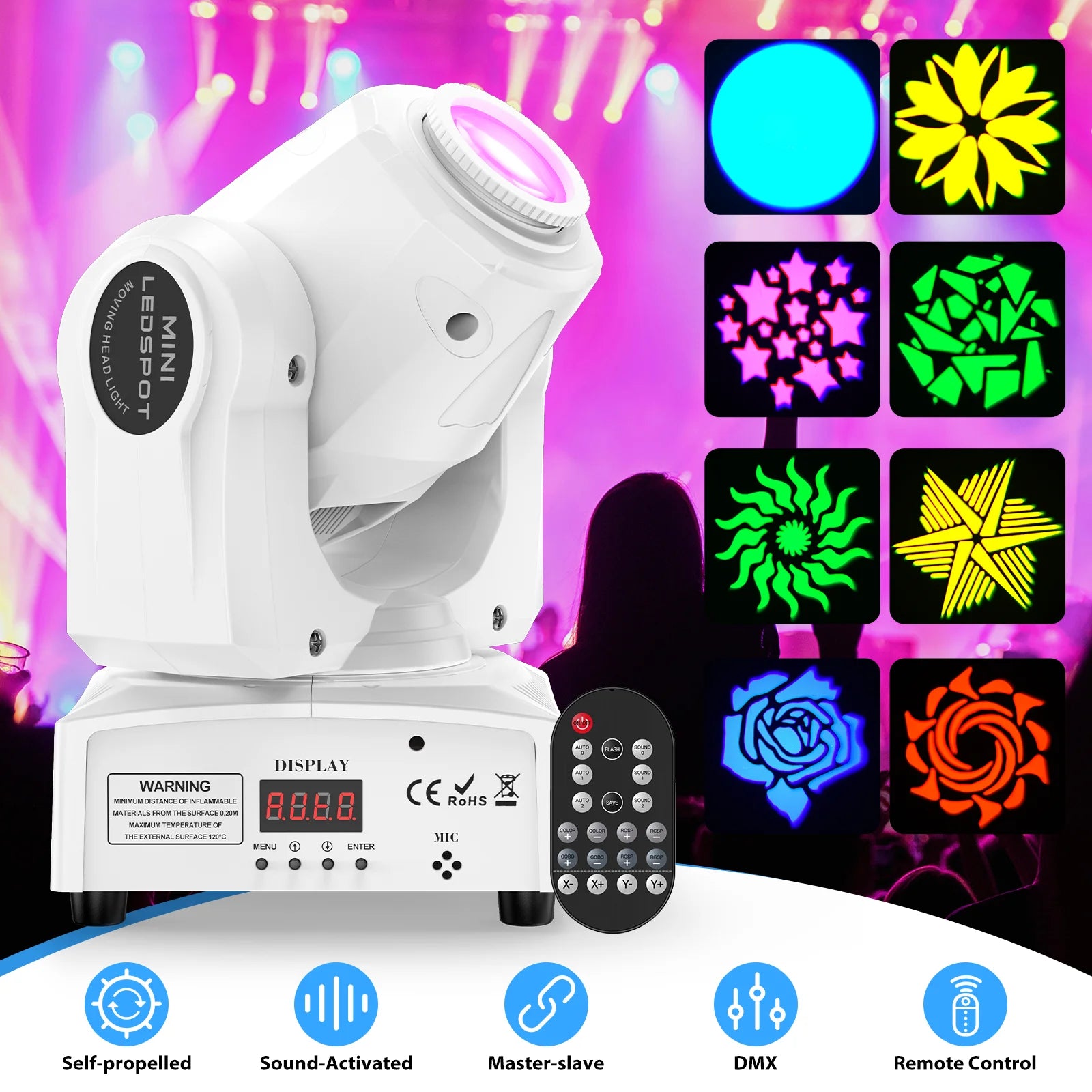

Operation mode: self-propelled, sound control, master-slave, DMX

Control channel: 9/11CH

Protocol: Standard DMX512 protocol

Data Connection: Three-core XLR input/output

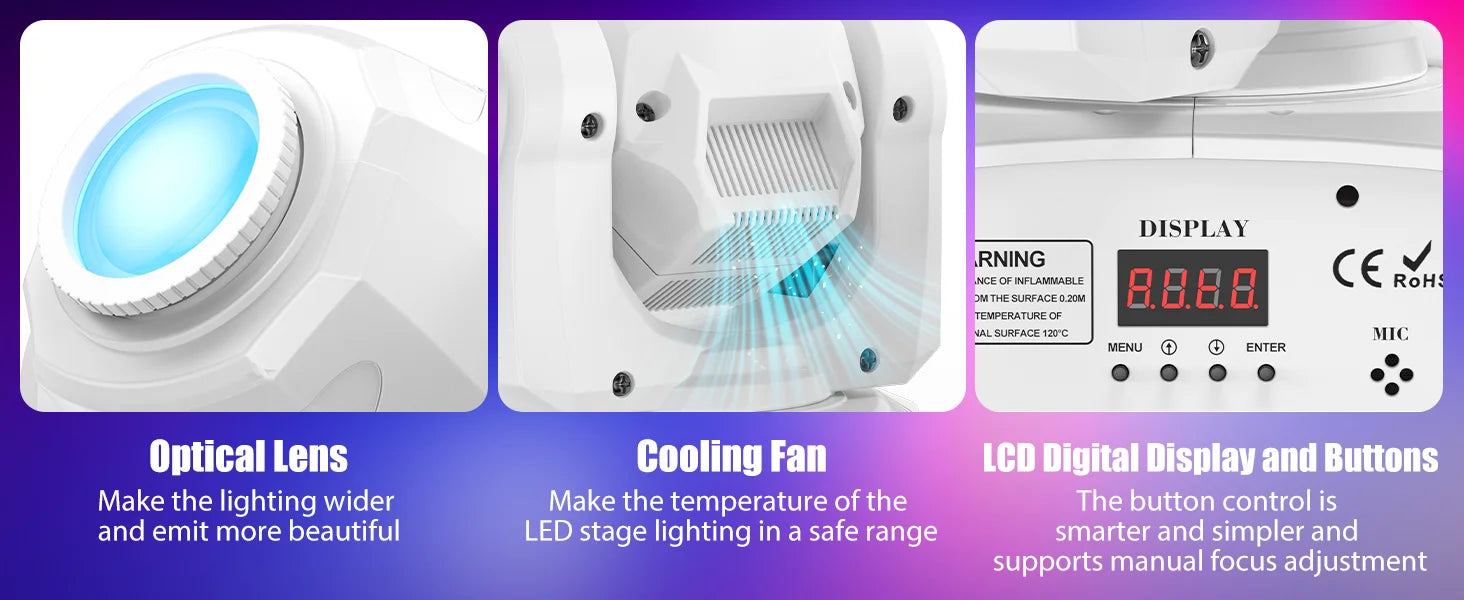

Display: 4-digit digital display

Electronic dimming: 0-100%

Protection grade: IP20

Working environment: -20℃-40℃

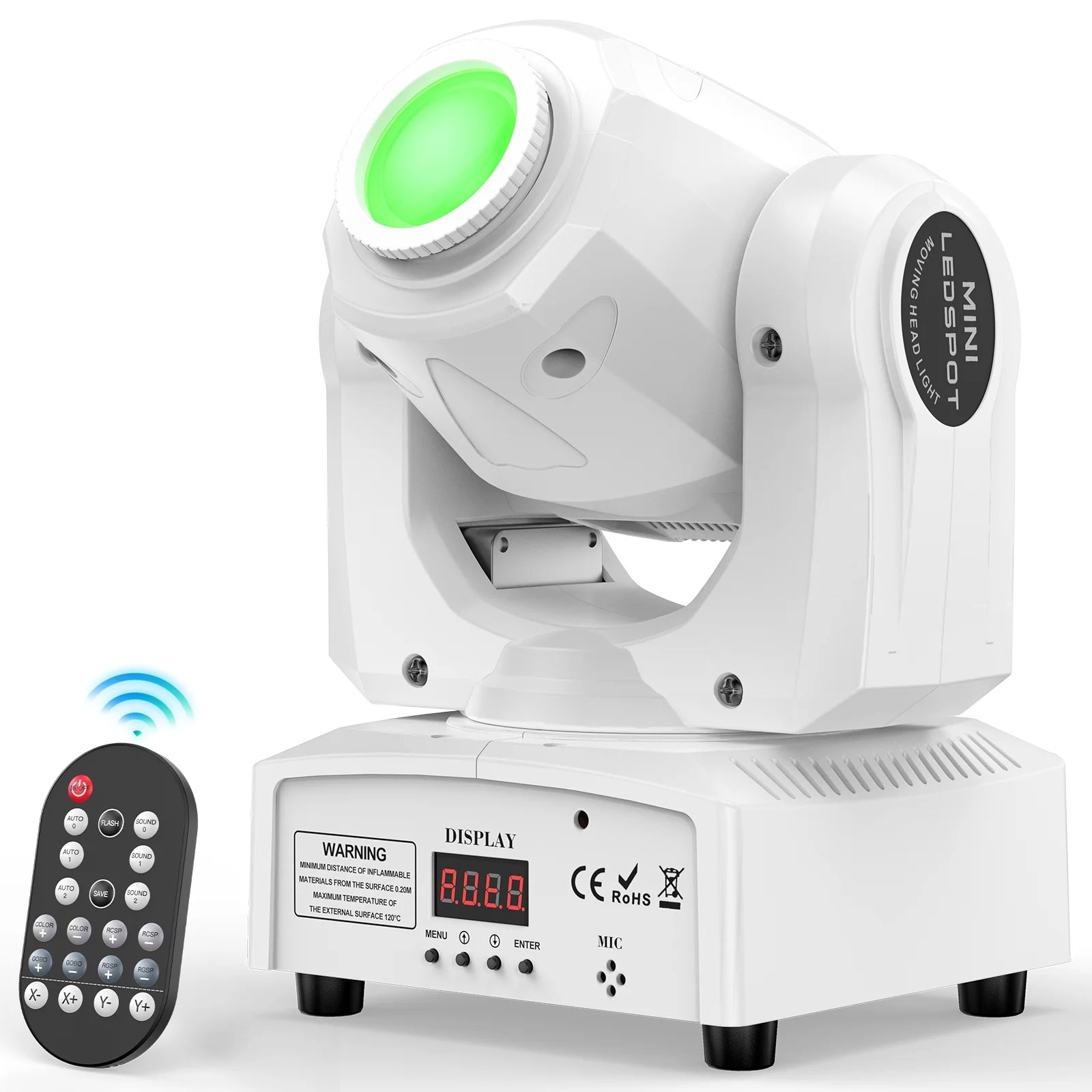

Remote controller: Wireless remote controller (10~30m)

Product Features:

1. A variety of control modes: the product operation mode is mainly master-slave synchronization, stand-alone self-propelled, voice-activated, DMX512 control; intelligent control system can be achieved through the DMX512 protocol to achieve multiple equipment linkage, online control and music mode and other advanced features, in a variety of occasions can be quickly to meet different needs.

2. Compact shape: high brightness pattern, bright and clear colors, strong sense of beam, is a two-in-one, cost-effective LED shaking head and other products.

3. Automatic chart change and color change: the product has 7 fixed patterns and 7 fixed colors, which can automatically change the chart and color.

4. Linear curve dimming: LED brightness can be dimmed from dark to bright linear curve dimming, strobe 1-18Hz.

5. Widely used: DJs, Bands, Bars,Pubs, Clubs, Roller skating rinks, KTV, Family party,Birthday, celebration, holiday, Gardens, parks,is is used to enlivening the atmosphere.

Notice: Remote controller cannot be subsitute of console. It can be only self-propelled, voice-activated,positioning, fixing figure.

Package List:

Stage Light *1

Power Cable Plug *1

Set of Installation Gadgets *1

Screws *2

Instruction manual *1
