SPECIFICATIONS

1: Pre-assembled 95%

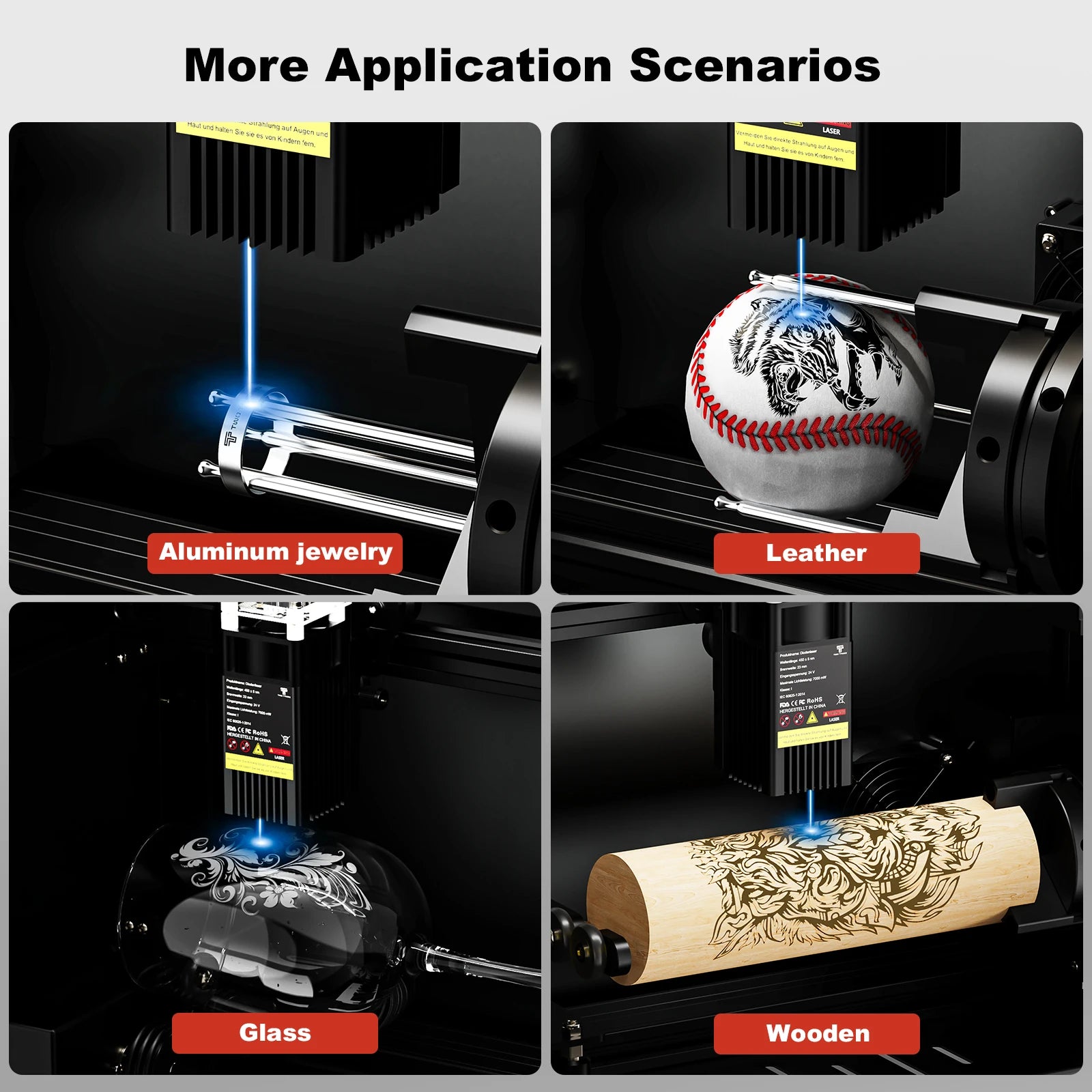

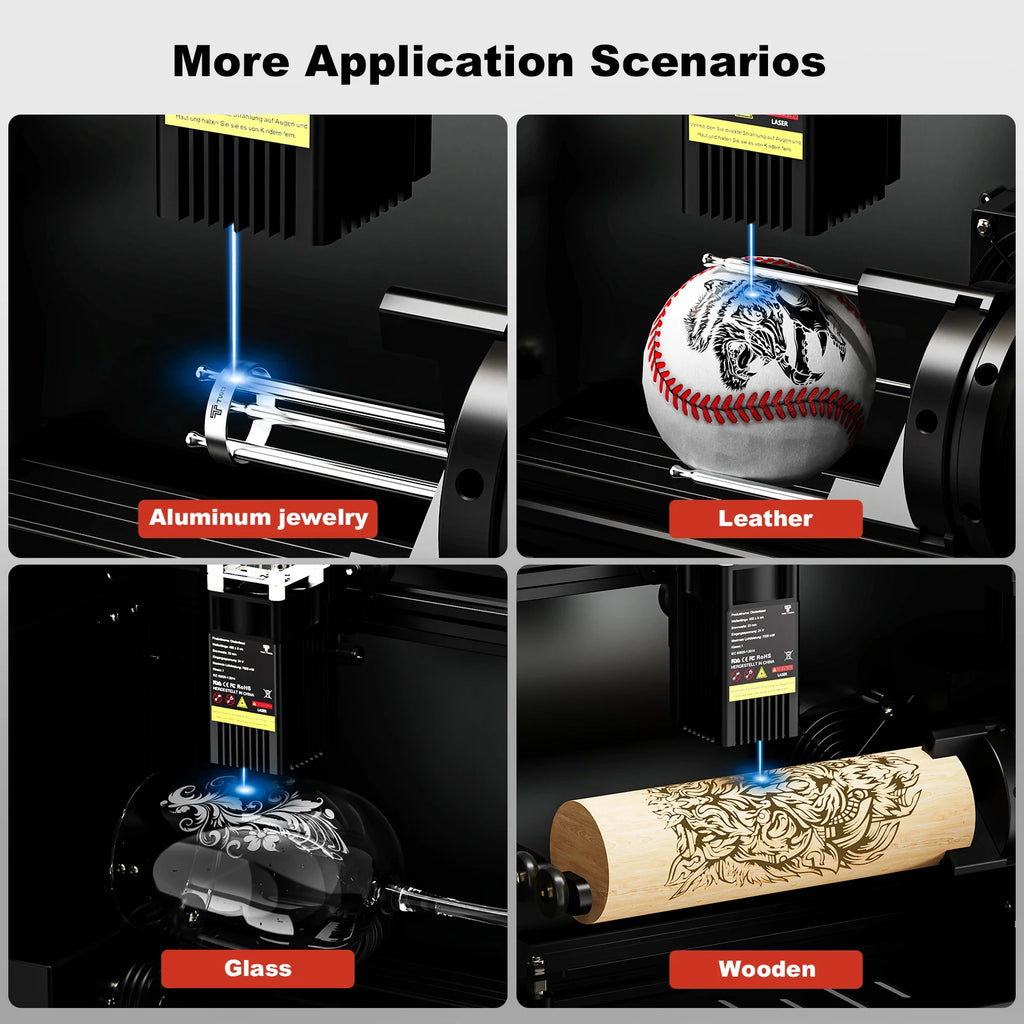

2: Laser Engraving Spheres And Circles

3: Laser Engraver

Brand Name: TWO TREES

Certification: CE,ce

Engraving Area: Other

For: Stanley Cup

High-concerned chemical: None

Is Smart Device: Yes

Laser Power: Other

Model Number: TS5 Laser Engraver

Origin: Mainland China

TWO TREES Model: TS5

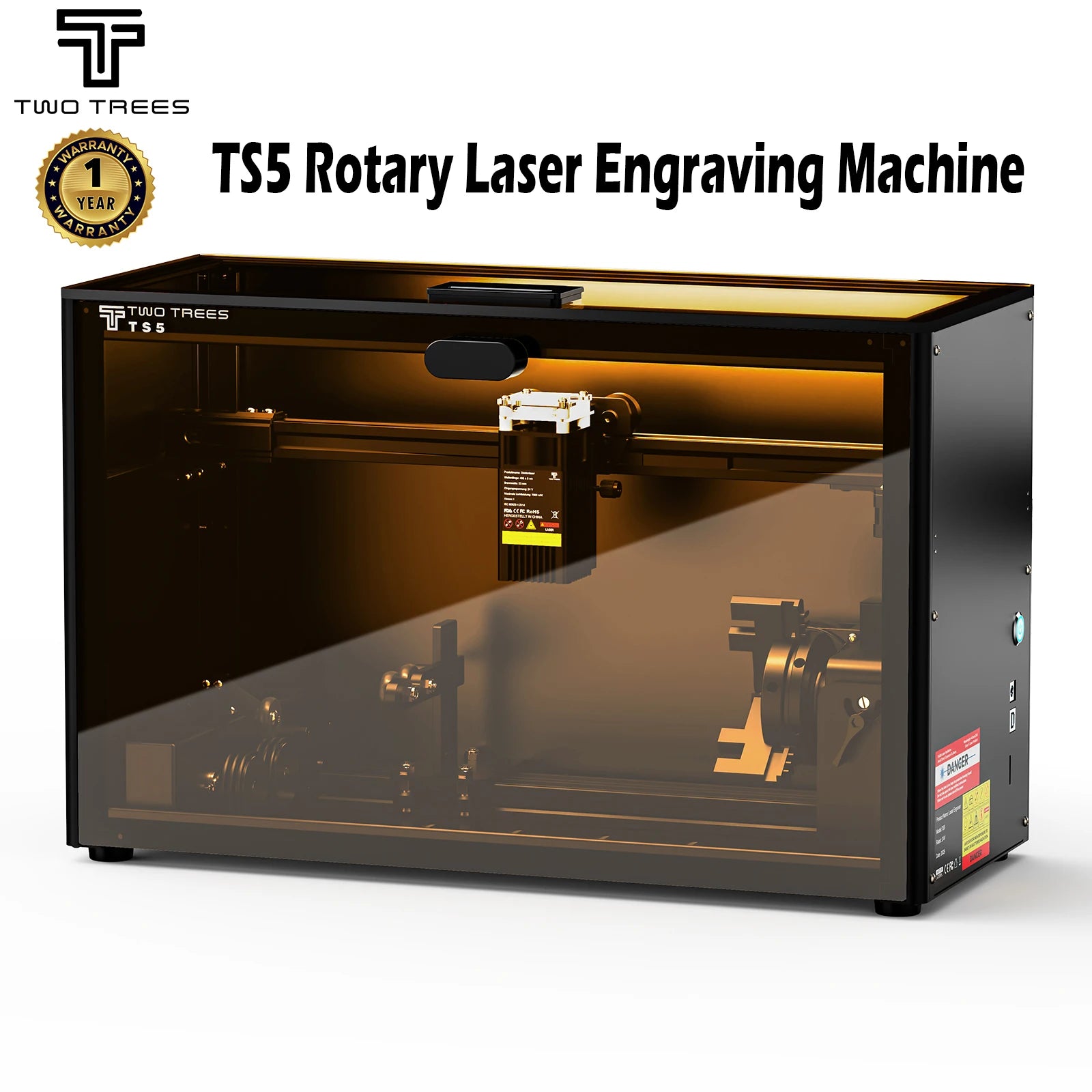

Twotrees TS5 Rotary Laser Engraver for Stanley Cup Pre-assembled 95% CNC Machine Laser Engraving Spheres And Circles Tools

Tool-Free Magnetic Panels
Magnetic top and front panels can be removed easily without tools for convenient internal cleaning and part replacement.

Pre-Assembled for Quick Setup
Shipped 95% pre-assembled. Users only need to install the handle and laser module (approx. 5 minutes) for a fast and easy setup experience.

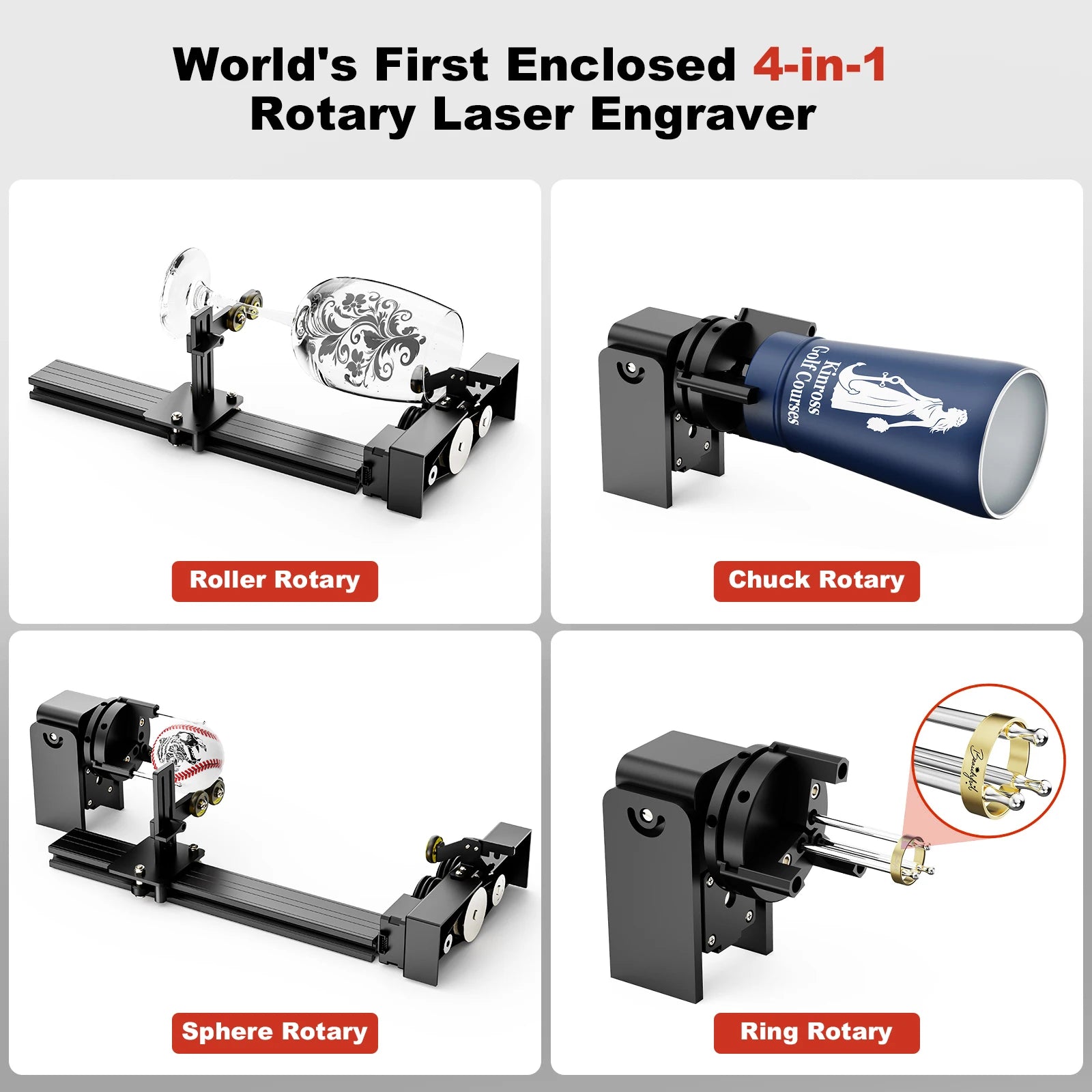

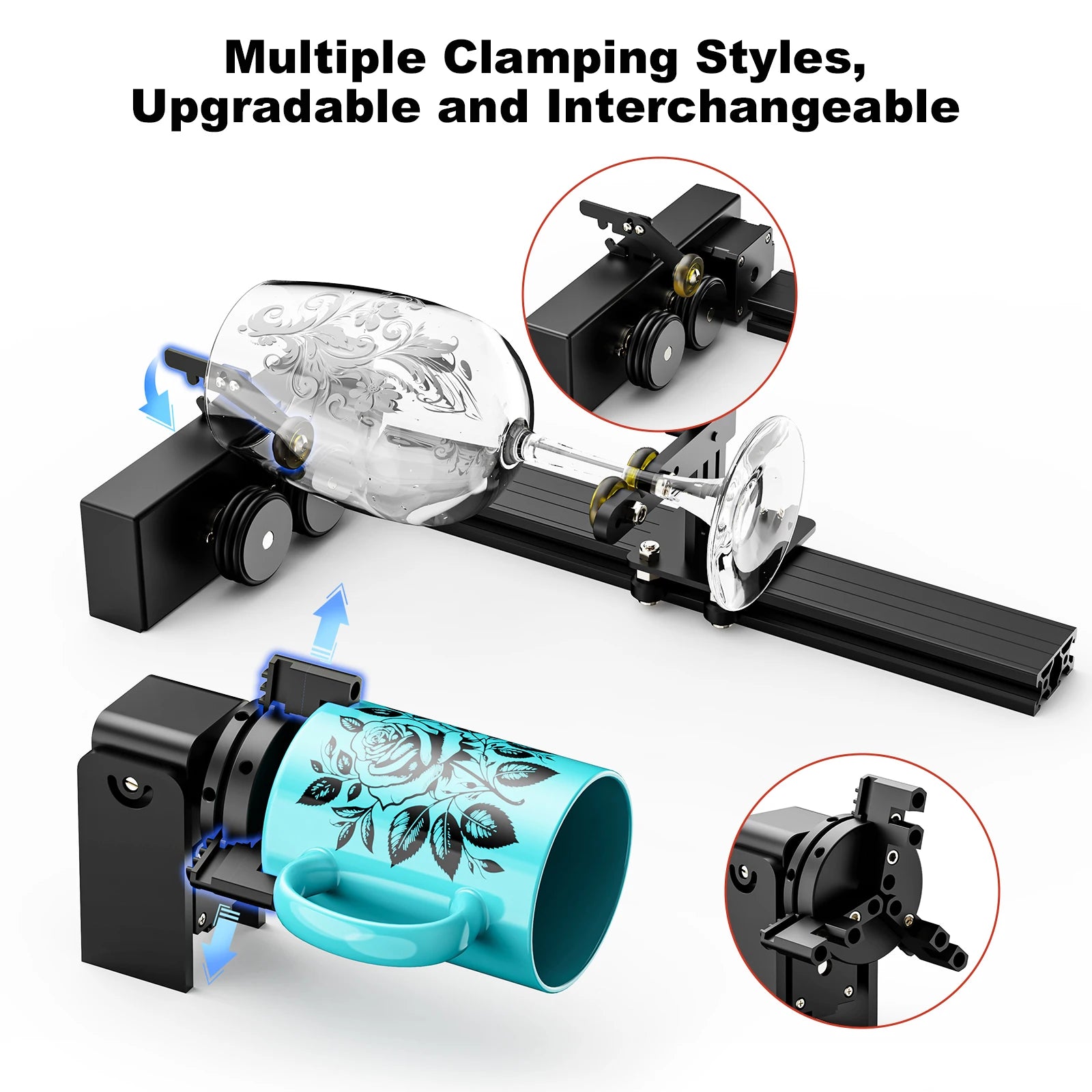

Dual Chuck & Roller Mode Support
The chuck supports both internal and external clamping, with adjustable angles for different cup types. Switch to friction roller mode for oversized or irregular objects to ensure stable grip.

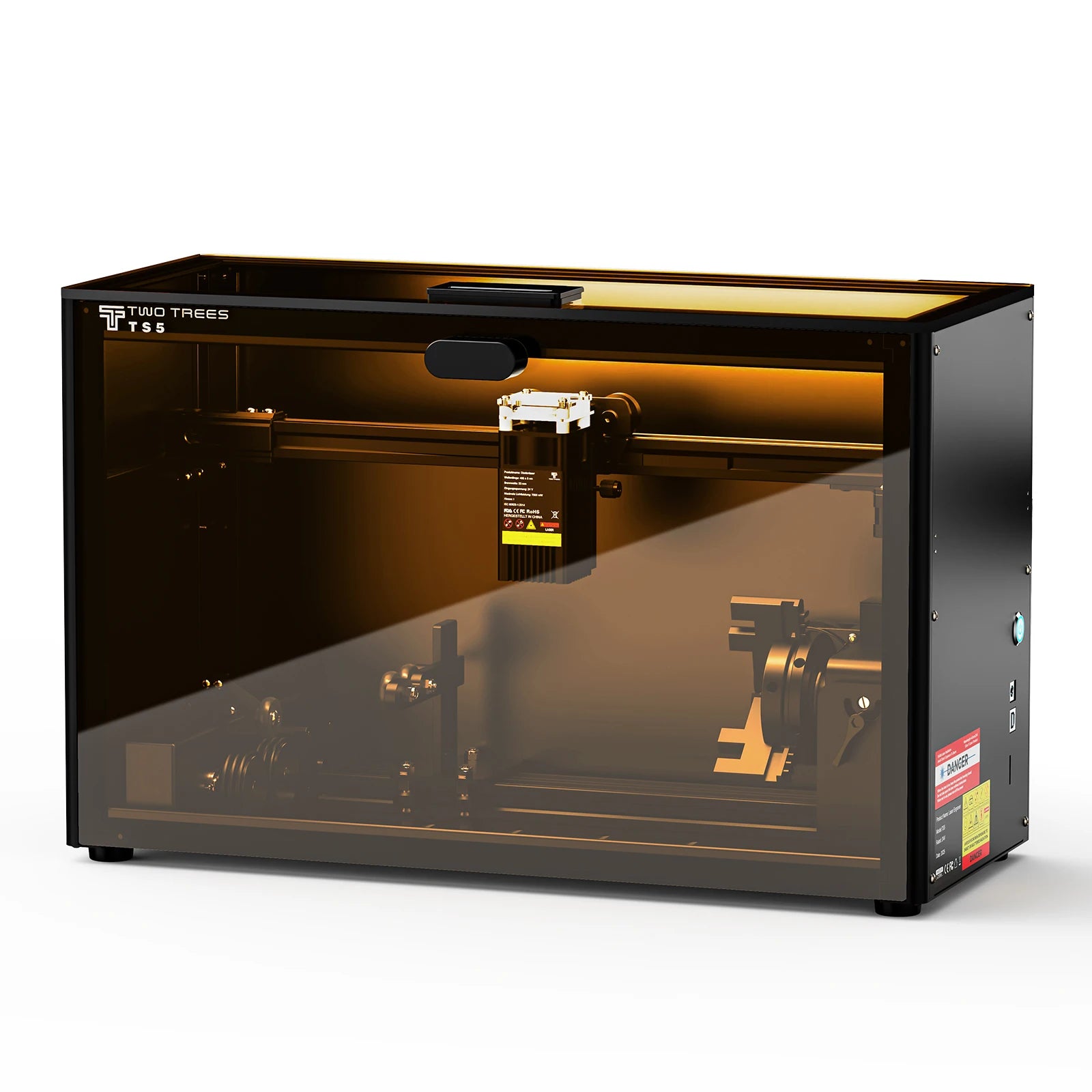

Protective Viewing Panel
Large transparent window made of special light-filtering material effectively blocks harmful blue light and protects the operator’s eyes during use.

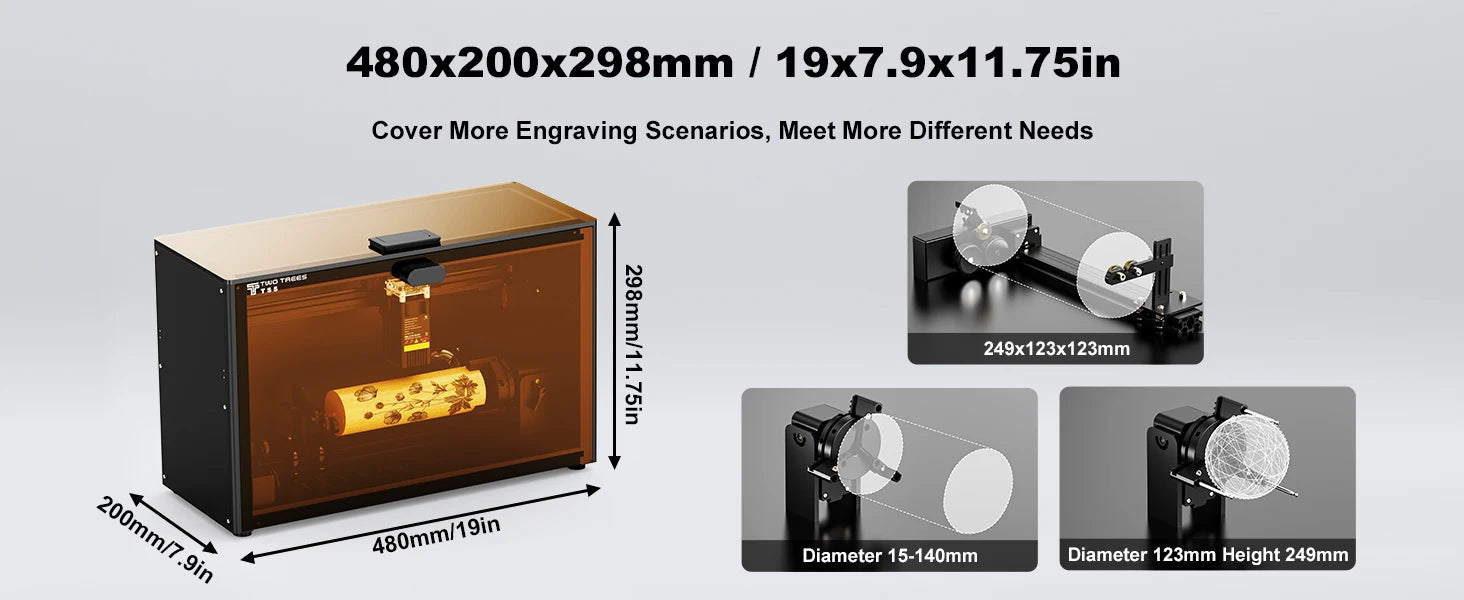

Wide Working Area
249×123×123mm working space allows for easy engraving of various objects like tumblers, wine bottles, and curved crafts of different sizes and shapes.

Enclosed Design with Efficient Exhaust
Built-in high-efficiency exhaust system automatically vents smoke outdoors during engraving, keeping the indoor air fresh and odor-free.

• Model: TS5

• Technology: Laser Engraving

• Color: Black

• Body Material: Aluminum + High Carbon Steel

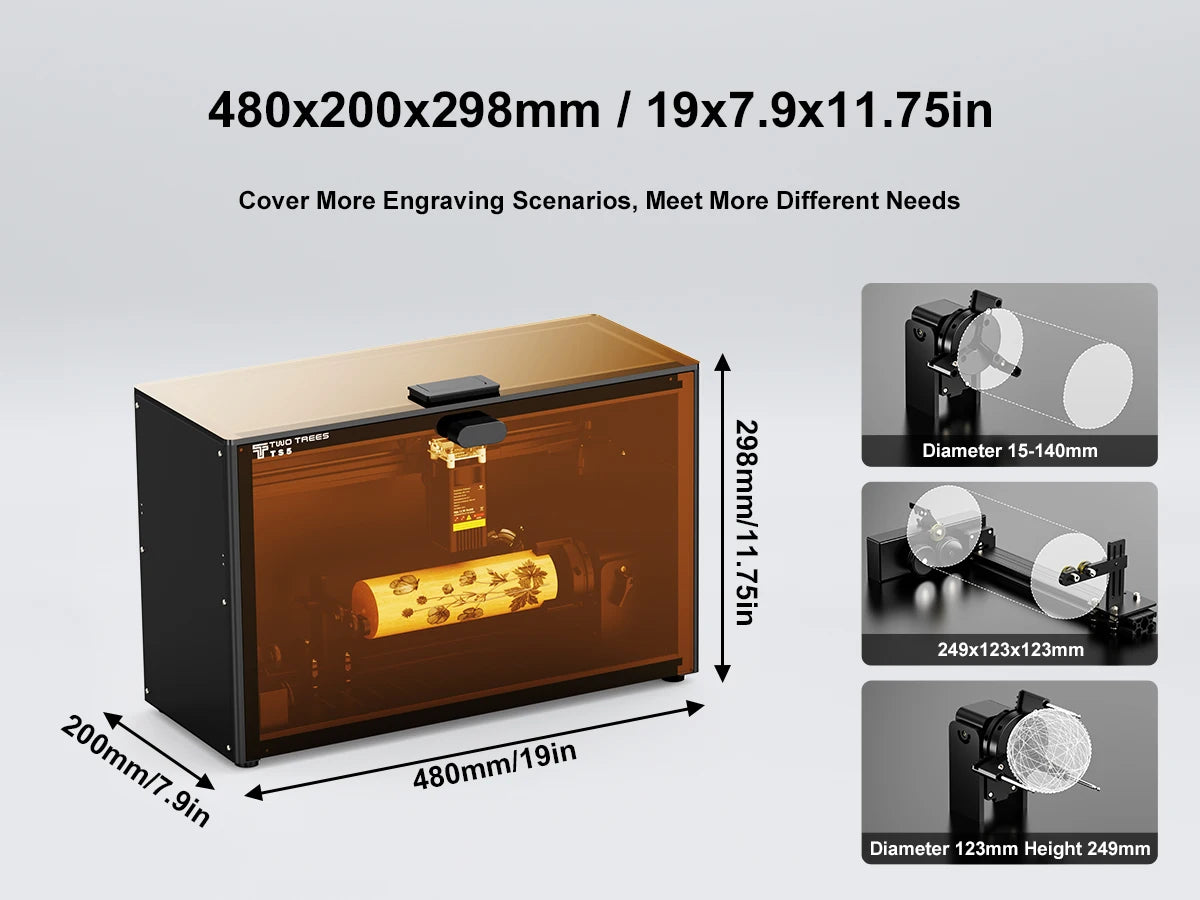

• Product Dimensions: 480 × 200 × 298 mm

• Working Area: 249 × 123 × 123 mm

• Chuck Outer Clamp Size: Ø 26–140 mm

• Chuck Inner Clamp Size: Ø 15–110 mm

• Adjustable Chuck Angle: -8° to +8°

• Net Weight: 9.13 kg

• Gross Weight: 10.55 kg

• Package Size: 553 × 280 × 387 mm

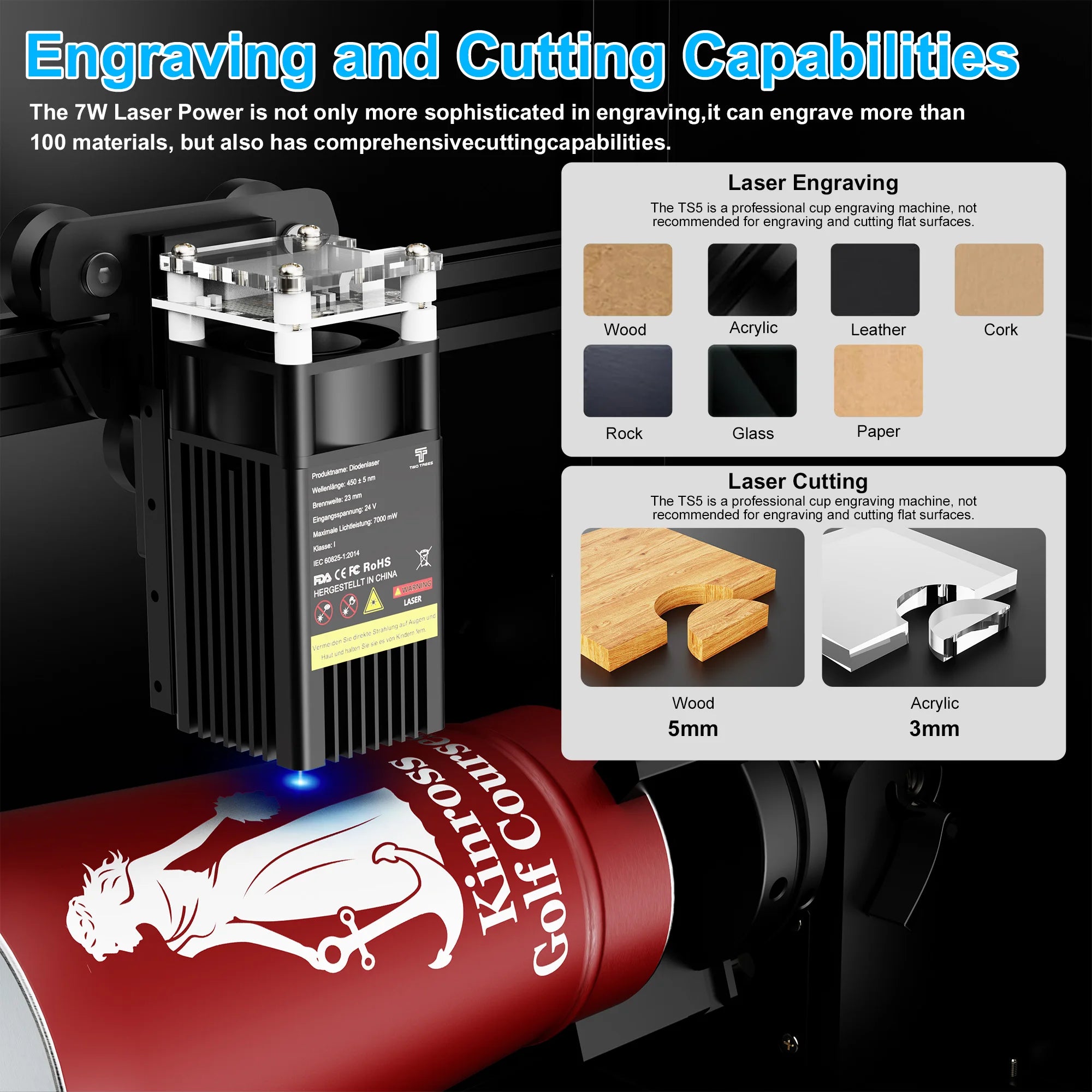

Laser Module

• Power Supply: Adapter

• Input Voltage: 24V

• Laser Power: 7W (7000 mW)

• Wavelength: 450 ± 5 nm

• Spot Size: 0.035 × 0.1 mm

• Electrical Power: 60W

• Power Adapter: 100–240V AC, 50/60Hz, 2.5A → 24V DC, 2.5A

Mainboard & Electronics

• Mainboard Model: MKS LTS V1.3

• Chipset: ESP32-S3-WROOM-1U

• Firmware: LKS_TS5_2025041002

• X/Y Axis Drivers: A4988

• TF Card: Supported

• USB: Supported

• Wi-Fi: Supported

• Bluetooth: Not Supported

Mechanical & Motion

• Drive System: XY Dual-Axis Structure

• Timing Belt: 2GT-6mm

• Positioning Accuracy: 0.1 mm

• Max Speed: 10,000 mm/min

• X Axis Motor: 42 Stepper Motor 17HS3401S

• Chuck Axis Motor: 42 Stepper Motor 17HS2408S

• Roller Axis Motor: 42 Stepper Motor 17HS2408S

Control & Features

• Screen Control: Optional

• Air Assist: Optional

• Exhaust Port: Supported

• Return to Origin After Engraving: Yes

• Laser Power Adjustment: Yes

• Limit Switch / Resume After Power Loss: Not Supported

Software Compatibility

• Software: LaserGRBL (Windows), LightBurn

• Supported OS: Windows, macOS, Linux

• Supported File Formats: BMP, JPG, PNG, GCODE, lbrn

• Engraving File Format: .nc

• Languages Supported: Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean

Certifications

• CE (EMC, LVD, RED, MD), FCC (Sdoc, ID), RoHS, FDA, IEC60825

Operating Environment

• Temperature: 5°C – 40°C

• Humidity: 20% – 60% RH
