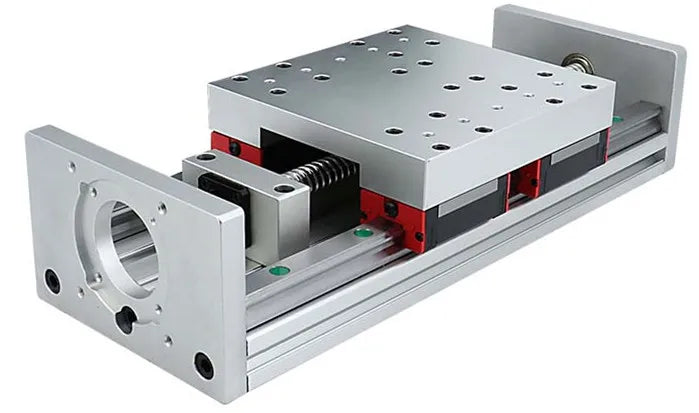

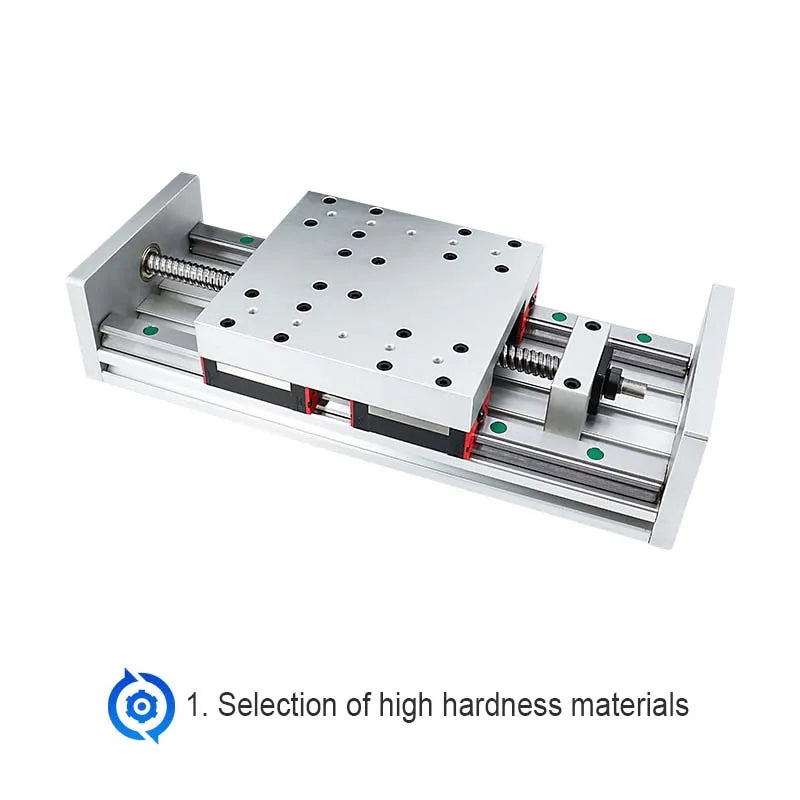

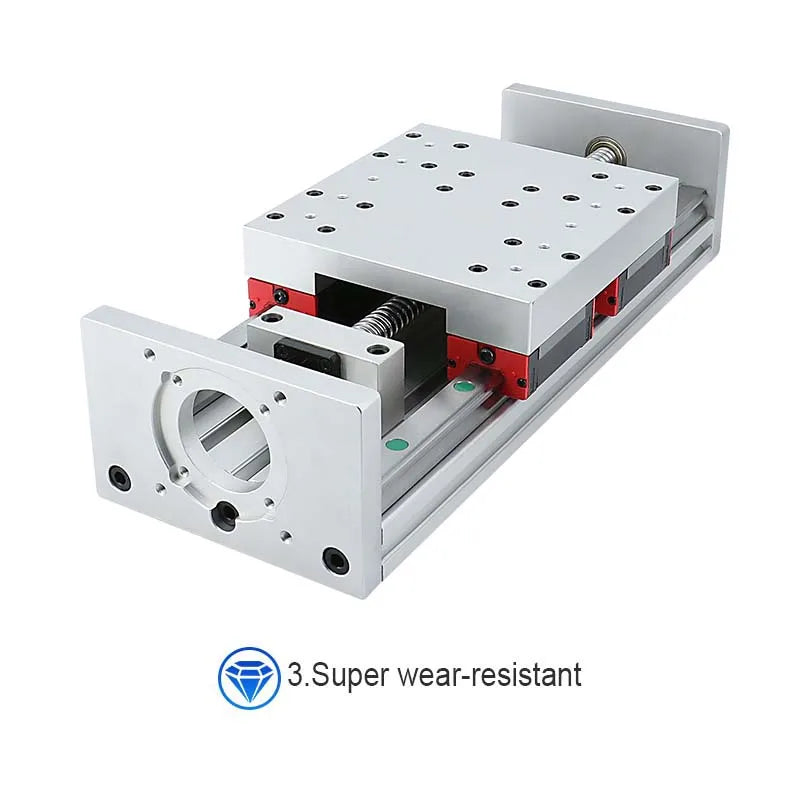

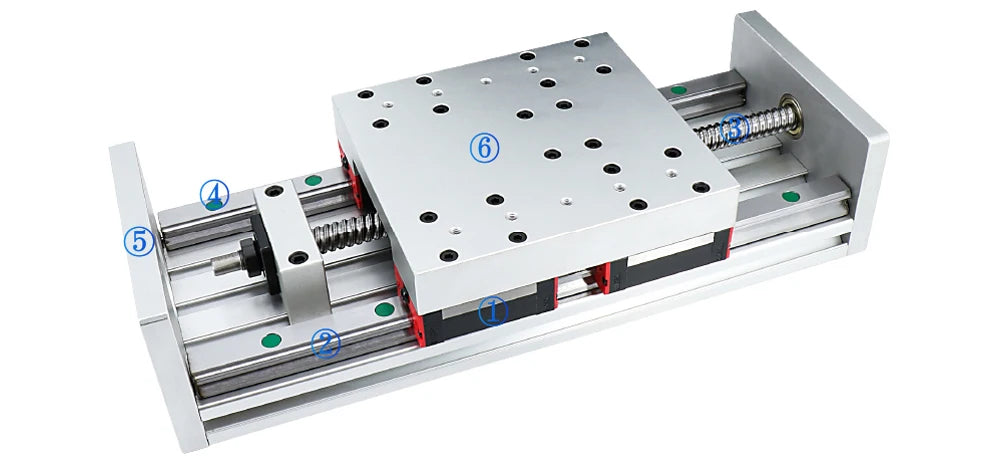

When constructing or upgrading precision machinery, finding stable components that prevent unwanted shifting and positioning errors can be a major challenge. The Sliding Table Stage Linear Module With 100mm to 850mm Effective Moving Length + HGR20 Guide Rails + 1605 1610 Ballscrew For CNC provides a robust mechanical foundation engineered for accuracy. Constructed from industrial aluminum profiles, this linear translation stage integrates smoothly into your workstation setups.

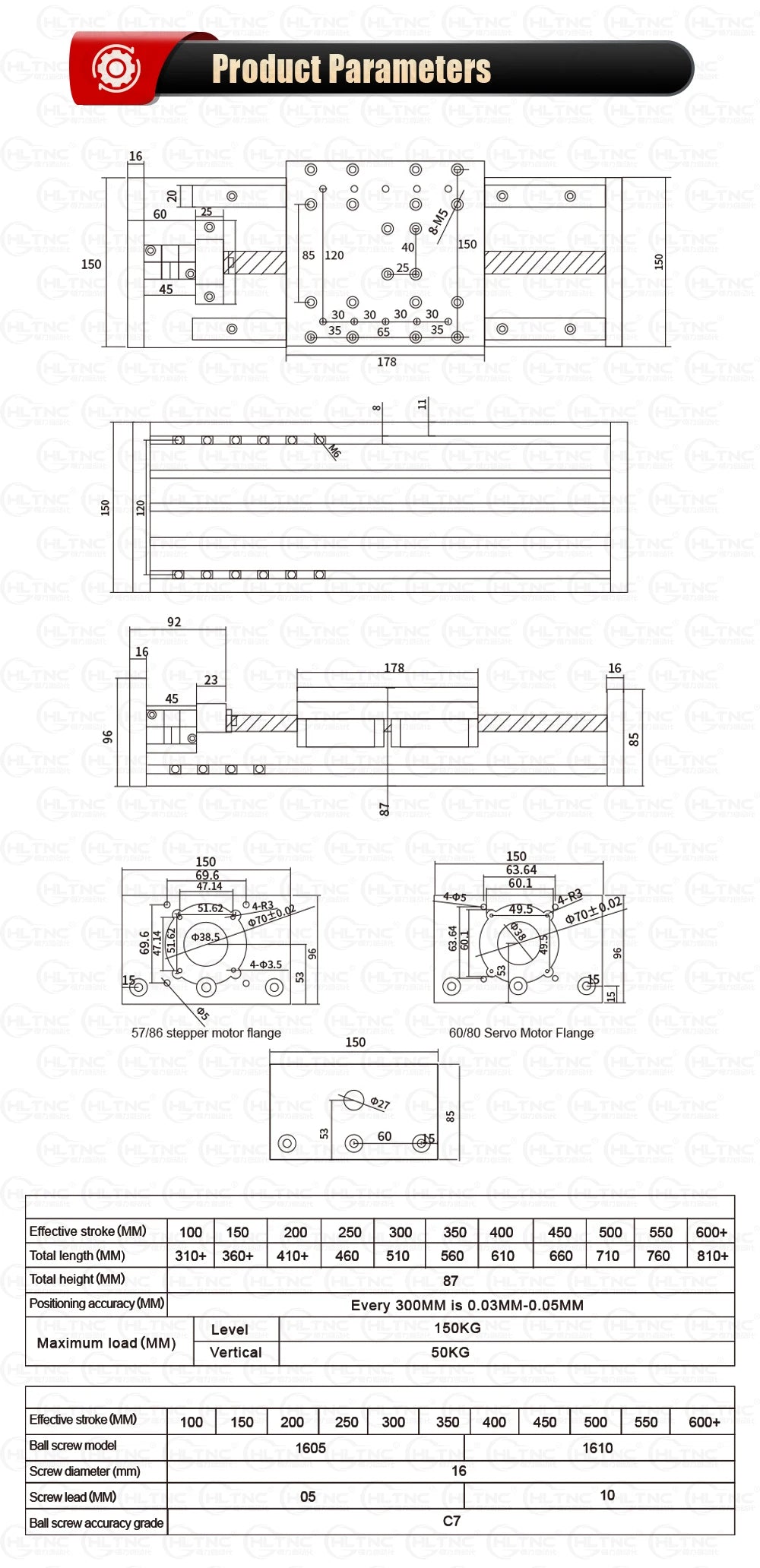

Technical Specifications

• Effective Moving Length Options: 100mm to 850mm
• Guide Rails: HGR20 linear rail (20mm width) with 4pcs HGH20CA linear blocks
• Ballscrew Types: SFU1605 or SFU1610 (C7 level accuracy)
• Maximum Speed: 1000mm/s
• Horizontal Load Capacity: 150 KG (Max)

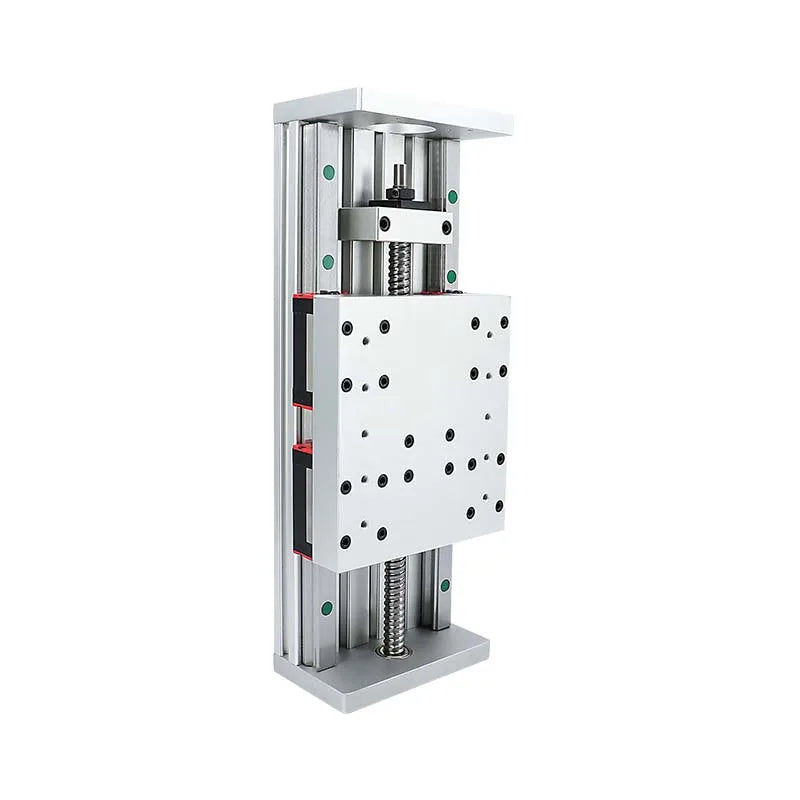

• Vertical Load Capacity: 50 KG (Max)

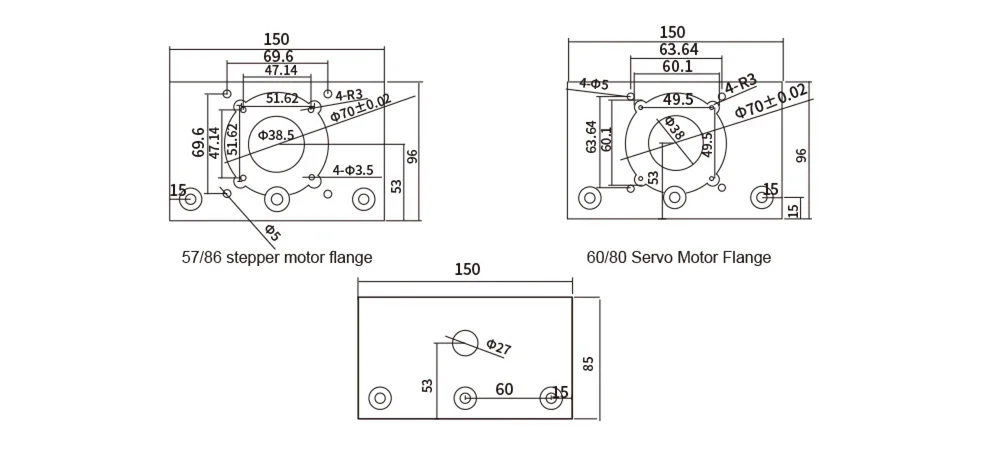

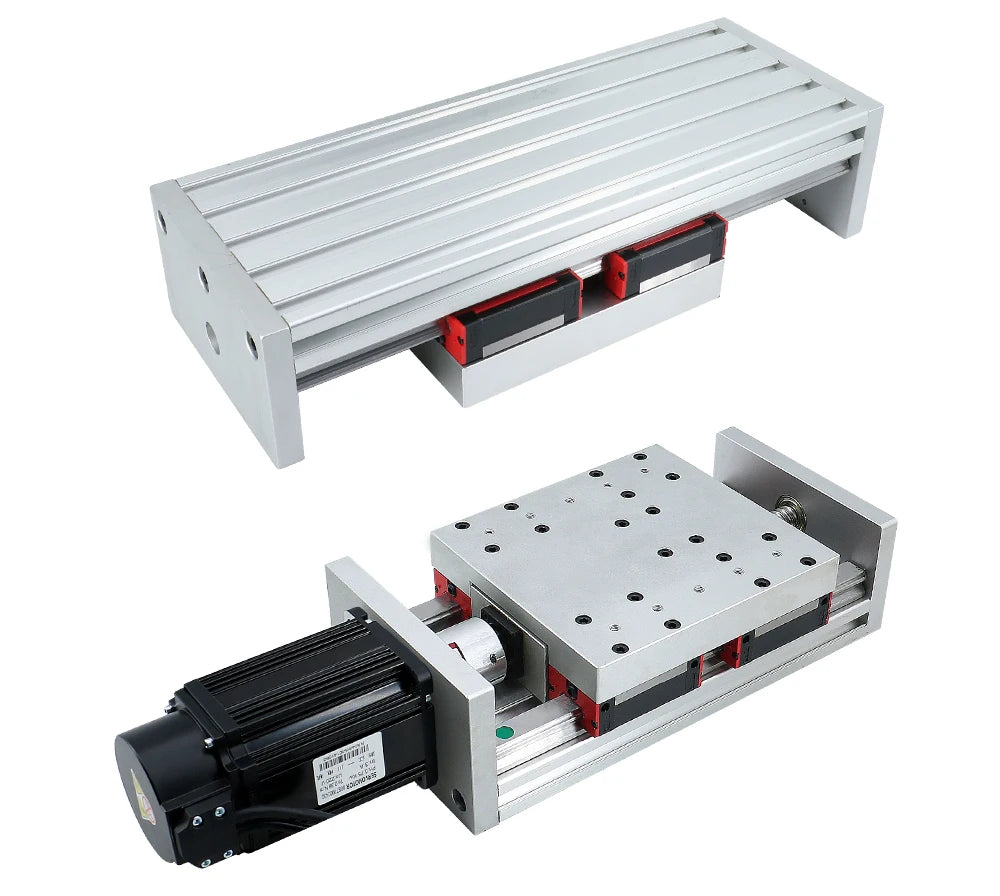

• Motor Compatibility: Brackets for 57mm and 86mm stepper motors

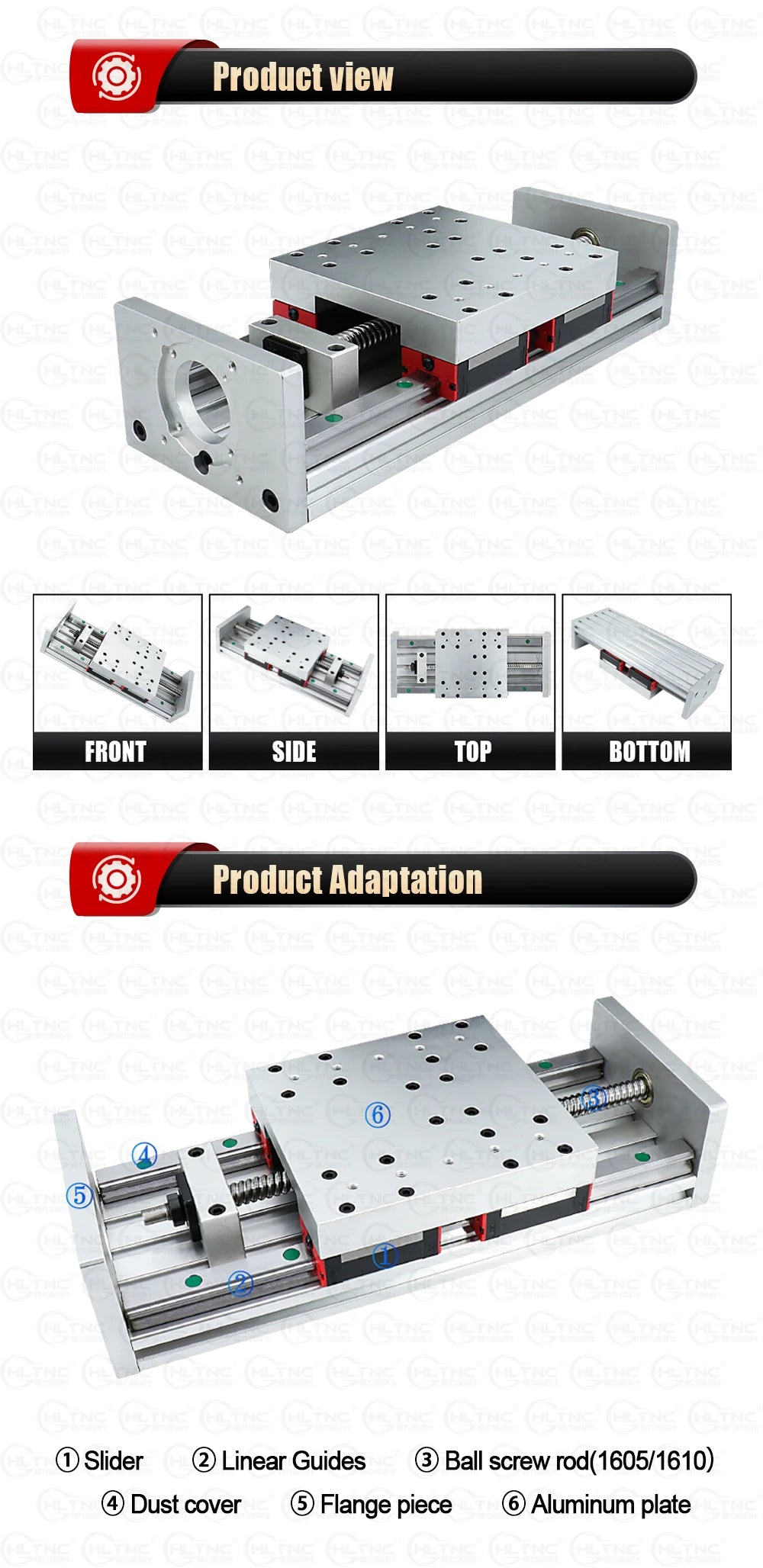

Designed for laboratory precision displacement, demonstrations, and study, this stage incorporates three angular contact bearings and a dust cover to maintain reliable operation. Review the available effective moving lengths and ballscrew options to select the right configuration for your project.
