SPECIFICATIONS

AI Functions: Other

AOKWEVISION Model: XMEYE PRO

Alarm Action: telefon Alarm,Email Photo,Local Alarm

Alarm Type: telefon Alarm,Local Alarm

App name: Other

Audio Output: Two Way Audio

Auto Track: Support Human auto Track

Brand Name: Aokwevision

Certification: CE

Choice: yes

Color: WHITE

Color Night Vision: Other

Connectivity: IP/Network Wired

Dimensions (L x W x D)(mm): 4 inches

High Definition: 8.0 Megapixels

High-concerned chemical: None

IP Rating: IP66

IR Distance(m): 80m

IR distance: 60-80m

Installation: Side

Internal Storage: None

Lens (mm): 4.7-94mm

Lens Quantity: Single Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0

Movement Range(Pan): 0°-360°

Operating Temperature: -40°-60°

Origin: Mainland China

Power Consumption(W): 25w

Power Mode: Mains Electricity

Power Supply: With Poe

Power Supply(V): 110-240v

Rechargeable Battery: NONE

Resolution: 8MP:3840x2160,

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Sony

Shell Material: Metal

Smart home platform: Other

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows 2003,Windows 98,Windows 2000,Windows 2008,Windows 7,Windows 10,Windows XP,Windows 8,Windows Vista

TF Card: None

Video Compression Format: H.265,H.264

Viewing Angle : 360°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: 30x

Zoom type: Optical zoom

is_customized: Yes

pixels: max 8MP

semi_Choice: yes

zoom: 30x(20x Optical+10x digital zoom)

Product Detailed description



How to Choose?

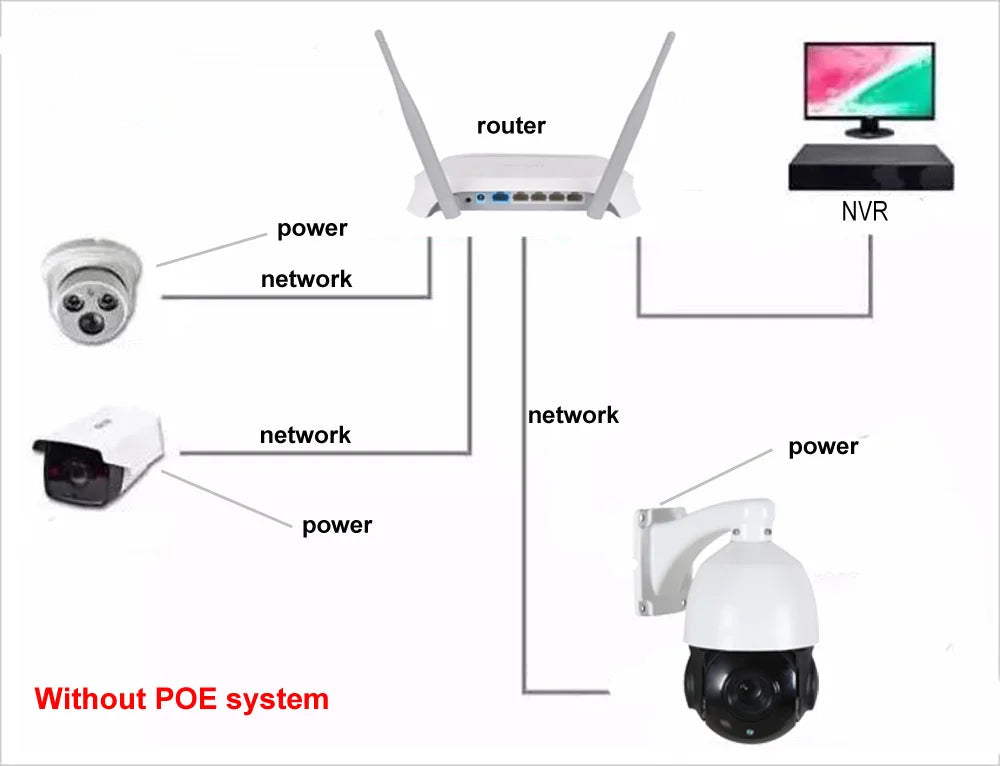

4MP without POE: 4MP PTZ +IR Light + Microphone/Speaker

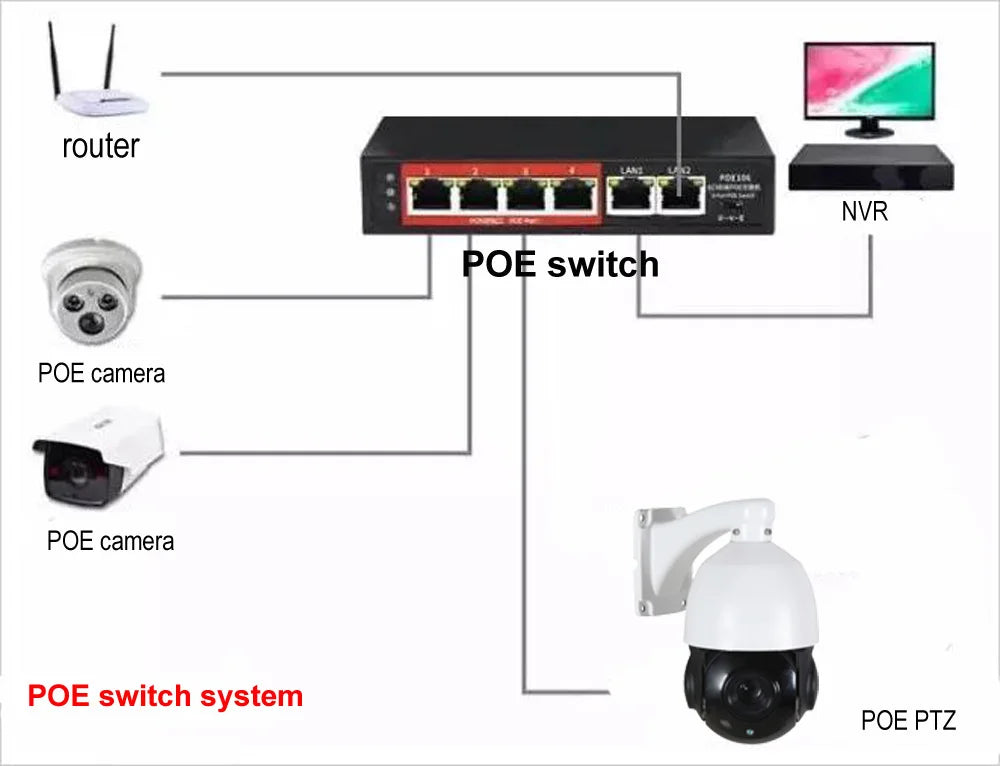

4MP POE: 4MP PTZ +IR Light + Microphone/Speaker + SD card slot + POE

5MP POE:  5MP PTZ +IR Light + Microphone/Speaker + SD card slot + POE

6MP POE:  6MP PTZ +IR Light + Microphone/Speaker + SD card slot + POE

6MP POE Auto Track: 6MP PTZ + IR Light + Microphone/Speaker + SD card slot + POE + Human Auto Tracking

5MP POE Color Night: 5MP PTZ + Dual Light + Microphone/Speaker + SD card slot + POE + Humanoid Auto Tracking

6MP POE Color Night: 6MP PTZ + Dual Light + Microphone/Speaker + SD card slot + POE + Humanoid Auto Tracking

4K 8MP POE: 4K 8MP PTZ + IR Light + Microphone/Speaker + SD card slot + POE

4K 8MP Auto Track: 4K 8MP PTZ + IR Light + Microphone/Speaker + SD card slot + POE + Human Auto Tracking

4K 8MP WiFi: 4K 8MP WiFi PTZ + IR Light + Microphone/Speaker + SD card slot + Human Auto Tracking

PTZ specifications:

Specifications

Camera Sensor: 8MP: SONY IMX415

Total pixels: 2MP/3MP/5MP/ 8MP

Output Pixel:

8MP: 3840x2160, 3072x2048, 2592x1944,2560x1440,1920x1080

6MP: 3072x2048, 2592x1944,2560x1440,1920x1080

5MP:2880x1616, 2560x1440, 1920x1080,

4MP: 1560x1440, 1920x1080

Lens: f=4.7-94mm

Zoom: 30x zoom(20x Optical+10x digital zoom)

Iris: F1.6~F2.8

Min. illumination: 0 Lux (IR LED On)

D/N: IR-CUT

Digital noise reduction: 3D Digital noise reduction

Compression Format: H.264/H.265/H265X

Compression Rate: 32 Kbps~16Mbps

Smart Alarm: Motion detection, Occlusion & Memory error alarm

Support Protocols: TCP/IP,HTTP,DHCP,DNS,RTSP,SMTP,FTP,HTTPS etc.

Interface: 10M / 100M mbps Ethernet (RJ-45)

Management: IE and CMS (supplied with the camera)

Mobile phone monitor: P2P

Pan Speed: 0.02 - 60 degree/s

Tilt Speed: 0.02 -60 degree/s

Pan Range: 0-360 degree

Tilt Range: 0-93 degree

Auto Flip: Horizontal 180 degree, Vertical 93 degree

360 degree Scan: 1-9 Grades setting available

A-B Scan: User programmable

Preset Points: 220

Go to Preset Speed: 60 degree/s

Guard Tours: 3 groups

Guard Points: Max.14 points, dwell time user selectable

Pattern Scan: 4 pcs

Pattern Scan Record: Max.15 minutes, max.512 commands

Time Scheduling Function: 8 tasks

Communication Protocol: Pelco-D, Pelco-P

Communication:RJ45

Baud Rate: 1200/2400/4800/9600bps

Privacy Mask: Support

IR parameters: Auto Control IR LED

LEDs: 6pcs

IR distance: 60-80m

Operating temperature:-40°~ +60°

Humidity:≤95% Non Condensing

Power:DC12V 2-3A/ POE 48V(power adaptor not include)

Consumption:< 30W

Weight: 2 kgs

Waterproof: IP66

Detail Picture:

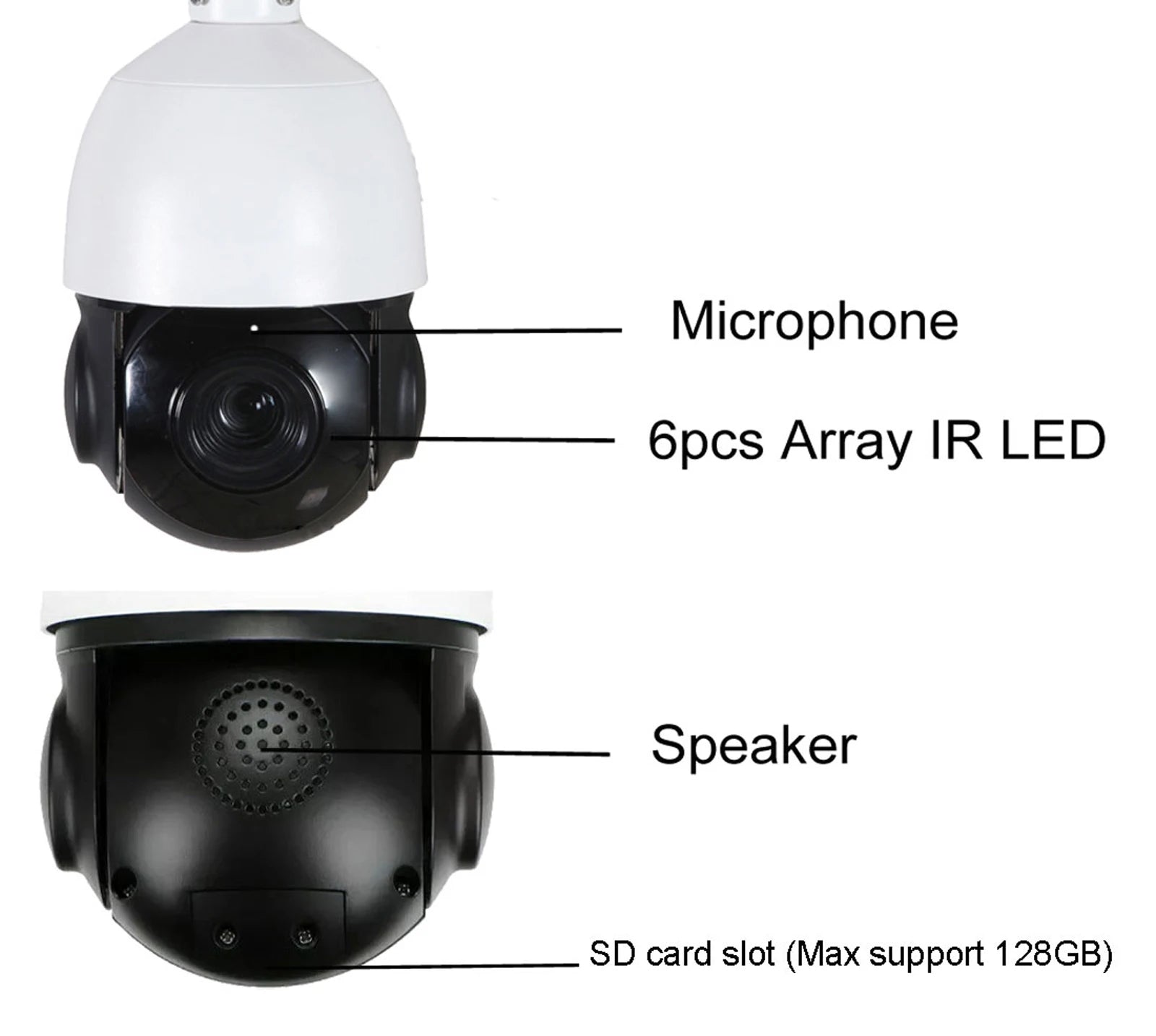

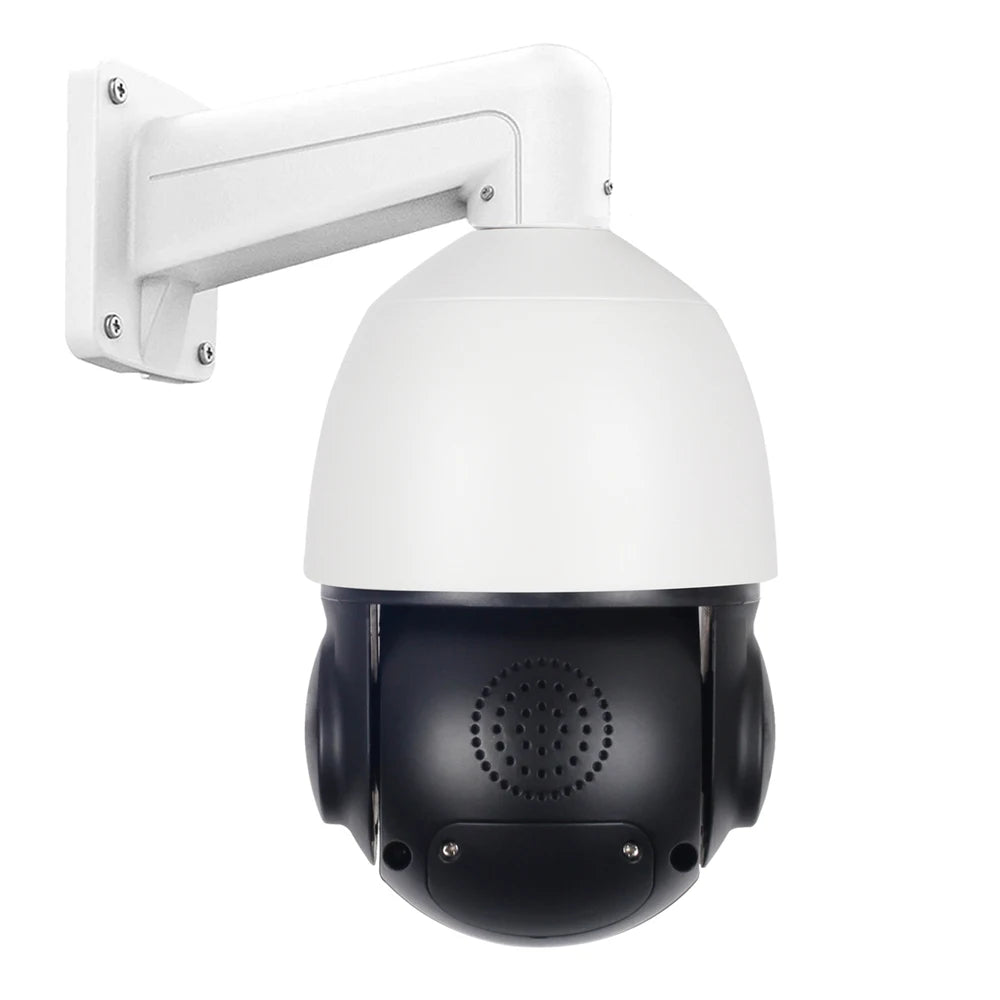

Buit-in Microphone and speaker, SD card slot:

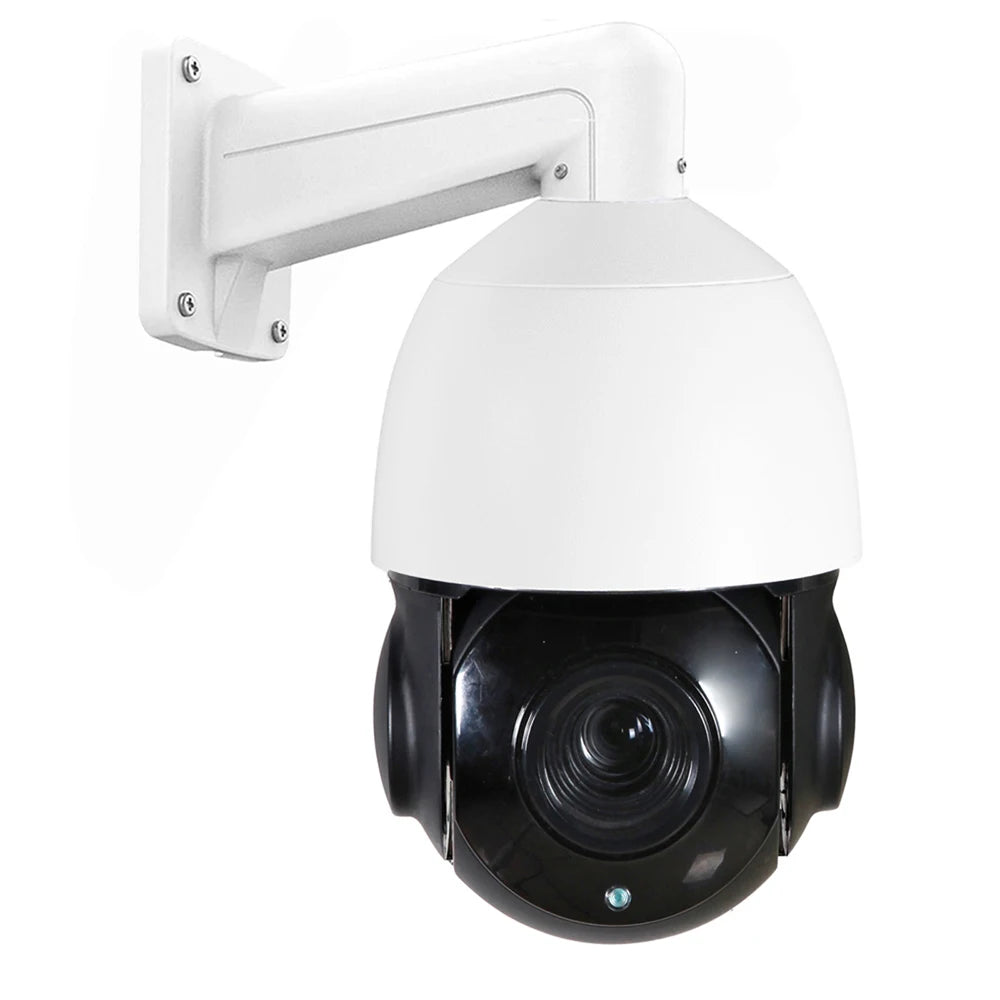

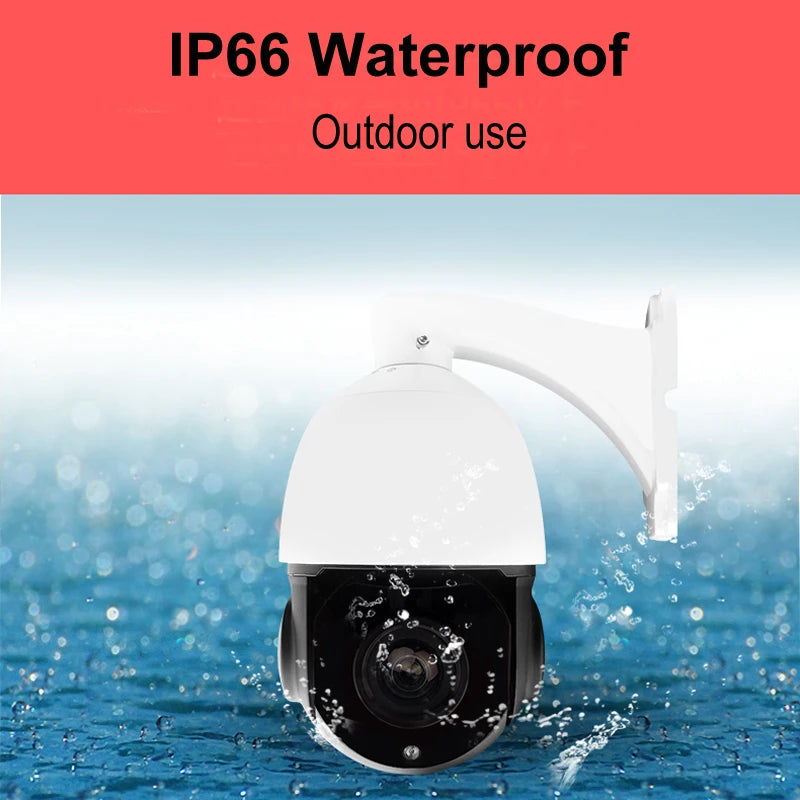

Outdoor waterproof:

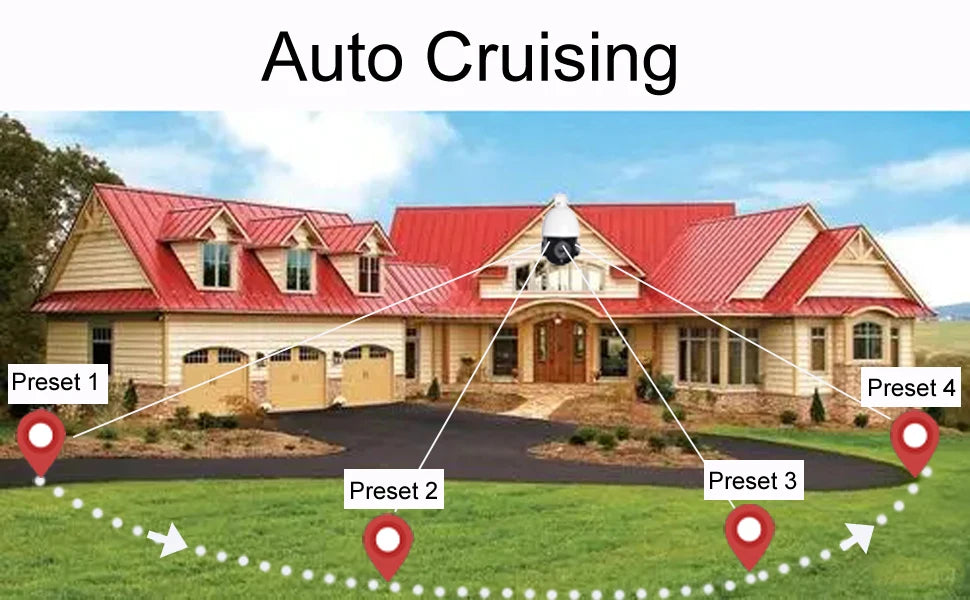

Auto Cruising:

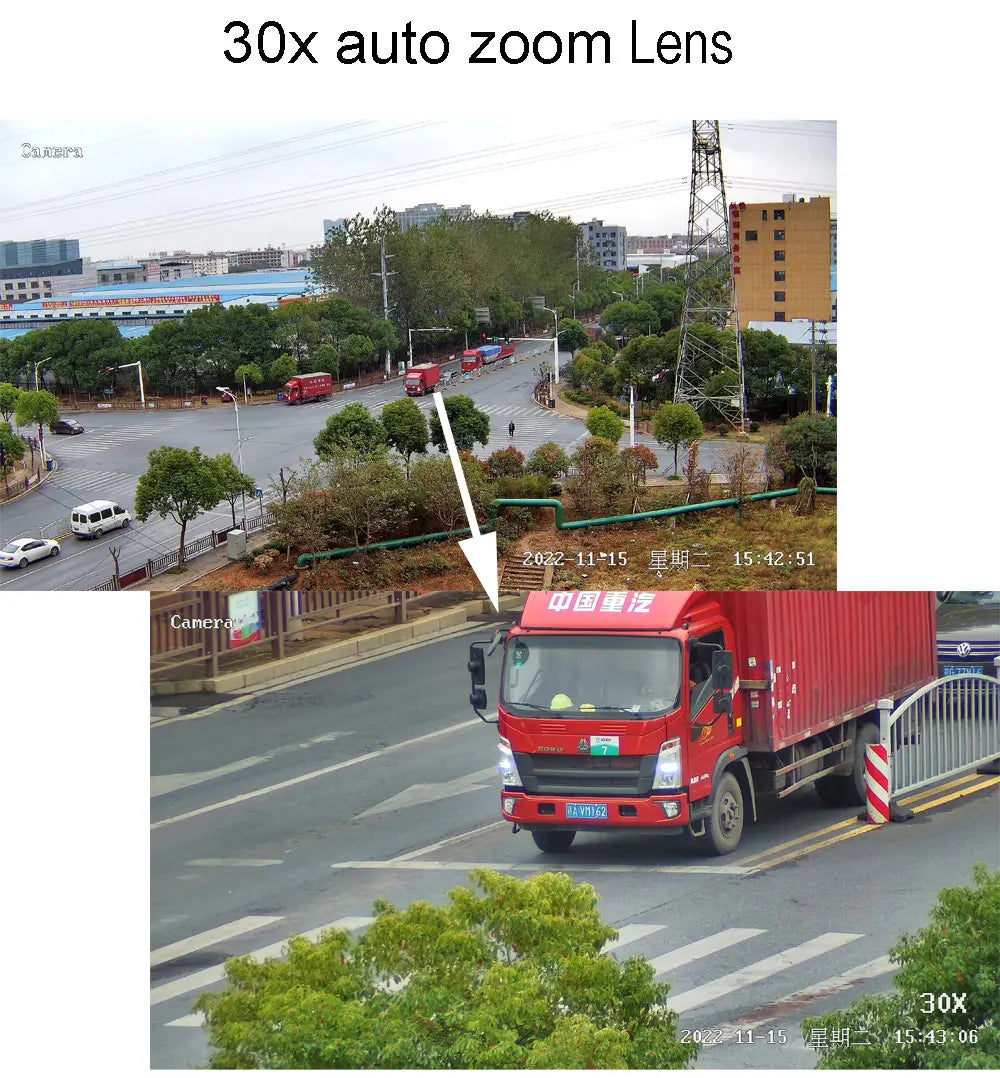

30X auto zoom lens:

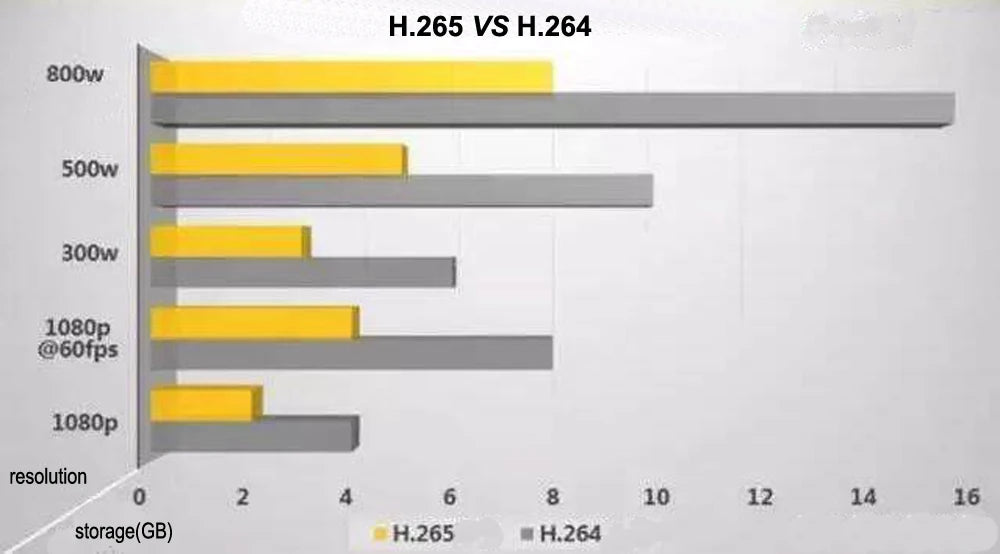

H.265 video compression:
