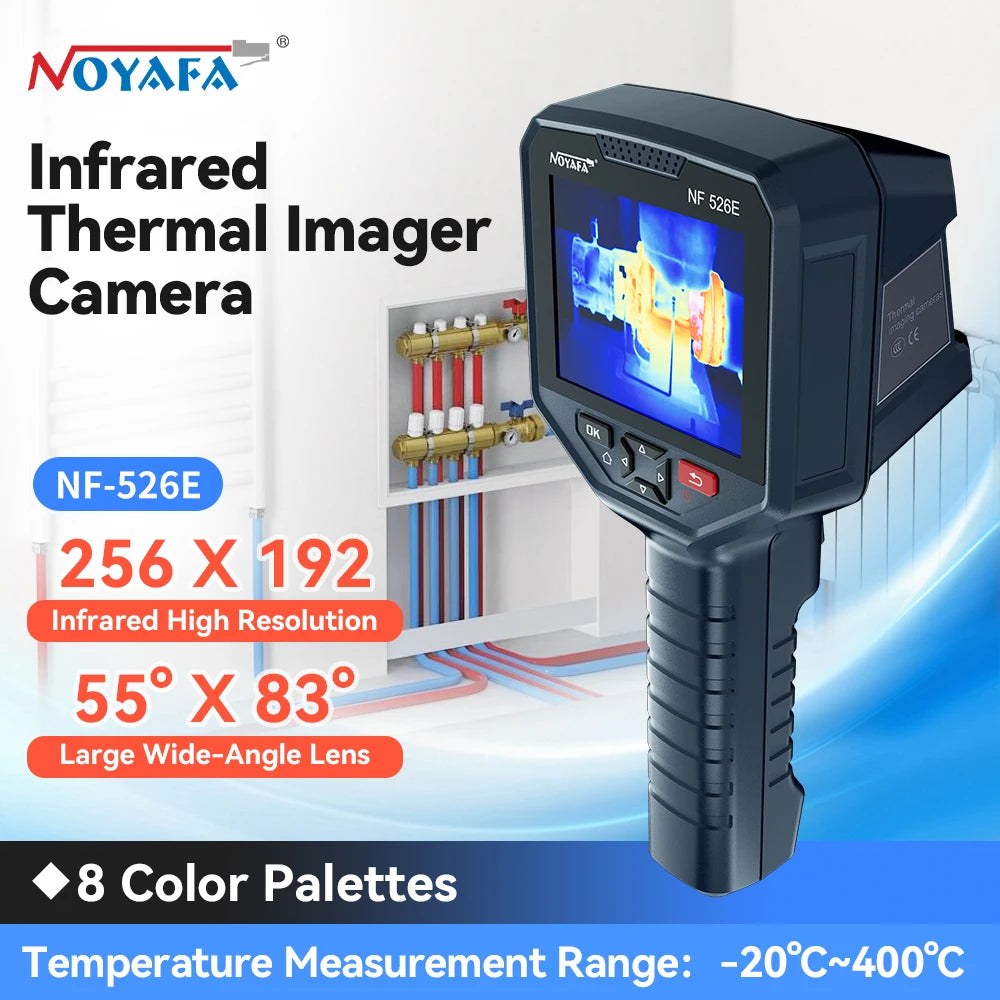

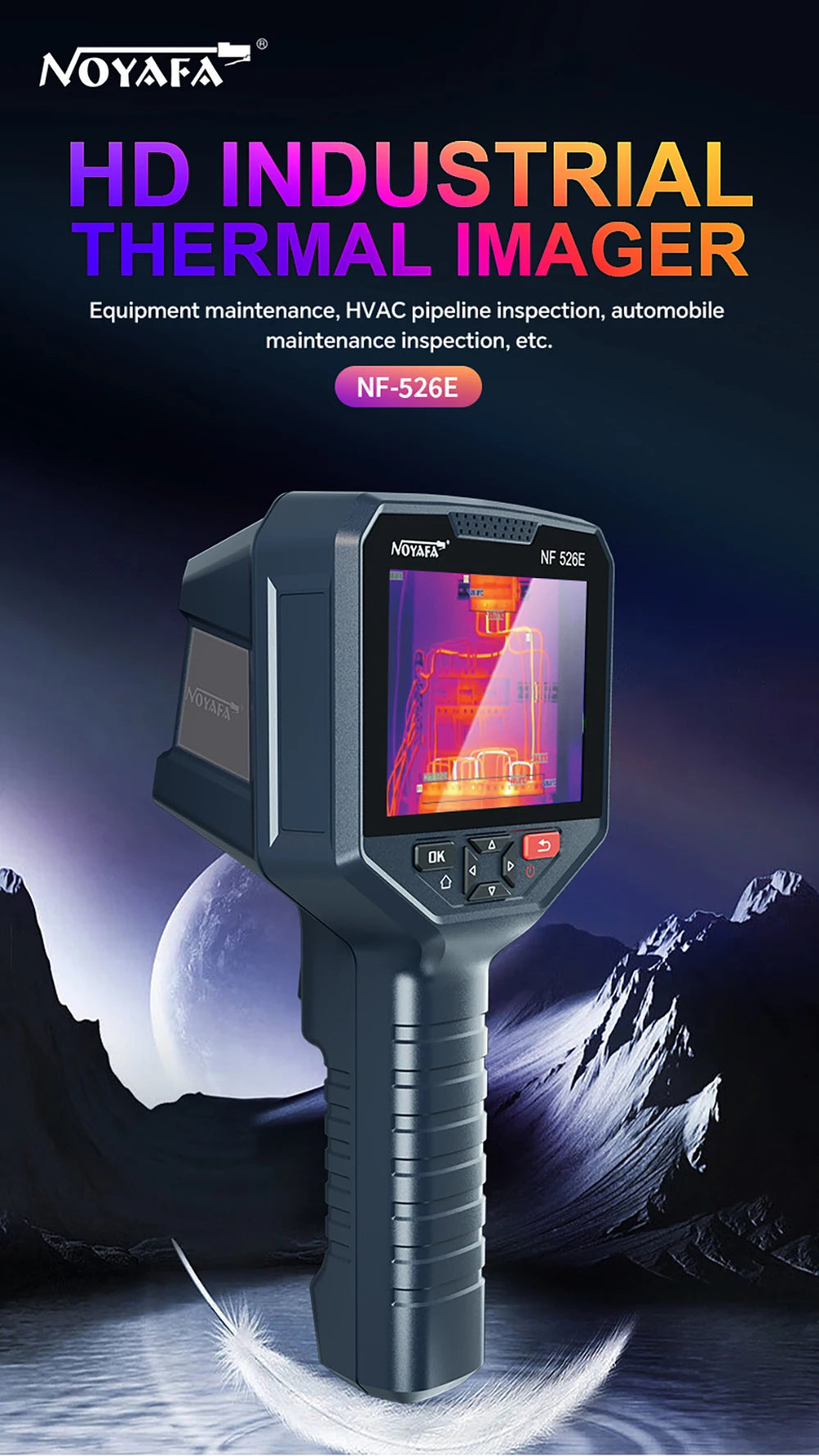

HD INDUSTRIAL THERMAL IMAGER 256 X 192 Thermal Imaging Pixel

Equipment maintenance, HVAC pipeline inspection, automobile maintenance inspection, etc.

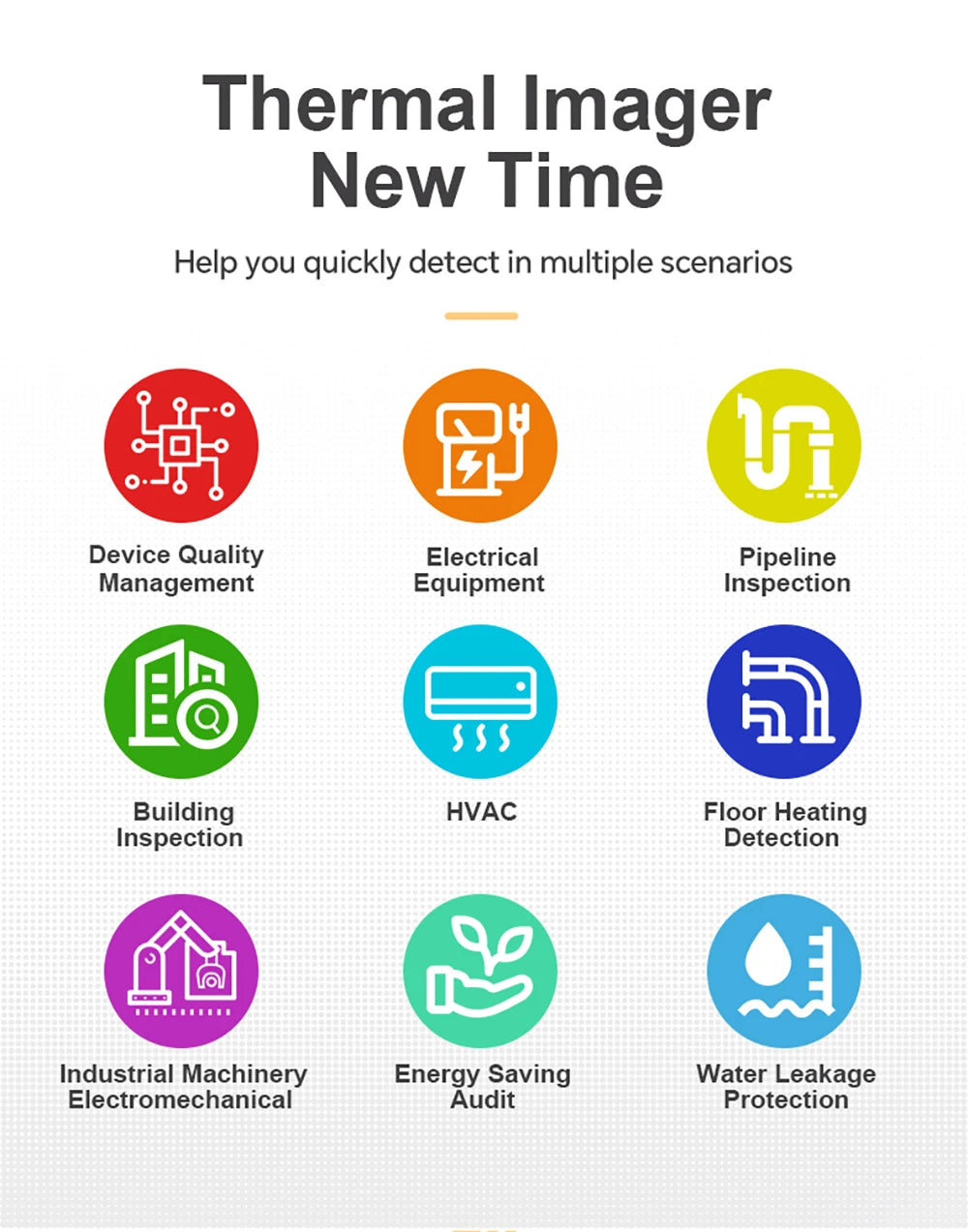

Thermal Imager New Time

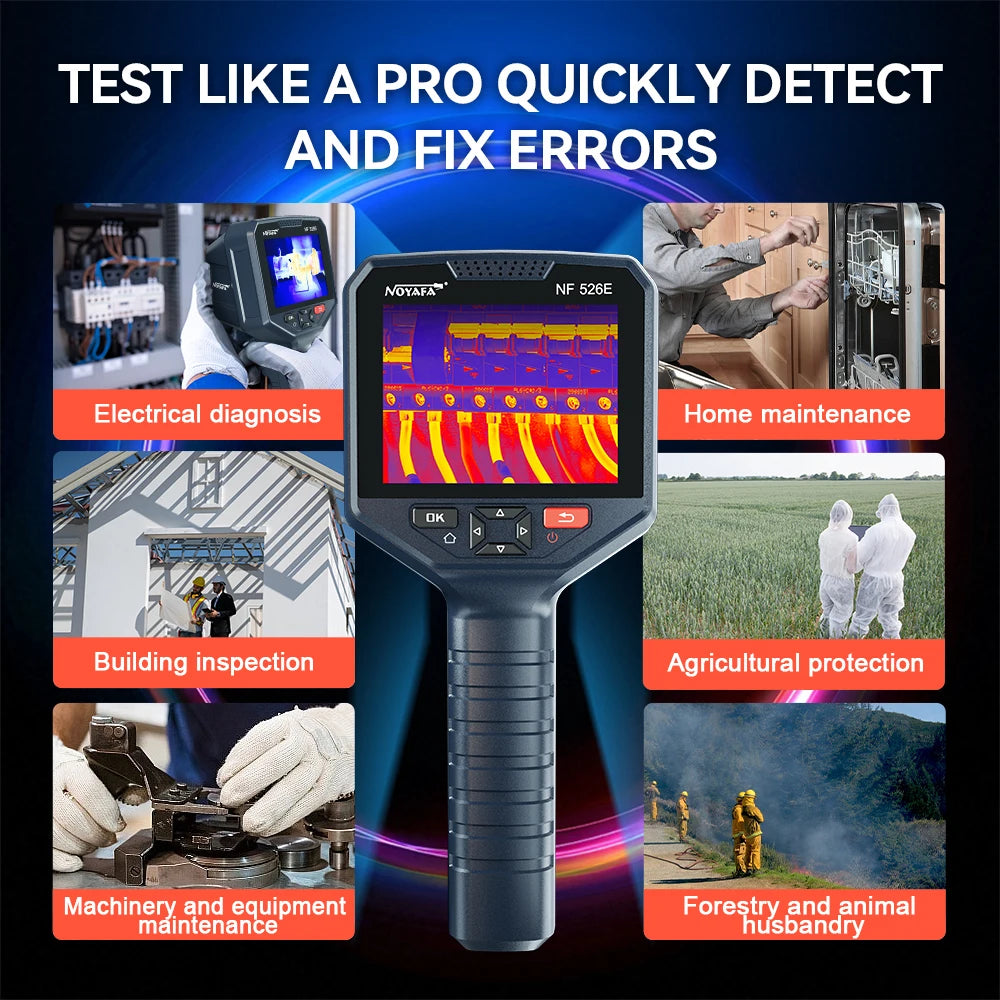

Help you quickly detect in multiple scenarios

Device Quality Management
Building Inspection
Industrial Machinery Electromechanical
Electrical Equipment
HVAC
Energy Saving Audit
Pipeline Inspection
Floor Heating Detection
Water Leakage Protection

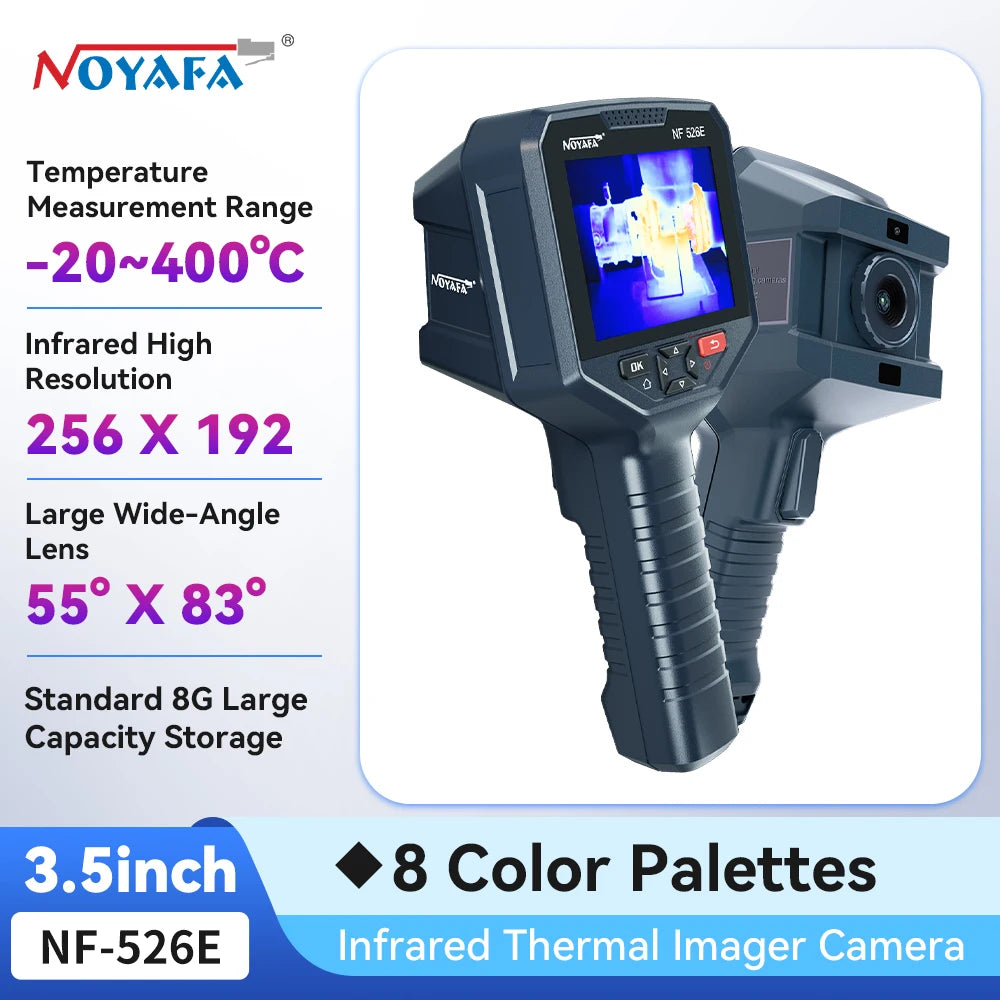

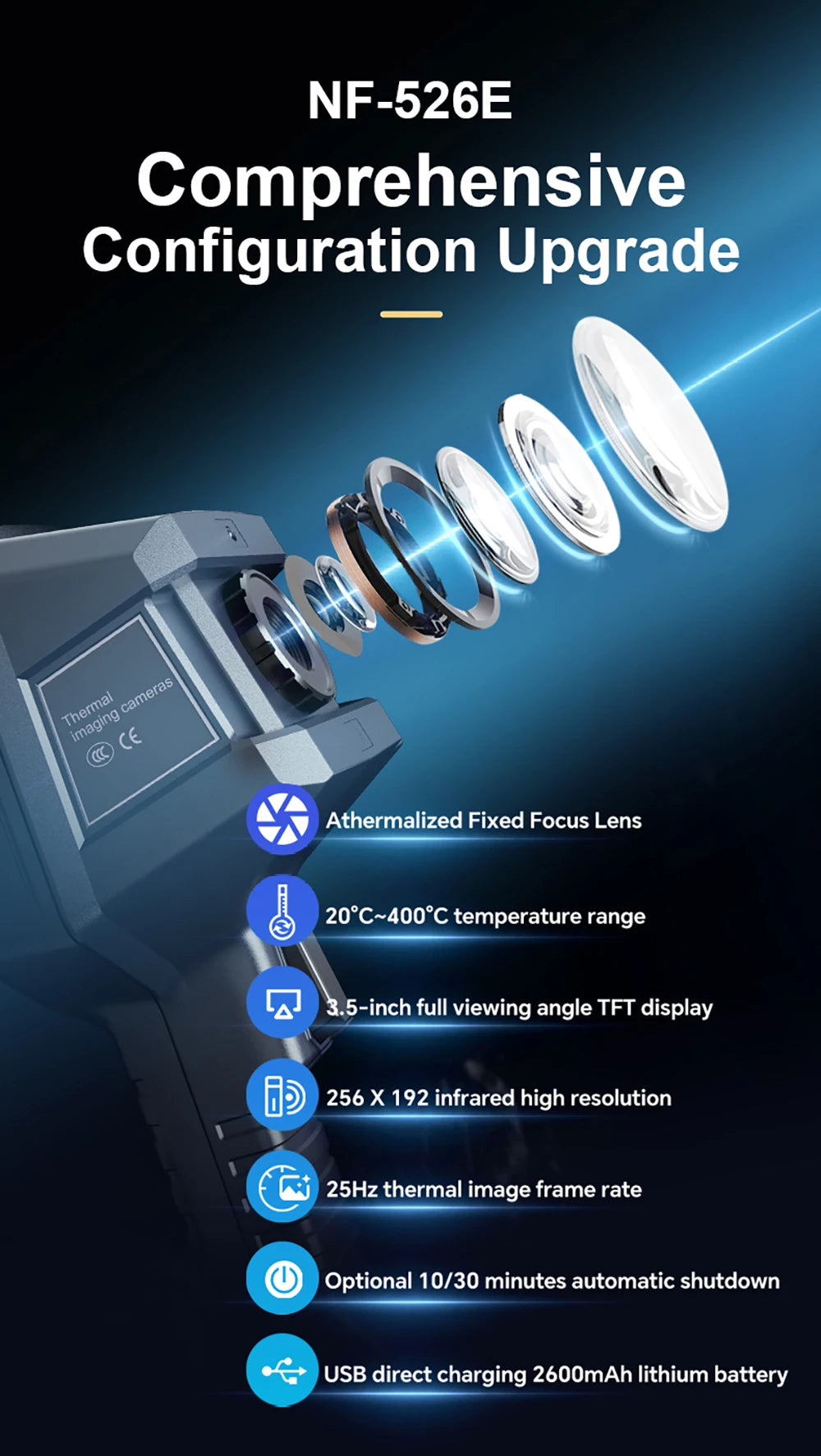

NF-526E Comprehensive Configuration Upgrade

Athermalized Fixed Focus Lens
20°C-400°C temperature range
3.5-inch full viewing angle TFT display
256 X 192 infrared high resolution
25Hz thermal image frame rate
Optional 10/30 minutes automatic shutdown USB direct charging 2600mAh lithium battery

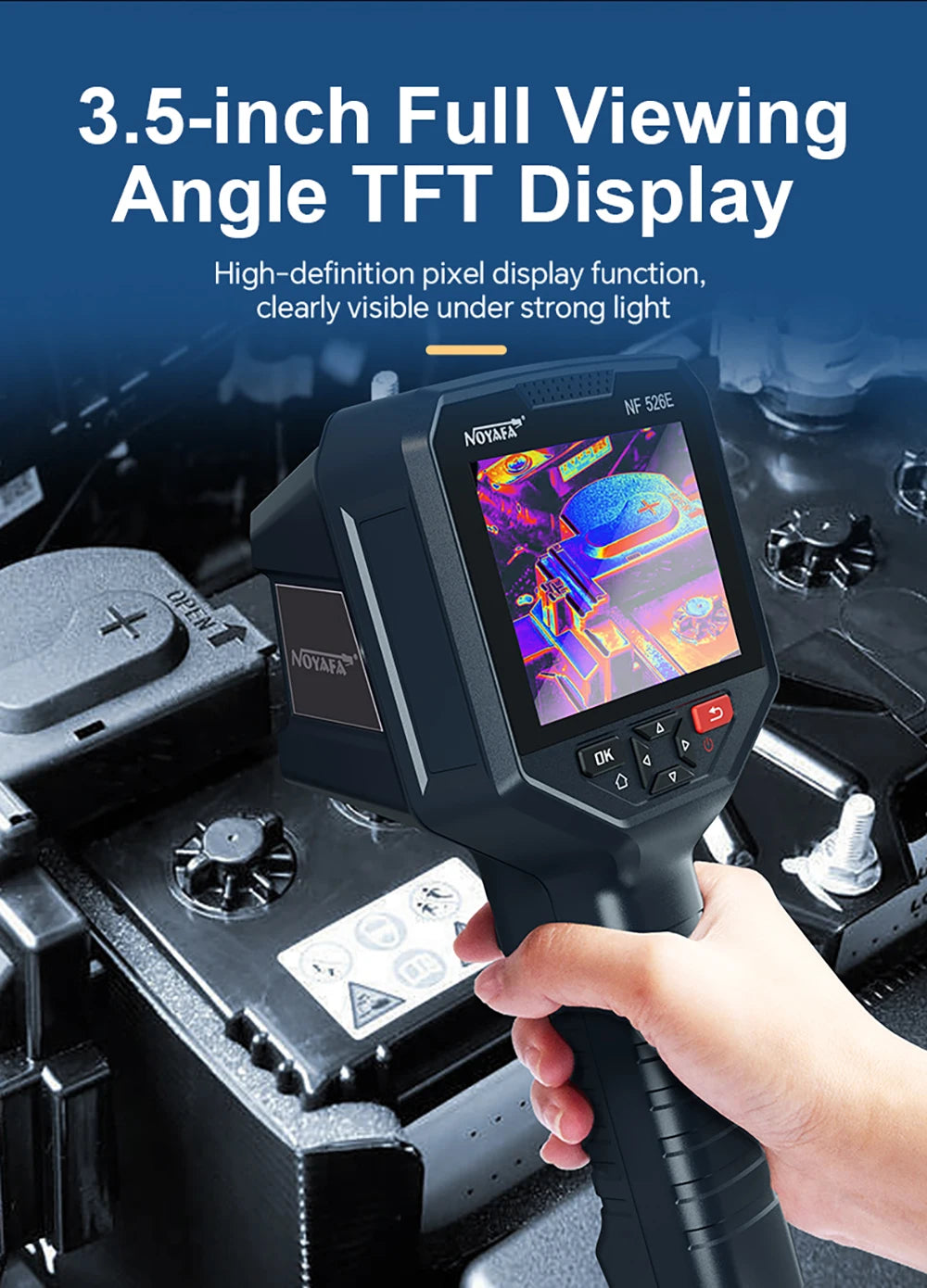

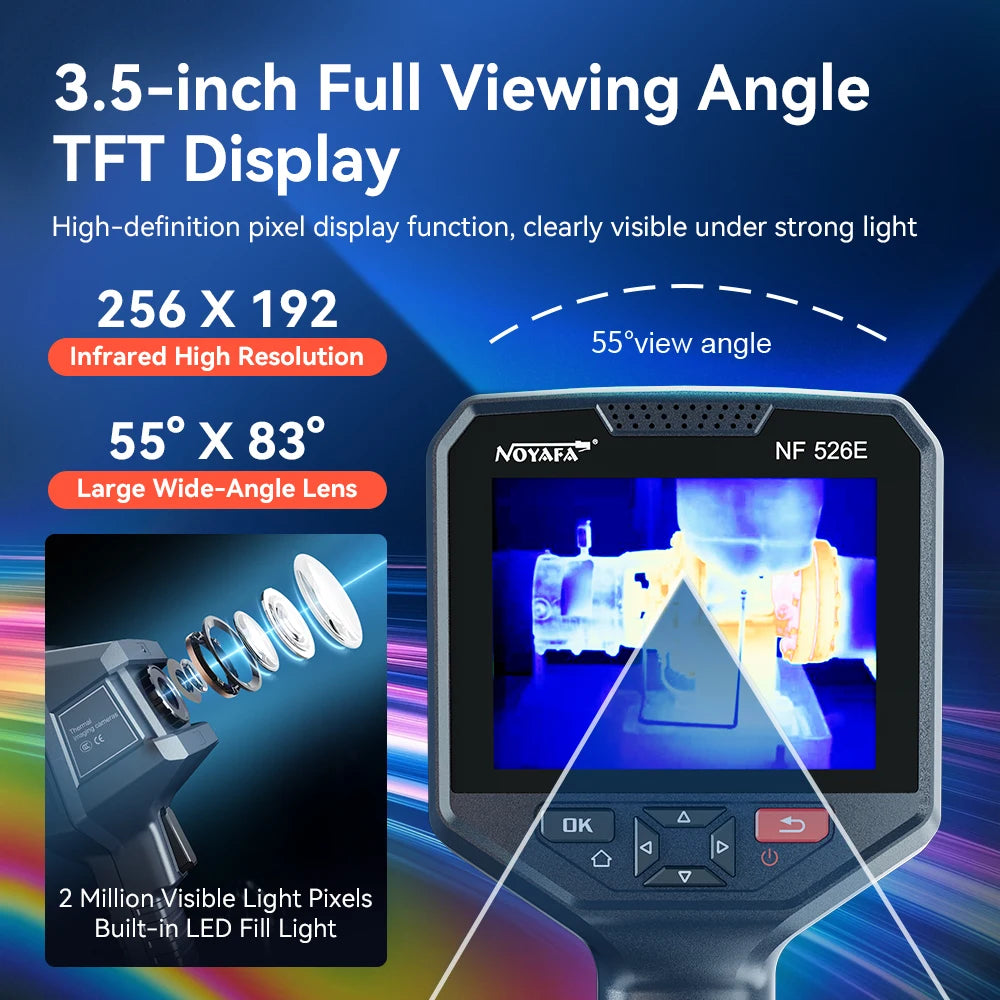

3.5-inch Full Viewing Angle TFT Display

High-definition pixel display function, clearly visible under strong light

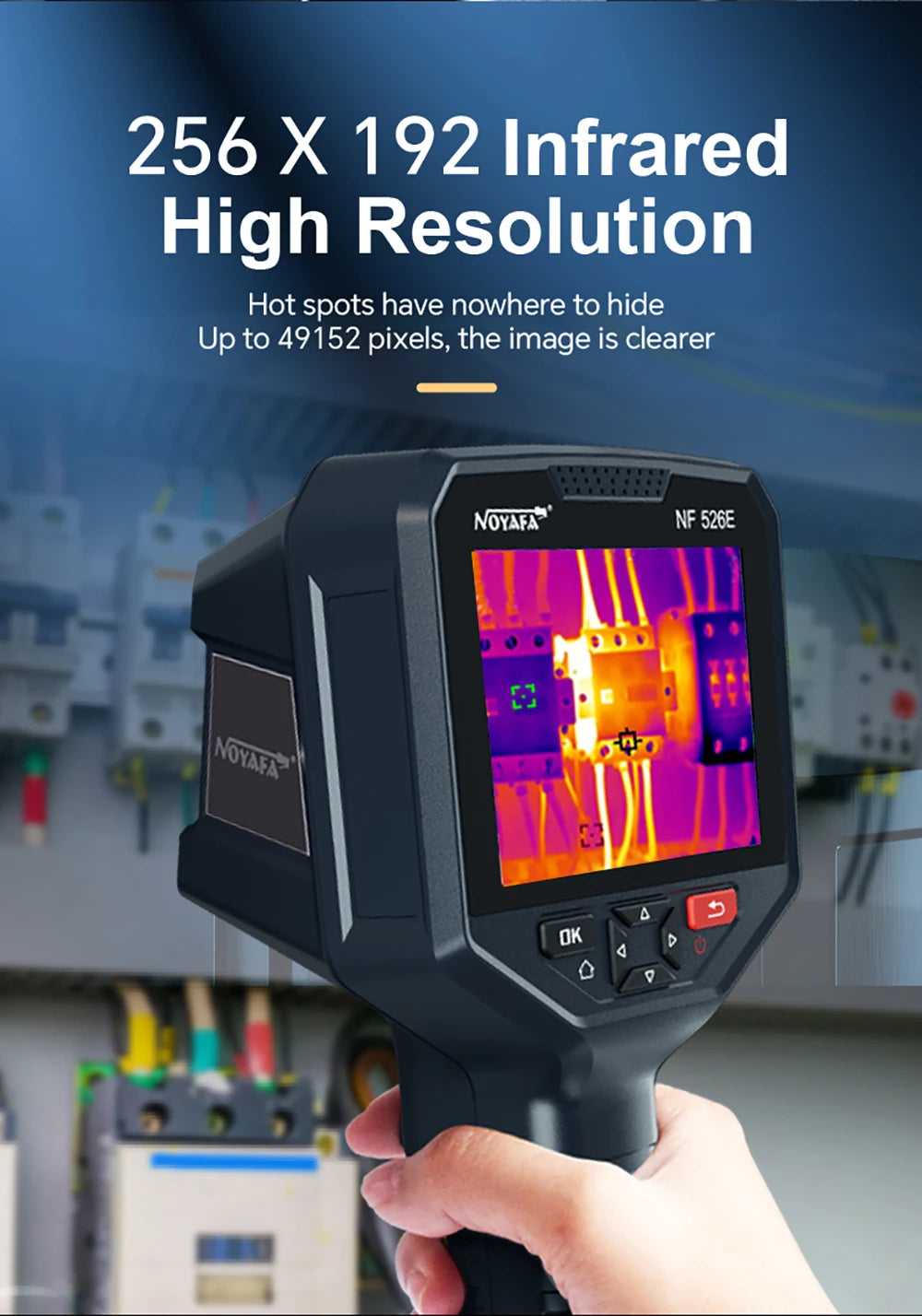

256 X 192 Infrared High Resolution

Hot spots have nowhere to hide
Up to 49152 pixels, the image is clearer

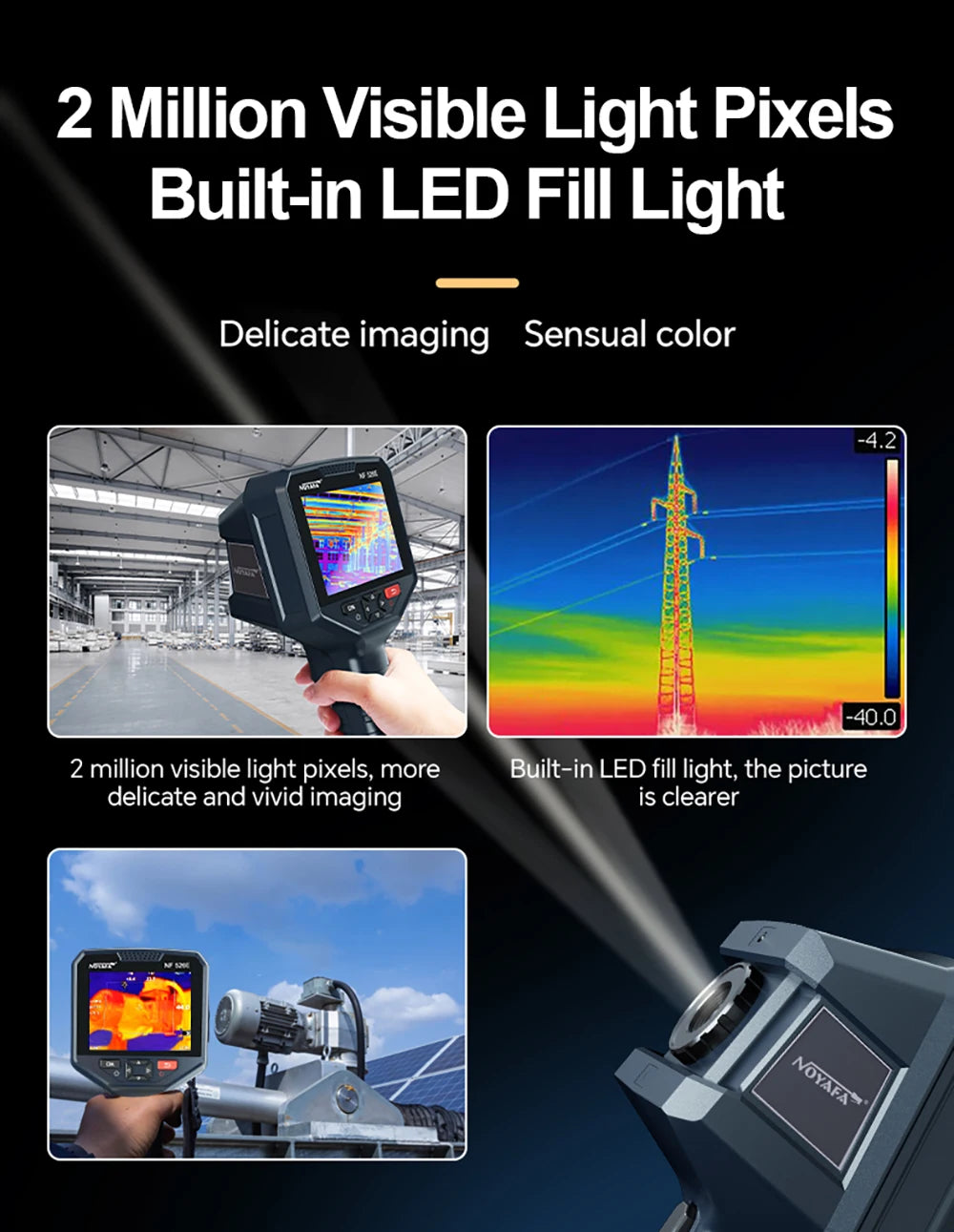

2 Million Visible Light Pixels Built-in LED Fill Light

Delicate imaging Sensual color
2 million visible light pixels, more delicate and vivid imaging
Built-in LED fill light, the picture is clearer

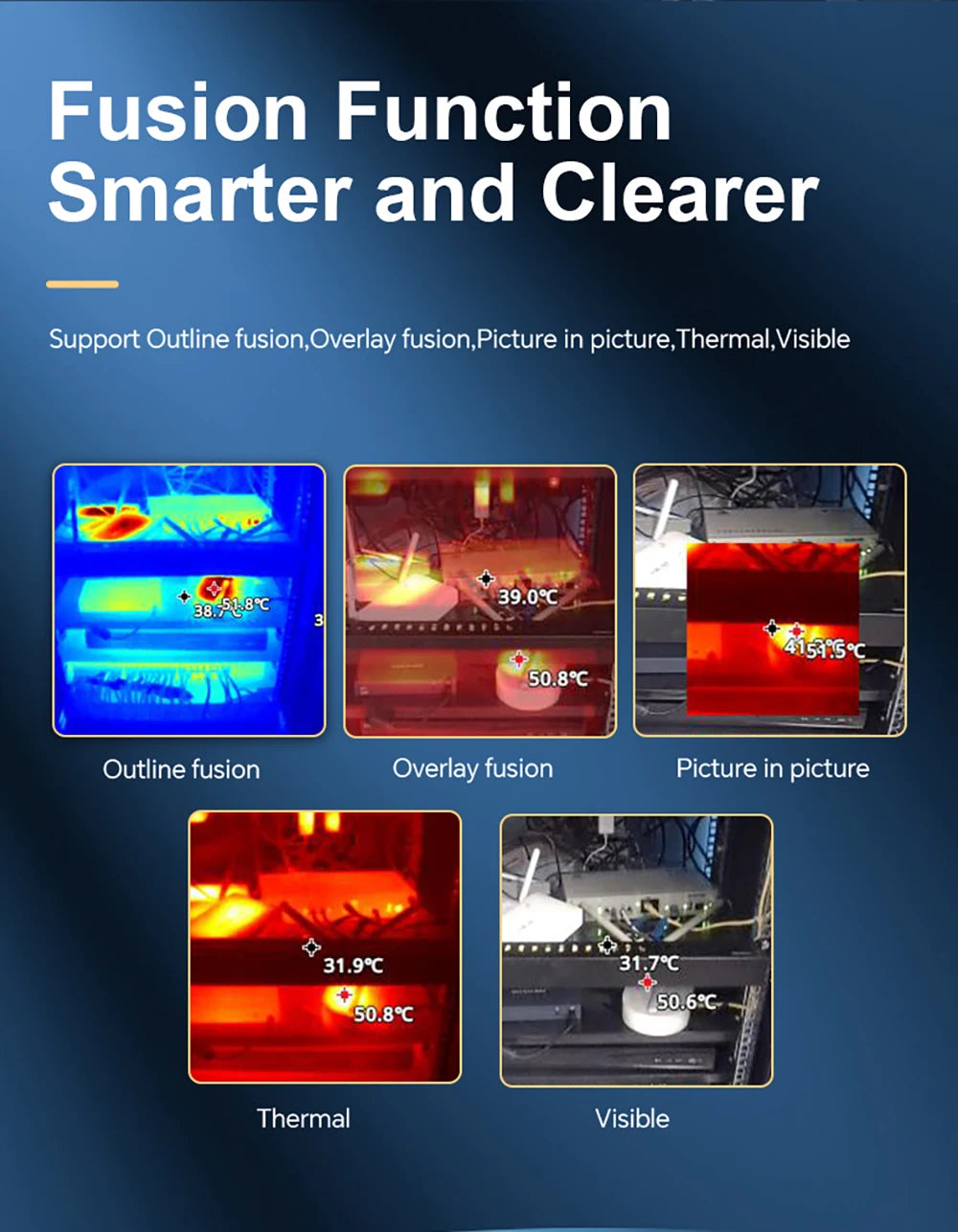

Fusion Function Smarter and Clearer

Support Outline fusion, Overlay fusion, Picture in picture, Thermal, Visible

Outline fusion
Overlay fusion
Picture in picture

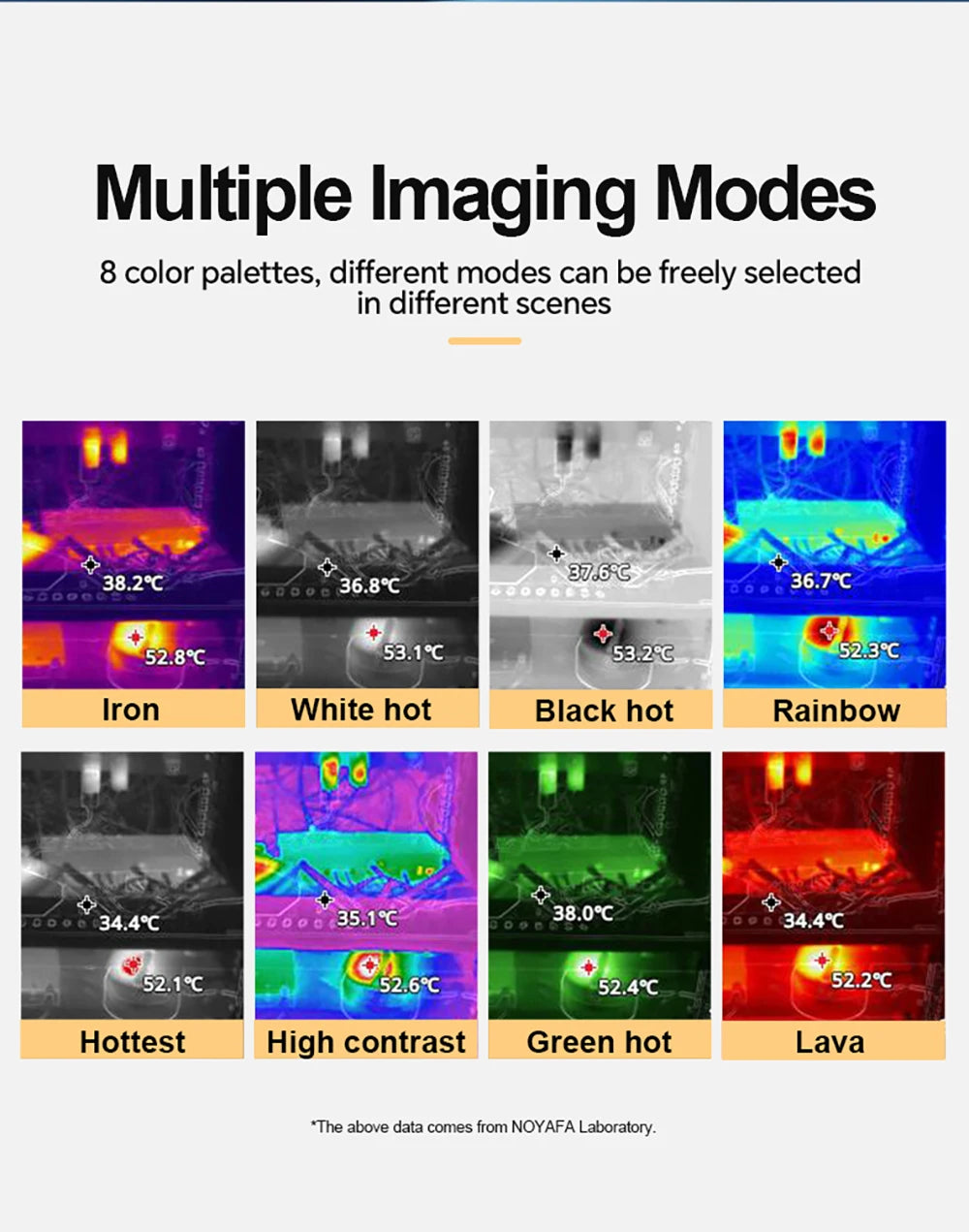

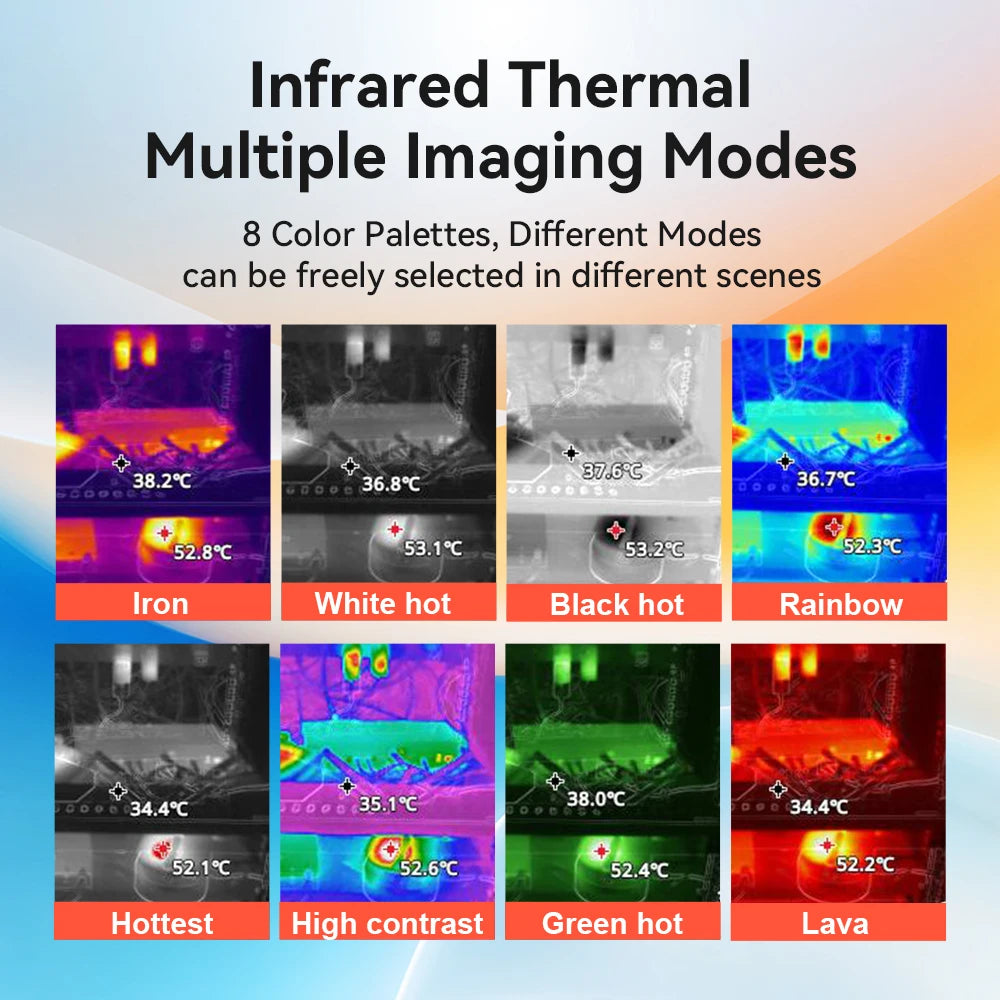

Multiple Imaging Modes

8 color palettes, different modes can be freely selected in different scenes

Iron
White hot
Black hot
Rainbow
Hottest
High contrast
Green hot
Lava

"The above data comes from NOYAFA Laboratory.

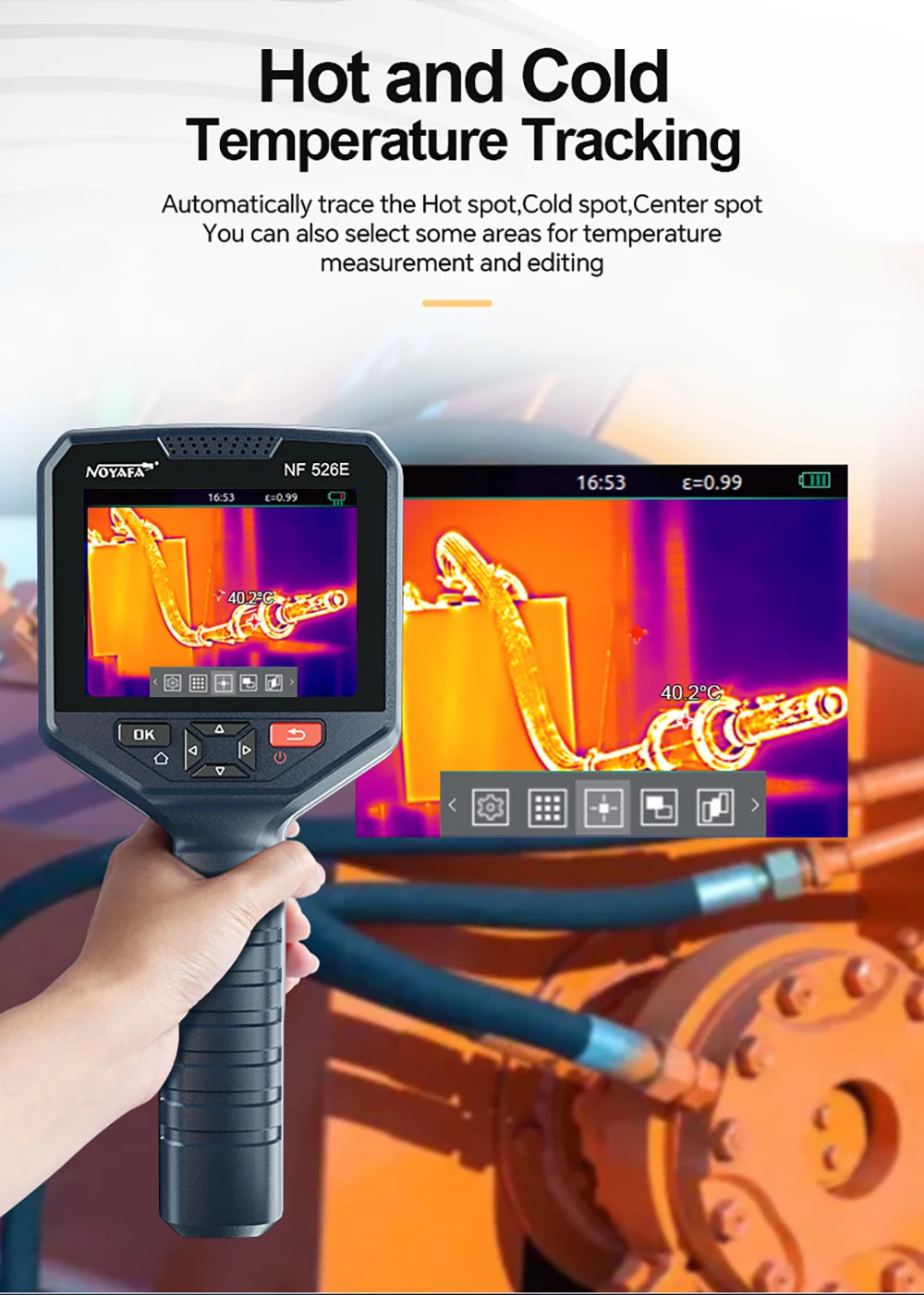

Hot and Cold Temperature Tracking

Automatically trace the Hot spot, Cold spot, Center spot You can also select some areas for temperature measurement and editing

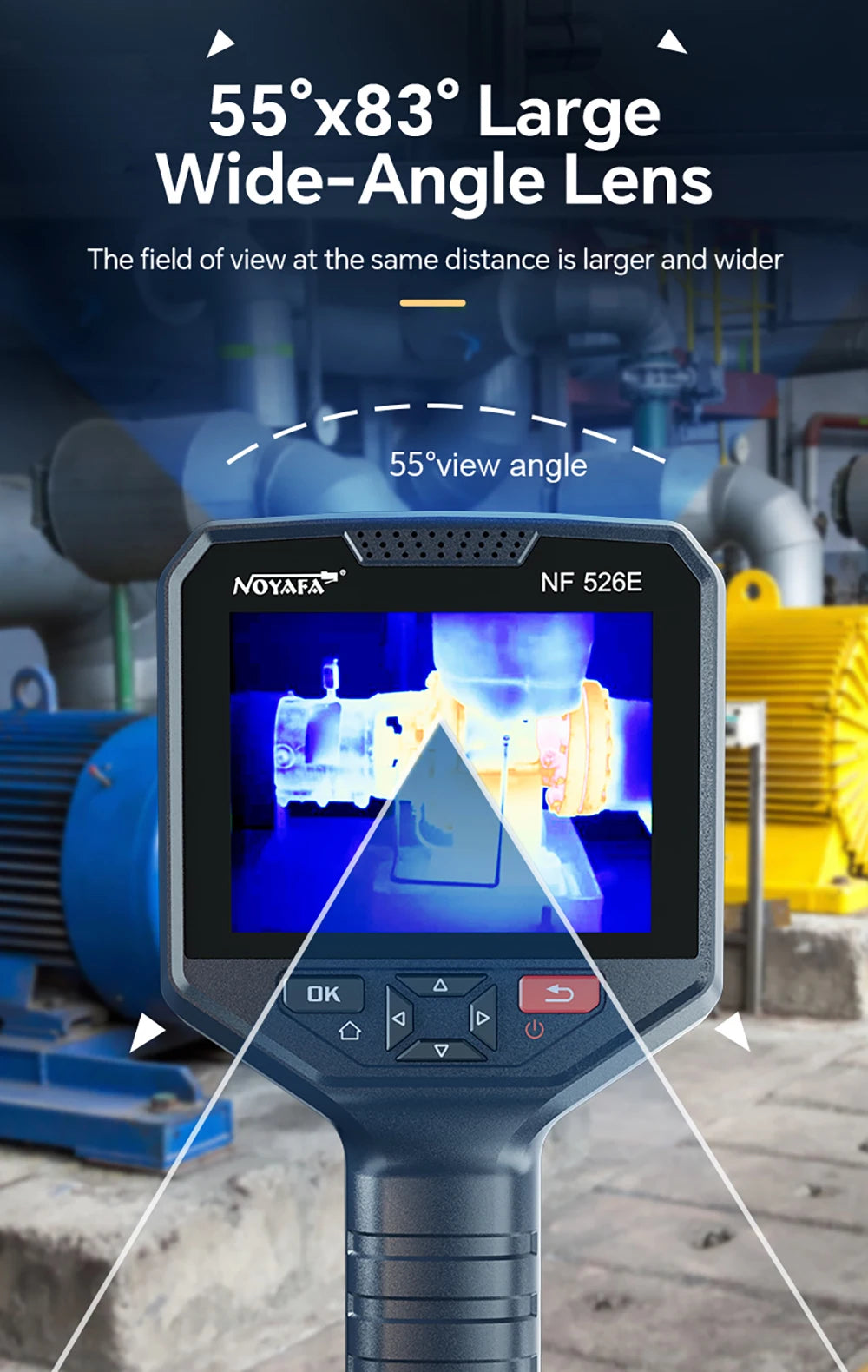

55°x83° Large Wide-Angle Lens

The field of view at the same distance is larger and wider

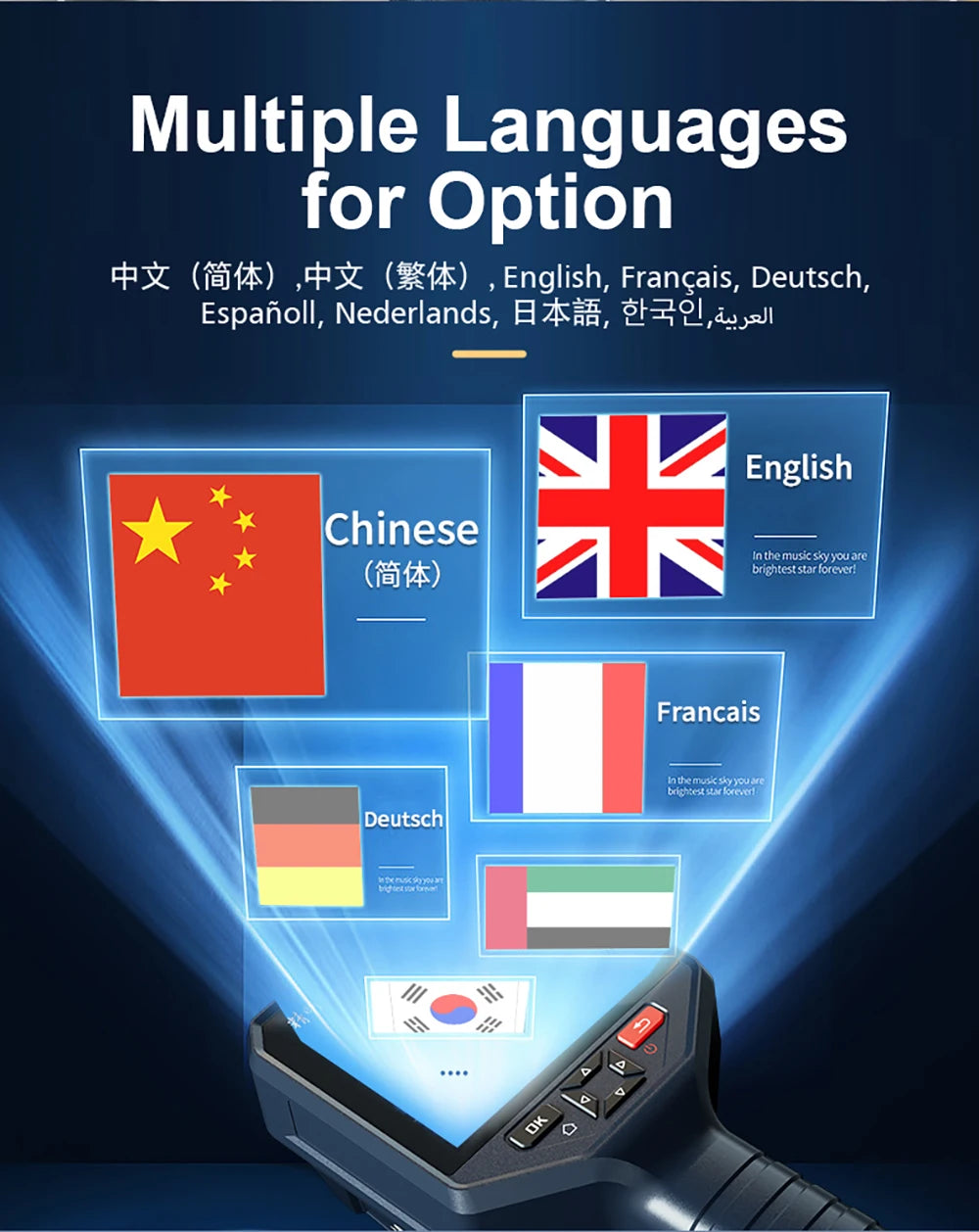

Multiple Languages for Option

Chinese (Simplified), Chinese (Traditional), English, French, German, Spanish, Dutch, Japanese, Korean, Arabic

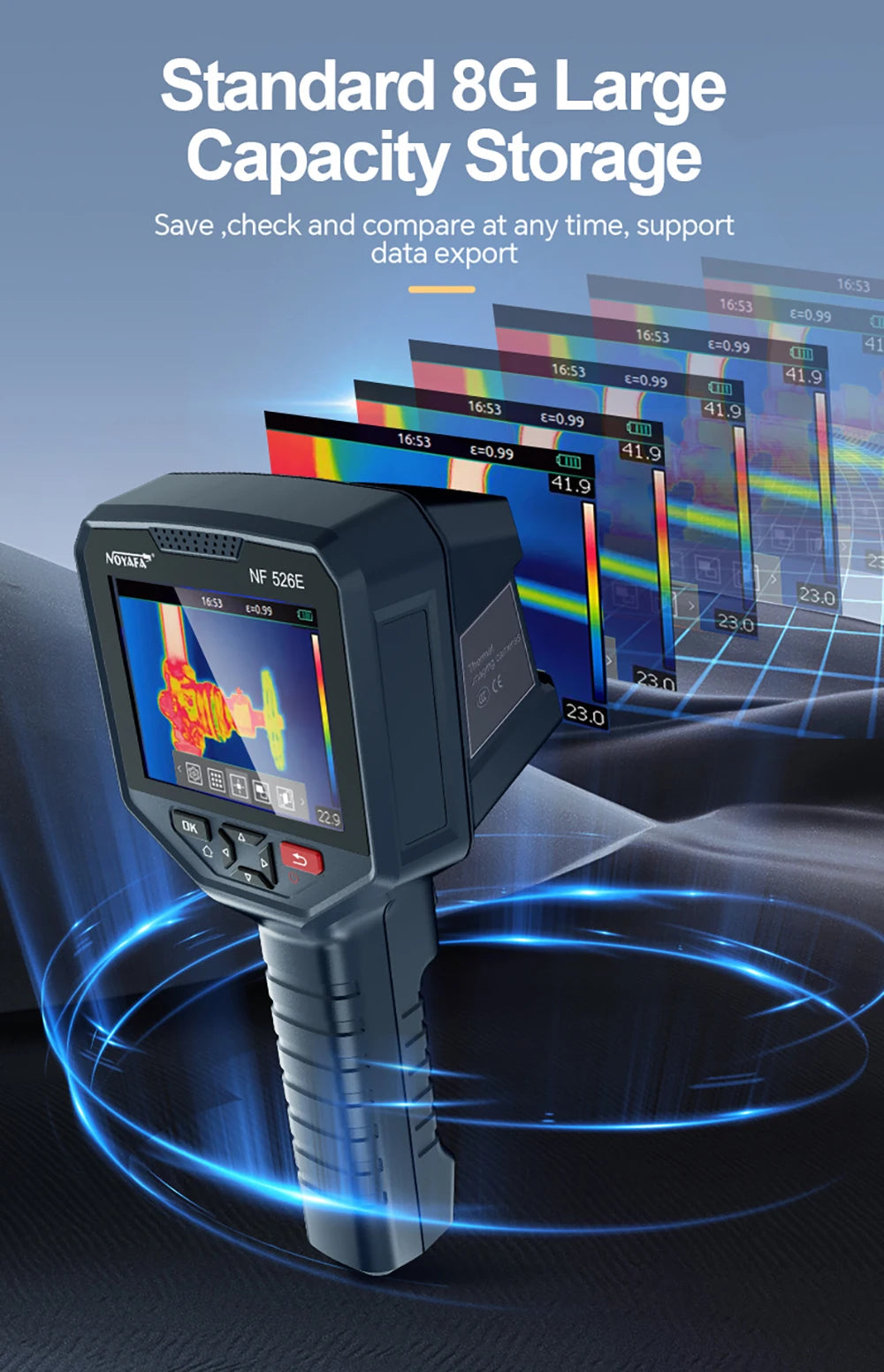

Standard 8G Large Capacity Storage

Save , check and compare at any time, support data export

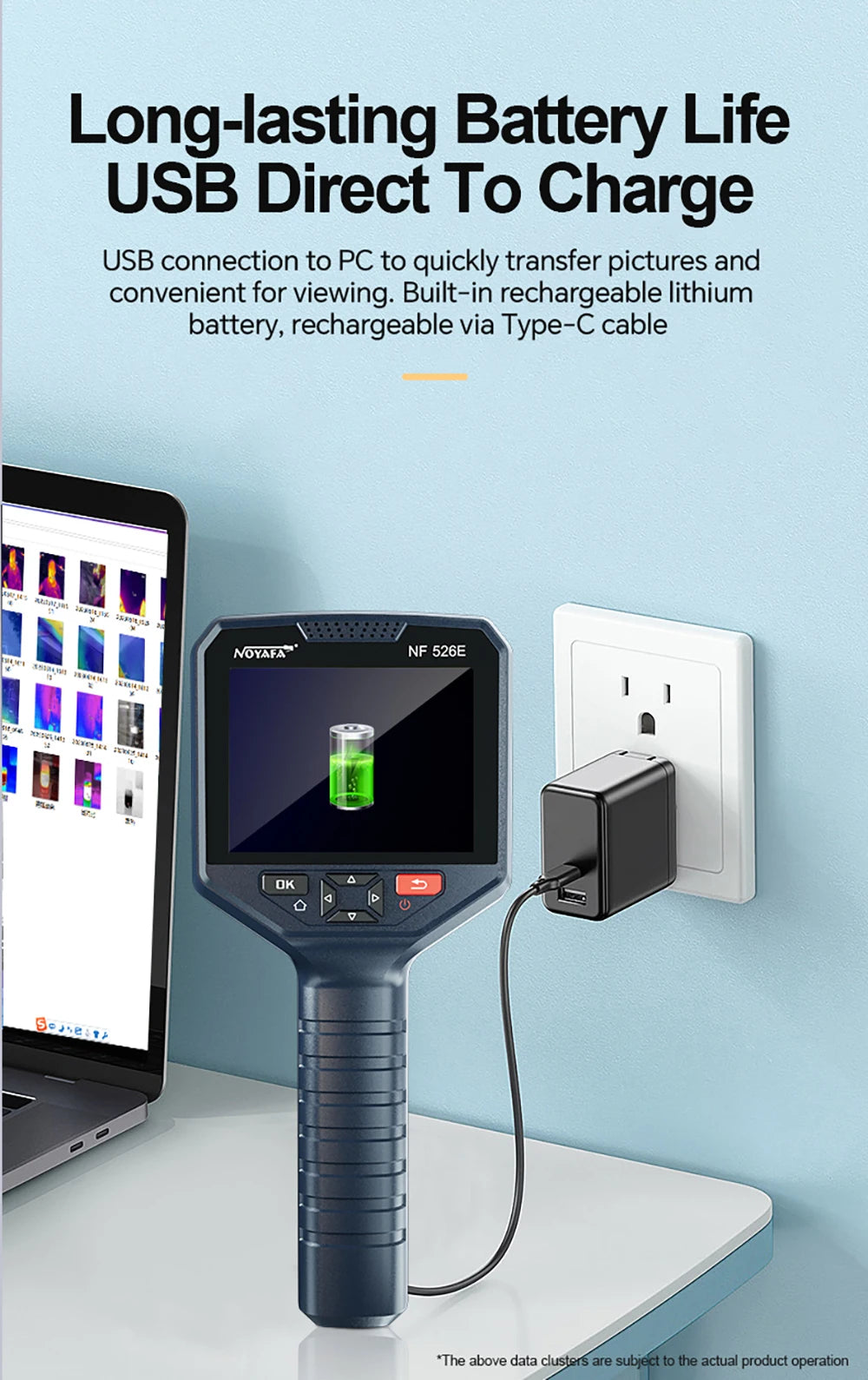

Long-lasting Battery Life USB Direct To Charge

USB connection to PC to quickly transfer pictures and convenient for viewing. Built-in rechargeable lithium battery, rechargeable via Type-C cable

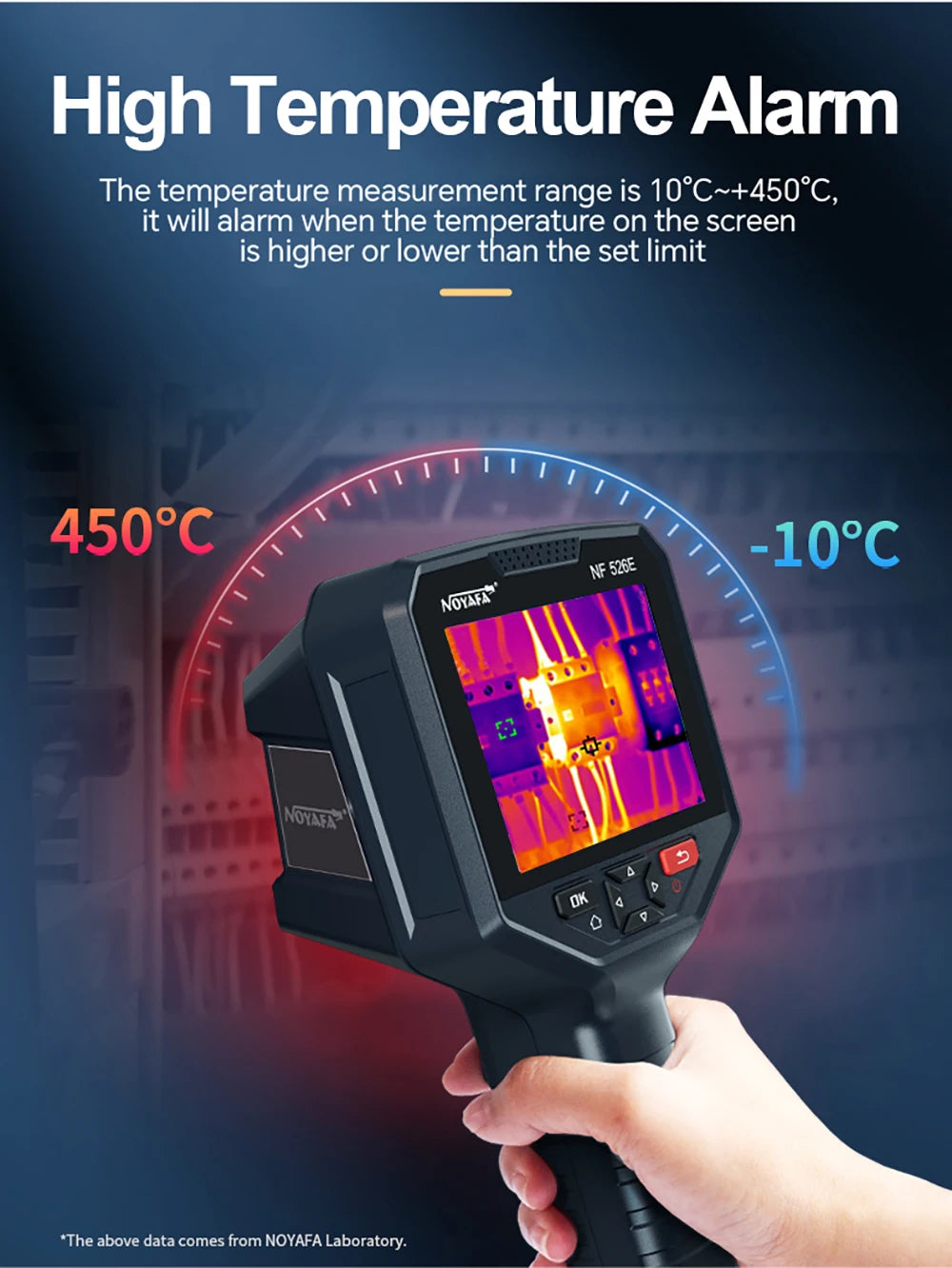

High Temperature Alarm

The temperature measurement range is 10C~+450C, it will alarm when the temperature on the screen is higher or lower than the set limit

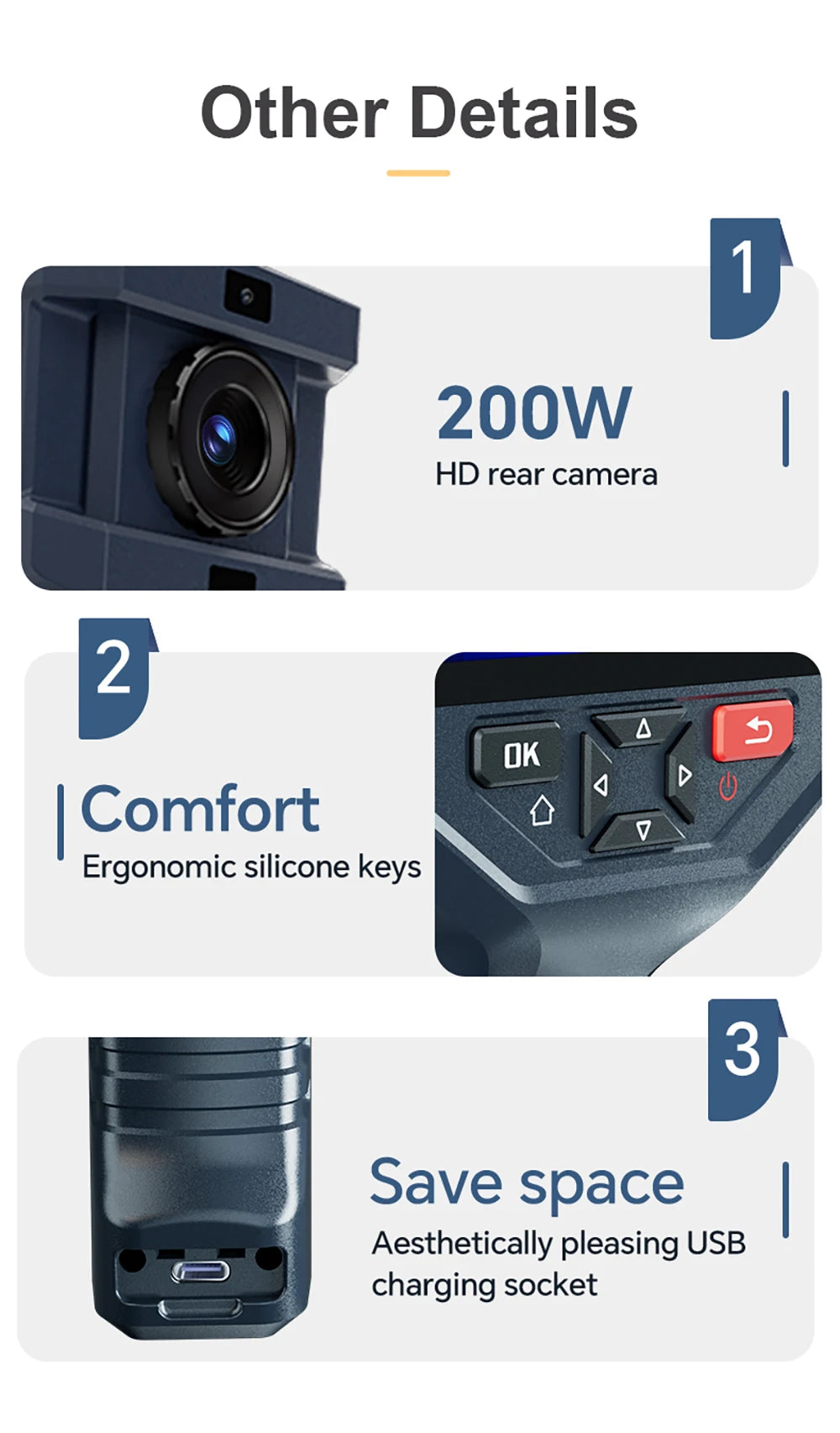

Other Details

200W HD rear camera
Comfort Ergonomic silicone keys
Save space Aesthetically pleasing USB charging socket

Product Structure

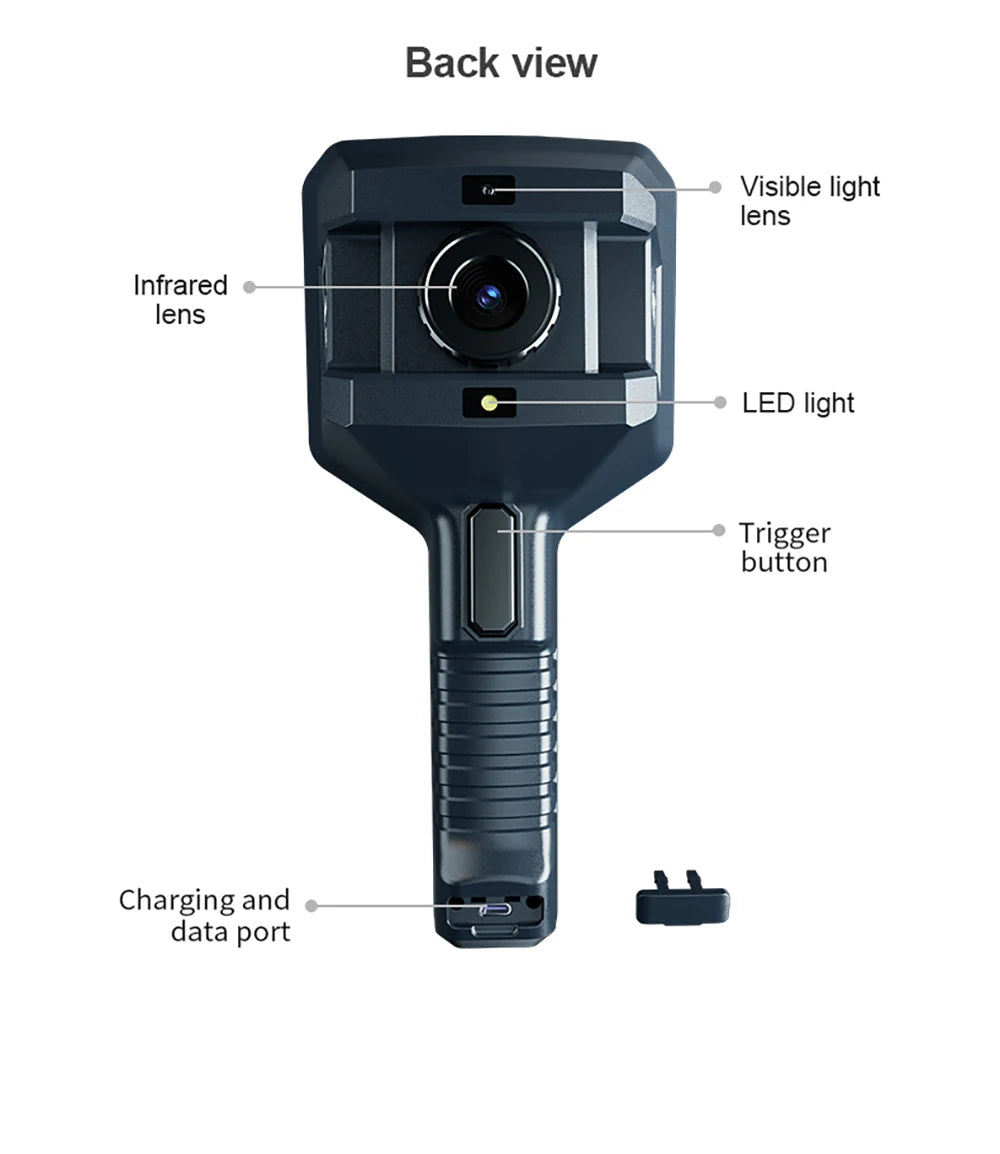

Back view

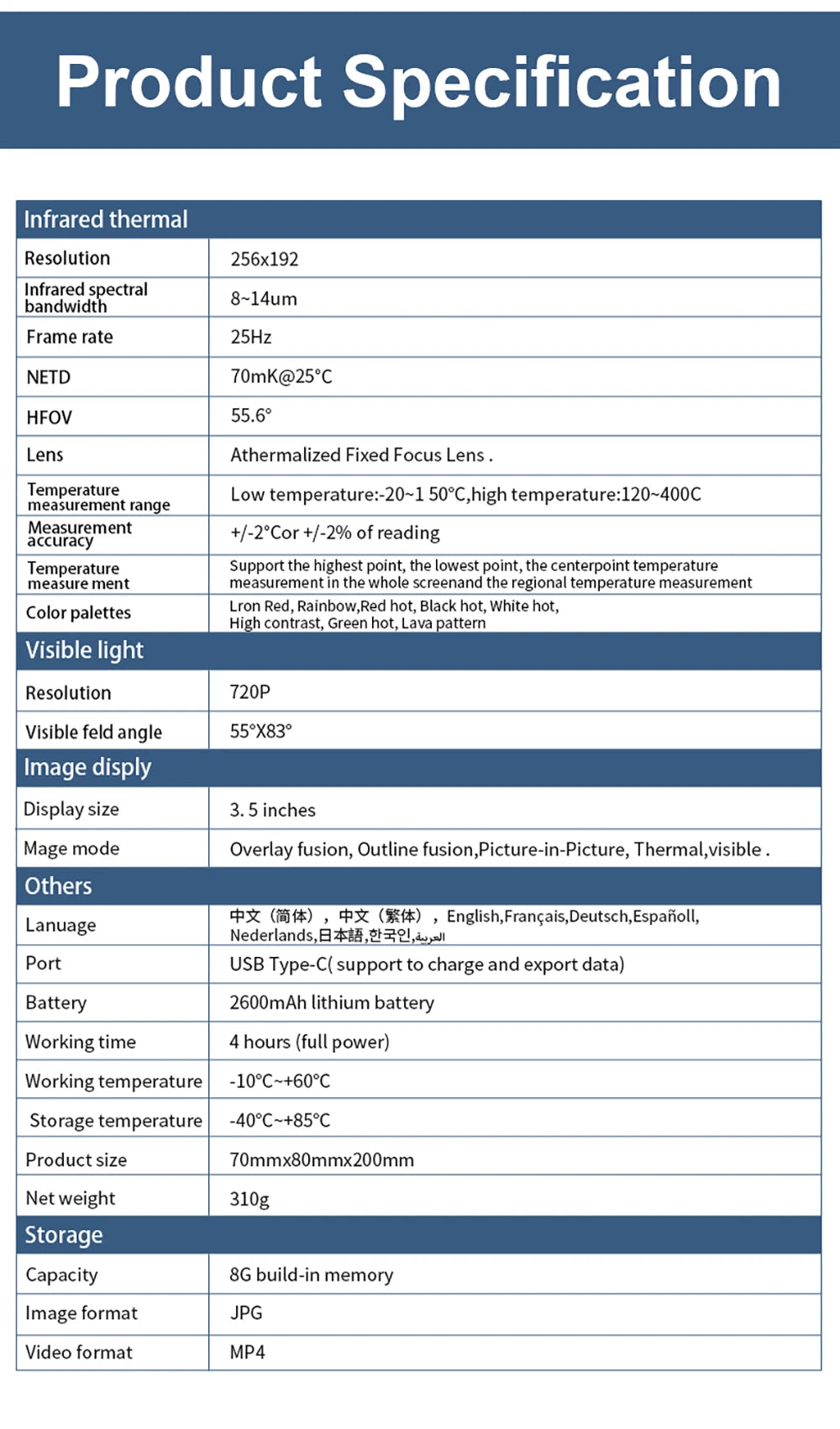

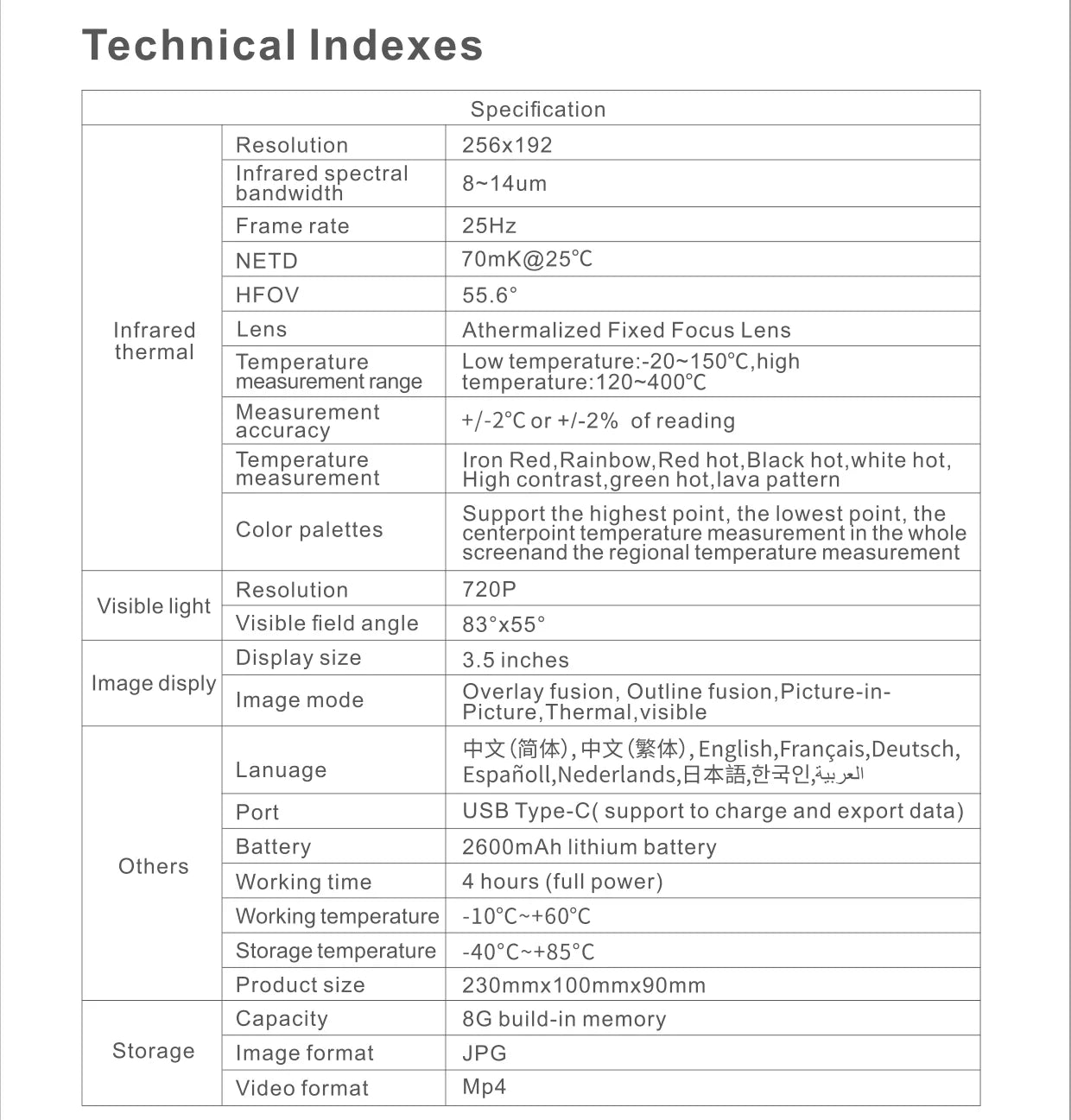

Product Specification

Infrared thermal:
Resolution ：256x192
Infrared spectral bandwidth：8~14um
Frame rate：25Hz
NETD：70mK@25℃
HFOV：55.6°
Lens：Athermalized Fixed Focus Lens

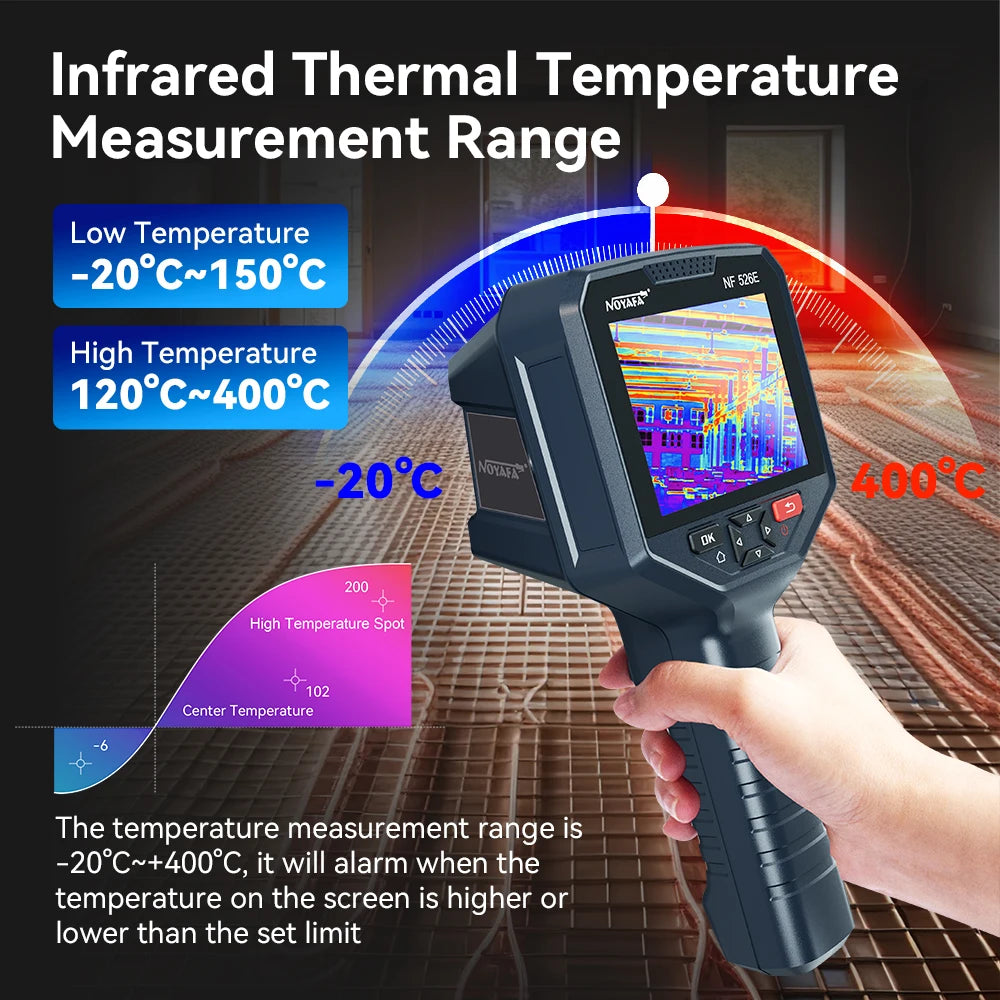

Temperature measurement range：Low temperature:-20~150°C, high temperature:120~400℃
Measurement accuracy：+/-2°Cor +/-2% of reading
Temperature measurement：Iron Red, Rainbow, Red hot, Black hot, white hot, High contrast, green hot, lava pattern
Color palettes：Support the highest point, the lowest point, the centerpoint temperature measurement in the whole screenand the regional temperature measurement

Visible light：Resolution：720P
Visible field angle ：83°x55°

Image disply：Display size 3.5 inches

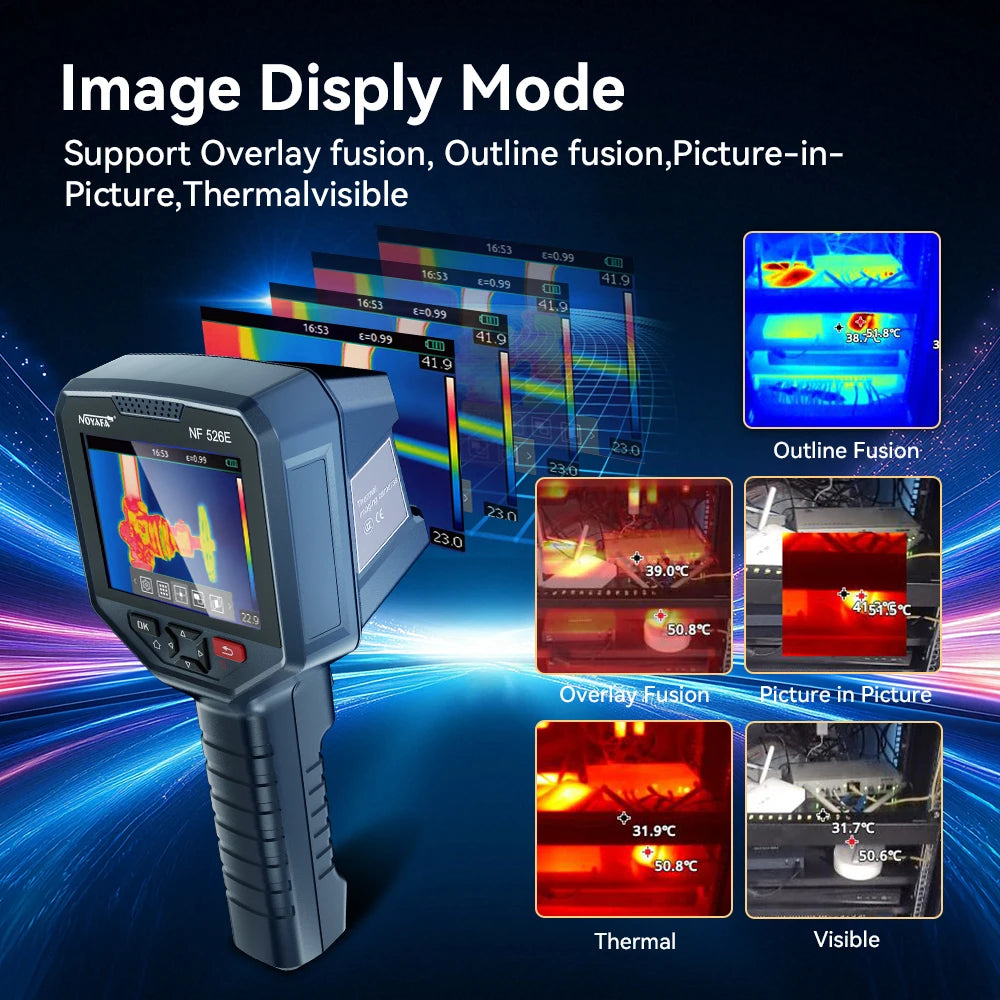

Image mode：Overlay fusion, Outline fusion, Picture-in-Picture. Thermal. visible

Lanuage：Chinese (Simplified), Chinese (Traditional), English, French, German, Spanish, Dutch, Japanese, Korean, Arabic

Port：USB Type-C (support to charge and export data)
Battery：2600mAh lithium battery
Working time：4 hours (full power)
Working temperature：-10℃~+60℃
Storage temperature：-40℃~+85℃
Product size：230mmx100mmx90mm

Storage：Capacity：8G build-in memory
Image format：JPG
Video formatMP4
