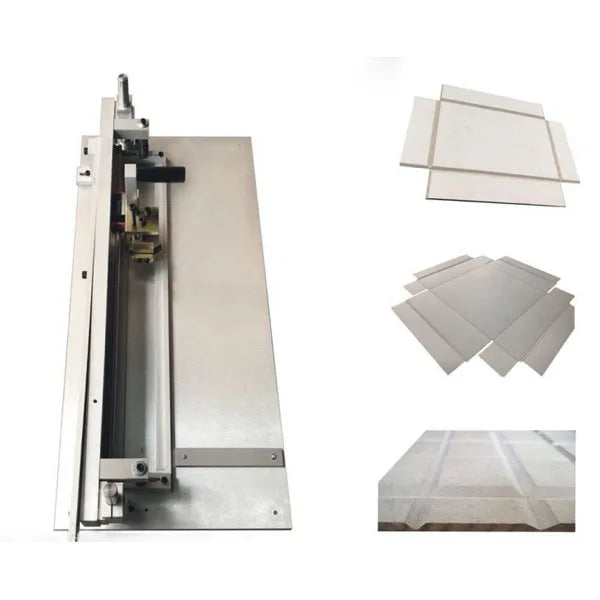

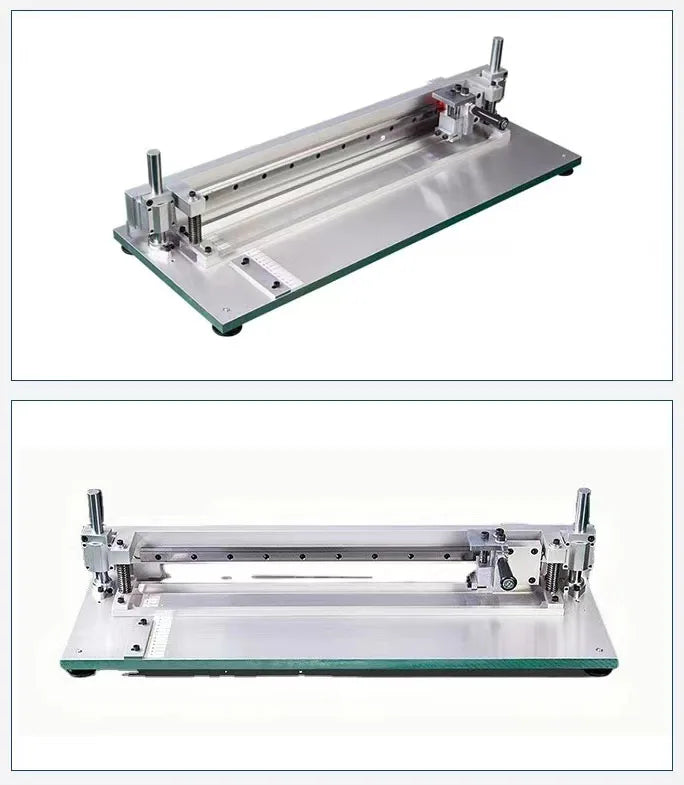

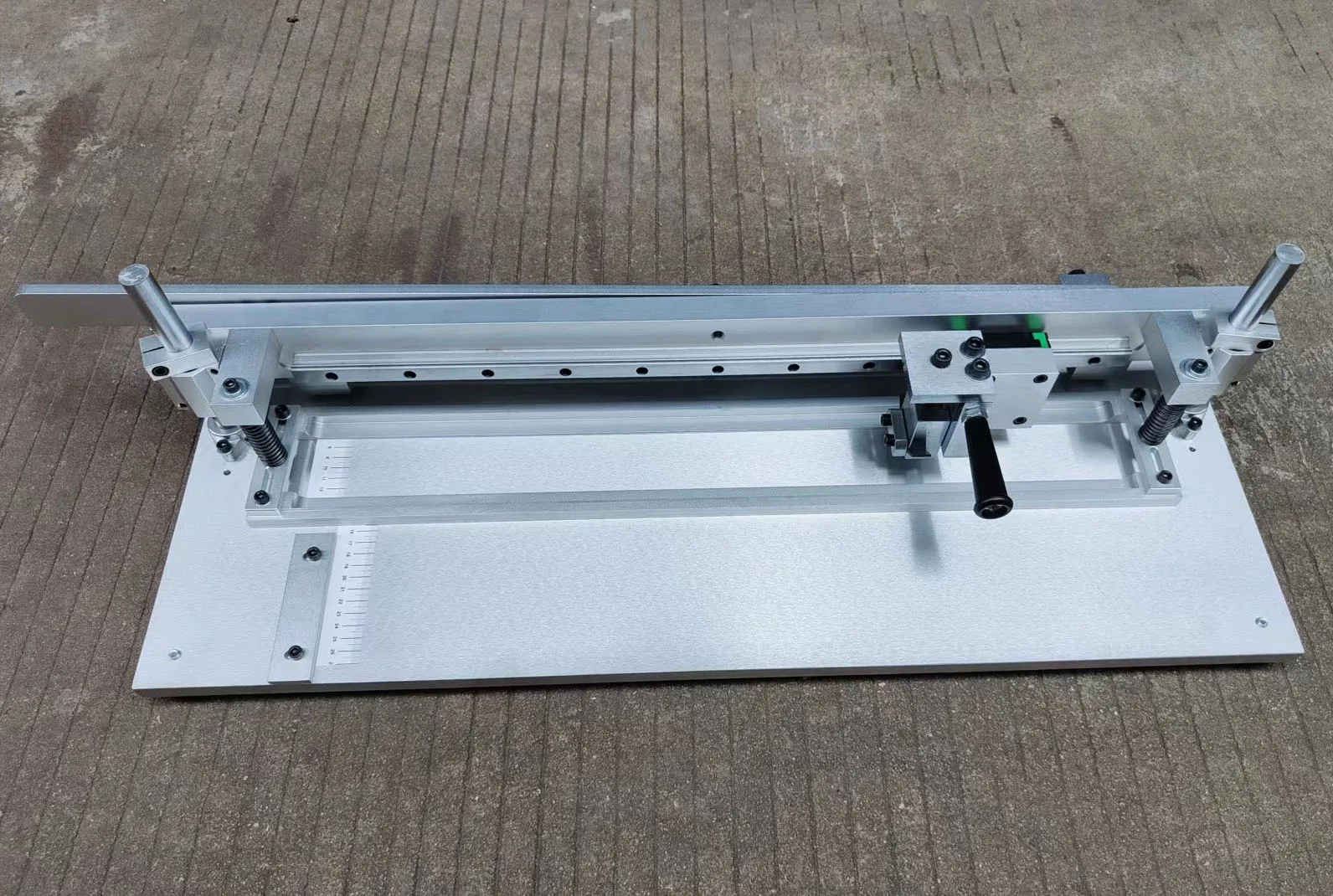

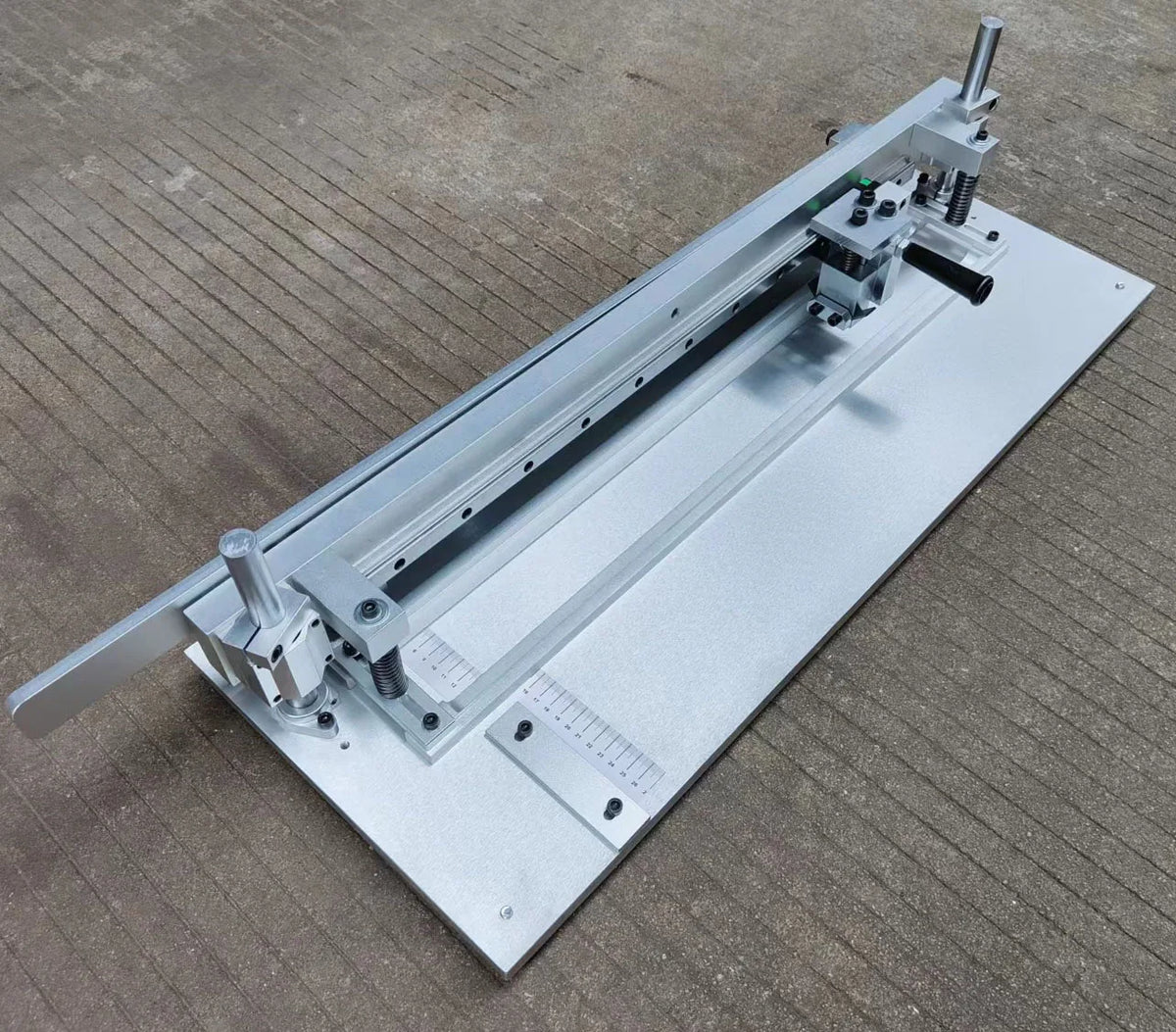

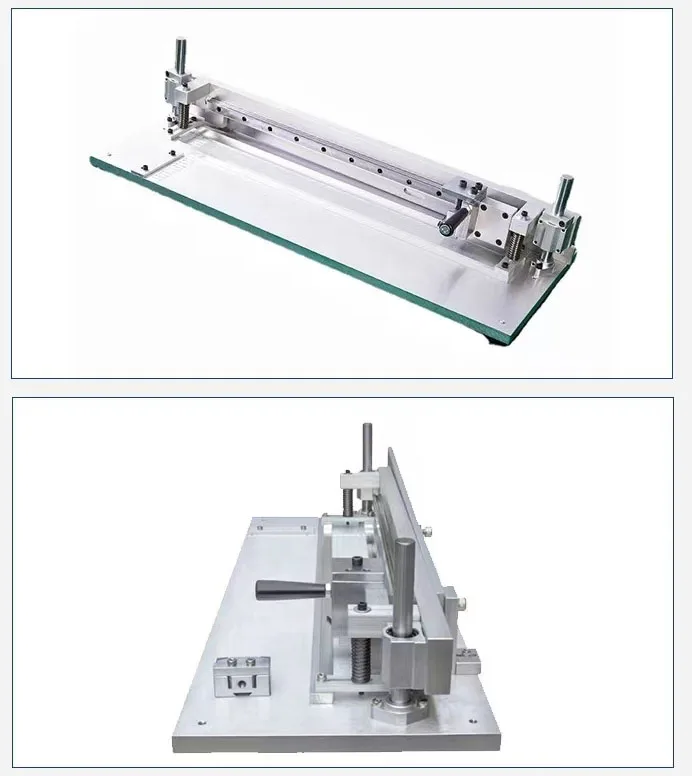

The ZOMAGTC ZM-520 is a semi-automatic manual V-grooving machine engineered for precise cardboard slotting and V-shape groove cutting on paper materials. Delivering professional-grade slotting accuracy with a tolerance reaching up to 0.05 mm, this machine supports a maximum grooving width of 520 mm and handles cardboard thickness ranging from 230gsm to 400gsm. Featuring adjustable grooving angles of 90°, 120°, and কাহার 145°, it is an ideal solution for precision packaging production in diverse industries.

Key Features and Design

• Aluminum Work Table: Designed with an aluminum plate surface and integrated grooving lines to maximize overall slotting precision.
• Precision Guide Rail: High-precision guide rail system ensures knife balance and smooth operation.

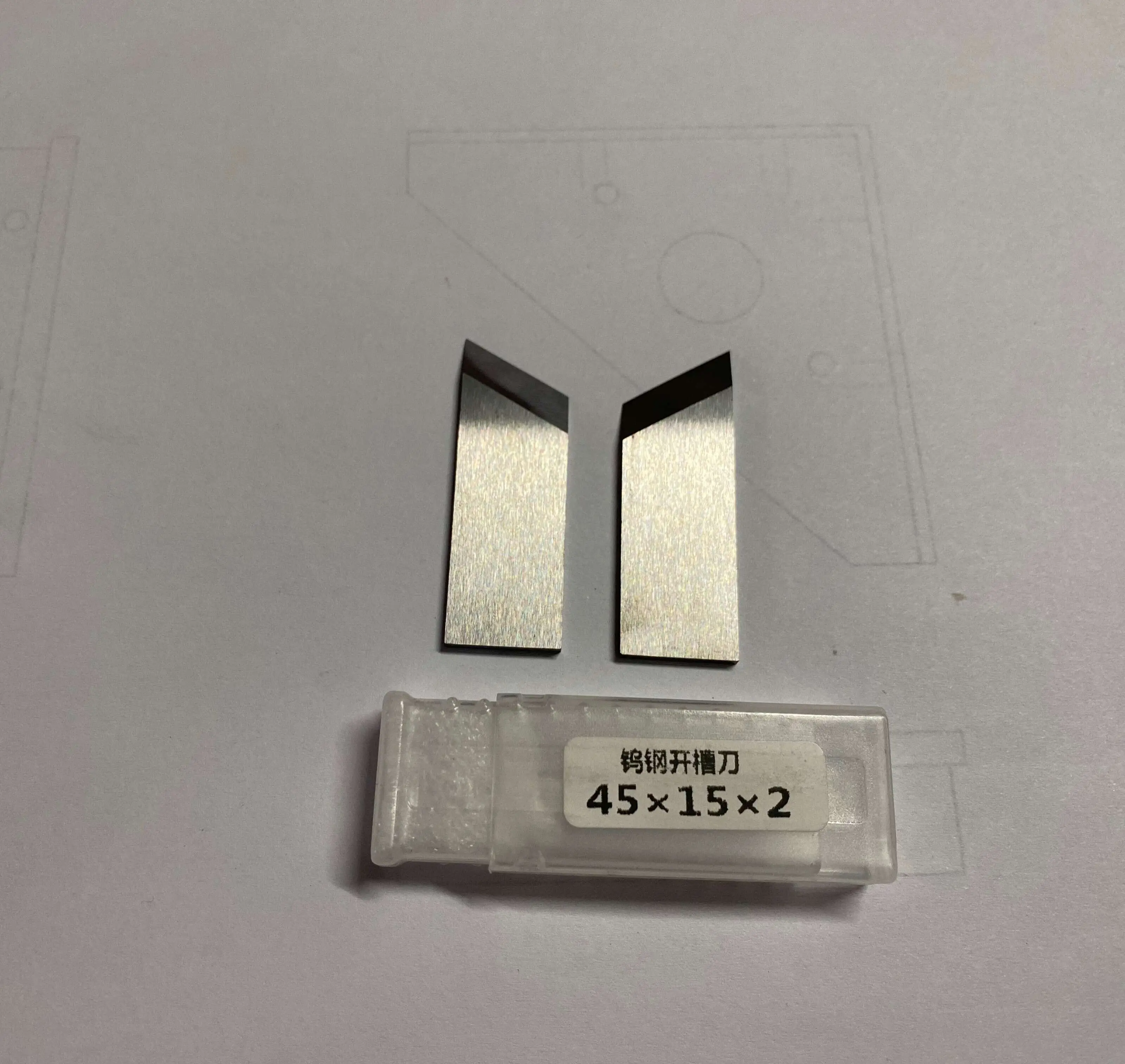

• Tungsten Steel Blade: Sharp blade construction allows for easy push-and-pull cutting action.
• Platen Device: Replaces traditional manual cardboard pressing to streamline groove opening.
• Adjustment Mechanisms: Humanized fixed adjustment device and adjustable balancing block device enable faster, highly accurate setups.

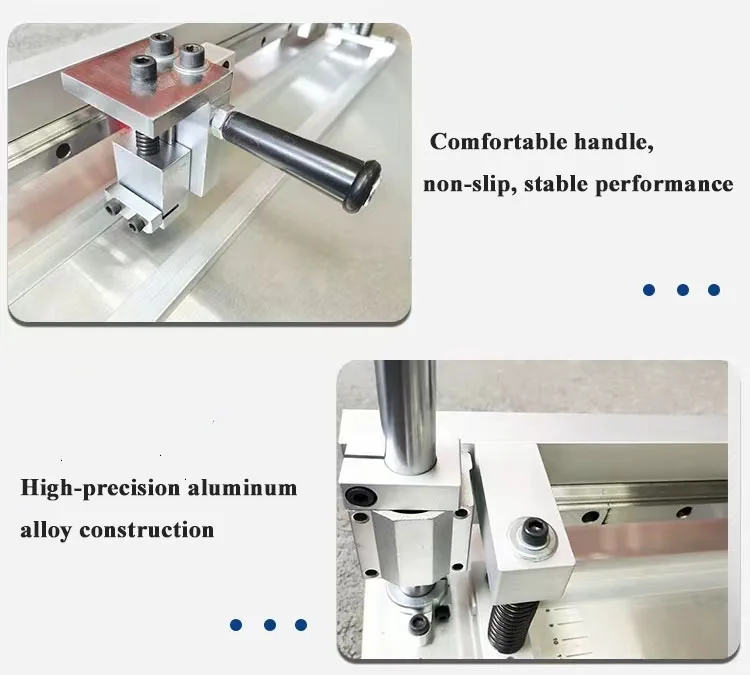

• Ergonomic Controls: Comfortable, non-slip handle ensures stable performance, supported by a built-in scale for effortless pulling and accurate slotting.

Technical Specifications

• Model: ZM-520
• Product Type: Manual Grooving Machine / Cardboard Slotting Machine
• Brand Name: ZOMAGTC
• Place of Origin: Henan, China
• Driven Type: Manual
• Automatic Grade: Semi-Automatic
• Voltage: 220 V
• Grooving Width (Cardboard Width): 520 mm
• Slotted Angles: 90° / 120° / 145°
• Cardboard Thickness: 230gsm – 400gsm
• Number of Grooves at One Time: 1
• Machine Dimensions (L x W x H): 850 x 380 x 230 mm
• Net Weight: 40 kg (Source notes alternative specifications of 50 kg gross weight and 55 kg weight)
• Gross Weight: 50 kg
• Core Components: Bearing, Gearbox, Motor, Gear
• Packaging Material & Type: Paper, Cartons, Wooden Case

Applications & Compatibility

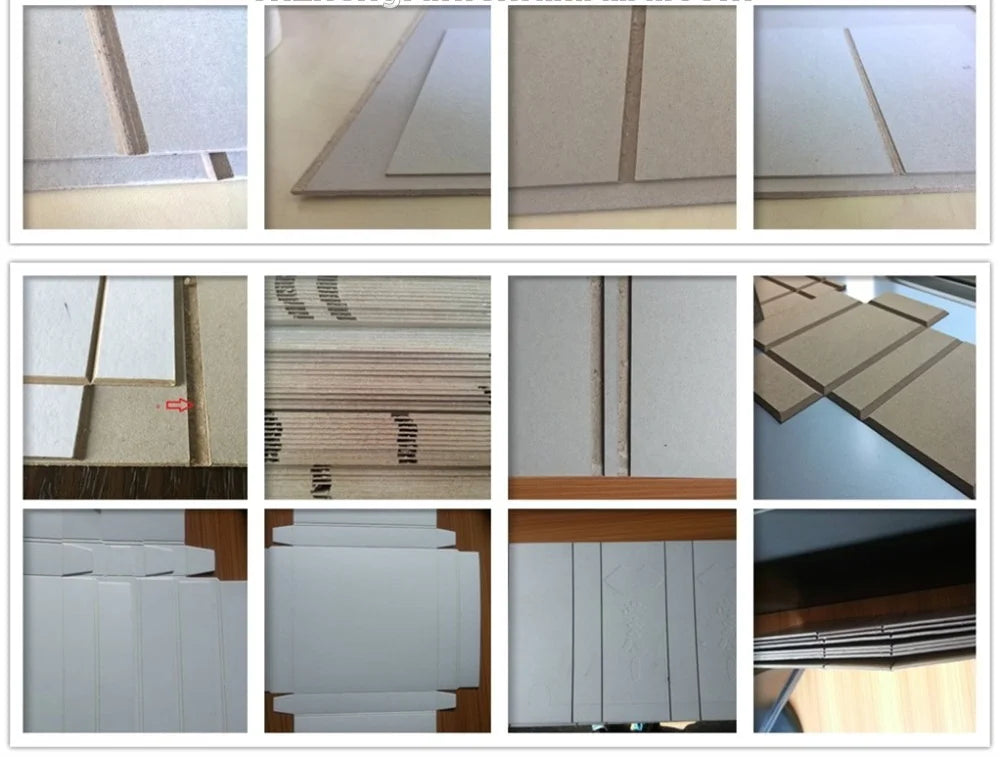

The ZOMAGTC ZM-520 manual grooving machine is suited for processing grey cardboard, hard paper, and MDF cardboard used in the packaging sector. Supported applications span across multiple industries including:

• Food and Beverage packaging
• Commodities and Consumer Goods
• Chemical packaging
• Machinery and Hardware packaging
• Apparel and Textiles packaging

Included Services & Support

• Warranty: 1 Year
• After Warranty Service: Onsite, Phone, and Video Technical Support
• Machinery Test Report: Provided
• Video Outgoing-Inspection: Provided
