Embedded 1D/2D QR barcode scanner with 1.3MP camera window and indicator lights

Leshine Embedded Barcode Scanner 1D 2D QR Code 1.3MP HD Camera Wired USB Barcode Reader for supermarkets for Android Windows

China Mainland
€128,63 €192,94
Skip to product information
Embedded 1D/2D QR barcode scanner with 1.3MP camera window and indicator lights

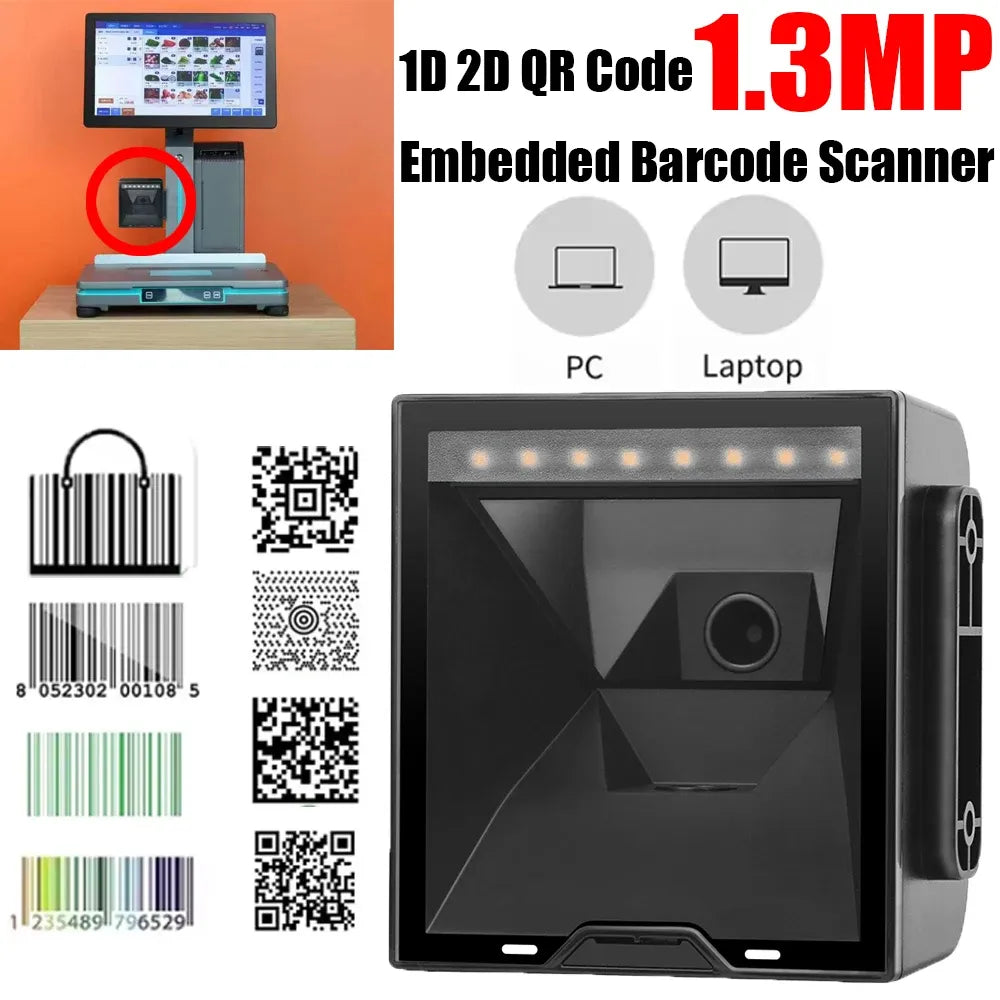

  • Embedded 1D/2D QR barcode scanner with 1.3MP camera window and indicator lights
  • Front view of embedded 1D/2D QR barcode scanner with camera lens and LED light bar

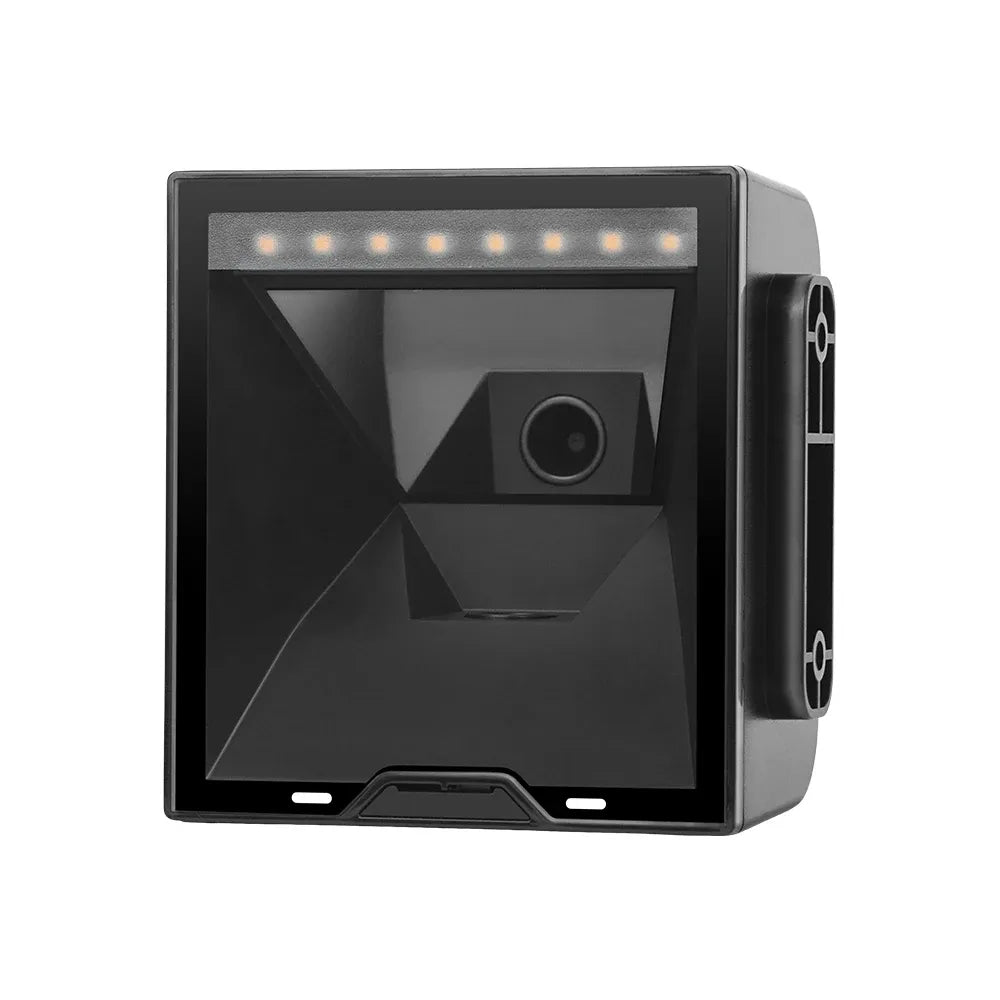

  • Embedded barcode scanner front view with camera lens, LED strip, and side connectors

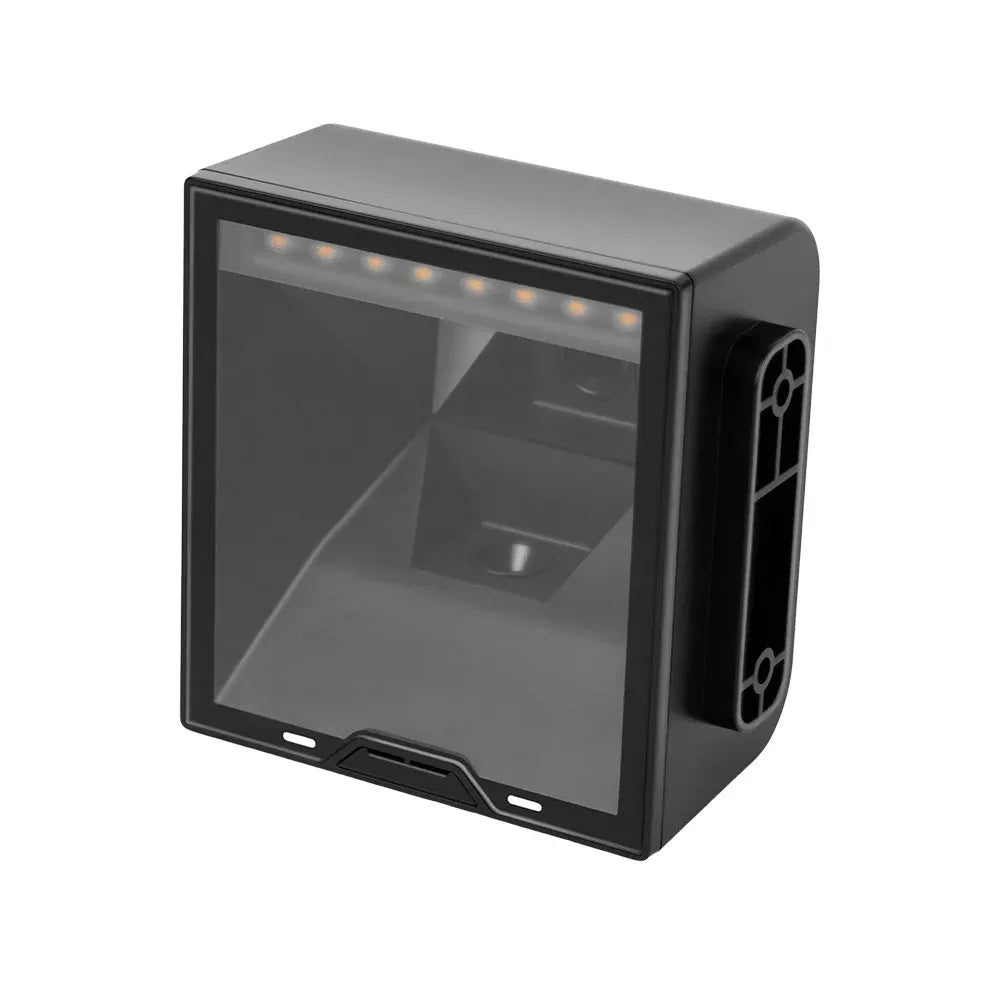

  • 3D angle of embedded barcode scanner showing camera window and side USB ports
  • Embedded barcode scanner front view in dark housing with top LED indicator bar
  • Back view of embedded barcode scanner in dark plastic housing with rear port area

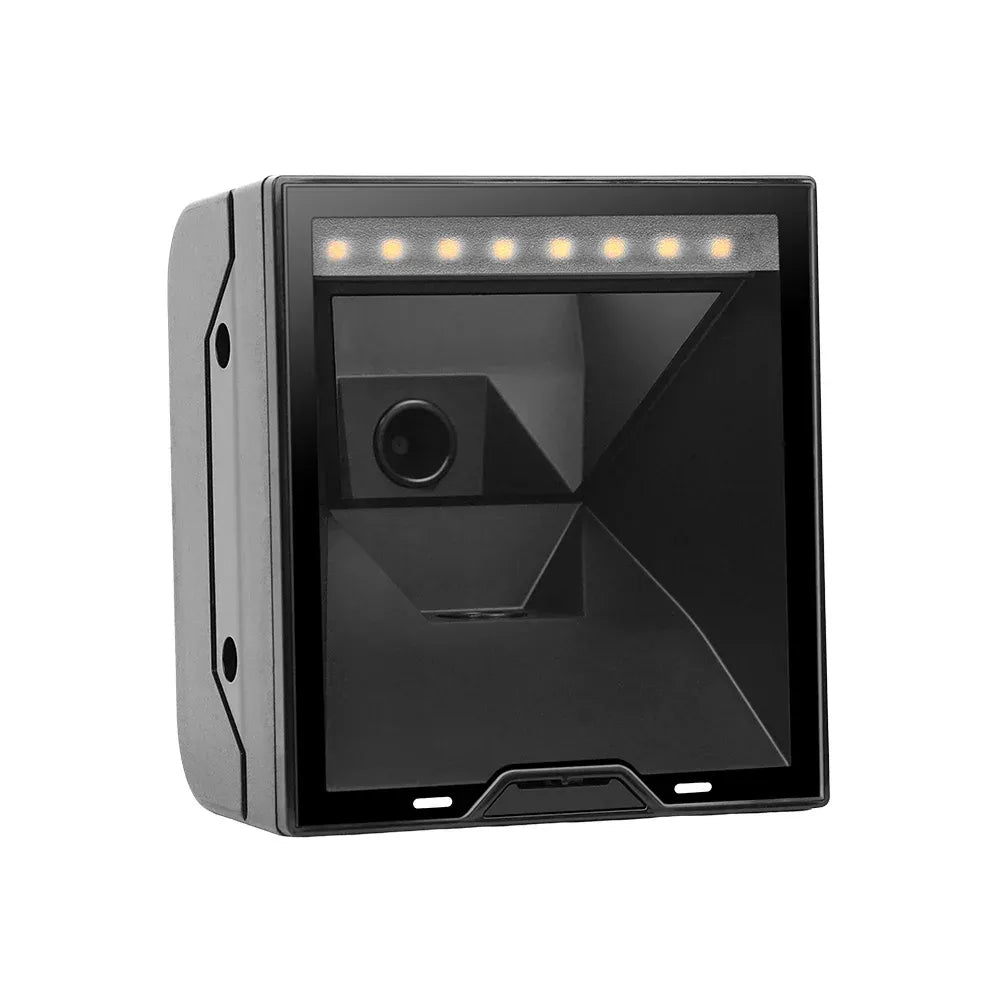

  • Embedded 1D/2D QR barcode scanner front view with camera lens and LED strip
  • Front-right angle of embedded barcode scanner with camera window and side connector block

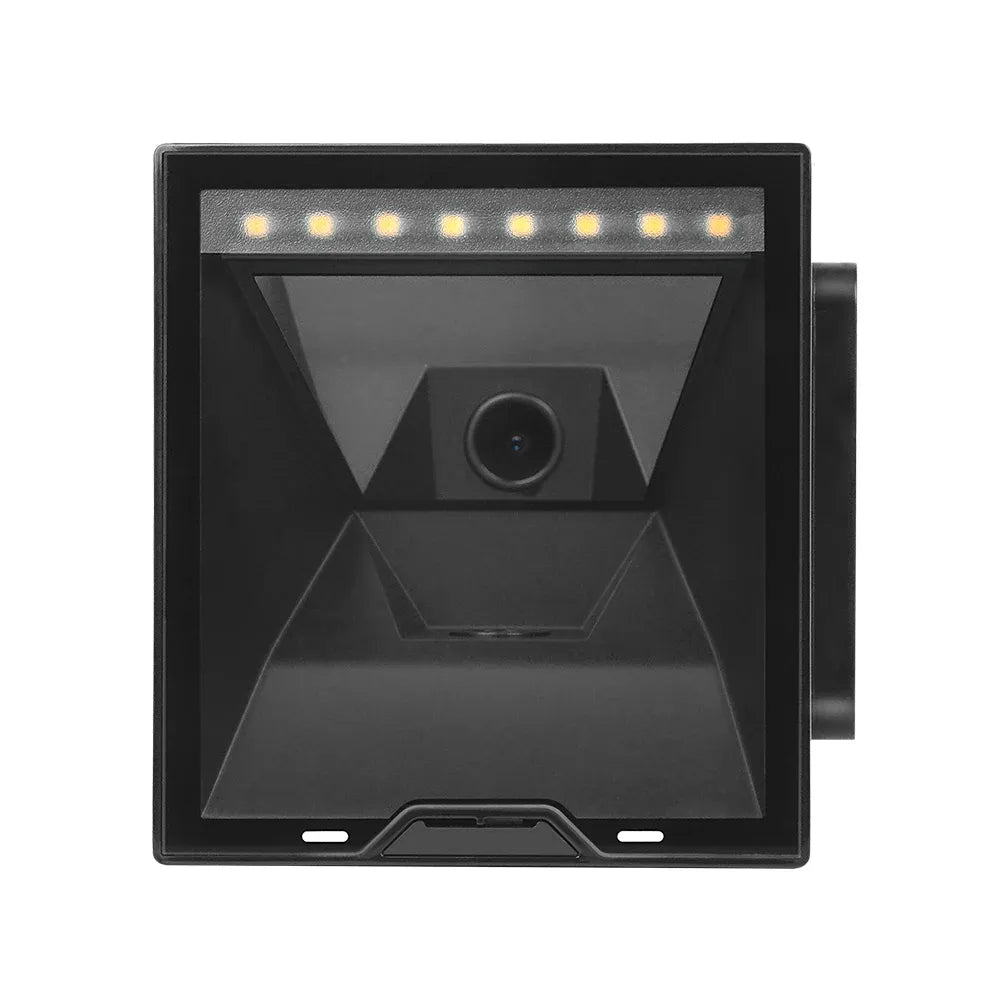

  • Close front view of embedded barcode scanner with camera lens and LED light bar
  • Angled view of embedded barcode scanner showing camera window and side port panel

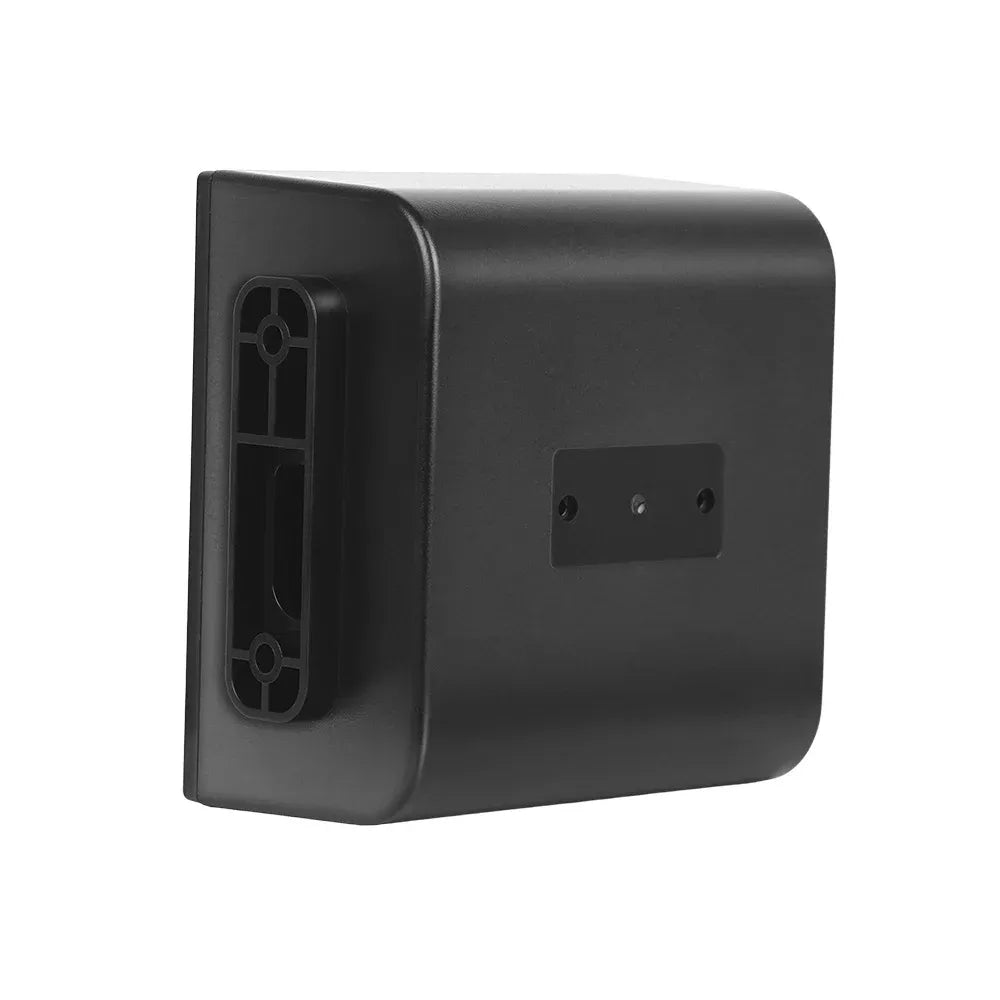

  • Black embedded barcode scanner, side scan window and mounting bracket
  • Black embedded barcode scanner, front side port panel view

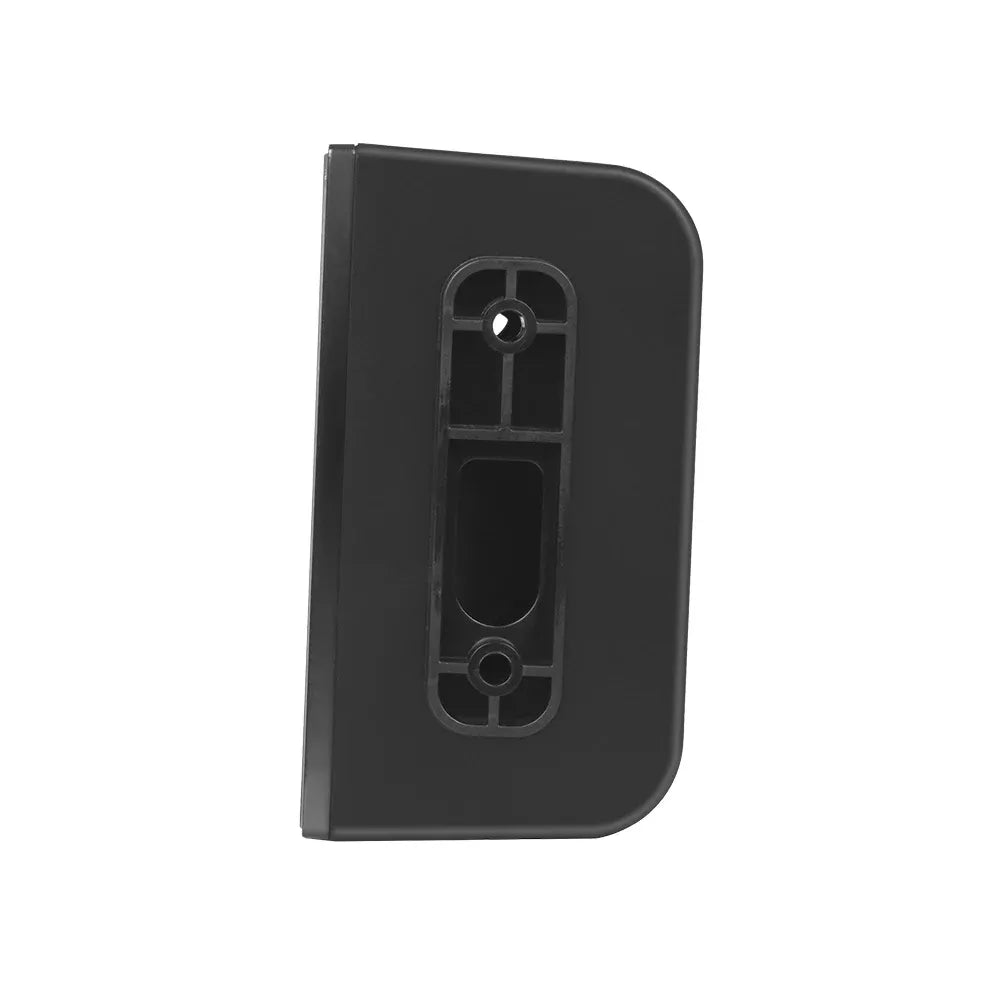

  • Black embedded barcode scanner, side profile with recessed scan module
  • Embedded barcode scanner on countertop scale, hand scanning a product label
  • Embedded 1D/2D QR barcode scanner with 1.3MP camera window and indicator lights
  • Front view of embedded 1D/2D QR barcode scanner with camera lens and LED light bar
  • Embedded barcode scanner front view with camera lens, LED strip, and side connectors
  • 3D angle of embedded barcode scanner showing camera window and side USB ports
  • Embedded barcode scanner front view in dark housing with top LED indicator bar
  • Back view of embedded barcode scanner in dark plastic housing with rear port area
  • Embedded 1D/2D QR barcode scanner front view with camera lens and LED strip
  • Front-right angle of embedded barcode scanner with camera window and side connector block
  • Close front view of embedded barcode scanner with camera lens and LED light bar
  • Angled view of embedded barcode scanner showing camera window and side port panel
  • Black embedded barcode scanner, side scan window and mounting bracket
  • Black embedded barcode scanner, front side port panel view
  • Black embedded barcode scanner, side profile with recessed scan module
  • Embedded barcode scanner on countertop scale, hand scanning a product label
Leshine Embedded Barcode Scanner 1D 2D QR Code 1.3MP HD Camera Wired USB Barcode Reader for supermarkets for Android Windows

Leshine Embedded Barcode Scanner 1D 2D QR Code 1.3MP HD Camera Wired USB Barcode Reader for supermarkets for Android Windows

€128,63 €192,94
Ships From

SPECIFICATIONS

Ambient light: 0~100000LUX

Brand Name: NoEnName_Null

Depth of field: 10mm~300mm(EAN1313mil,PCS=90%)

High-concerned chemical: none

Interface Type: USB

Motion Tolerance: 4meters/second

Operating Temperature: -20°C~60°C

Optical Resolution: 1200*1200

Origin: Mainland China

Print Contrast: 20%

Product Type: Bar Code Scanner

Relative Humidity: 5%~95%RH(Non-condensing)

Scan Breadth: A8

Scan Element Type: CMOS

Scan Mode: Automatic Induction Scanning,Turn angle ±360, Elevation angle ±65°,Declination angle ±65°

Scan Speed: 200 scans/second

Scan accuracy: ≥4mil

Scanning Light Source: LED

Sensor Pixels: 1024 x 1280 pixels (H)(V)

Signal Connection Type: none

Standby current: 190mA

Storage Temperature: -30°C~70°C

Type: Barcode Scanner

Working Voltage: DC 5V±5%

Working current: 240mA

Leshine Embedded Barcode Scanner 1D 2D QR Code 1.3MP HD Camera Wired USB Barcode Reader for supermarkets for Android Windows


Features:


  • 1.3MP high-precision camera, megapixels, extremely fast scanning.

  • Widescreen design, wide-angle scanning window.

  • Embedded design,automatic sensing scanning.

  • Suitable for supermarkets, convenience stores,retail,pharmacy settlement,restaurant of all sizes.

  • AI decoding chip

  • One barcode scanner, scanning 1D/2D barcode on paper or screen, including profiled, colorful, one-dimension code, two-dimension code, QR code, data matrix, maxicode, aztec code

  • Compatible with Android,Windows XP/7/8/10, Linux, Mac, PC, Laptop.

  • Plug and play, no design required, built in the 0.6m USB cable, USB(Drive-Free)/USB-COM/RS232 interfaces.

  • High-strength material, shock-proof and fall-proof


Decoding Abili:


1D barcode: Codabar, Code39, Code32, NEC 2 of 5, Code 93,

Pharmaceutical (PARAF), Interleaved 2 of 5,

Straight 2 of 5Industial, Straight 2 of 5 IATA,

Matrix 2 of 5, Code 11,Code128, GS1-128, UPC-A,

UPC-E,EAN/JAN-8,EAN/AN-13,MSI,

GS1 DataBar Omnidirectional, GS1 DataBarLimited,

GS1 DataBar Expanded

China Post(Hong Kong 2 of 5), Korea Post


2D barcode: PDF417, Micro PDF417,GS1 Composite Codes,

QR Code, Data Matrix, MaxiCode, Aztec, HANXIN.
