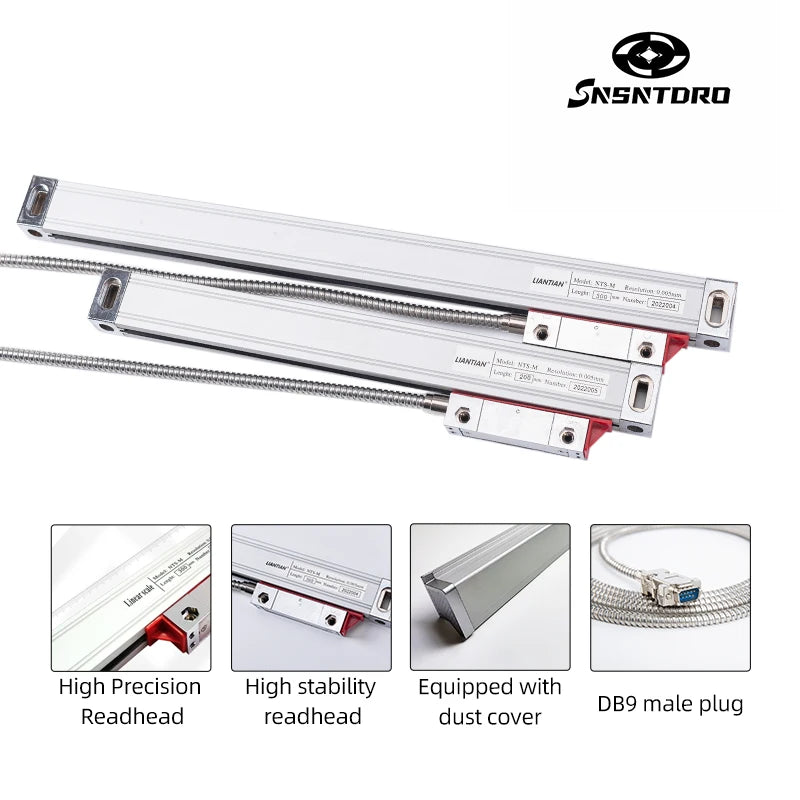

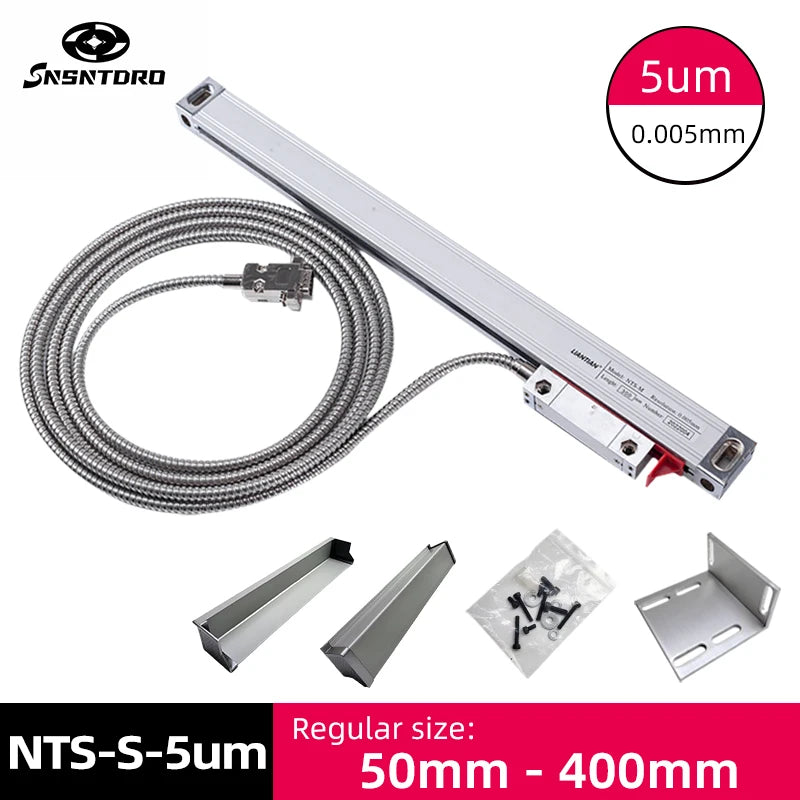

Linear DRO linear scale kit with glass scale bar, stainless cable, and mounting brackets

High Precision 0.005mm Milling Lathe Grinder DRO Linear Glass Scale 50 100 150 200 250 300 350 400mm Travel TTL Resolution 5um

400mm travel / China Mainland
€127,64 €176,73
Skip to product information
Linear DRO linear scale kit with glass scale bar, stainless cable, and mounting brackets
  • Linear DRO linear scale kit with glass scale bar, stainless cable, and mounting brackets
  • Dual linear scale rails with readheads and connector panels for DRO measurement system

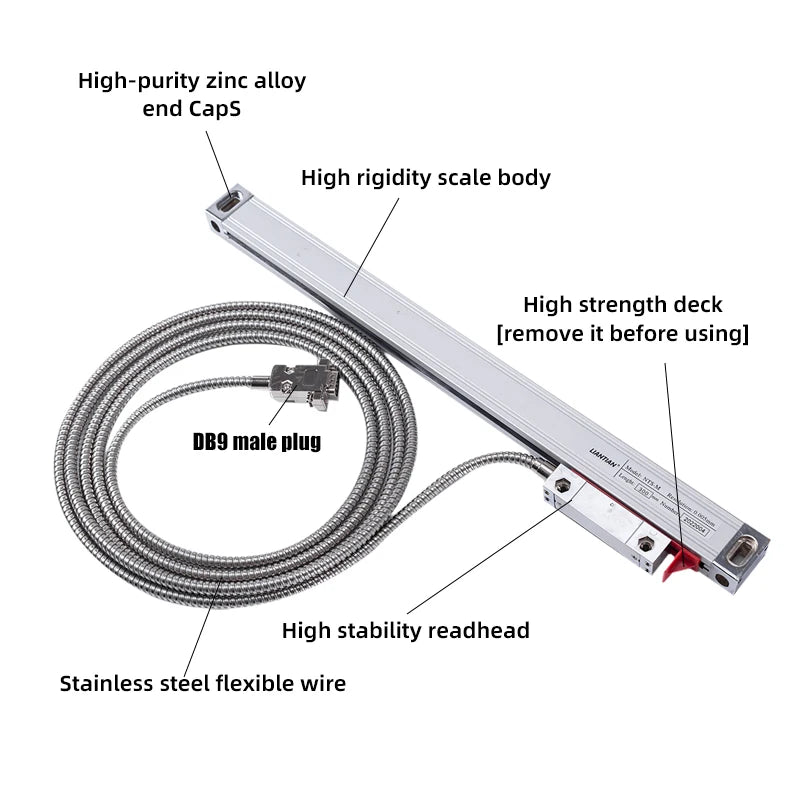

  • Linear scale readhead with stainless flexible wire, DB9 male plug, and end caps

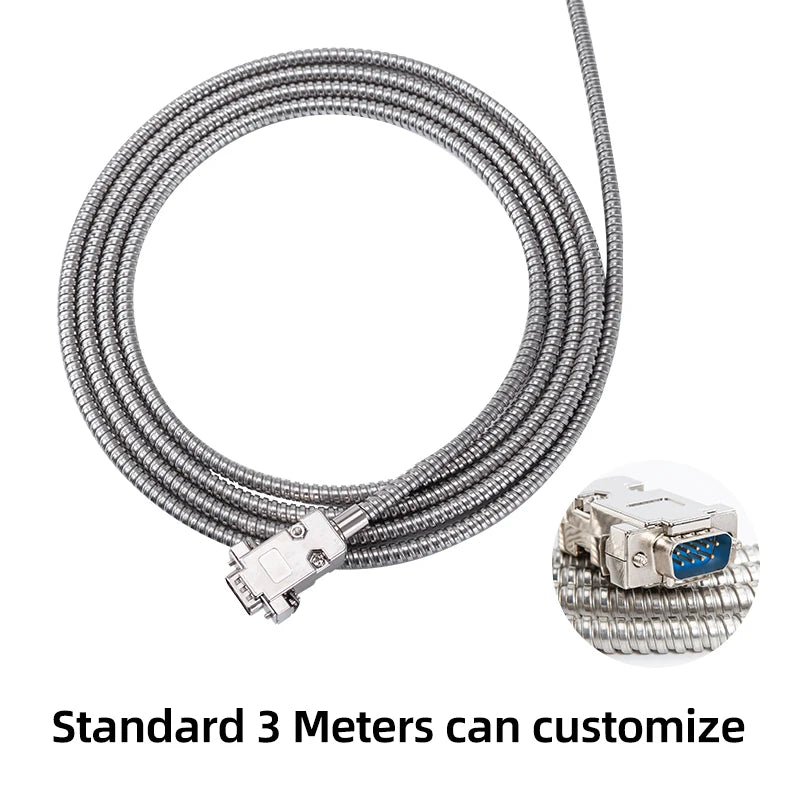

  • Stainless flexible cable with DB9 male plug for linear DRO glass scale

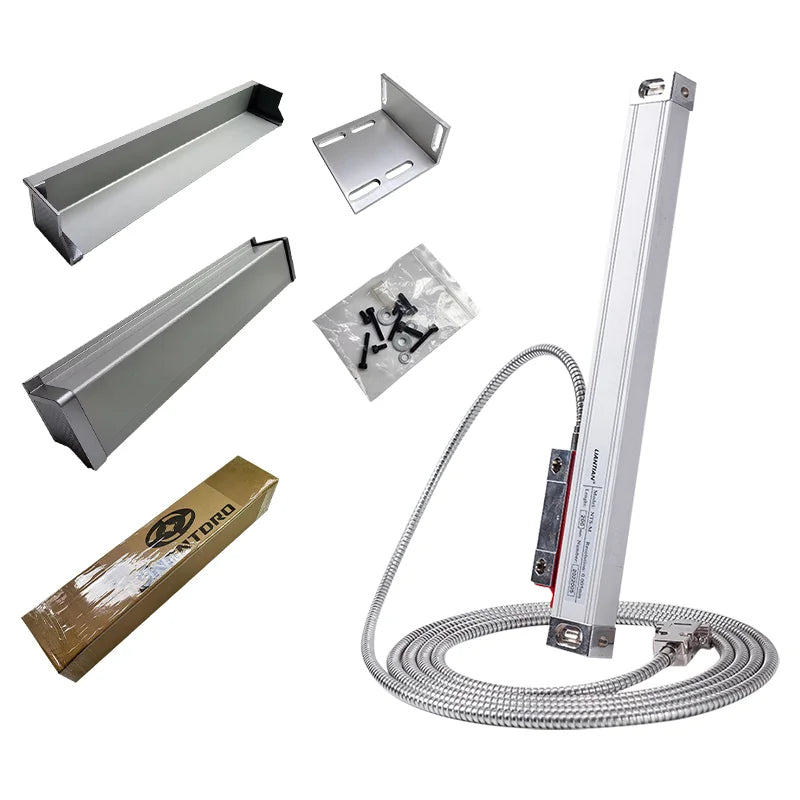

  • Linear scale rail kit with mounting brackets, accessories, and stainless cable with DB9 connector

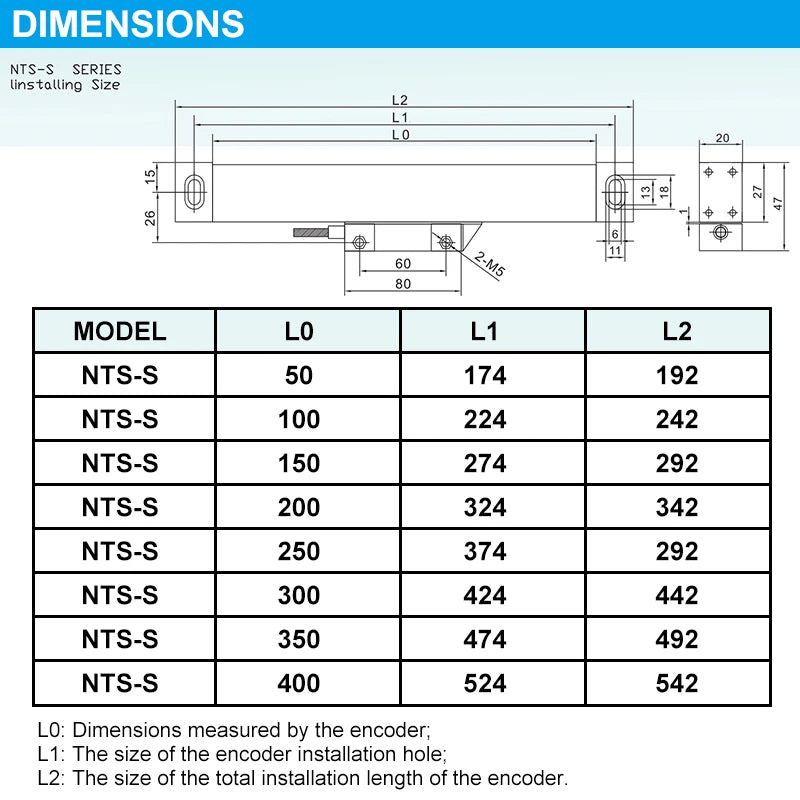

  • Linear scale dimensions chart showing 50 to 400mm DRO model length measurements
  • Precision linear glass scale readhead with connector blocks and attached cable

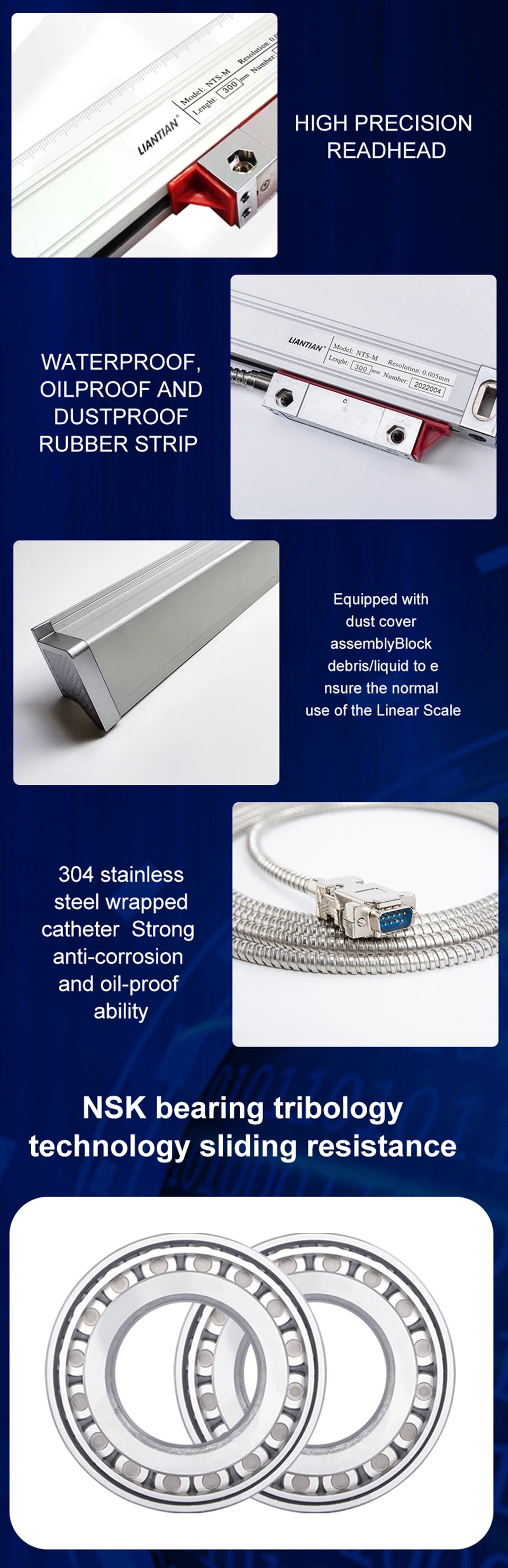

  • Waterproof linear scale readhead with rubber strip cover and stainless steel anti-corrosion wrap

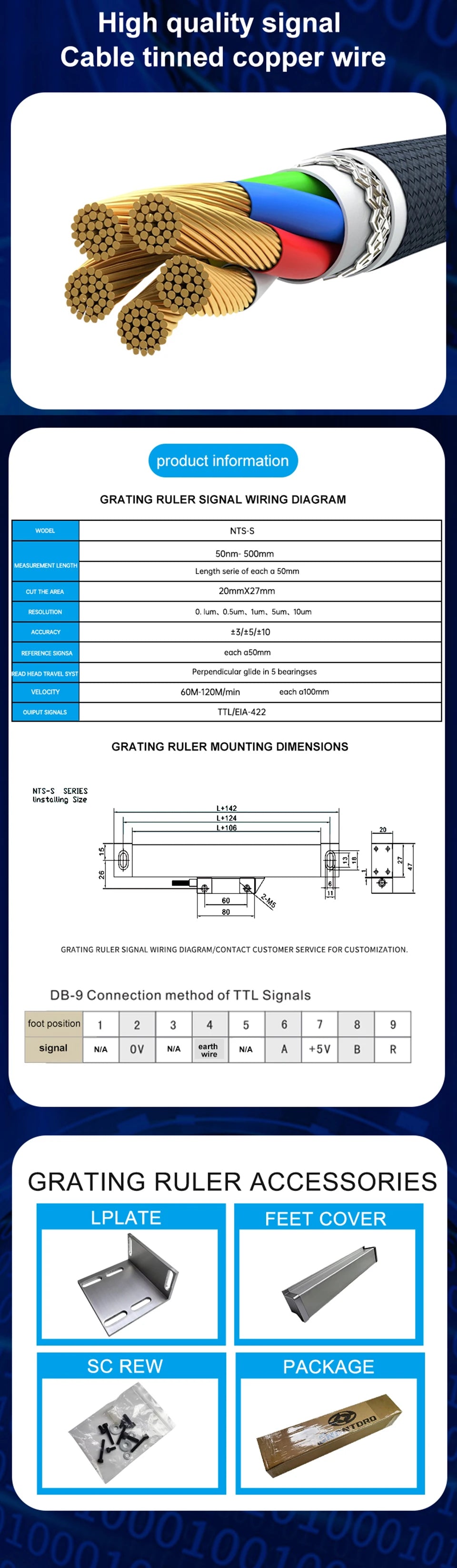

  • Shielded multi-core signal cable for linear DRO scale, shown with cable cross-section details
  • Linear DRO linear scale kit with glass scale bar, stainless cable, and mounting brackets
  • Dual linear scale rails with readheads and connector panels for DRO measurement system
  • Linear scale readhead with stainless flexible wire, DB9 male plug, and end caps
  • Stainless flexible cable with DB9 male plug for linear DRO glass scale
  • Linear scale rail kit with mounting brackets, accessories, and stainless cable with DB9 connector
  • Linear scale dimensions chart showing 50 to 400mm DRO model length measurements
  • Precision linear glass scale readhead with connector blocks and attached cable
  • Waterproof linear scale readhead with rubber strip cover and stainless steel anti-corrosion wrap
  • Shielded multi-core signal cable for linear DRO scale, shown with cable cross-section details
High Precision 0.005mm Milling Lathe Grinder DRO Linear Glass Scale 50 100 150 200 250 300 350 400mm Travel TTL Resolution 5um

High Precision 0.005mm Milling Lathe Grinder DRO Linear Glass Scale 50 100 150 200 250 300 350 400mm Travel TTL Resolution 5um

€127,64 €176,73
Color
Ships From

Inaccurate measurements on milling, lathe, and grinding machines often lead to costly material waste and inconsistent machining results. This linear glass scale provides the exact digital readout feedback needed to maintain tight tolerances during workshop operations. Designed to integrate seamlessly with your equipment, this tool delivers dependable performance for detailed projects.

Technical Specifications & Features

  • Application: Mill, Lathe, Grinder, CNC Etc.
  • Travel Length Options: 50, 100, 150, 200, 250, 300, 350, 400mm
  • Resolution: 0.005mm / 5um
  • Cross Section Size: 20mm x 27mm
  • Output Signal: TTL
  • Input Voltage: 5VDC ±5%, 100mA
  • Max Measuring Speed: 60m/min
  • Cable Length: 3 meters
  • Protection Grade: IP54
  • Operating Temperature: 0-50°C
  • Includes scale cover, mounting bracket, and screw bag

Enhance your workshop machinery's measuring capability today by selecting the appropriate travel length for your setup.
