FAREAD 1D/2D Desktop Barcode Scanner USB/RS232 Wired QR Code Reader CMOS Sensor Supermarkets/Cash Registers 1280x800 Stock

FAREAD 1D/2D Desktop Barcode Scanner USB/RS232 Wired QR Code Reader CMOS Sensor Supermarkets/Cash Registers 1280x800 Stock

€92,82 €139,24
Material

SPECIFICATIONS

Certification: CE,FCC,RoHs

Decoding lighting: 12 red high-brightness LED light sets

Dimension: 155mm*95mm*145mm

Humidity: 5% ~ 95%RH

Indicator System: LED Decode Indicator,Beeper

Model Number: FRD-SN-033

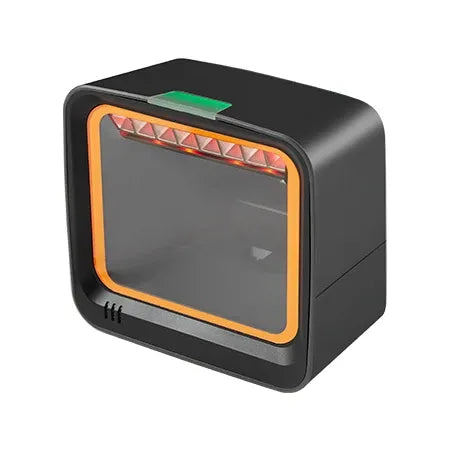

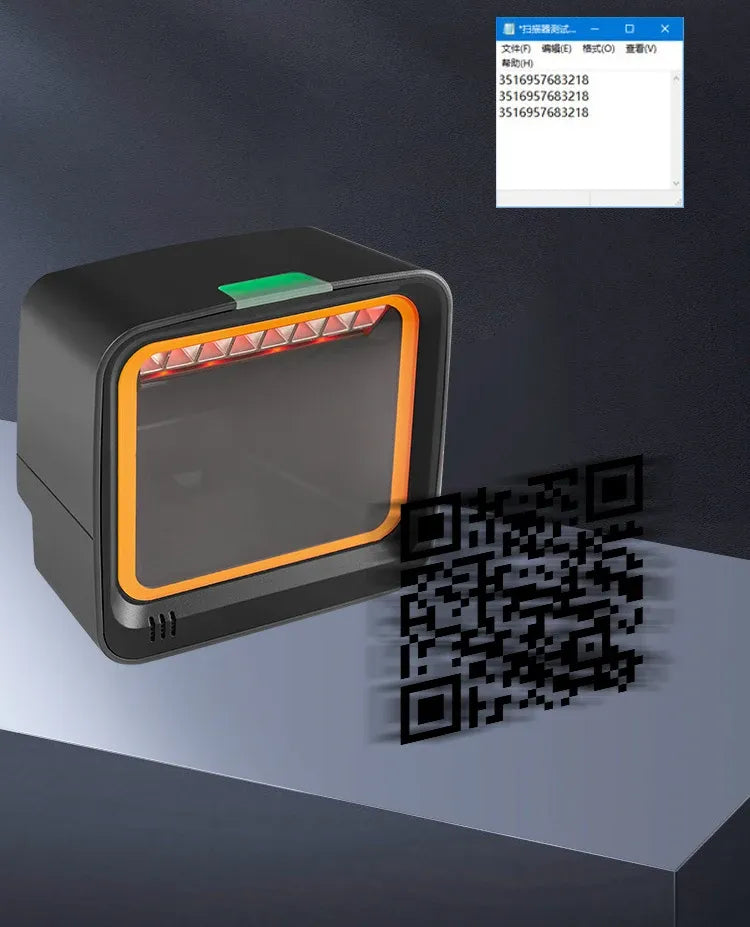

Product Name: FRD-SN-033 Desktop Barcode Scanner

Resolution: 1280x800 pixes

Type: Global Exposure

Weight: About 520g

place of origin: China

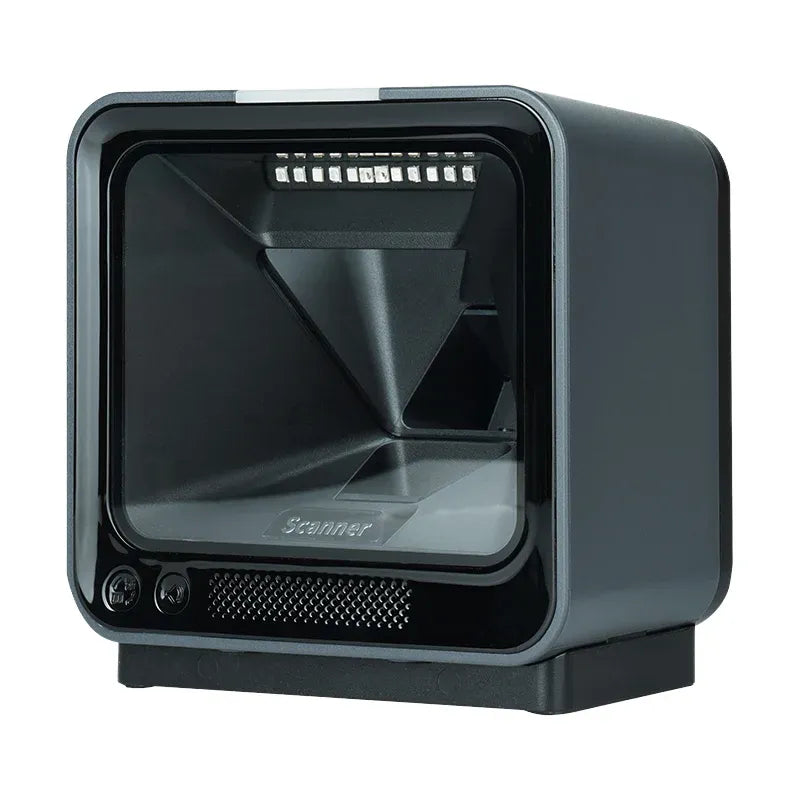

FRD-SN- 033product description

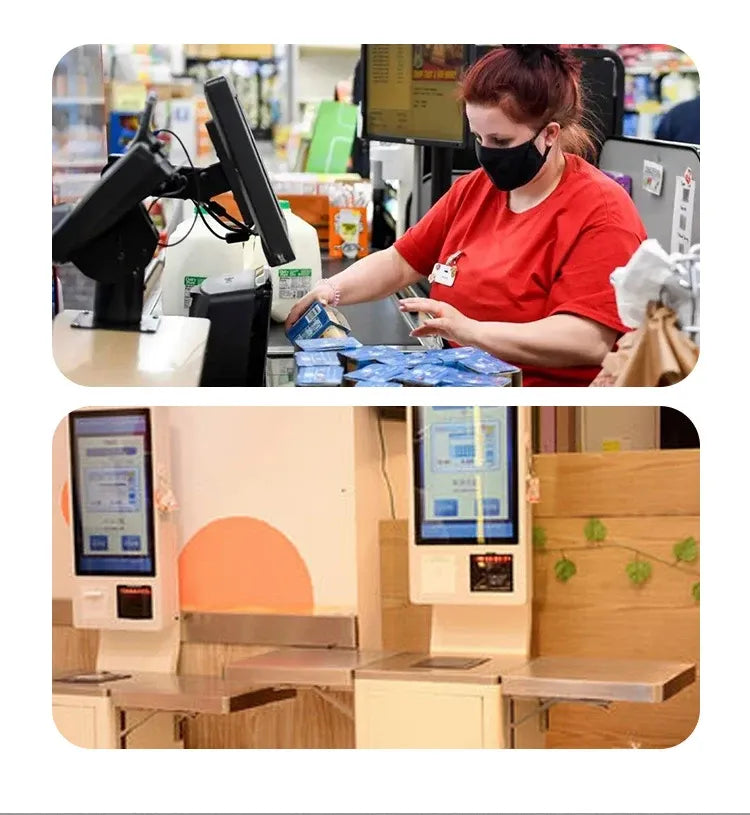

The FRD-SN-033 scanner is a desktop barcode scanning model launched for general industry applications. It has a compact and convenient appearance and does not take up too much space on the counter. It is suitable for different levels from convenience stores to large supermarkets. In terms of performance, the FRD-SN-033 desktop barcode scanner can scan most barcodes on the market, covering application industries such as retail, supermarkets, medical, municipal administration.It has long-term reliability requirements and can be used all-day. And it won’t reduce the performance of your scanning device at all.

SPECIFICATIONS
Model
FRD-SN-033
Barcode Type
1D: Codebar,Code128,Code39,Code39,Code93,Code11,EAN13,
EAN8,GS1-Databar,GS1-128,EAN-128, Interleaved 2 of 5,Matrix 2 of
5,Industry 2 of 5,UPC-A, UPC-E, ISBN, ISSN
2D: PDF417, Data Matrix, QR Code, Micro PDF417,Micro QR Code,Aztec Code
Barcode Min
Precision
1D: 4 mils/0.102mm;
2D: 8.3 mils/0.210mm;
Type
Global Exposure
Reading Distance
1D: 0mm-200mm(EAN-13-barcode density: 0.33mm/13mil)
2D: 0mm-130mm(QR code-barcode density:0.508mm/20mil)
Resolution
1280 x 800 pixes
Field of View
H: 65°V: 45°
Detection Angle
slope ±60°,Deflection angle: ±60°, Rotation angle: 360°
contrast value
15%
Communication Method between
Scanner and
Terminal Device
USB (HI-D,COM) or RS232(Optional)

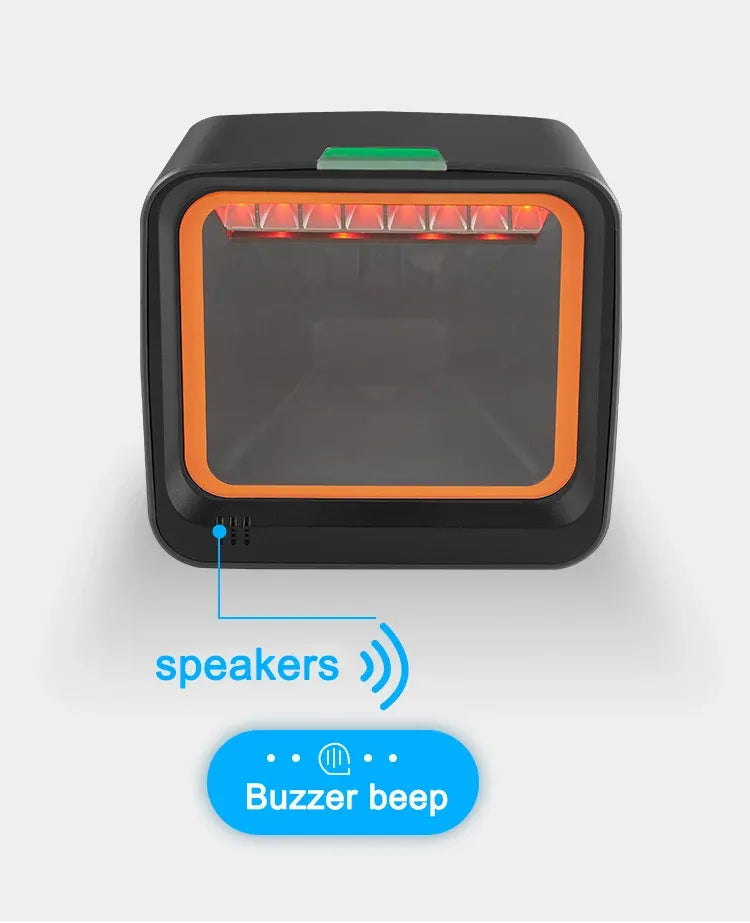

Indicator System
LED Decode Indicator,Beeper
Ambient Lighting
0 ~ 100000 lux(fluorescent lamp)
0-8600 lux(fluorescence)
Weight
About 520g
Temperature
Working Temperature: 0℃-50 ℃
Humidity
5%-95%RH No condensation
Fall resistance
concrete ground 1.5mx5 times
Consumption
Current
Reading 180mA
Stand by:116mA
Maximum
power
consumption
Stand By:0.58W 5 VDC
Stand by:2.7W 5 VDC
Decoding
lighting
12 red high-brightness LED light sets
Dimension
155mm*95mm*145mm
Certification
CE,FCC,RoHs
Inquiry
Certifications
Worldwide Comments

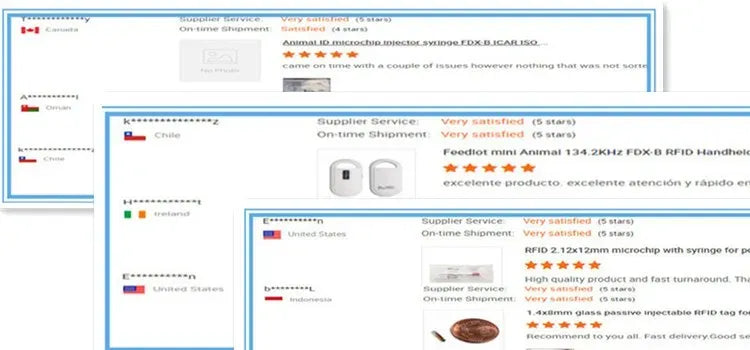

Real comments from our customer as below link:

Packing & Delivery

Our Logistics Partners:

1.Fast: FEDEX,DHL,UPS,TNT express.(It takes 3-7 days, depending on your country)
2.Economic:EMS,Epacket, China post etc.(it takes 10-35days, depending on your country)
We can get long-term contracted prices to ensure the most economic prices for you.

Our Company

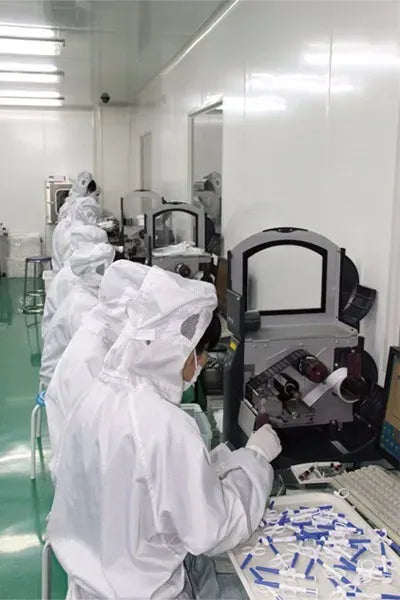

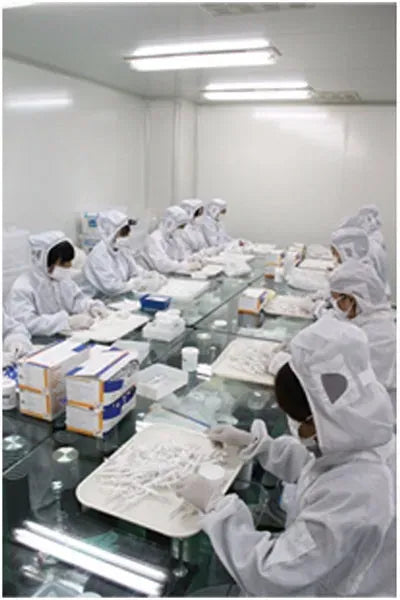

Workshop

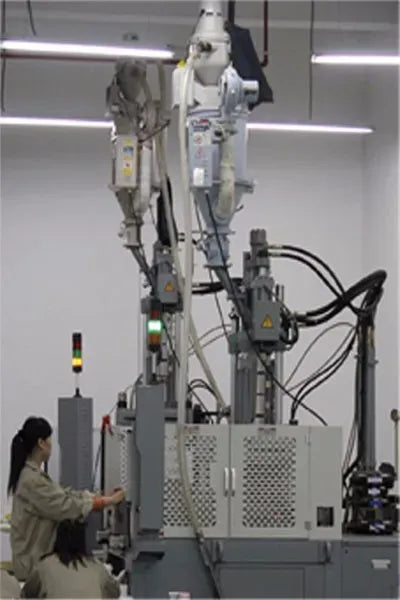

Injection Molding

Coil Wiring

Chip Programming

Injector Assembly

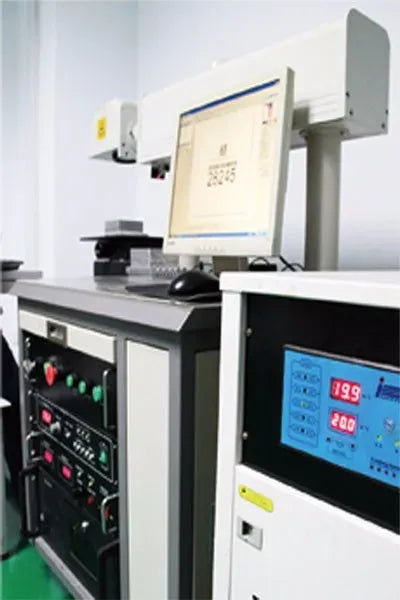

Laser Printing

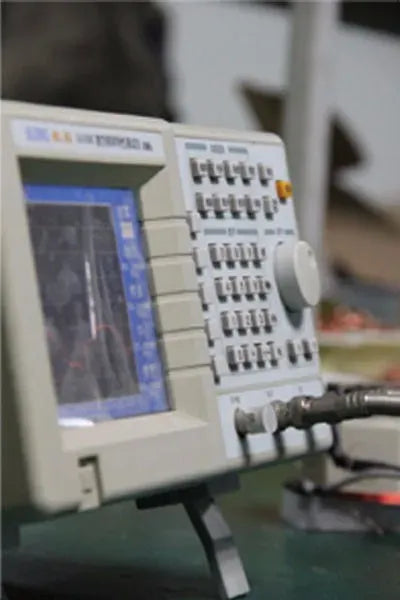

Q-value and Frequency Testing
