SPECIFICATIONS

Barcode type: QR, one/two-dimensional code

Brand Name: LUCKING DOOR

Card reader type: EM card or Mi-fare card

Certification: CE

Decoding mode: Image decoding

High-concerned chemical: none

Indicator light: Red work light, green feedback light,emerald green network light

Model Number: R35

Operating Voltage: 8-12V

Origin: Mainland China

Reading direction (bar code): Angle 45" with the lens as the center point

Reading distance(QR code): 0-20cm

Reading distance(card): 3~6CM

Working humidity: 10%-90%

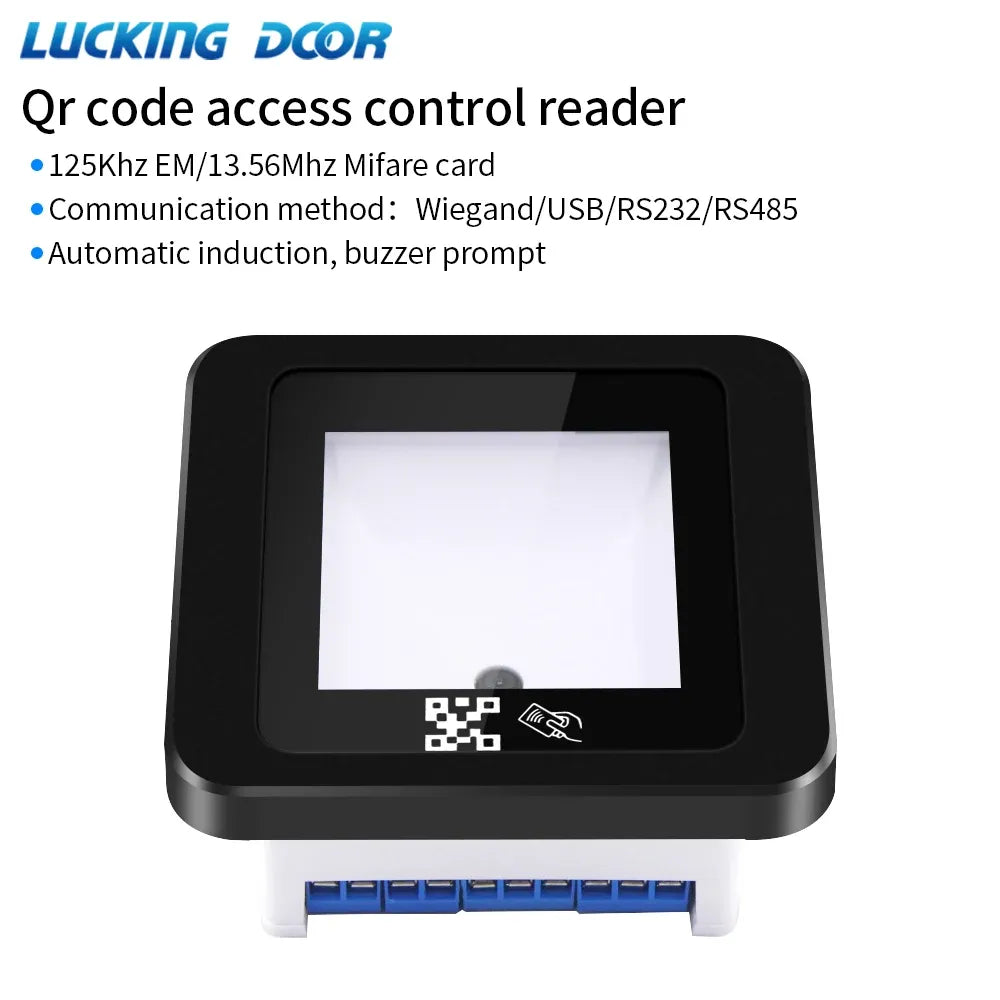

communication method: Wiegand/USB/RS232/TCP-IP/RS485

operating system: WindowsXP/7/8/10), Linux

Embedded Barcode Scanner RS232 RS485 USB Wired Scanning Module RFID Card Reader High Speed QRcode USB Connect for 1D 2D QR Code

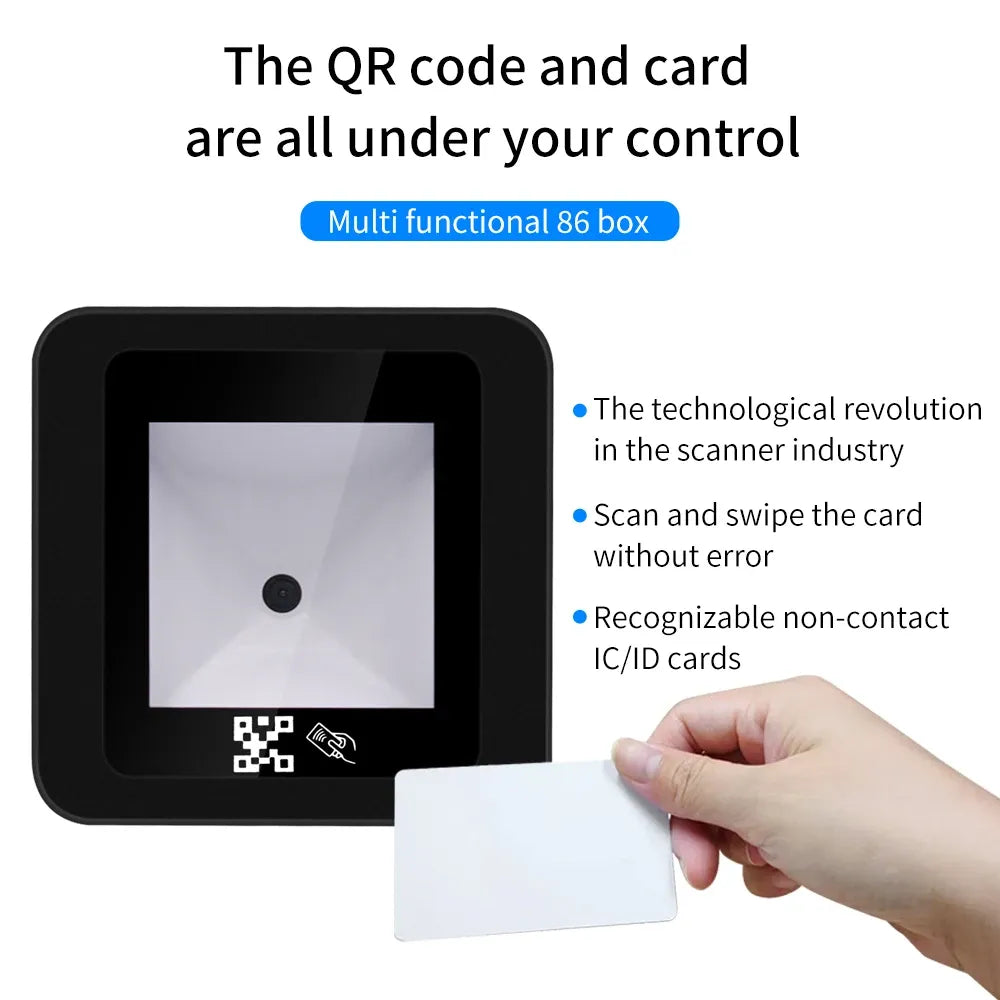

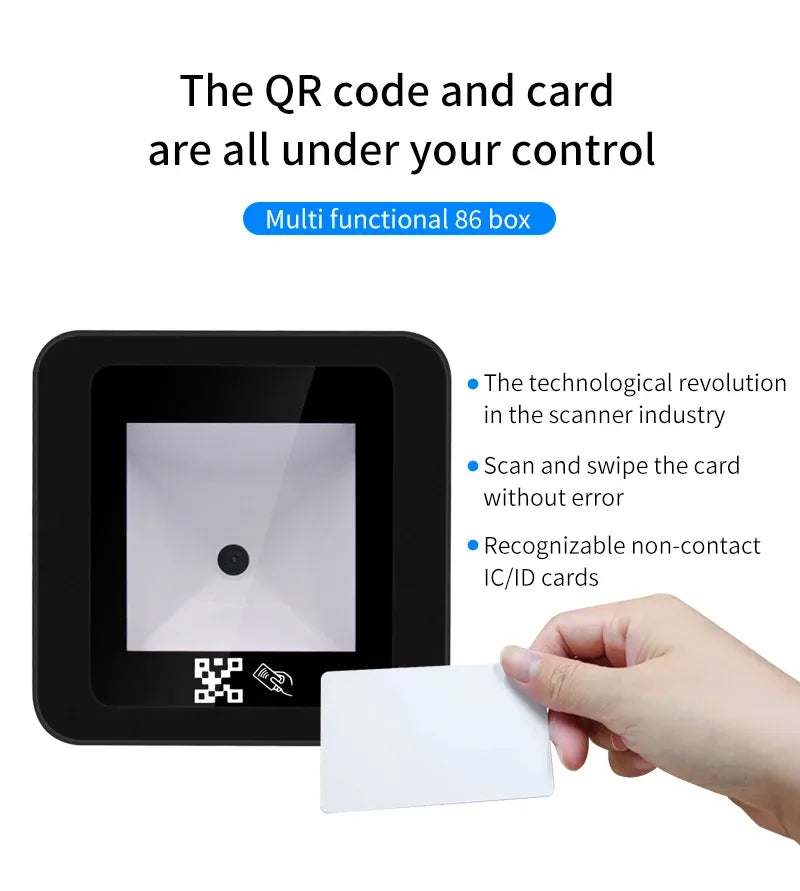

1. Supports multiple card types: ID card/IC card/mobile NFC/citizen card/physical ID card number, as well as ISO 1443A and ISO 1443B protocol proximity cards, with strong compatibility. (Sold in two versions: ID and IC)

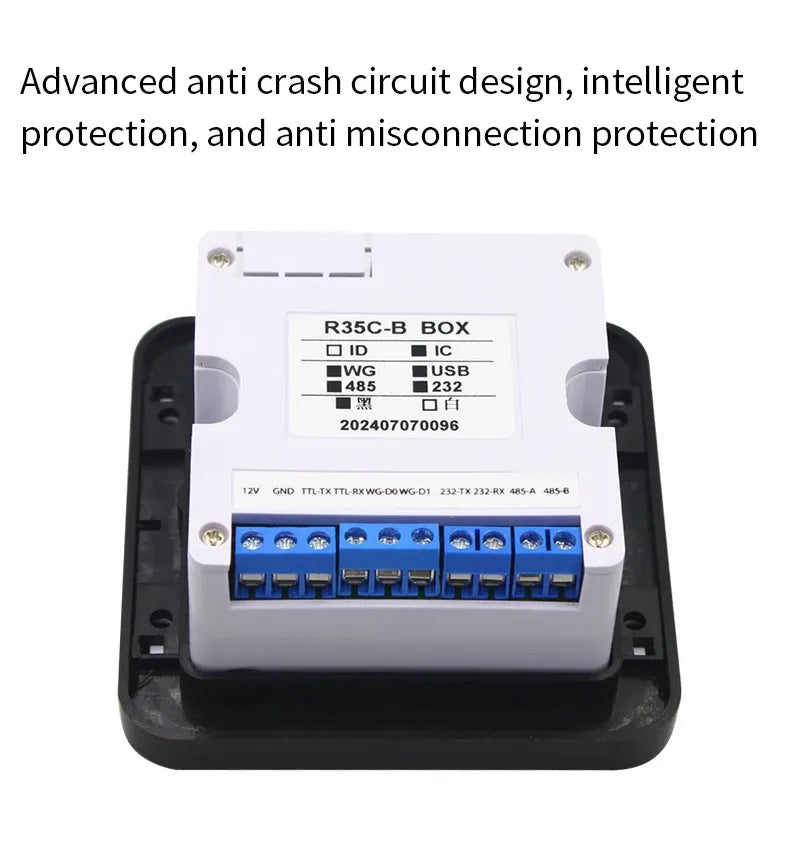

2. Simultaneously outputting 5 types of signals (RS232/RS485/TTL/WG/USB), users can choose according to the controller interface, which is flexible and autonomous.

3. Simply scan the code to adjust the format, and special formats do not need to be sent back. Simply send the upgrade package. Convenient and simple

4. Support IC card sector encryption, professional and reliable

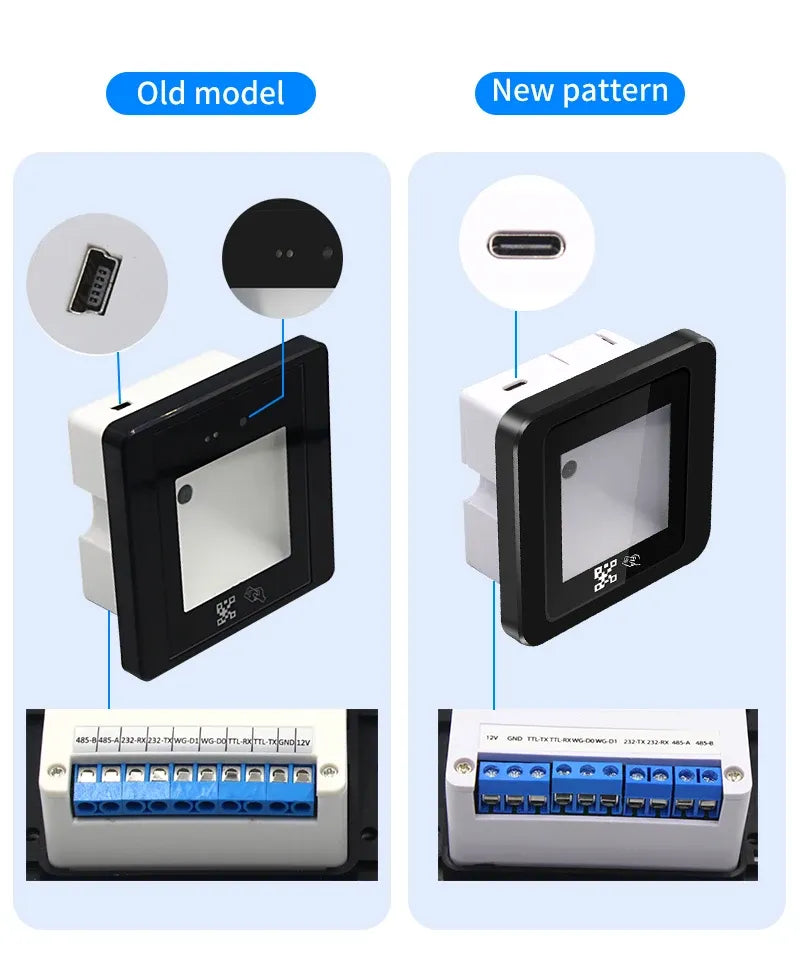

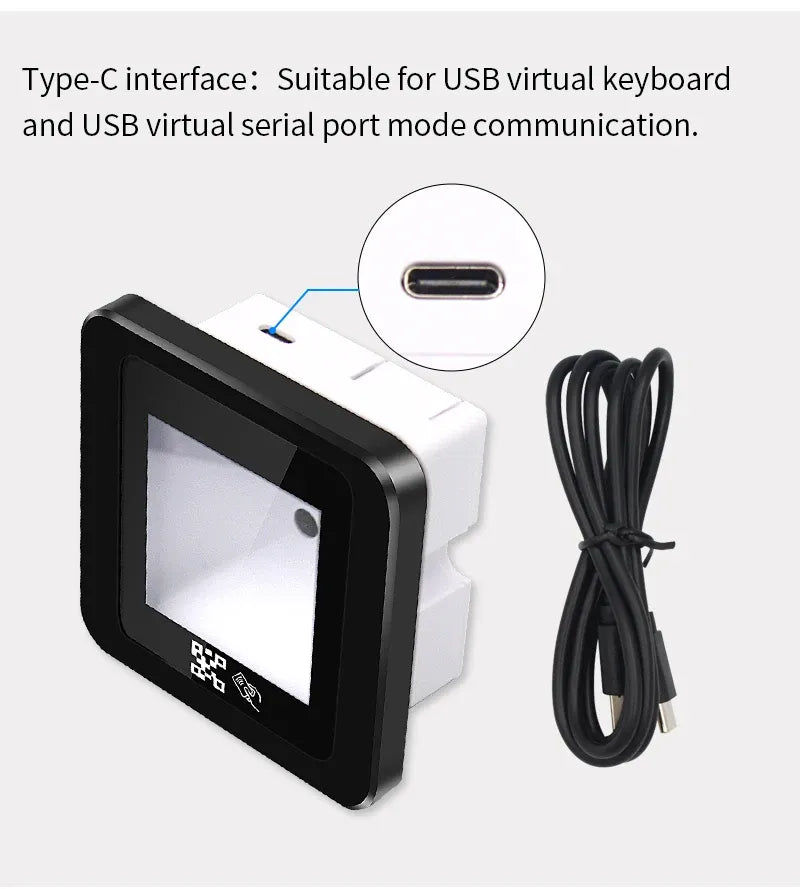

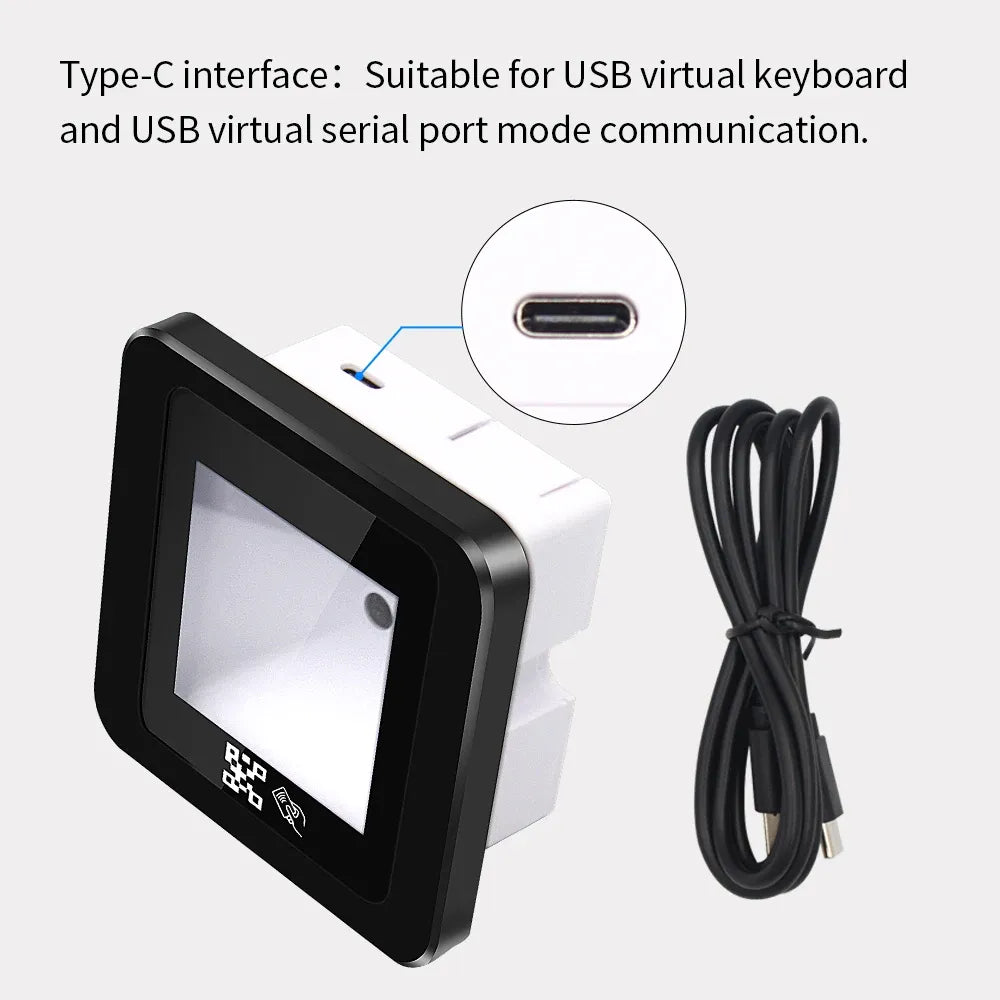

5. Tape-C interface, plug and play

6. Support one-dimensional codes, static QR codes, dynamic QR codes, super strong decoding, efficient recognition of multiple code systems

7. Multi angle no need to focus recognition distance 3-8cm

8. 0.1 second fast recognition, fast code reading response speed

9. Comes with LED light source. Good fill light effect and strong light resistance

10. It can be used as both a card dispenser and a card reader, making it versatile

11. Exquisite exterior design, tempered glass panel, extraordinary temperament, simple and atmospheric

12. Embedded installation, can be embedded with standard 86 pre embedded junction boxes and gates, suitable for more installation and usage environments

13. Support secondary development and provide interface specifications
