SPECIFICATIONS

Packaging Material: Plastic,Wood

Packaging Type: Cartons,Bottles,Barrel,Bags,Film,Case

Voltage: 220V

Weight (kg): 350

application: Food,Beverage,Commodity

automatic grade: Automatic

brand name: Tiangang

core components: Motor,Pump

dimension(l*w*h): 2200*580*1700mm

driven type: Electric

key selling points: Long Service Life

machinery test report: Provided

place of origin: Shanghai, China

type: Other

video outgoing-inspection: Provided

warranty: 1 Year

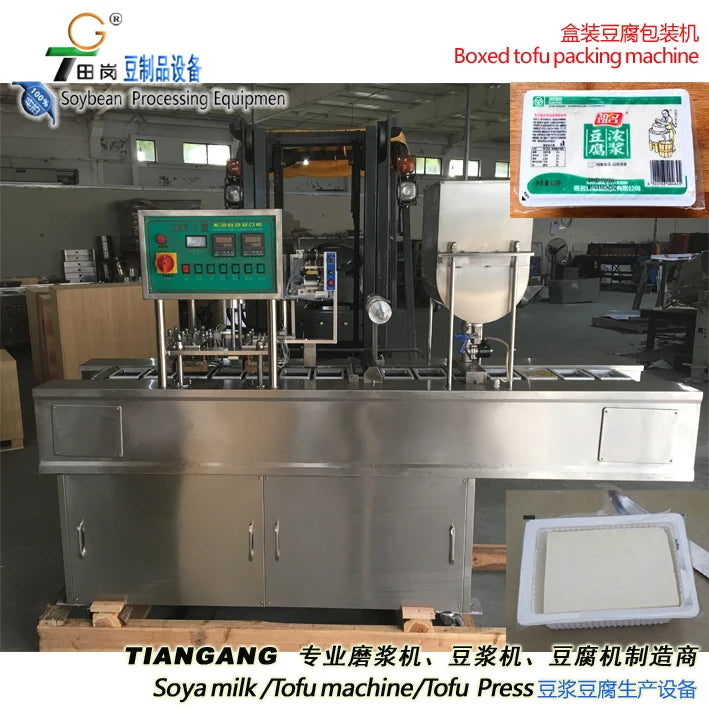

_{Boxed tofu packing machine}

Cassette filling and sealing machine The machine is suitable for a variety of shapes, plastic box container of liquid filling, sealing, trimming, automatic temperature control, waste suction volume, date printing. The factory will be designed according to user needs a different mold, filling, sealing, and so on.

This machine is a customized model according to demand

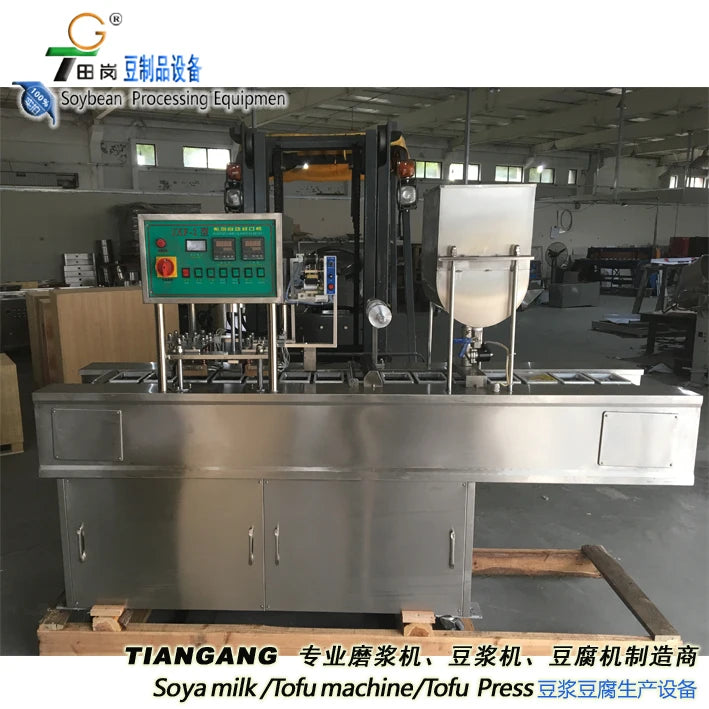

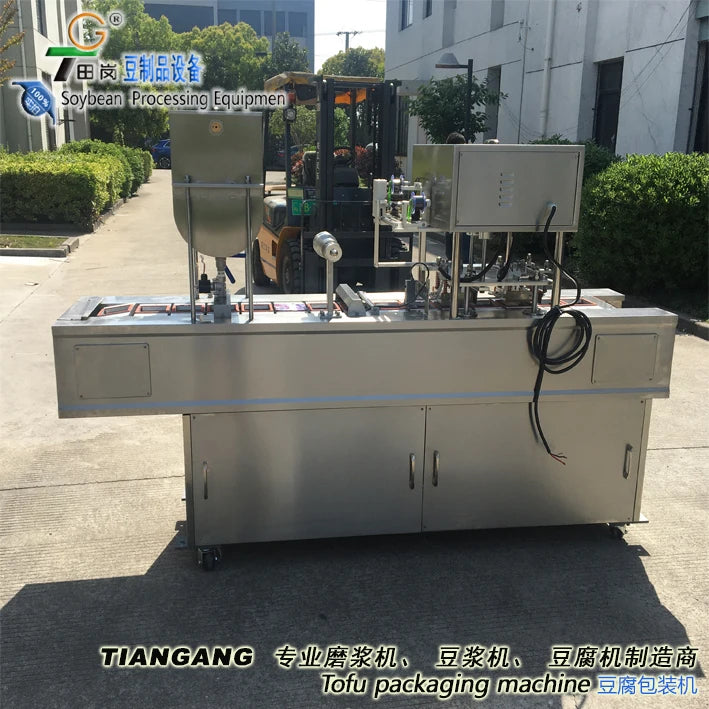

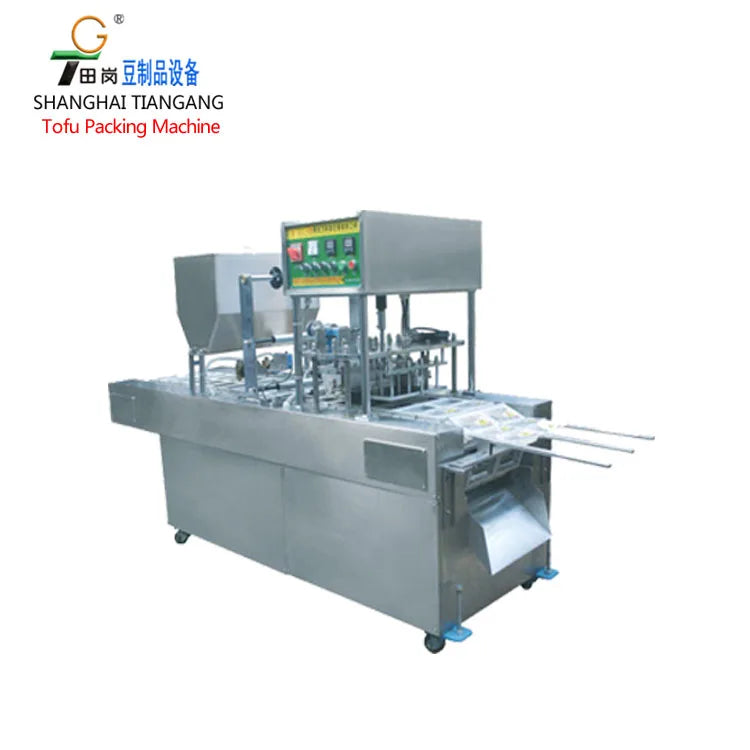

Automatic Soymilk / Tofu Packaging and Sealing Machine

This machine is widely used for packing and sealing various plastic containers, plastic cups, plastic bowls and other special-shaped containers.

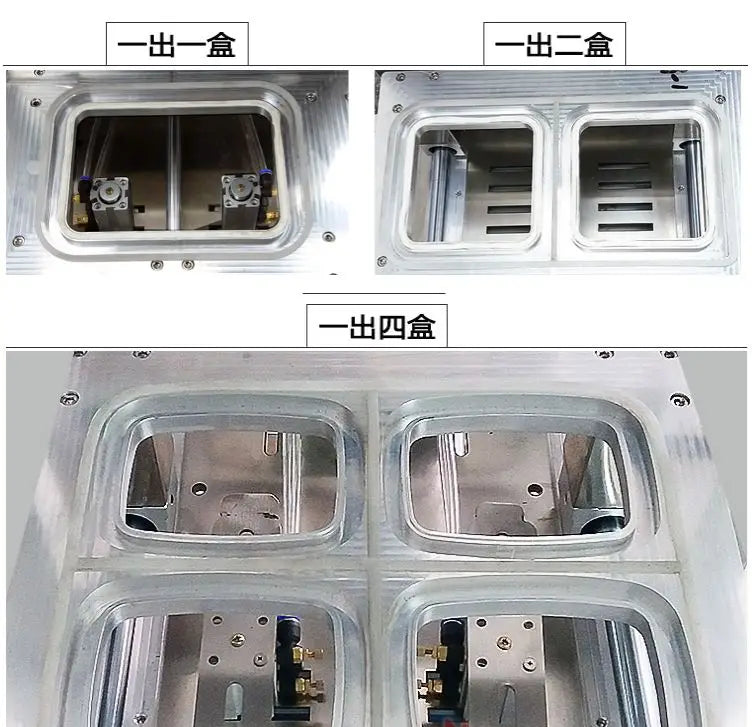

1 to 4 rows of templates can be customized, air pressure automatic sealing, automatic film cutting, automatic film rolling, photoelectric automatic tracking of the sealing film pattern.

Technical data;

Technical data Applicable plastic box inner size: 113*97mm, Extemal measurement:135x118x49 Capacity: 480ml Filling efficiency: 15 beats / min Seal film width: 200mm Power 220V/50Hz Drive motor power: 1.1KW Coder Power: 40W Thermostat range 0 °C -300 °C Dimensions (L × W × H) 2000 × 530 × 1550mm

Customized packaging machine process:
1. Select the packaging container.
2. Select the machine model
3. Mail packaging container samples and provide packaging container information data.
4. Quotation, signing of sales contract and payment.
5. Customized mold production.
6. Trial operation. Come to the factory for on-site acceptance or video shooting.
7. Logistics delivery.

Custom production according to customer demand, the customer must provide the specifications of the box or cup samples. This series is made of stainless steel and is designed to meet the needs to can drinks into plastic bottles and cups of various shapes and the to seal , cut the edge , Automatically control the temperature ,Automatic tracking of sealing film pattern, print the production date and to sterilize with ultraviolet lay ,it is mainly used in the industries like :drinks , tofu , jelly , fruit juice , milk and cold drinks.

Shanghai Tiangang Machinery is a professional soybean processing machinery manufacturer.

Core product：Soybean grinding machine. Colloid mill. Soya milk machine. Tofu machine

Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for . Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery. Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other. More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity. Looking forward to cooperating with you in the near future !
