SPECIFICATIONS

Access Control: Password

Answering Mode: Hands-free

Brand Name: MOUNTAINONE

Camera: COLOR

Camera Sensor type: CMOS

Certification: CE,FCC,RoHS,KC,pse,weee

Communication Interface: Wired

Connection Method: Wired

Display Screen Size(inch): 7

Display Screen Type: COLOR

Doorbell: Yes

High-concerned chemical: None

IP Camera Interface: No

Installation: Wall Mounting

Kit Configuration: One to One video doorphone

Material: ABS

Model Number: SY816MJK

Night Vision: Support

Origin: Mainland China

Plug Type: EU Plug,US Plug,AU Plug,UK Plug

Power: DC 15V

Power (W): 220v

Resolution: > 420 TV Line,1000 TVL

Samrt Home Interface: Yes

Sensor Size(Inch): 1/3

Technology: DIGITAL

Type: intercom system,video doorbell

Unlock way: monitor/password/RFID Card/Remote Control

Viewing Angle (°): 92

Waterproof: Yes

Zone Input: None

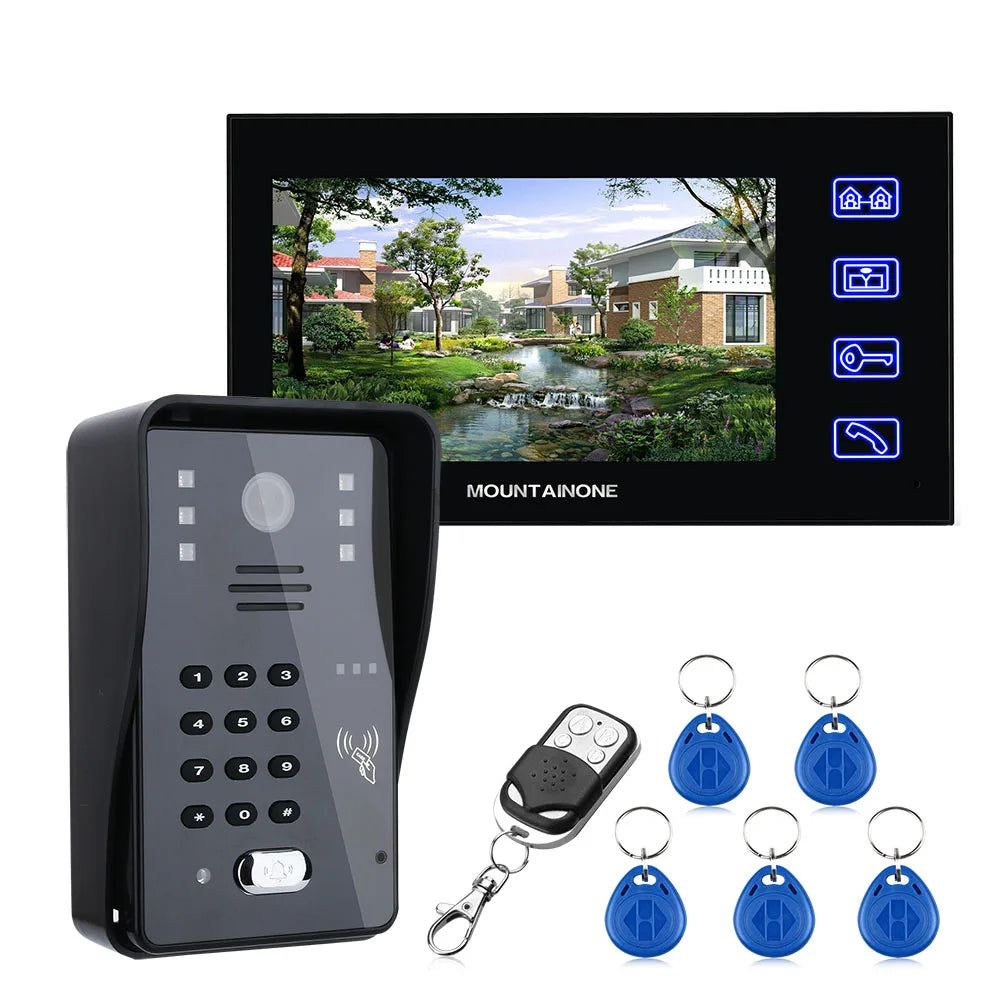

7inch Video Door Phone Intercom Doorbell With RFID Password IR-CUT 1000TV Line Camera  Wireless Remote Access Control System

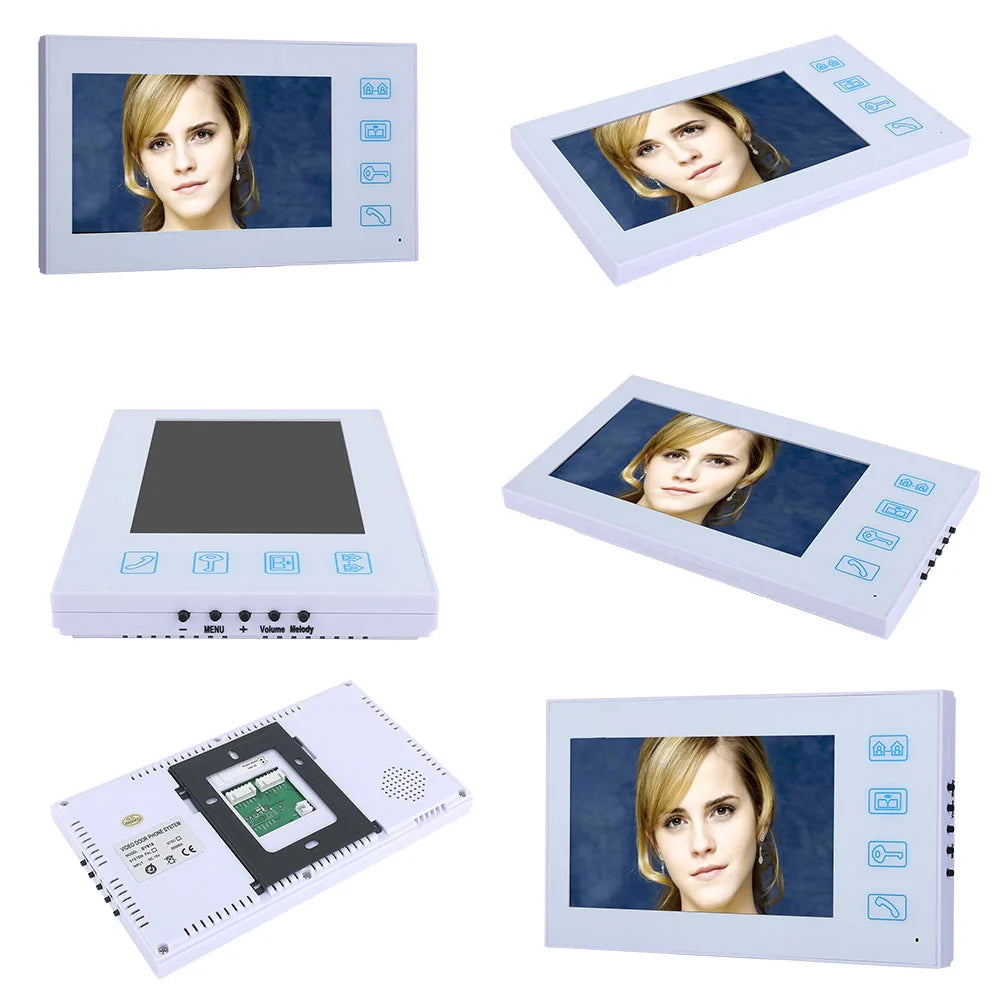

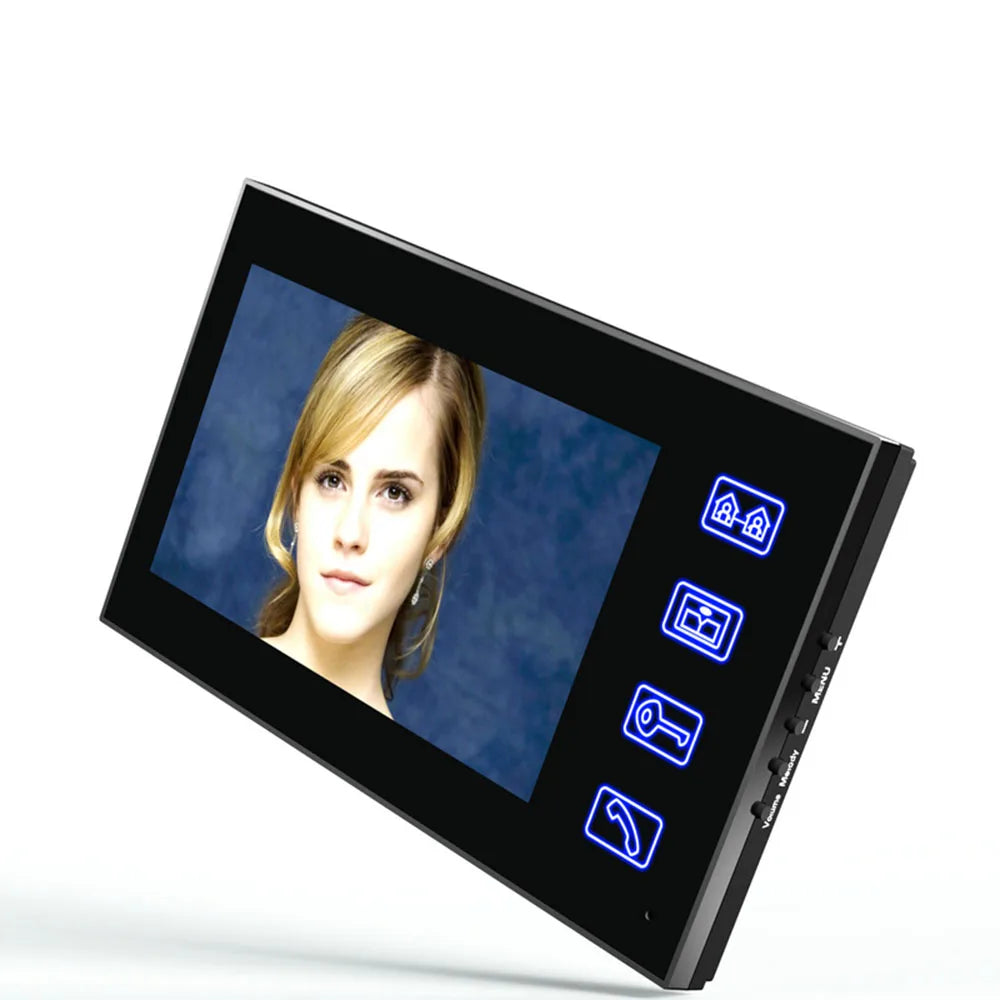

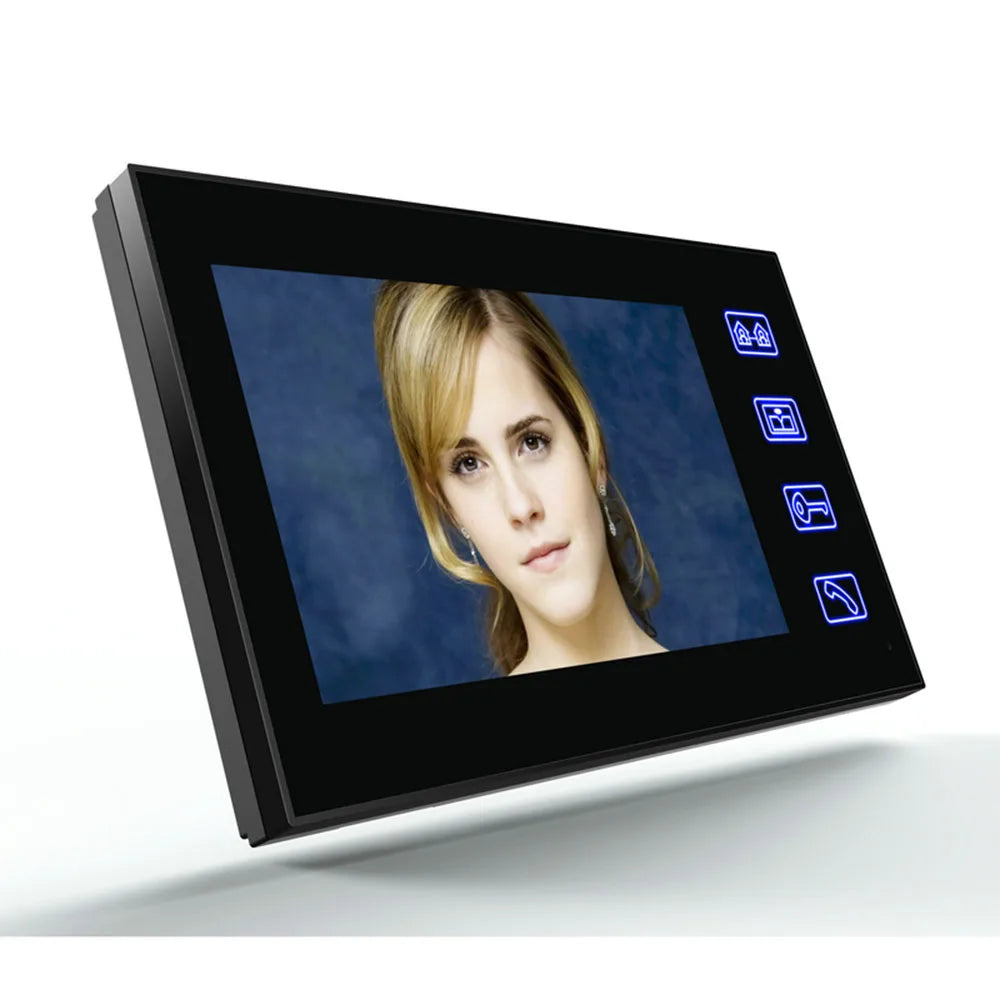

1. 7 inch Ultra-slim design indoor monitor, nice and luxurious, available for wall-mounted.25  kinds of door

bell rings, ring volume, chroma and brightness adjustable

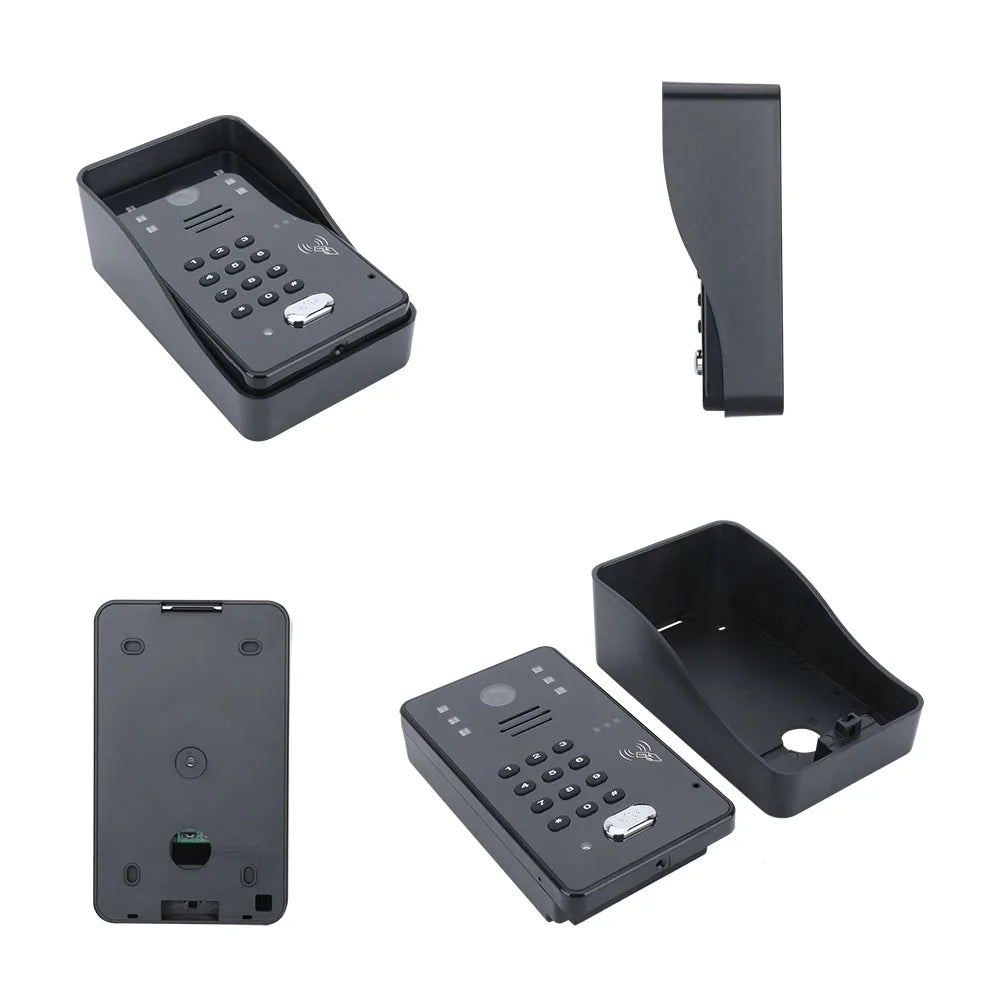

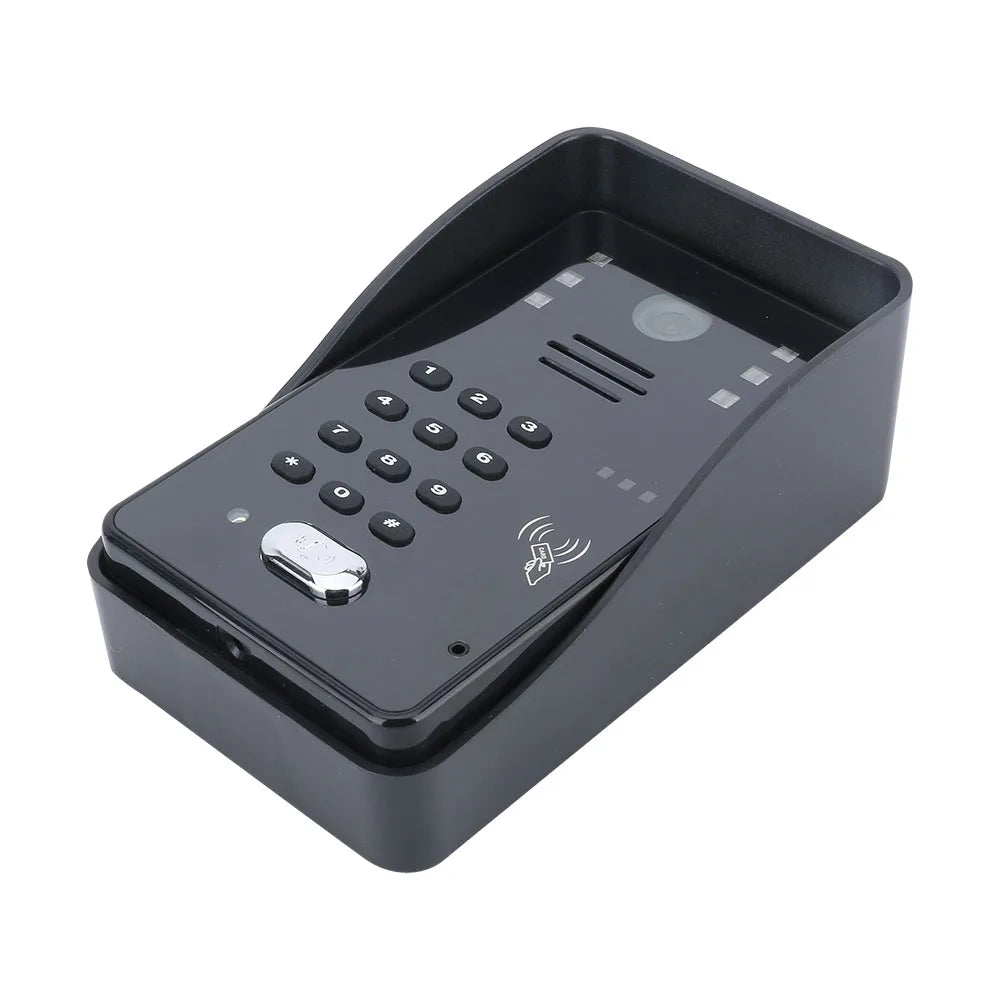

2.Durable Outdoor Camera:Little rain and oxidation-proof for the durable ABS outdoor unit,is  well protected

by weatherproof cover,camera with IR-CUT,the image is colorful and clear.Support 2000 ID cards unlock,

2000 passwords unlock,100 remote controls unlock.

3. Easy Talk and Unlock: Monitoring the outside of the door. simply stay in your favorable chair  and press

the monitor button to check who is at your door and say "Hello". Then press the unlock  button on the

monitor to open the door for your visitors

4. Easy installation by yourself with adapter and cable we provide in this kit.Widely used in  villas,

apartments, houses, hotels, offices, public buildings and so on

5.Embedded 'IR-Cut Filter' provides Enhanced Picture & Color Quality

Features:

1.7" color TFT LCD with sensitivity touch panel. No radiation, low power consumption.

2.Infared LEDs fornight vision,more convenient.

3.Rainproofcover design, antioxidative Outdoor Unit with piano bakes lacquer panel.

4.25 kinds of rings for selection.

5.Piano bakes lacquer panel design on indoor unit, more fashionable and luxury.

6.Hands free intercom,one-button touch makes perfect experience.

7.Support maximum 1 outdoor unit with 4 indoor units

8.Support 2000 ID cards unlock, passwords unlock,remote controls unlock.

9.Embedded 'IR-Cut Filter' provides Enhanced Picture & Color Quality

Specifications:

1.Screen: 7" TFT

2.Resolution: 960 * 480

3.Camera: 1/3"  HD 1000 TV Line

4.Camera lens: 3.6mm

5.Camera viewing angle: 92 degrees

6.Infrared LED: 6 pcs

7.Infrared lighting distance approximate : 2 meters

8. Support 2000 ID cards unlock,2000 passwords unlock,100 remote controls unlock.

9.Call duration time: 120 Seconds

10.Monitor duration time: 60 Seconds

11.Power consumption: Static state <0.5W, calling <10W

12.Power output: DC15V 2A

13.Effective distance: 200M(6×0.75M2)

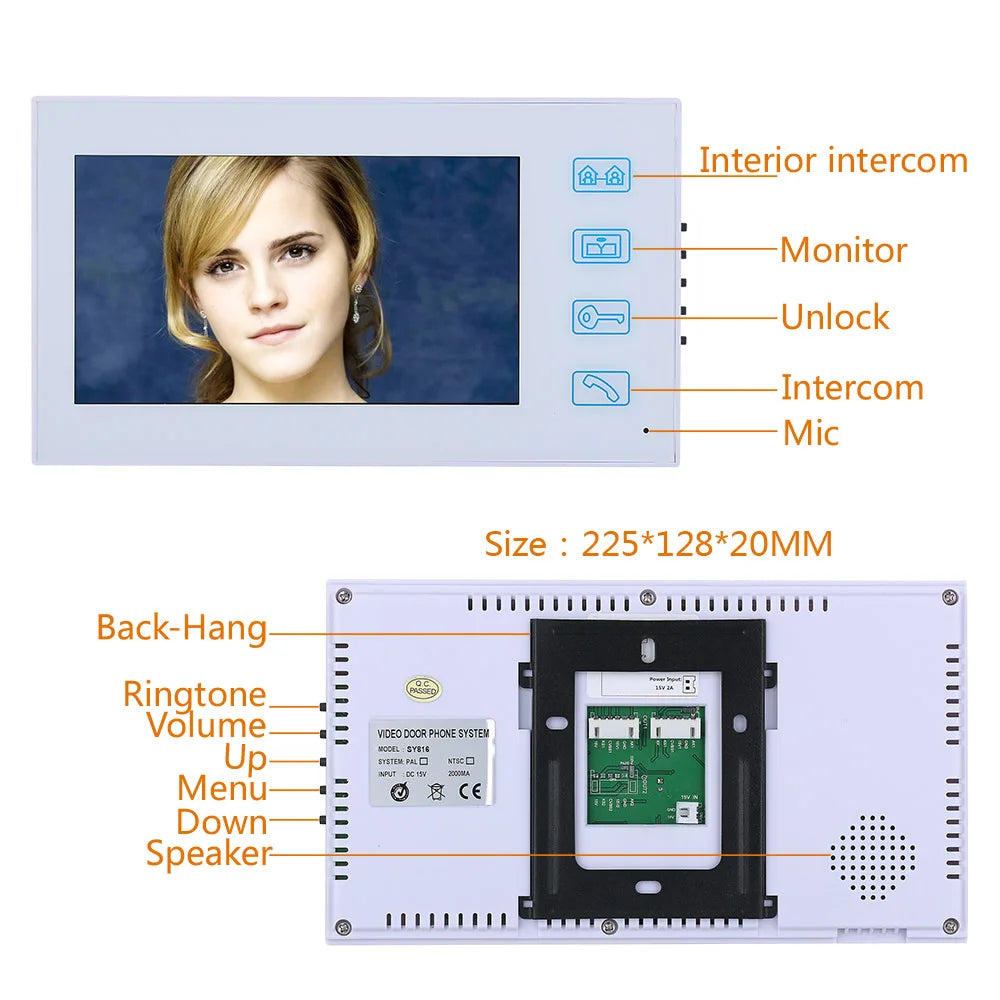

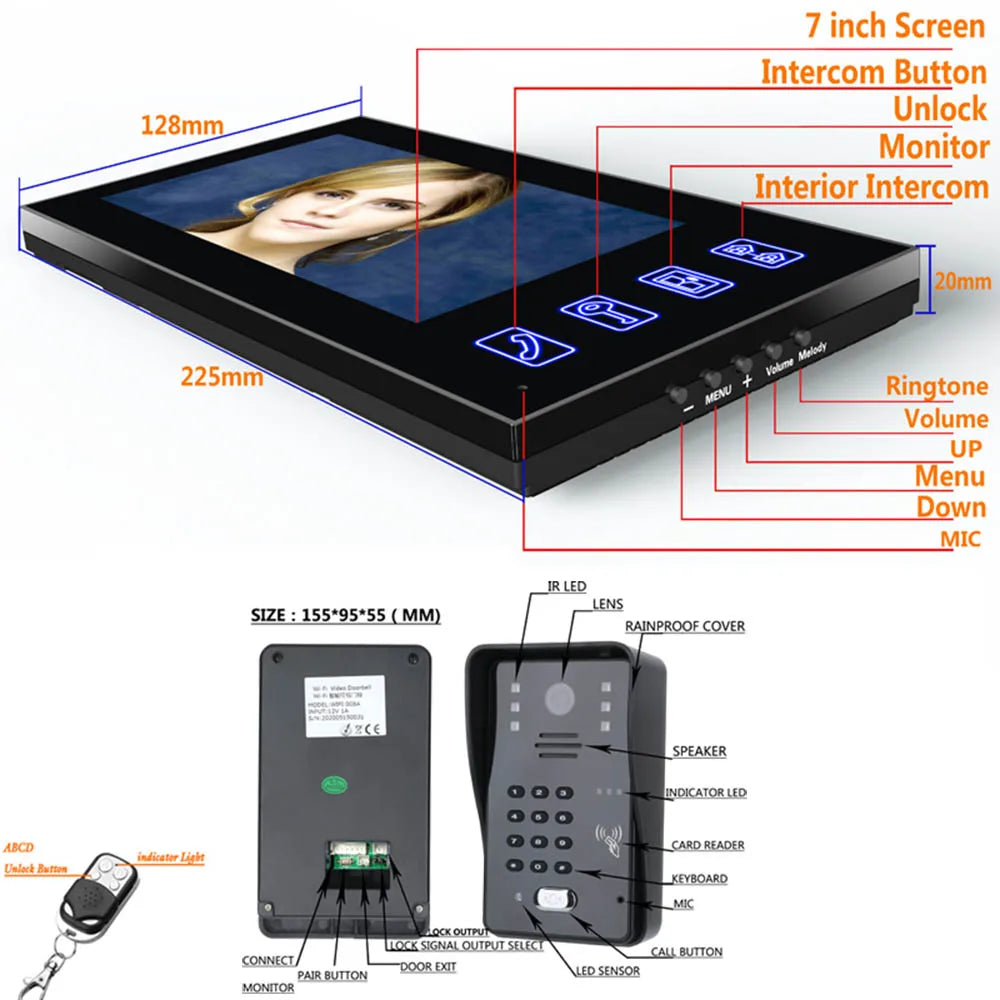

14.Indoor monitor: 225 * 128 * 20m

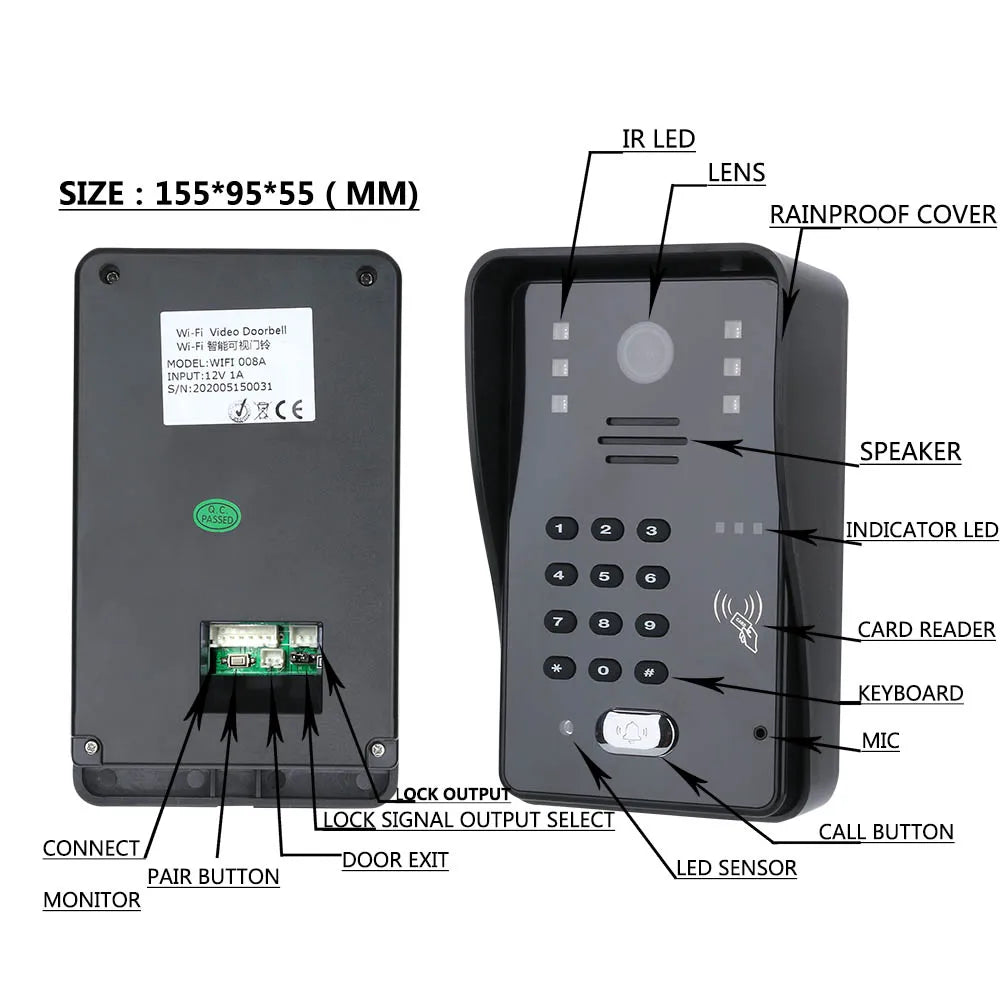

15.Outdoor camera: 155 * 95 * 55mm

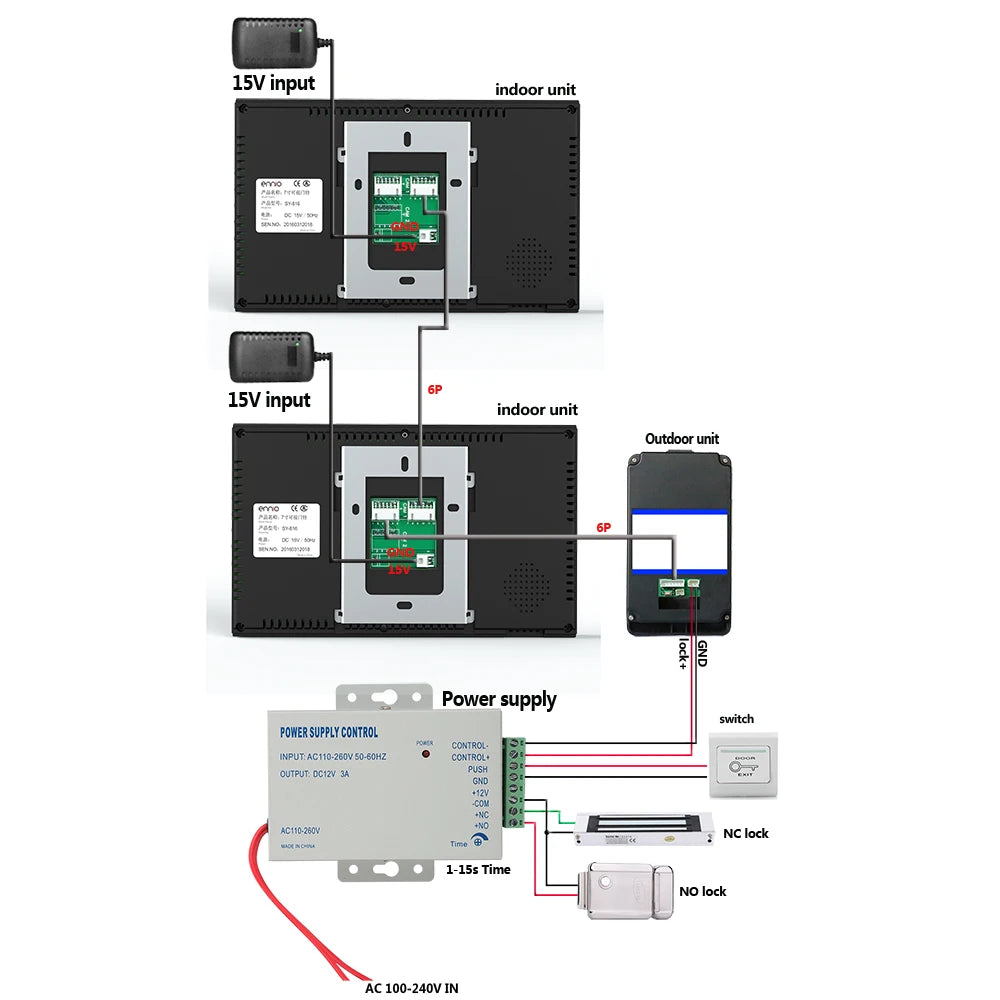

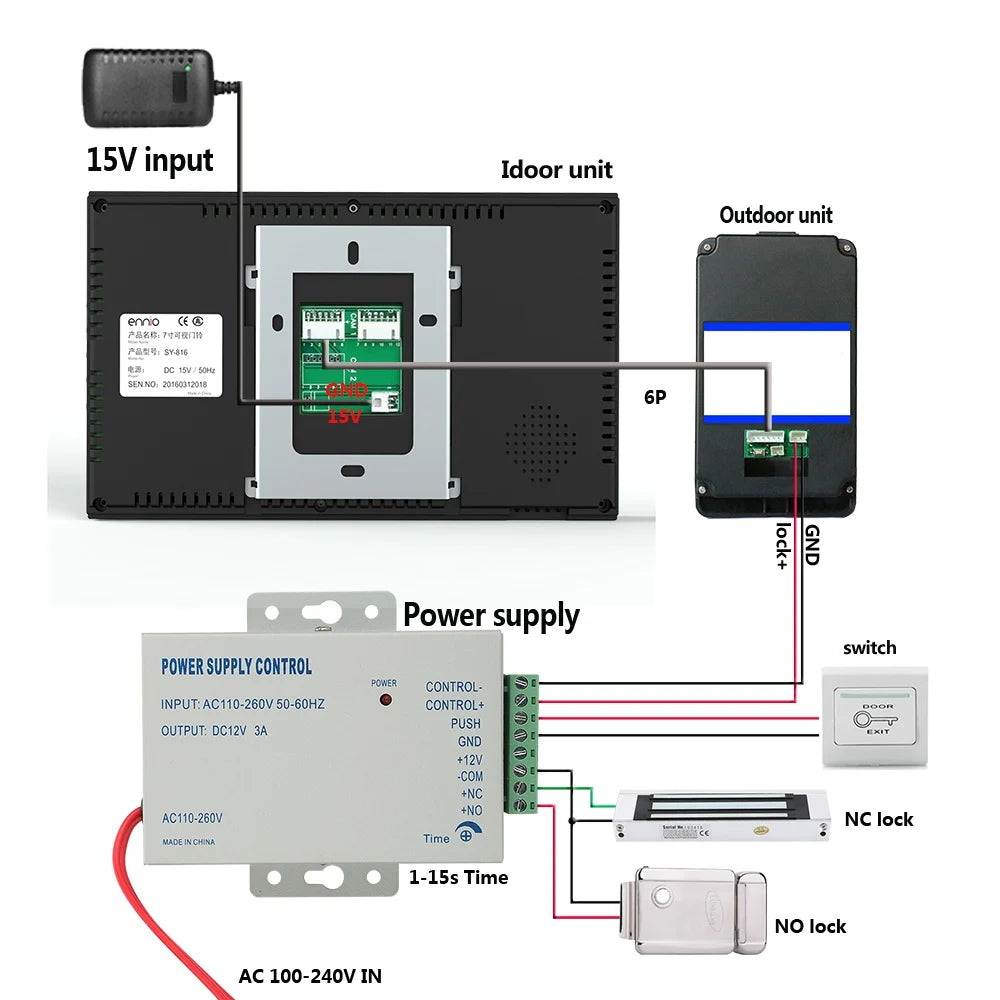

Wire Diagram:

It does not include the door lock and access control power supply

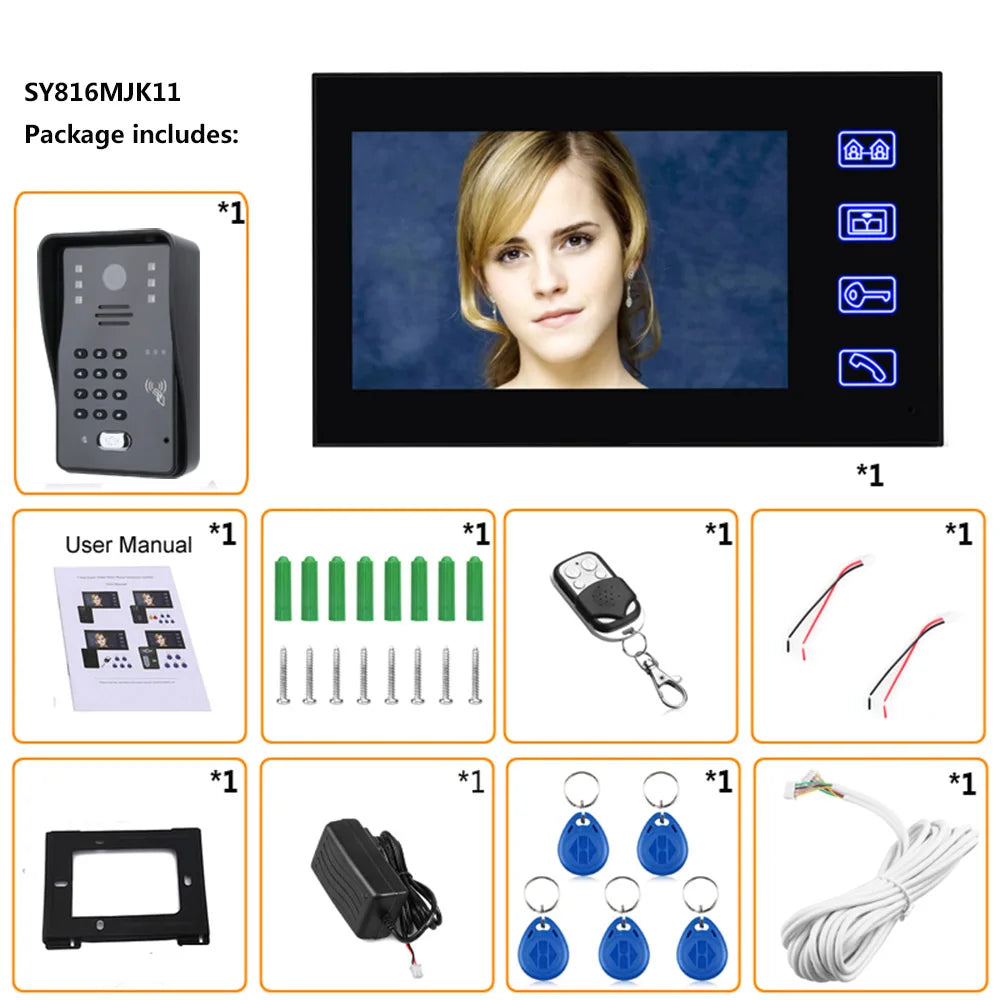

SY816MJK11 Package includes:

1 * Outdoor camera

1 * Indoor monitor

1 * AC adapter

1 * 5m 6-core Connection cable

2 * 2-core Connection cable

5 *125KHz RFID Cards

1 * Remote Control

1 * Package of screws

1 * User manual - English

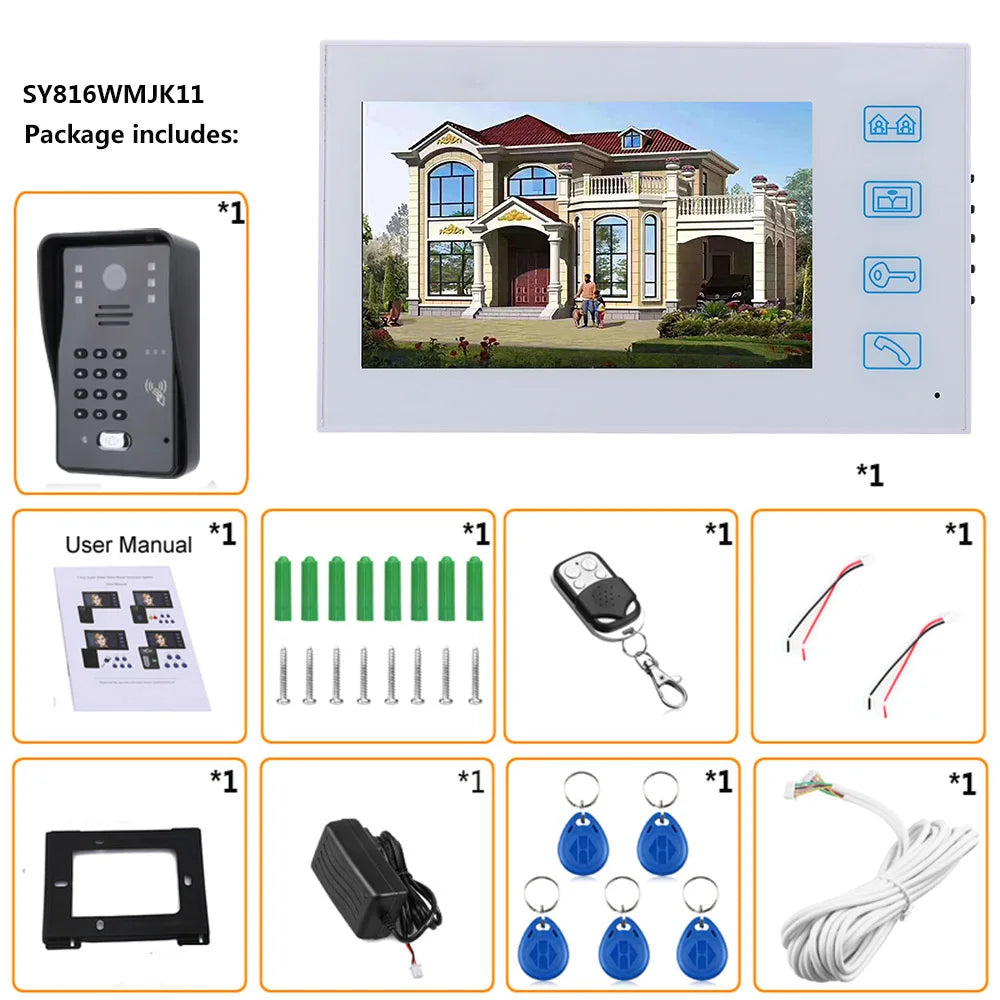

SY816WMJK11 Package includes:

1 * Outdoor camera

1 * Indoor monitor

1 * AC adapter

1 * 5m 6-core Connection cable

2 * 2-core Connection cable

5 *125KHz RFID Cards

1 * Remote Control

1 * Package of screws

1 * User manual - English

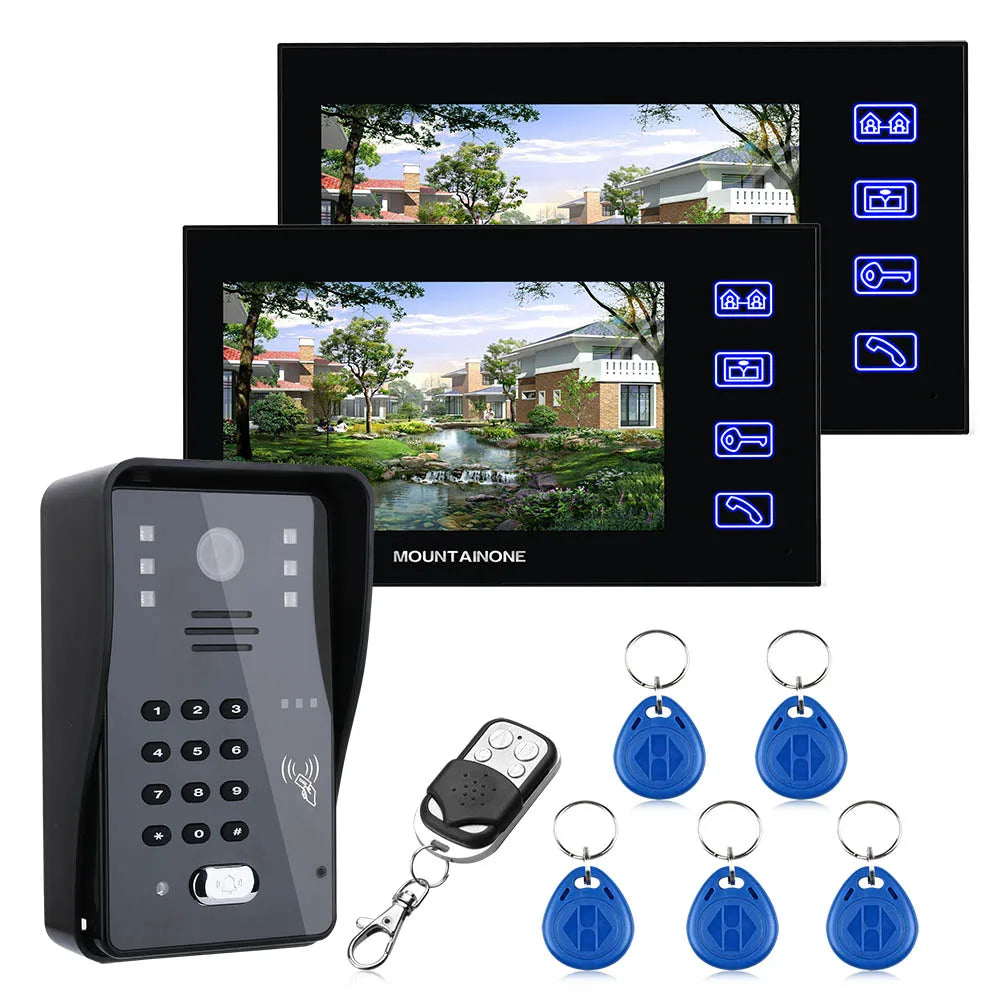

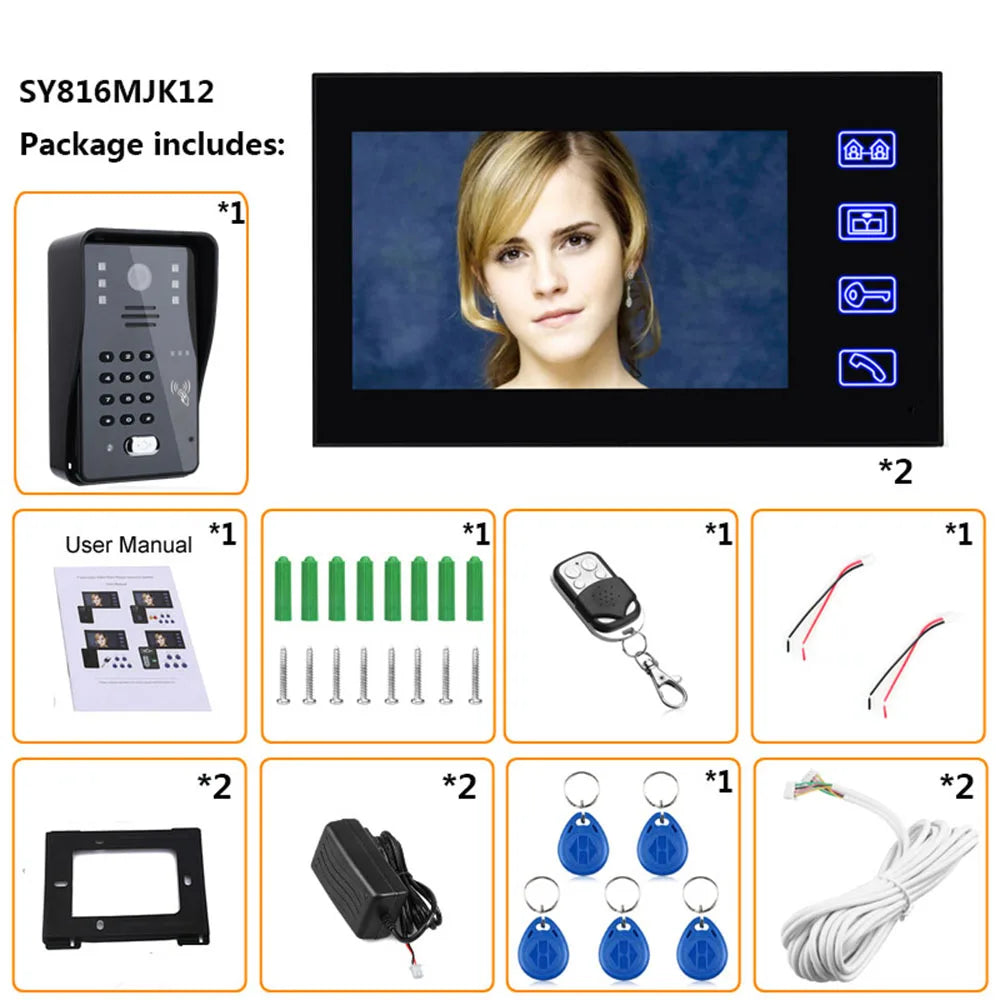

SY816MJK12 Package includes:

1 * Outdoor camera

2 * Indoor monitor

2 * AC adapter

2 * 5m 6-core Connection cable

2 * 2-core Connection cable

5 *125KHz RFID Cards

1 * Remote Control

1 * Package of screws

1 * User manual - English
