5M 10M 15M 20M Wifi RGBIC LED Strip Light 24V COB WS2811 Pixel Flexible Ribbon FairyNest APP IR Remote Alexa Voice Control Lamp

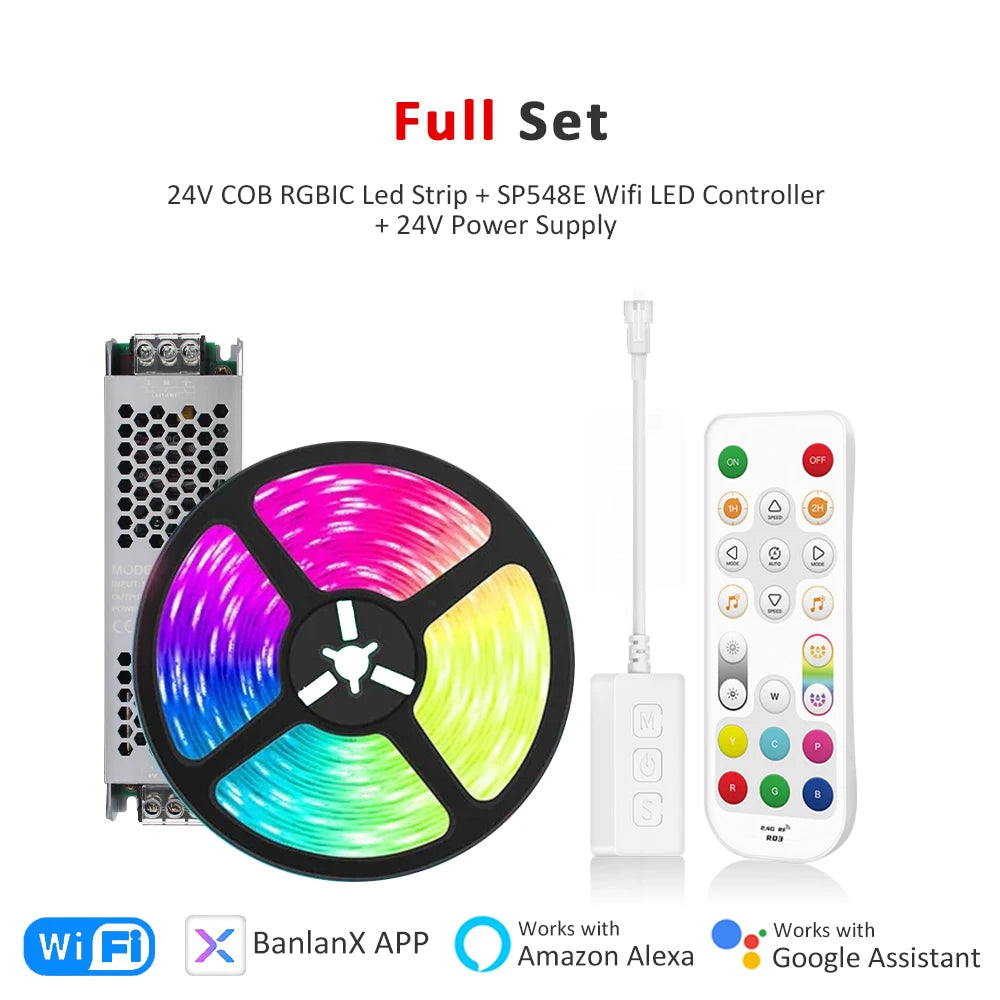

Full Set / 20m
Sale price
€248,77
Regular price
€344,45
Skip to product information
5M 10M 15M 20M Wifi RGBIC LED Strip Light 24V COB WS2811 Pixel Flexible Ribbon FairyNest APP IR Remote Alexa Voice Control Lamp
Sale price
€248,77
Regular price
€344,45
SPECIFICATIONS
Average Life (hrs): 50000 Hours
Brand Name: MJJC
Certification: CCC,ce,EMC,LVD,ROHS,UL
Choice: yes
Color Temp(K): RGB
High-concerned chemical: none
Is Batteries Included: no
Is Smart Device: Yes
Item Type: Strip
LED Chip Brand: Epistar
LED Chip Model: WS2811
LEDs Number/M: 480
Luminous Flux: 249-2000
Model Number: SP511E COB RGB Horse Racing Strip
Nominal Voltage: 24V
Occasion: Living room
Origin: Mainland China
Power Consumption (W/m): 11.52W/m
Power Generation: Switch
Power Source: DC
Specifications (light beads / m): 480
Strip type: COB
Voltage: 24v
Waterproof: No

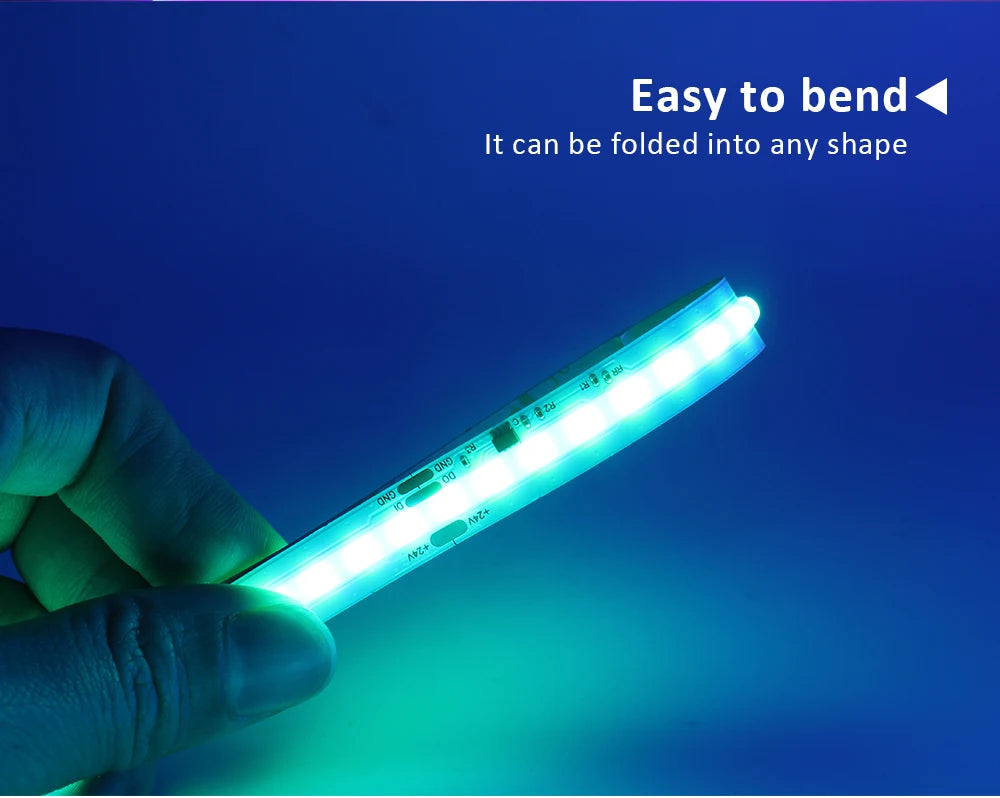

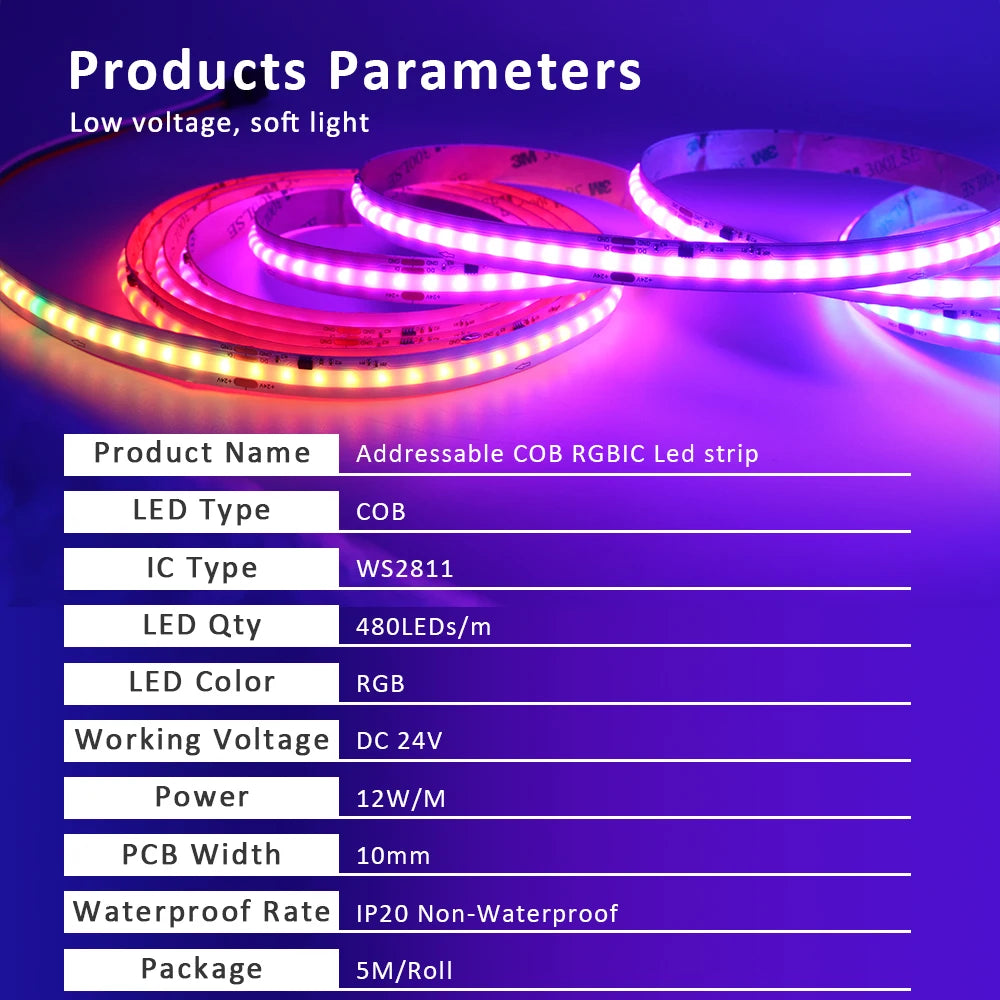

RGBIC Digital LED Strip Light

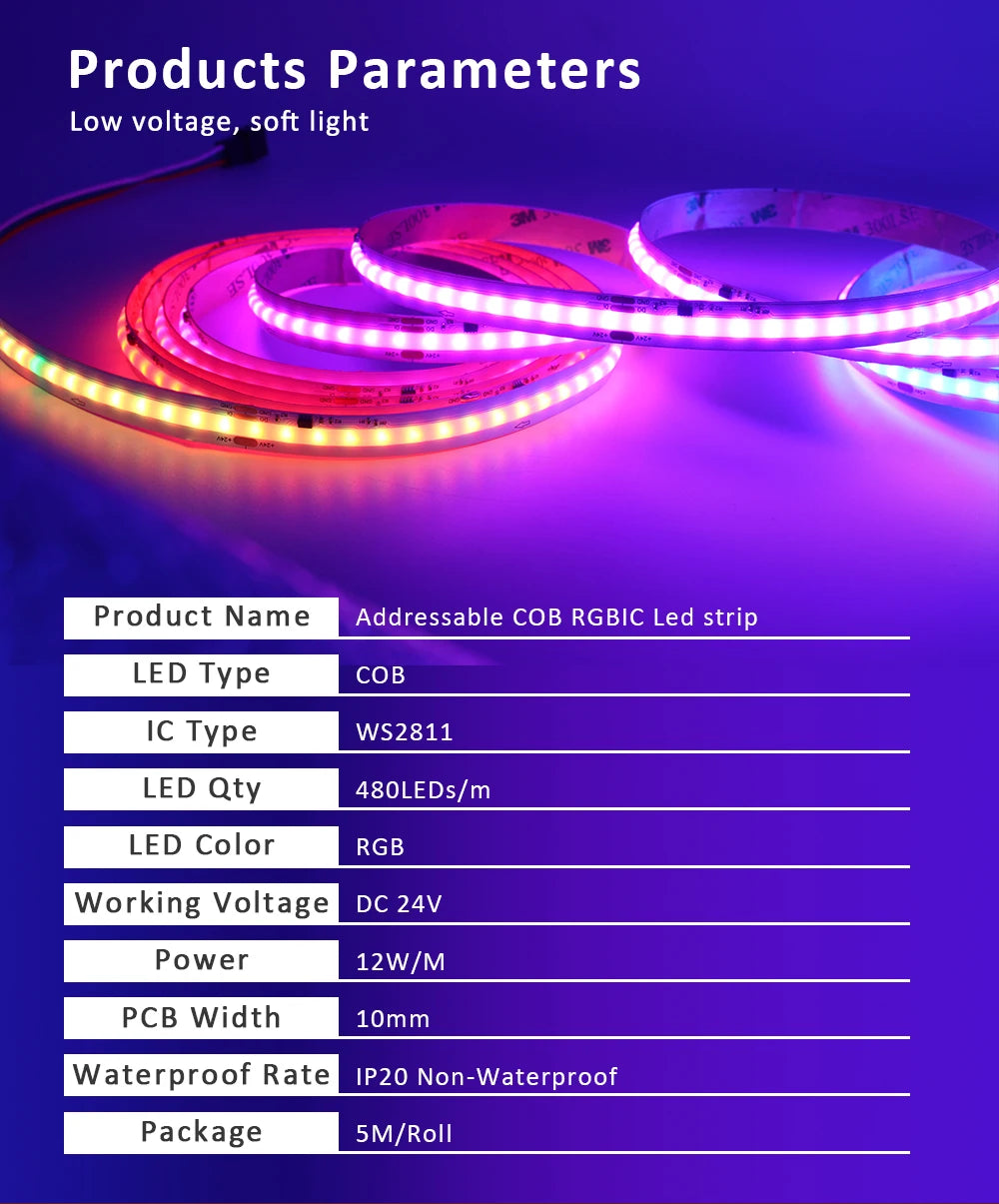

Product Name: Addressable COB RGBIC Led strip
LED Type: COB
IC Type: WS2811

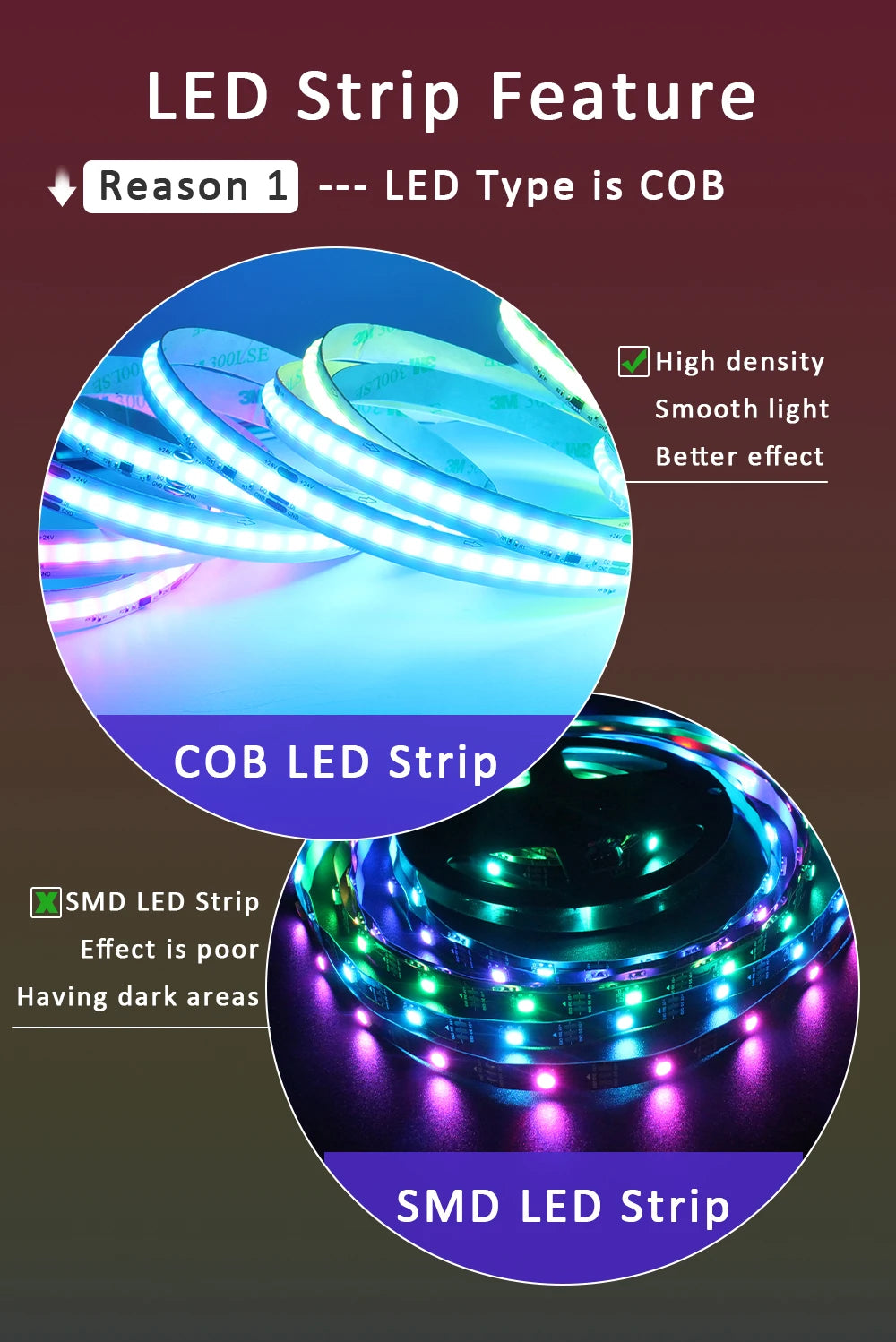

LED Qty: 480LEDs/m ( Better effects than SMD led strip)
LED Color: RGB
Working Voltage: DC 24V
Power: Max.12W/M
PCB Width: 10mm
Waterproof Rate: IP20 Non-Waterproof
Package: 5M/Roll
RGB Wire-Order: + RBG
Connection:
Red Wire ---- DC24V (+)
Green Wire --- Digital Wire
White Wire --- GND wire (-)

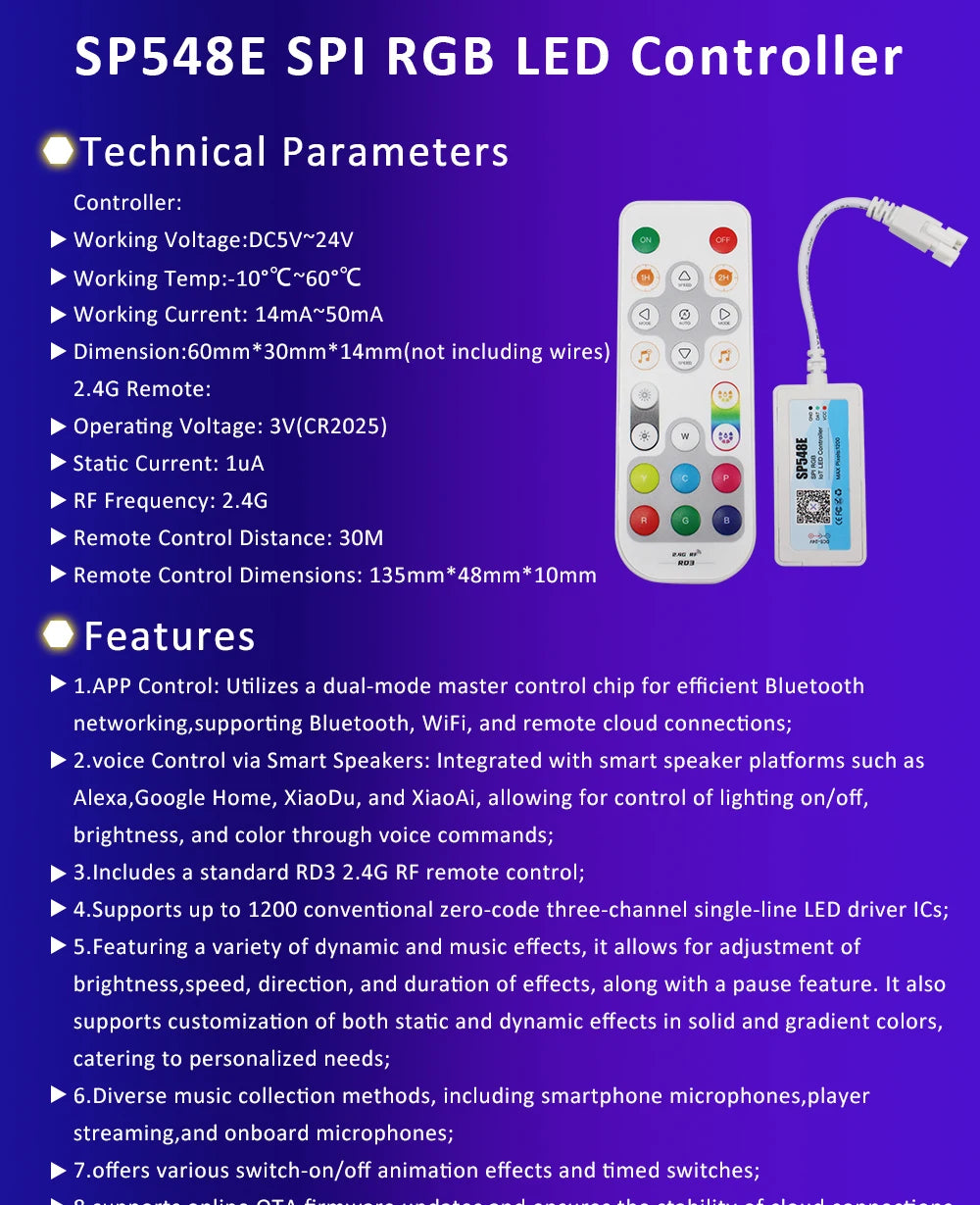

● SP548E SPI RGB loT LED Controller
Working Voltage: DC 5-24V
Max Control Pixels <1200 Pixels

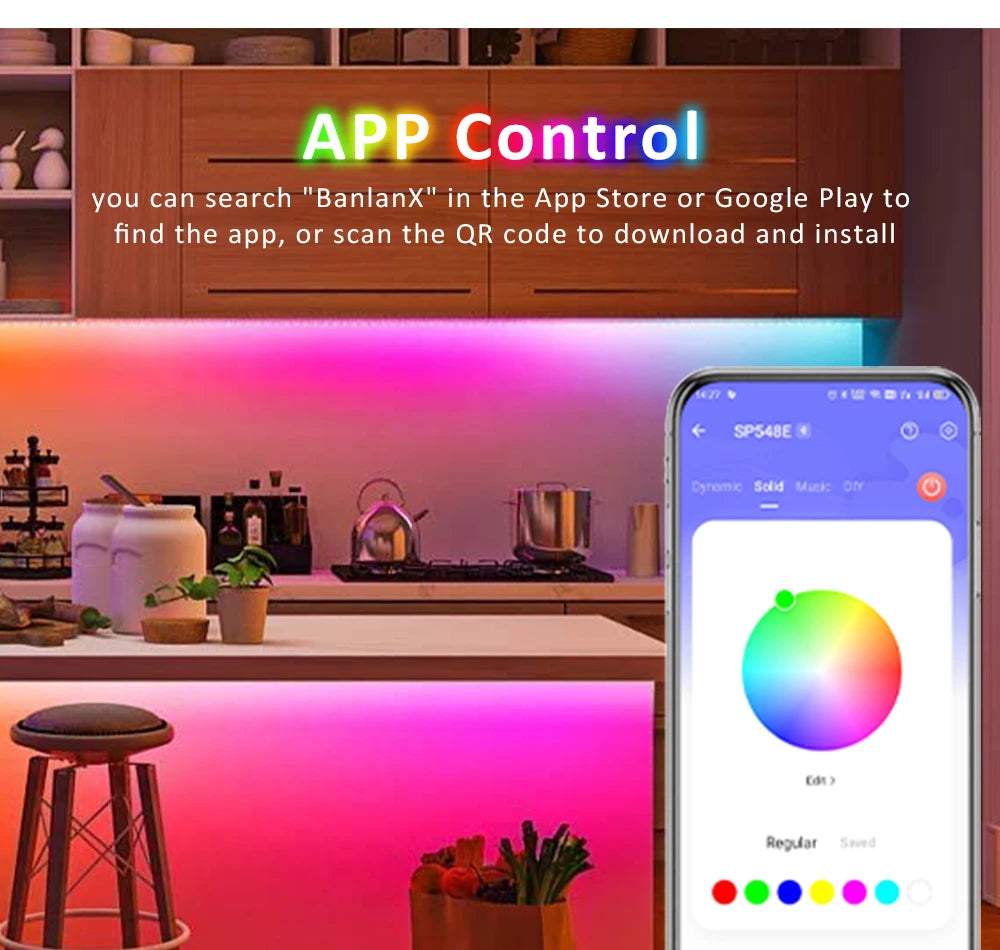

App：BanlanX
Music Mode: Mobile phone Mic,player streaming, onboard Mic
Remote Control: 22-keys RF remote Control
Buttons: 3 Buttons
Wiring Methods:DATA/GND
Output Menthods:1 output
Application: Works with Alexa, Google Assistant，XiaoDu,XiaoAi to realize voice control.
● Features:

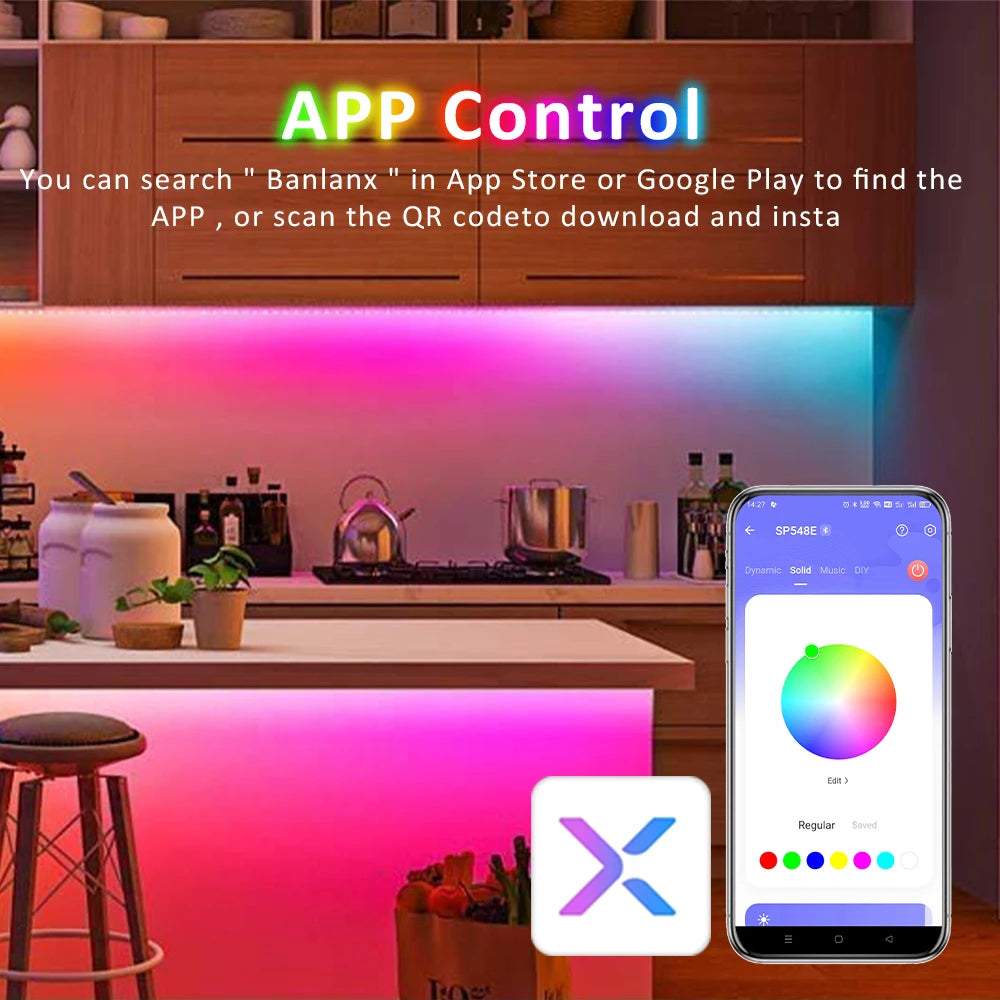

1. APP Controls: Utilizes a dual-mode master control chip for efficient Bluetooth networking, support Bluetooth,WiFi and remote cloud connections;
2. Voice control via Smart Speakers: Integrated with smart speaker platforms such as Alexa,Google Home,XiaoDu,XiaoAi, allowing for control of lighting ON/OFF,brightness and color through voice commands.

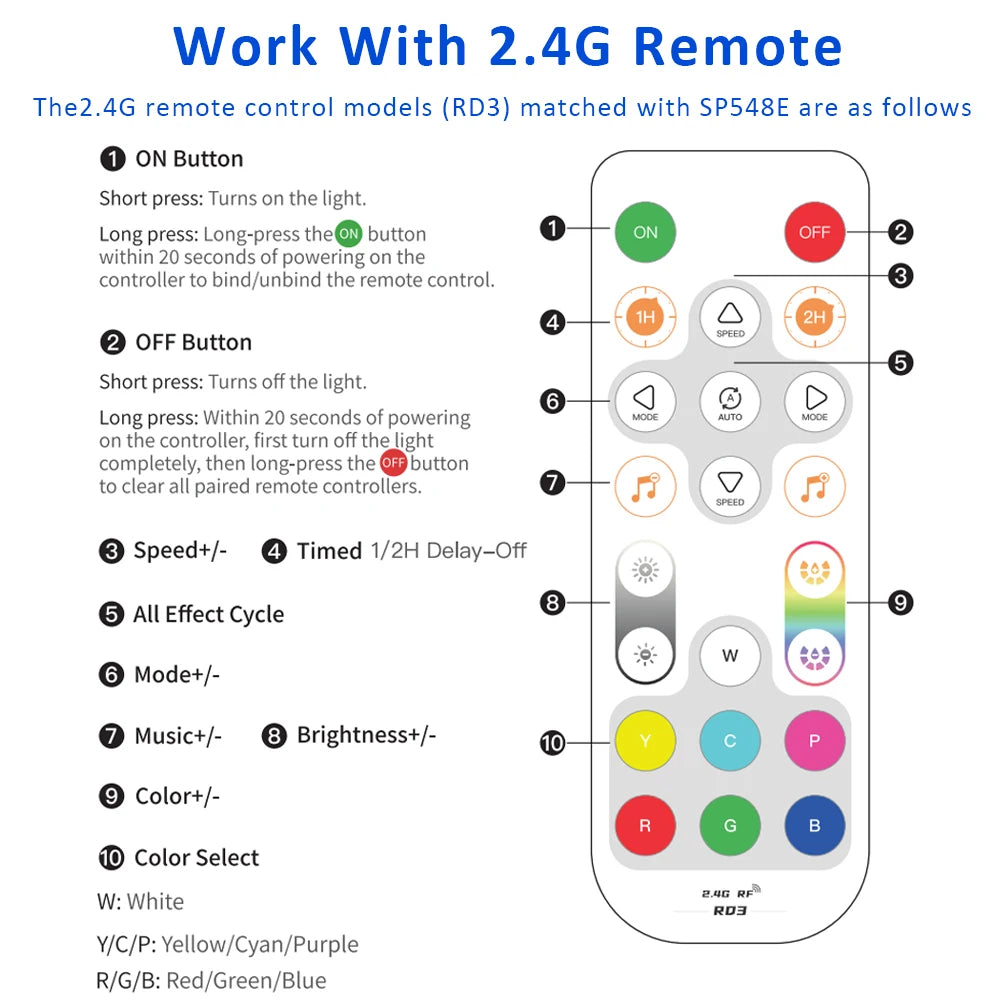

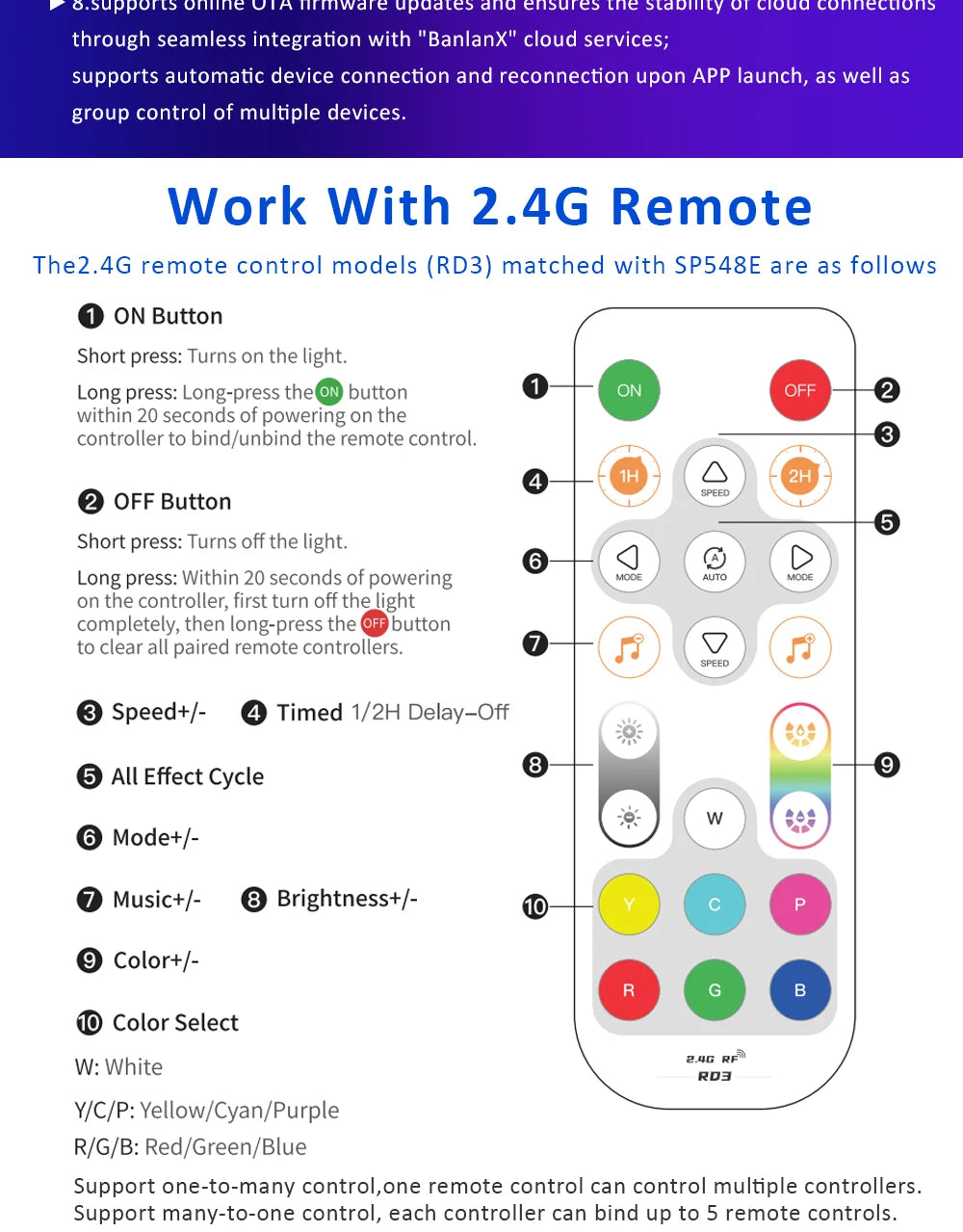

3. Includes a standard RD3 2.4G RF remote control
4. Supports up to 1200 conventional zero-code 3-Channel single-line LED driver ICs;
5. Featuring a variety of dynamic and music effects,it allows for adjustment of brightness,speed,direction,and both static and dynamic effects in solid and gradient colors,catering to personalized needs.
6. Diverse music collection effects,including smartphone microphones,player streaming and onboard microphones;

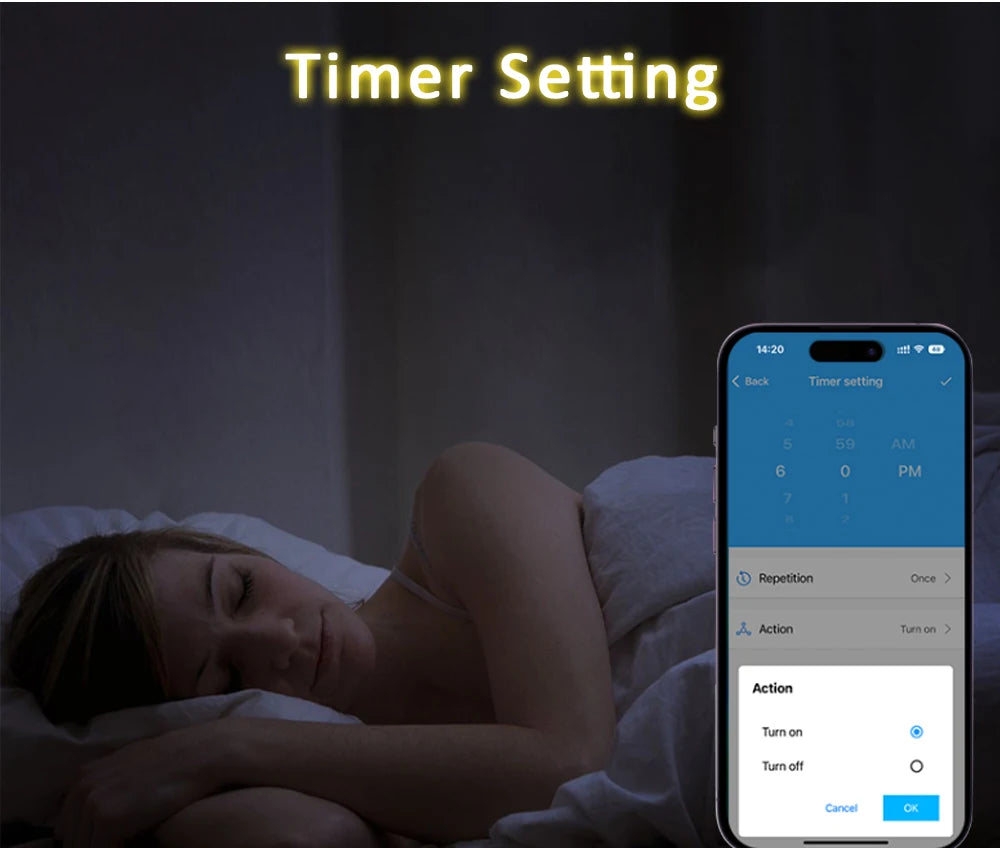

7. Offers various switch-ON/OFF animation effects and timed swithes;
8. Supports online OTA firmware updates and ensures the stability of loT cloud connections through seamless integration with "BanlanX"cloud servies;
9. Supports antomatic device connection and reconnection upon APP launch,as well as group control of multiples devices.

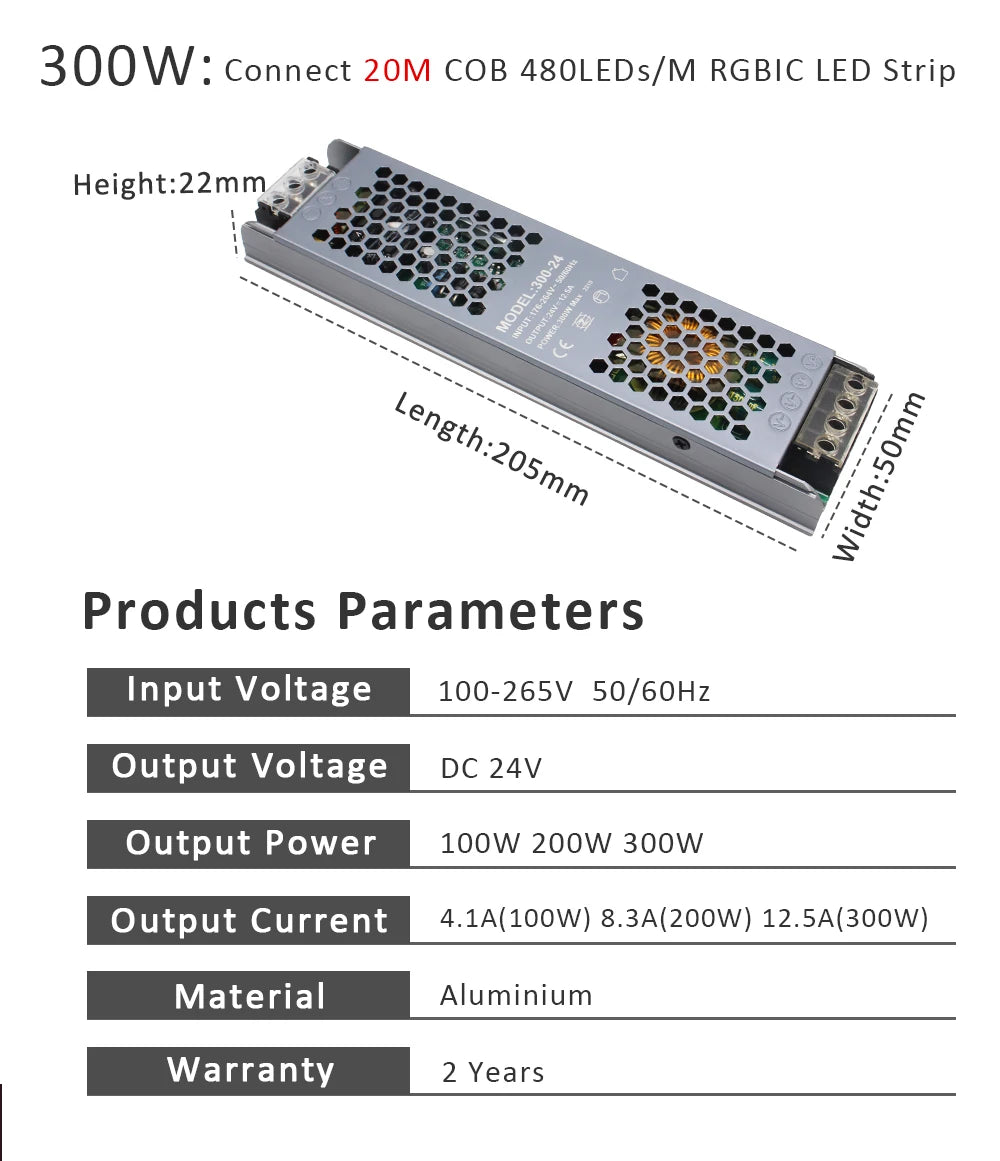

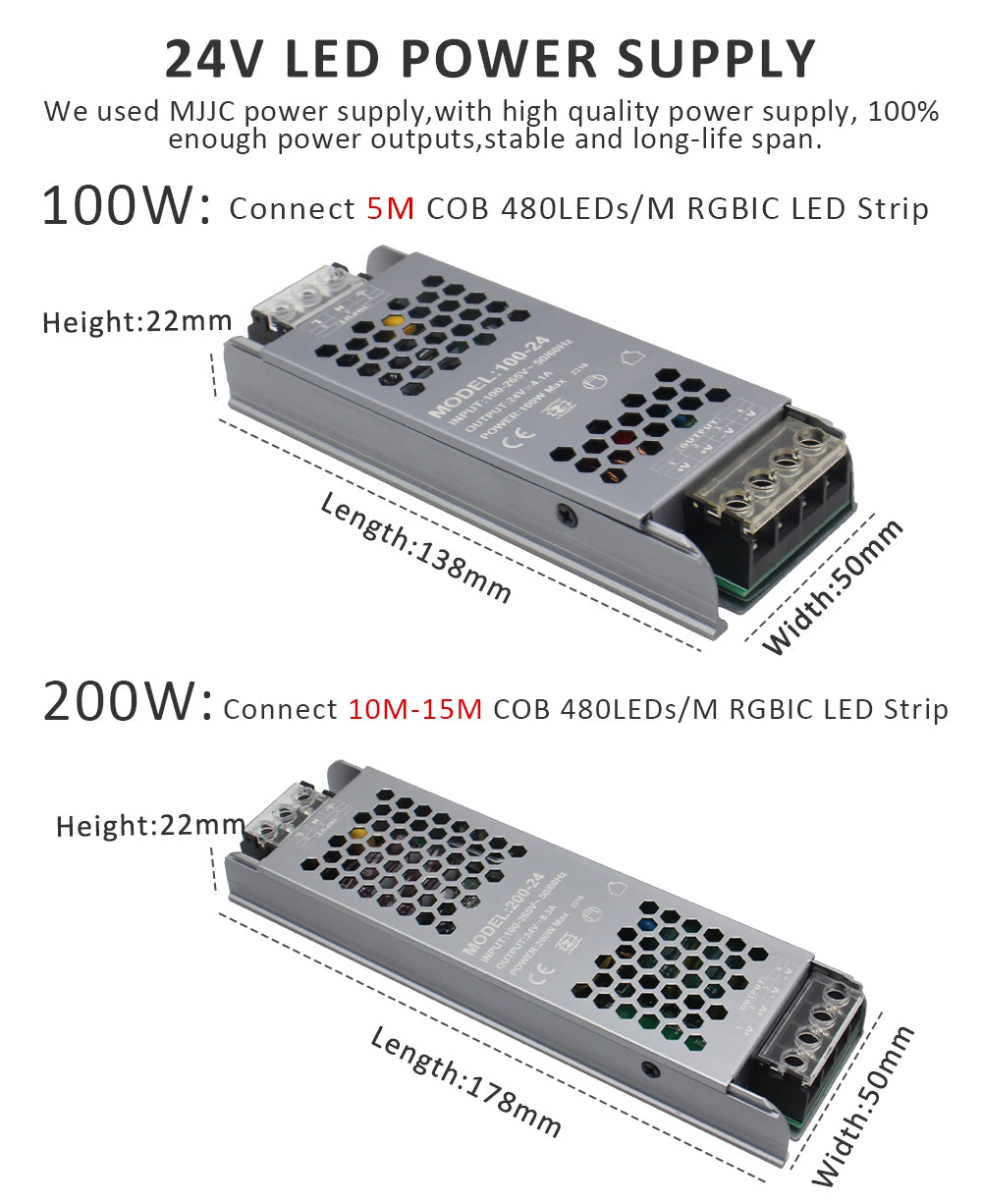

Power Supply
We used MJJC power supply,with high quality power supply, 100% enough power outputs,stable and long-life span.
The Power : 100W / 200W / 300W
Input Voltage: 100-265V AC, widely voltage used.
Output Voltage: DC 24V
How to choose the power supply ? we suggest.
1pc 100W power supply can used for 5M (Max.60W) 24V 480LEDs/m RGBIC Led Strip Lights.
1pc 200W power supply can used for 10M-15M (Max.120W-180W) 24V 480LEDs/m RGBIC Led Strip Lights.
1pc 300W power supply can used for 15M-20M (Max.120W-180W) 24V 480LEDs/m RGBIC Led Strip Lights.
IF your projects is more than 20m, we suggest you can add some extra power supply in another end of led strip, to avoide the voltage-drop, so that to keep the same birhgntess of the whole led strip.
● Note:
1. The each 5M/10M led strip with male female connectors and power cable, they can be connected together by male female connectors. so that the led strip looks like a straight line.

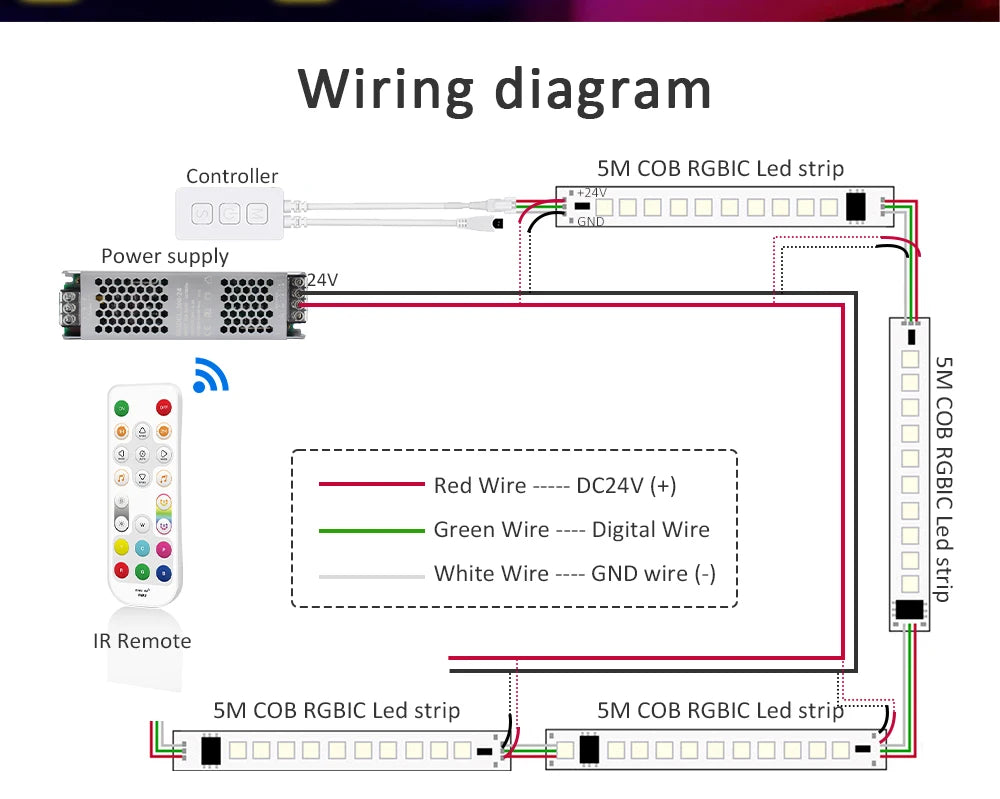

If you find the color or brightness are different from the beginning to the end when it is static mode, it maybe need to add extra power supply,make sure each roll led strip can be powered, so add a extension power cable from the led strip to power supply. The problem will be solved,there is detailed wiring diagram in this page.
2. If you find the color is not correct with the RF remote, please kindly enter the setting of BanlanX APP to set, which is not the quality problem.
3. Before searching the controller from APP,make sure open WiFi & Bluetooth at the same time.
