Features:

1.WS2811 horse running led strip is Low power consumption, Super-bright but running with low temperature
2.All the light spread and completely smooth, luminous very even
3.LED Type: 2835 LED Strip Light with IC Control 15 LED Chip,
4.Long Lifespan >50,000 hours
5.Certified by both RoHS / CE / UL588 tested approved.

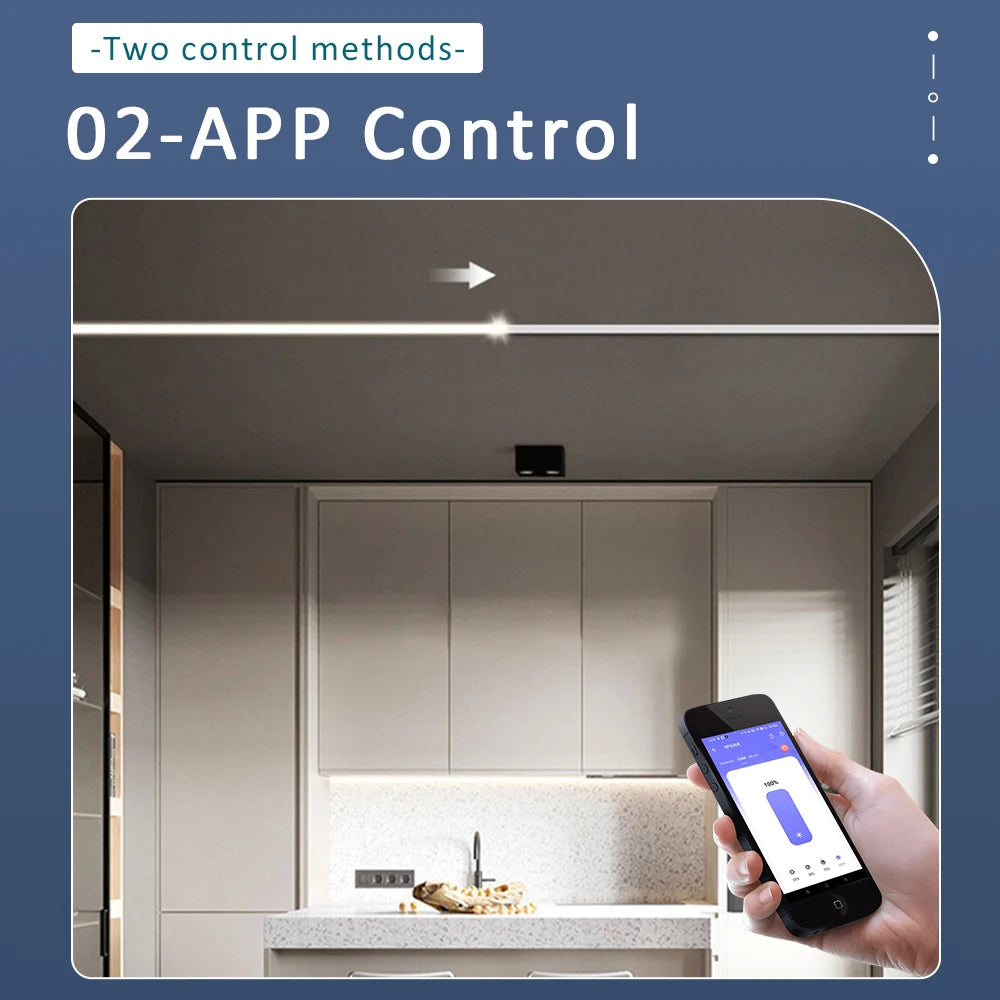

6."BanlanX" APP control and 2.4G remote control.
7. Sync and 4-Zone control independently.
8. With Timer ON/OFF function.

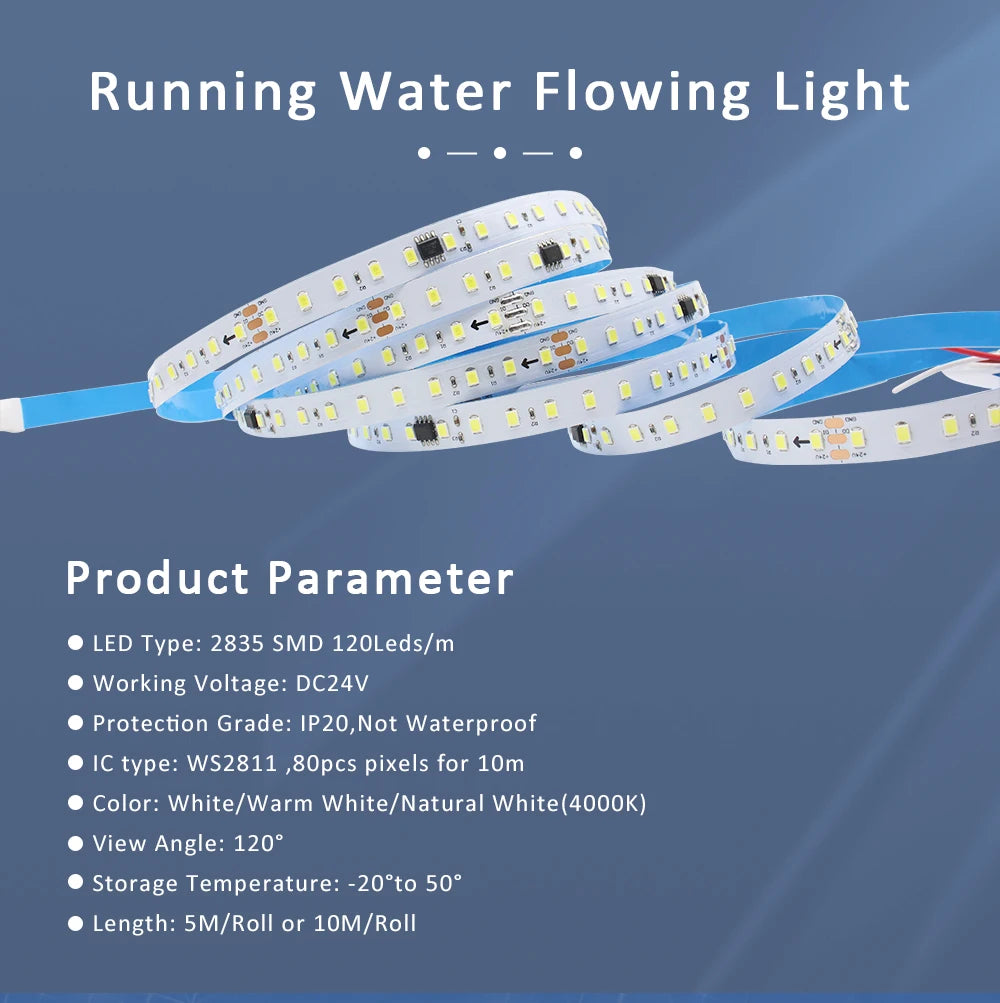

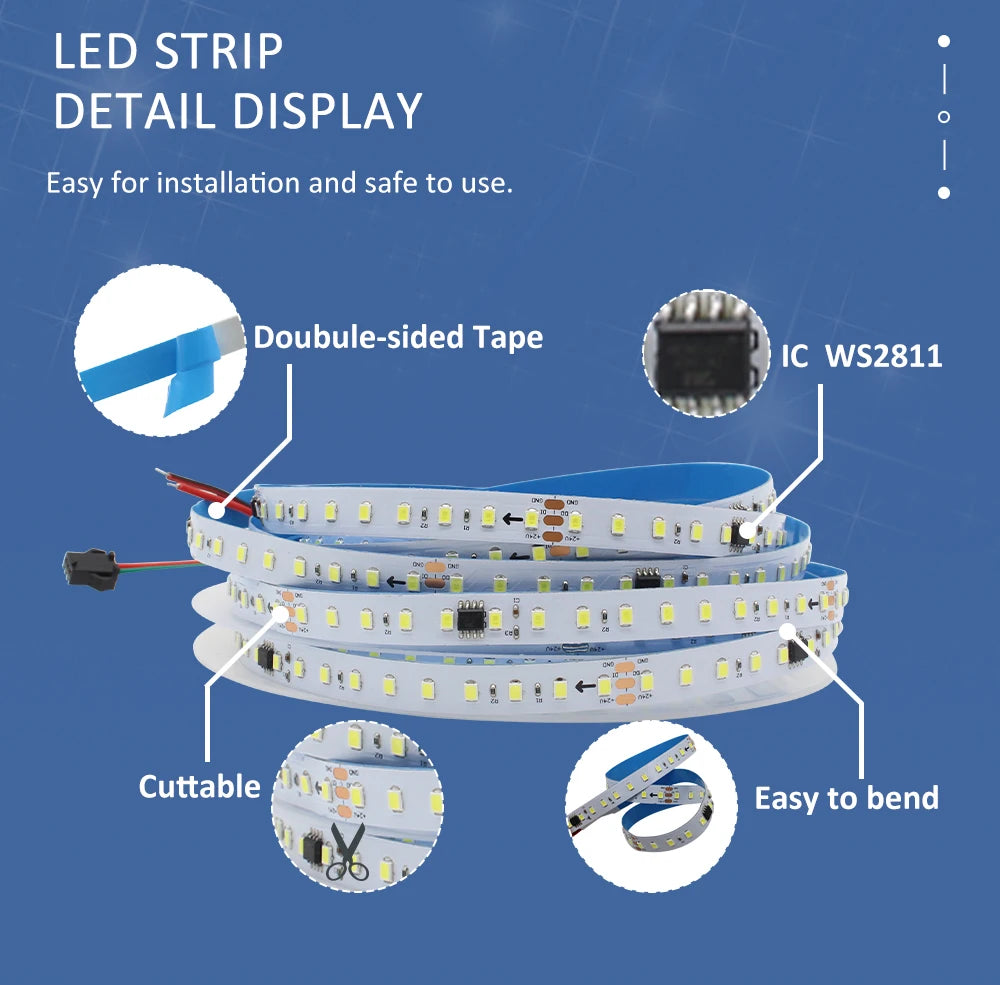

LED Strip Specifications:

LED Type: SMD2835
LED Qty per Meter: 120Leds/m
Power: 6-8W/M
PCB Width: 10MM (We use better quality 10MM PCB, Others use cheaper 8mm PCB)
Working Voltage: 24V DC
Protection Grade: IP20,Not Waterproof

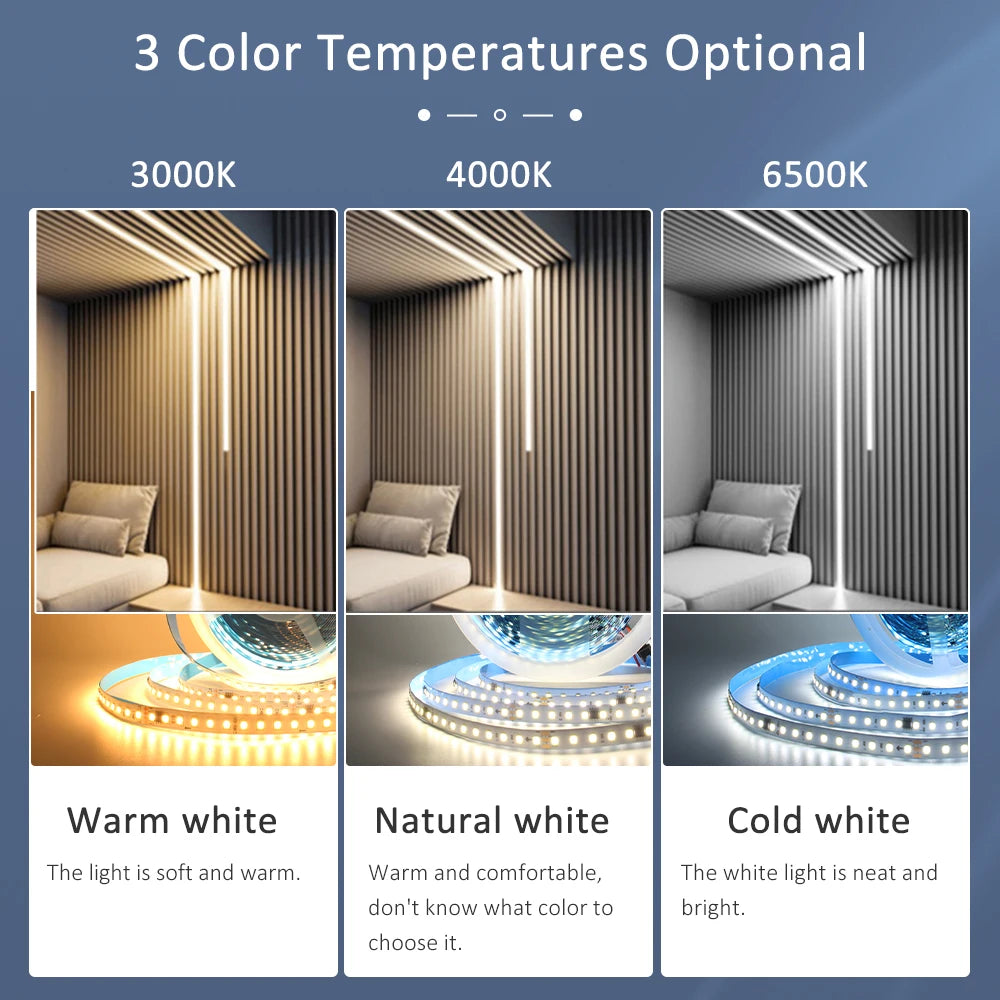

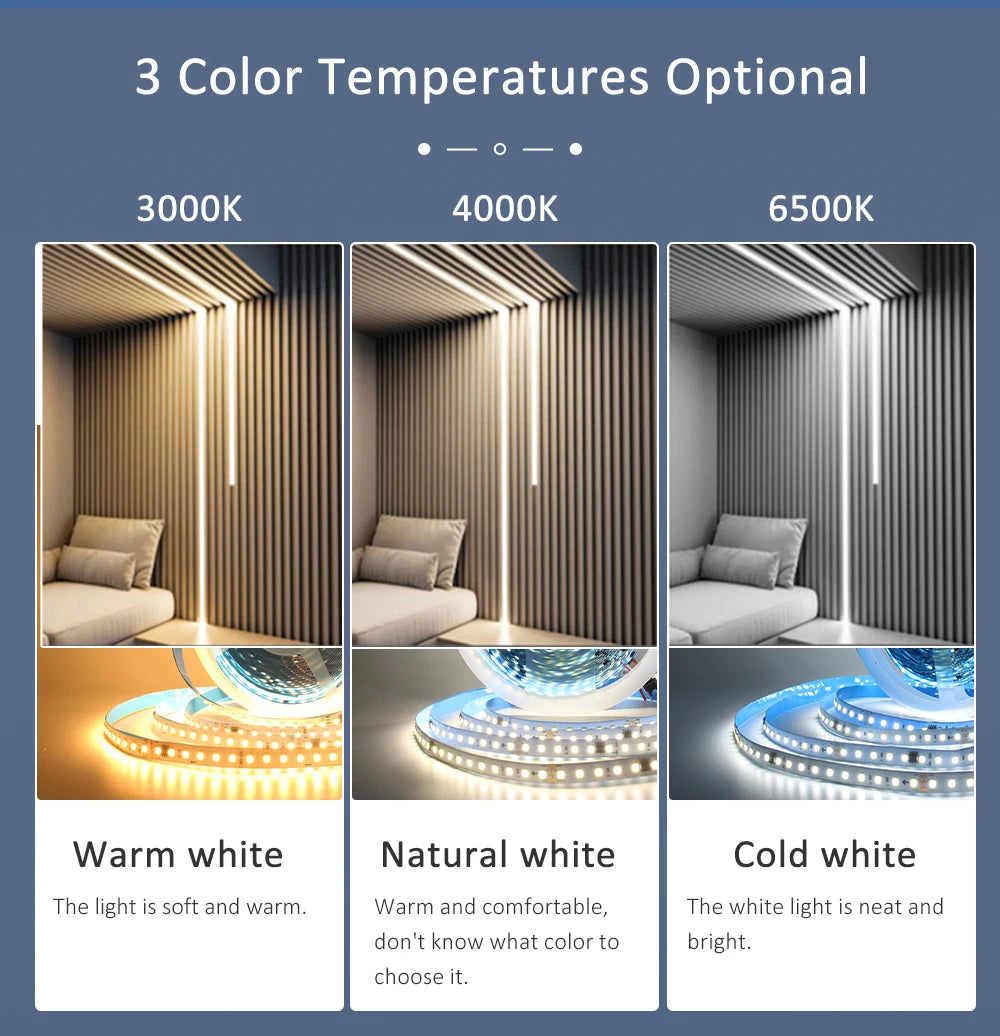

Color: Cool White 6000-6500K/Warm White 3000-3200K/Natrual White(4000K)
Control IC: WS2811, 80 IC for 10M
Viewing Angle: 120°
Storage Temperature: -20°to 50°
Size ( L X W X H ): 5000/10000 x 10 x 2.5 mm

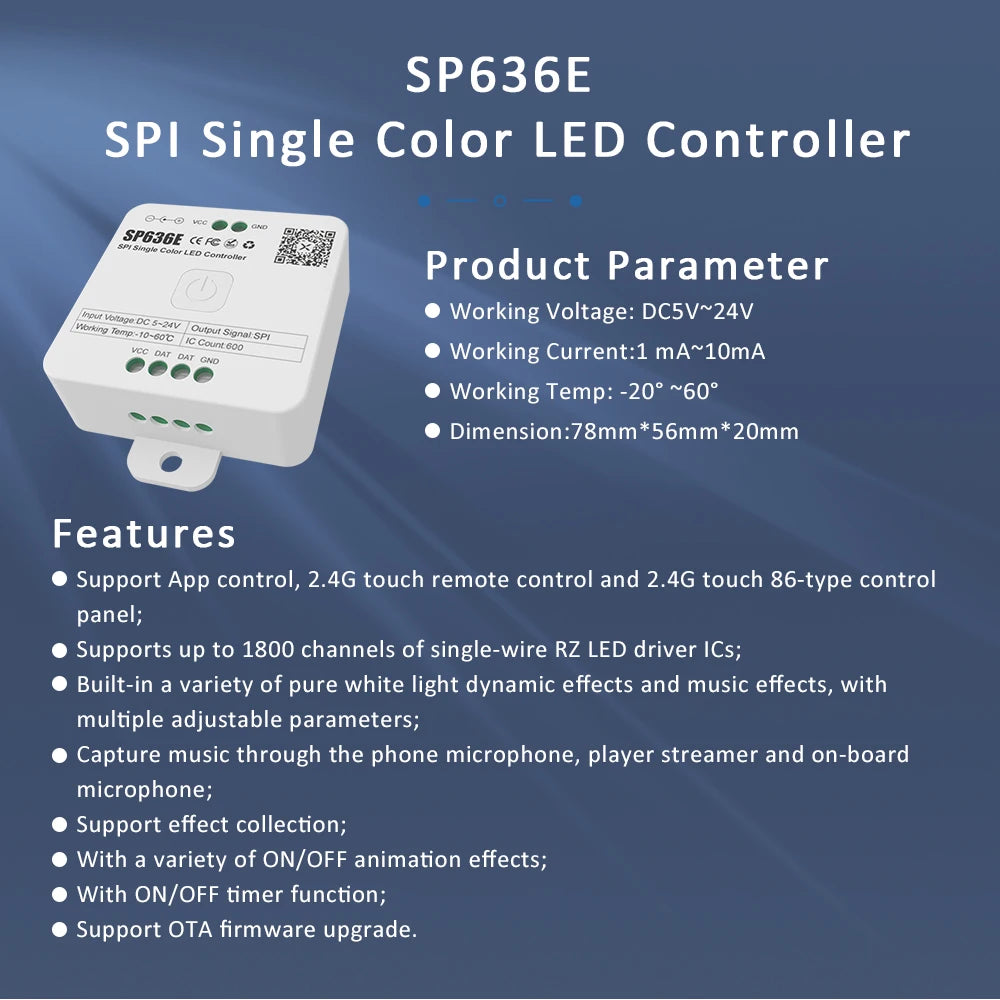

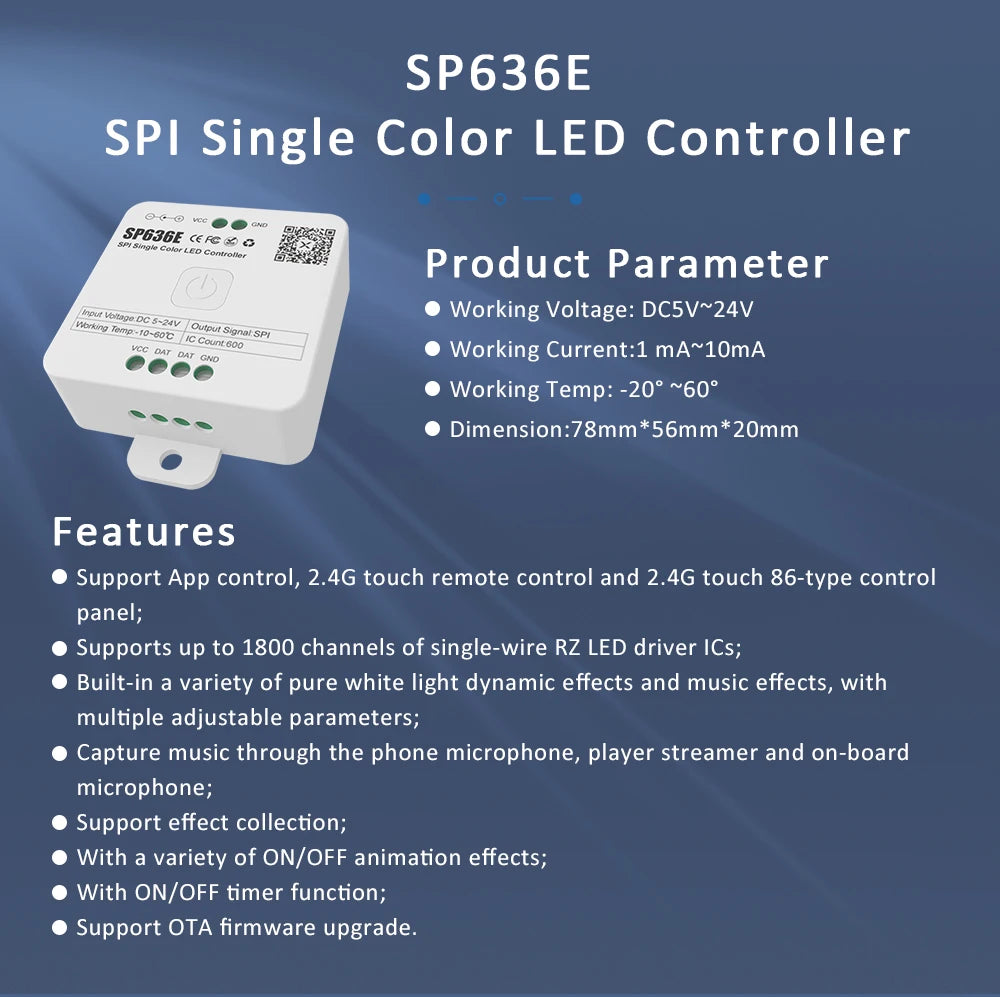

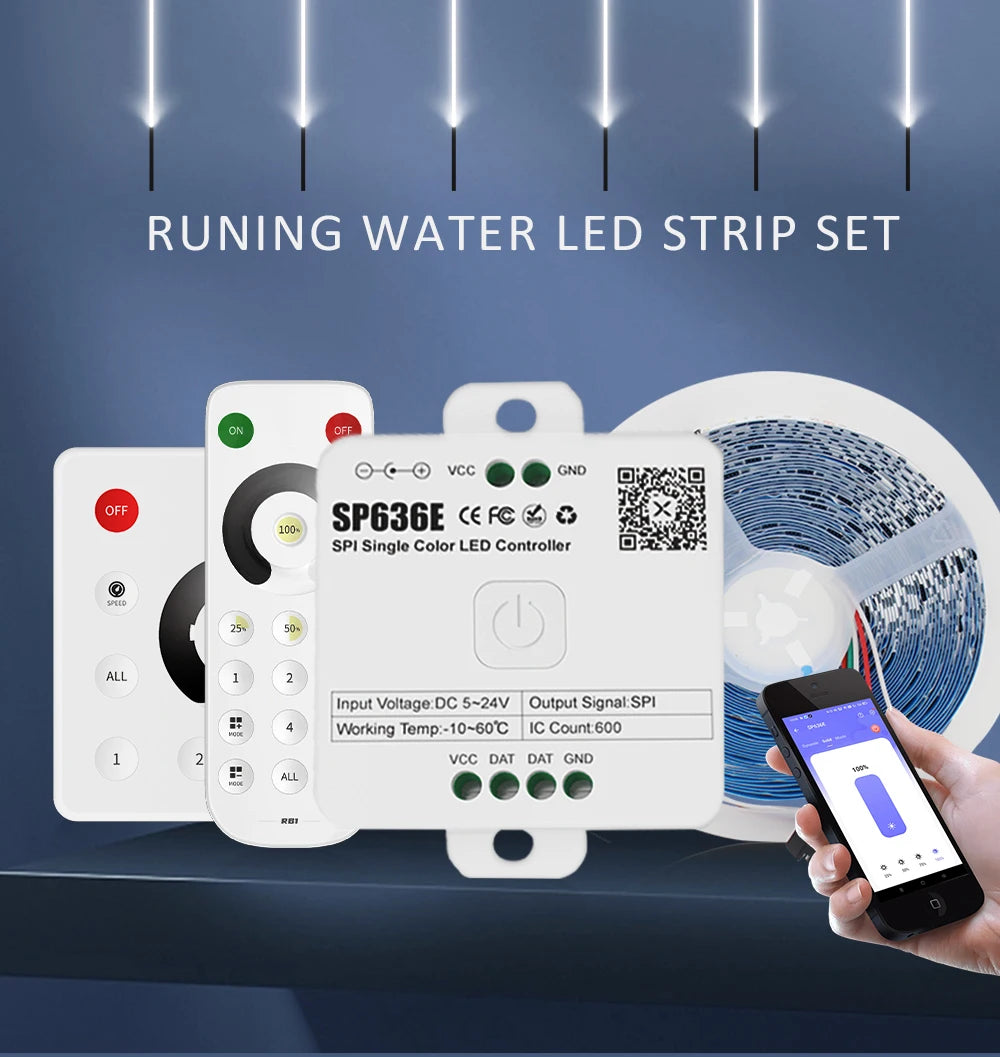

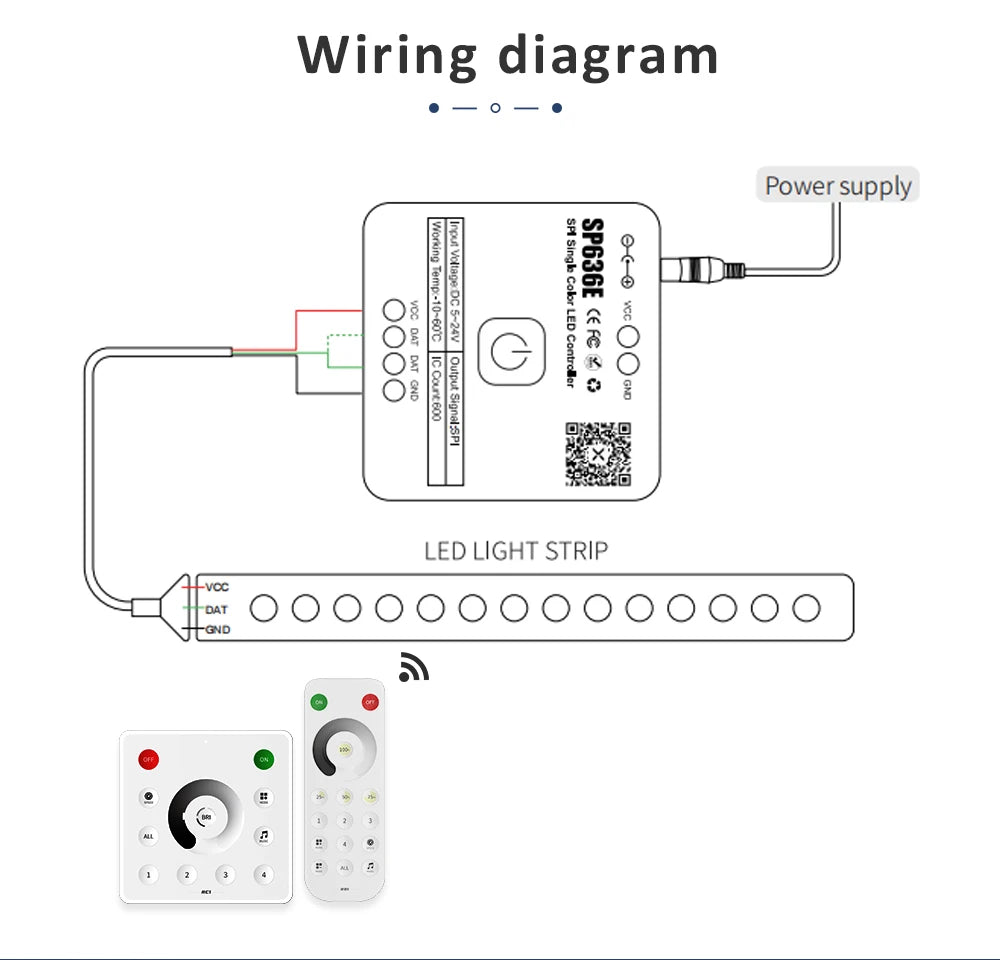

SP636E LED Pixel Controller with RB1/RC1 Remote:

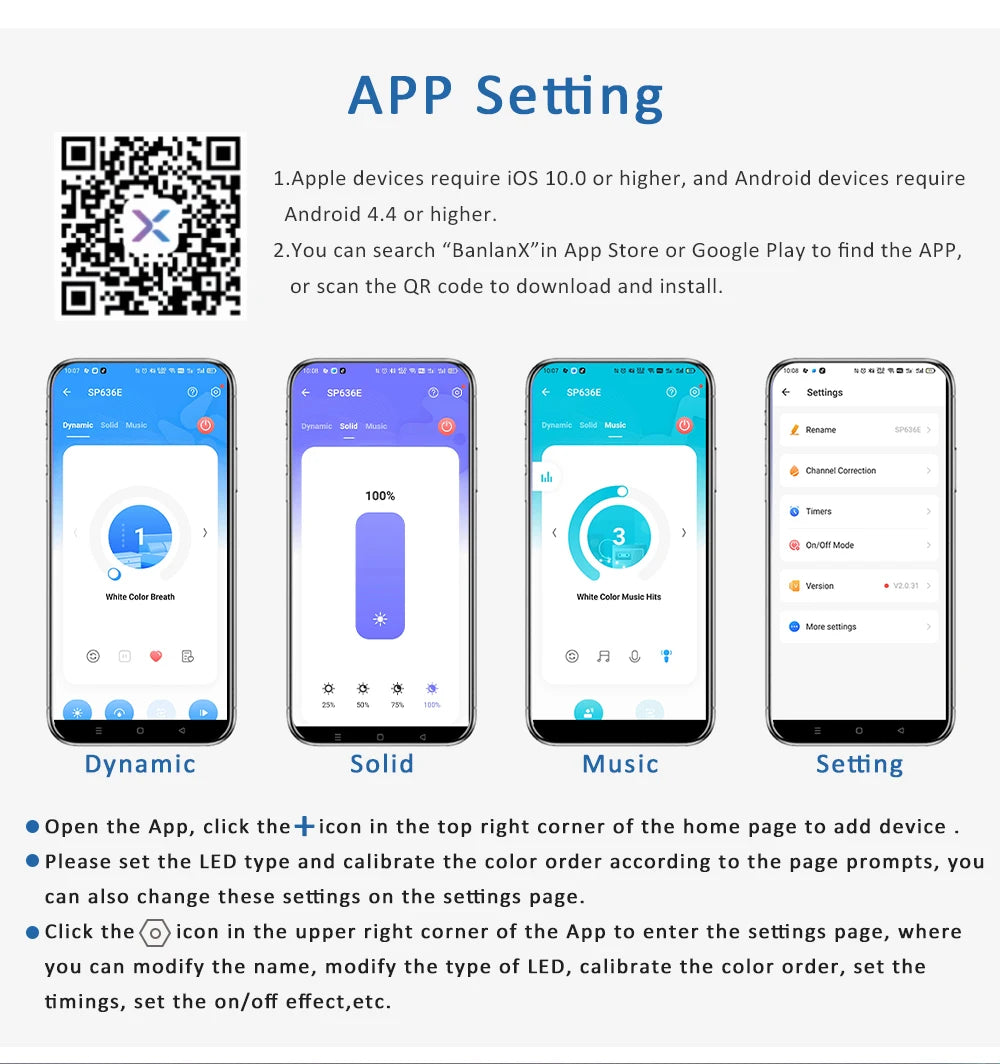

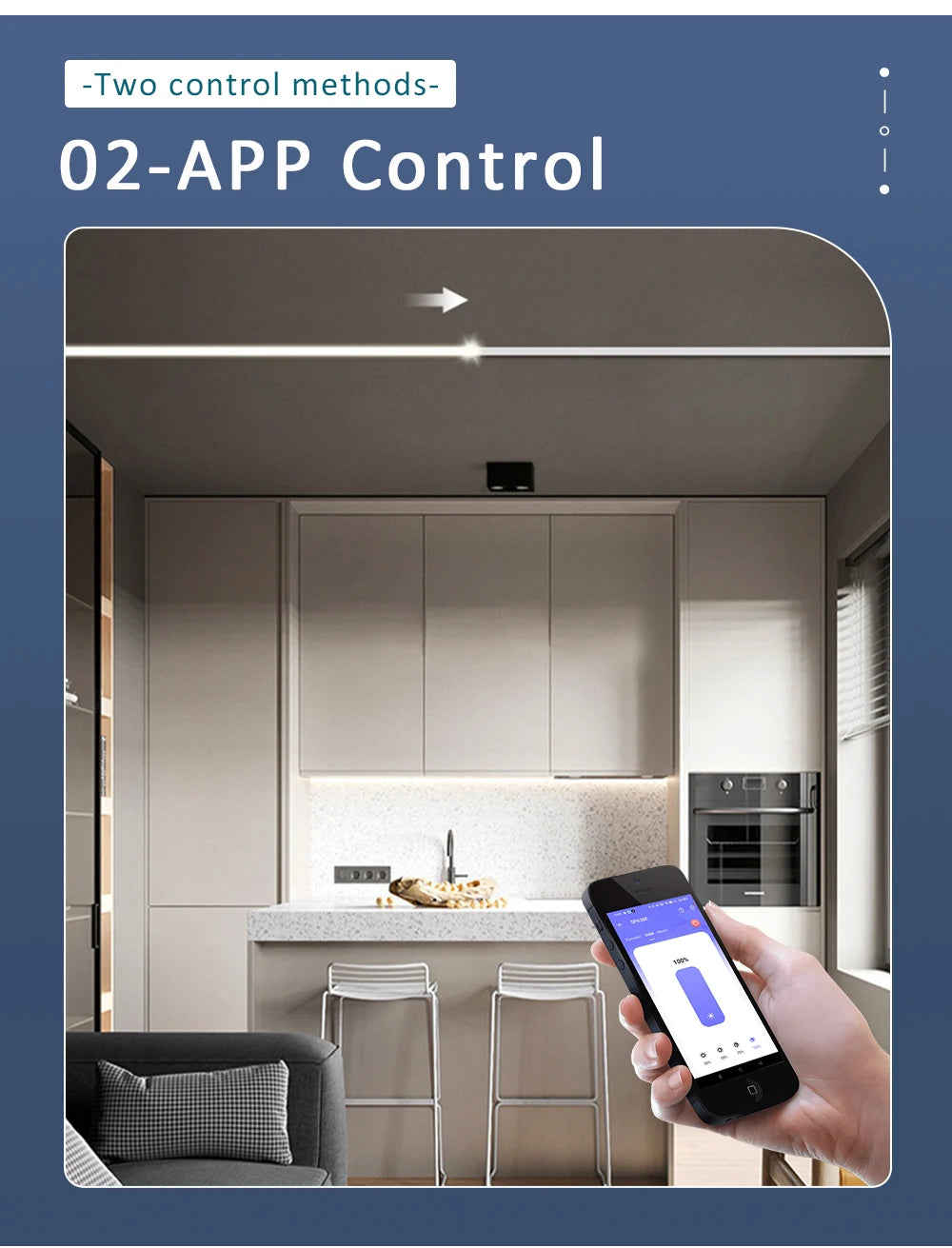

1. Support "BanlanX" APP control,2.4G touch remote control(RB1) and 2.4G touch 86-type control panel(RC1).
2. Max control 600 Pixels(IC)
3. Speed/Brightness is adjustable

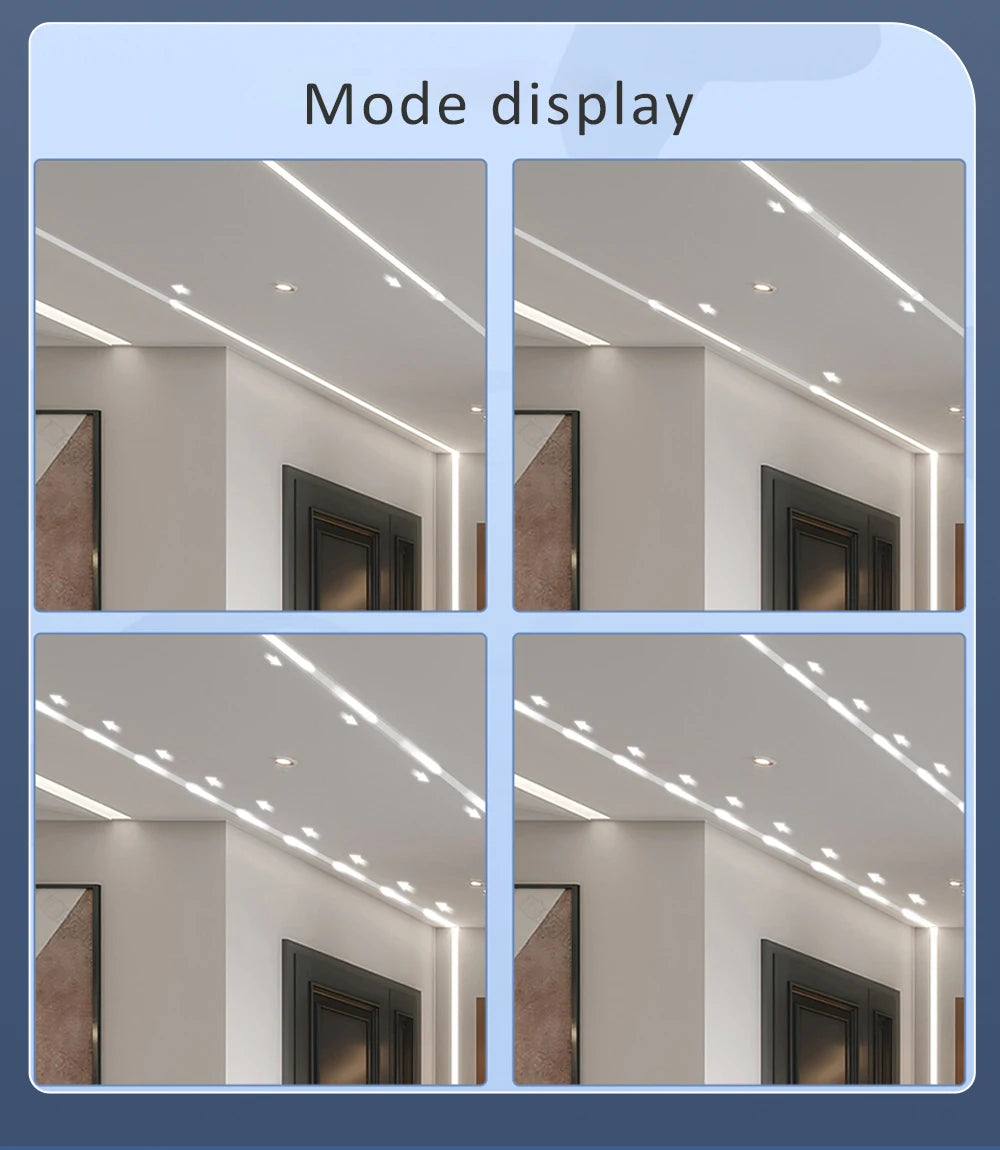

4. Built-in a variety of pure white light dynamic effects and music effects,with multiple adjustable parameters.
5. Capture music through the phone microphone, player streamer and on-board microphone.
6. Support effect collection
7. With a variety of ON/OFF animation effects
8. With ON/OFF timer function
9. Support OTA firmware upgrade.
10.Mini size: 78*56*20mm,with colorful wholesale package.

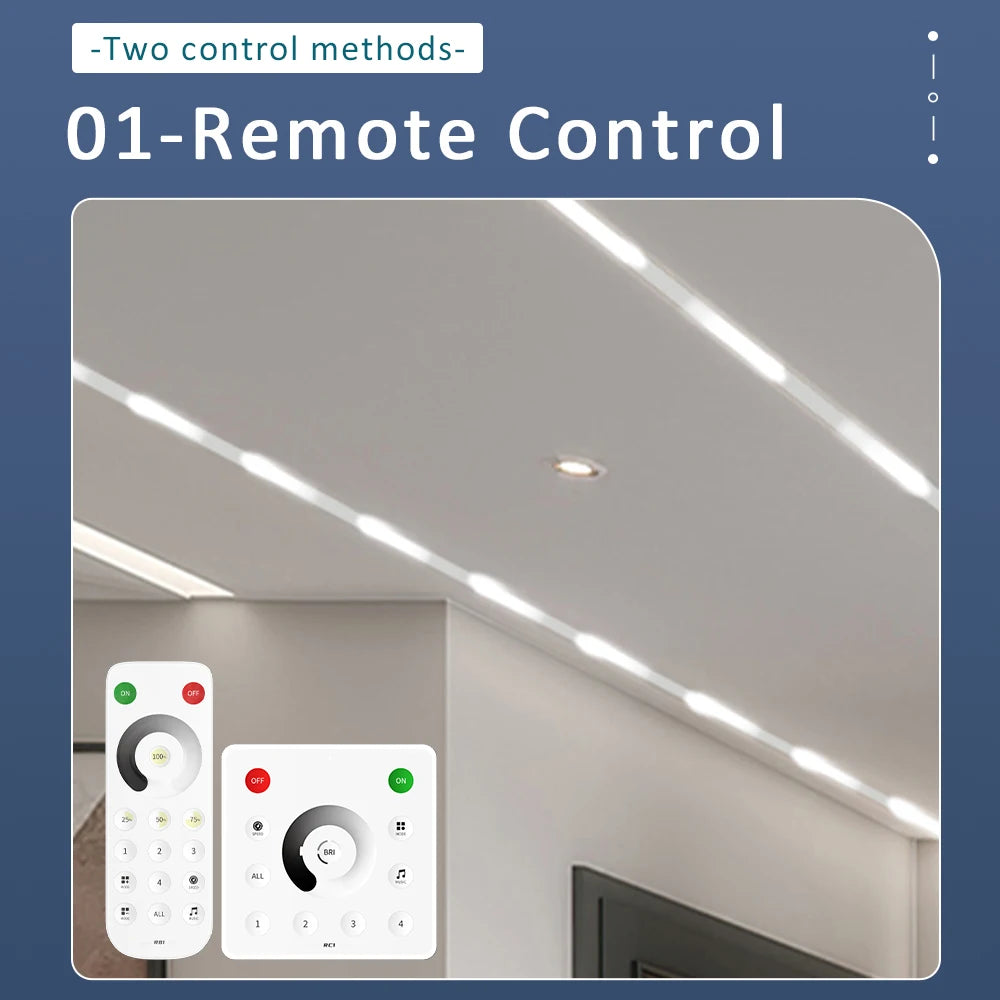

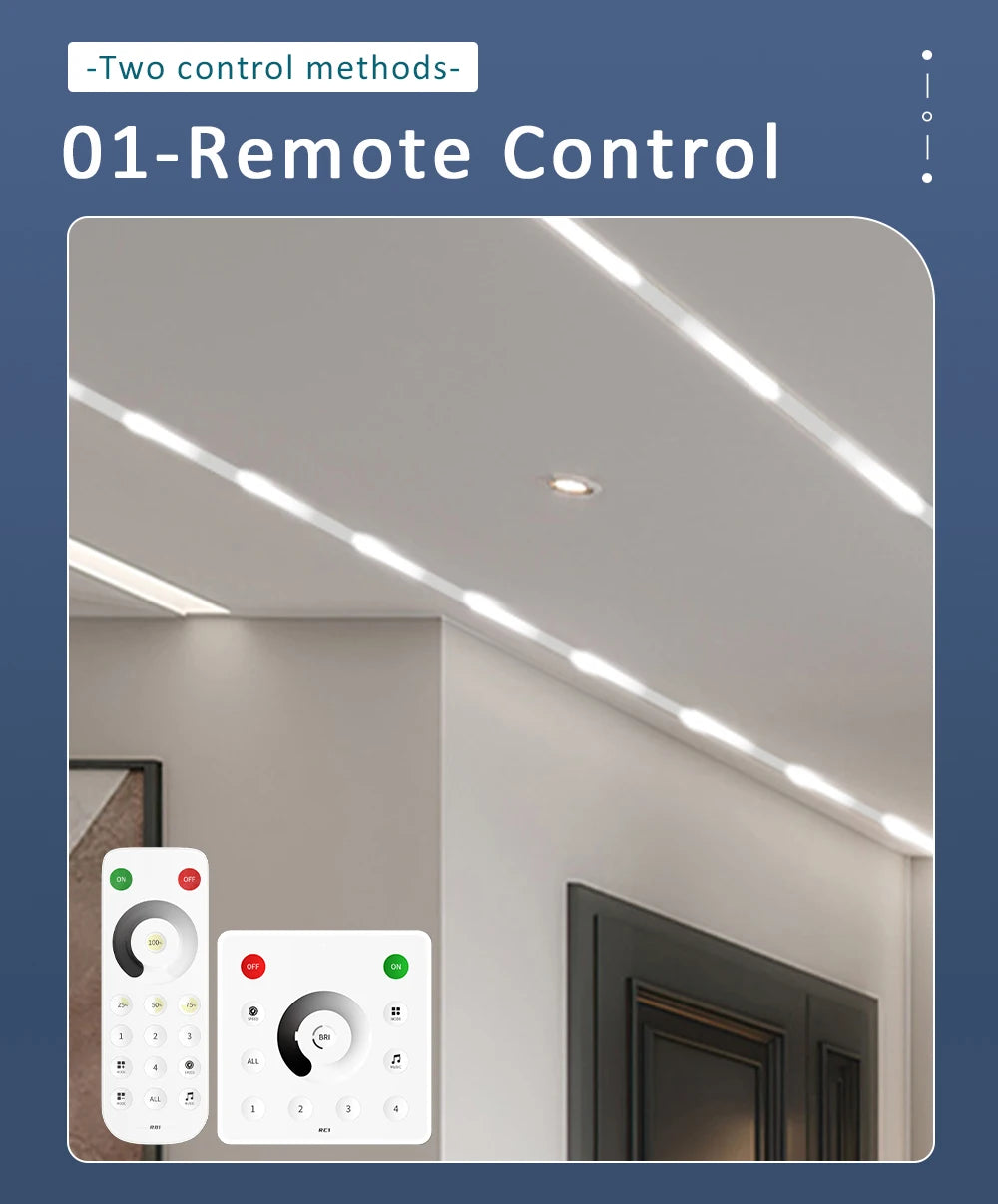

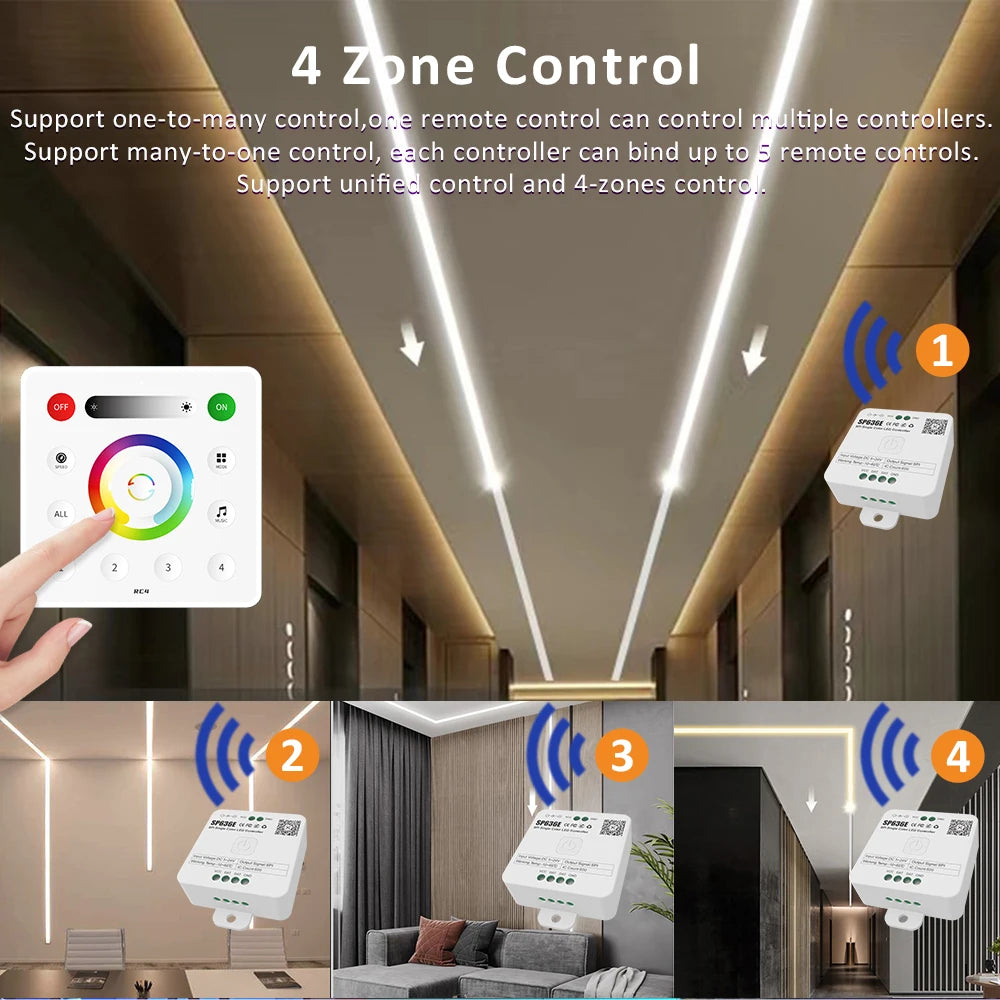

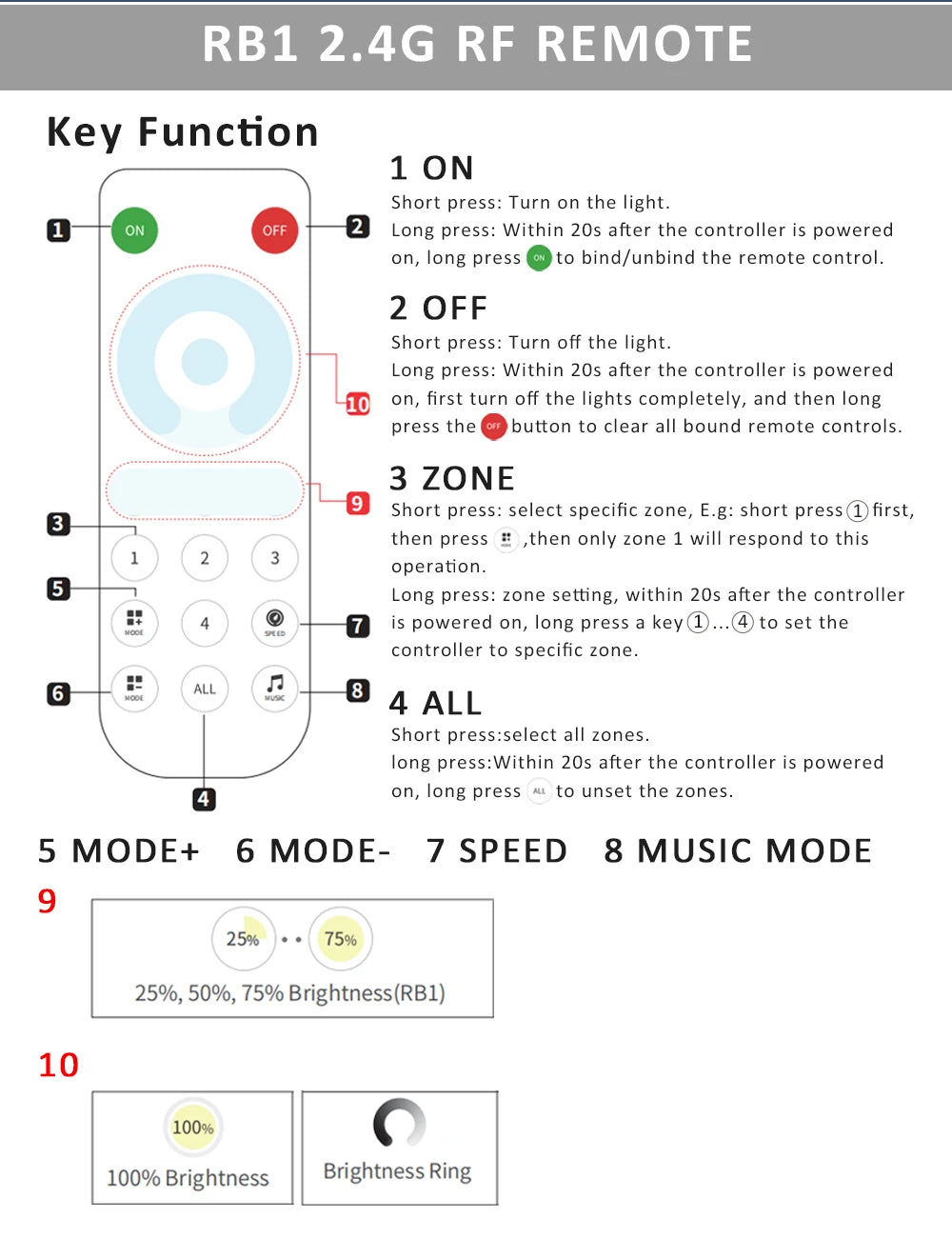

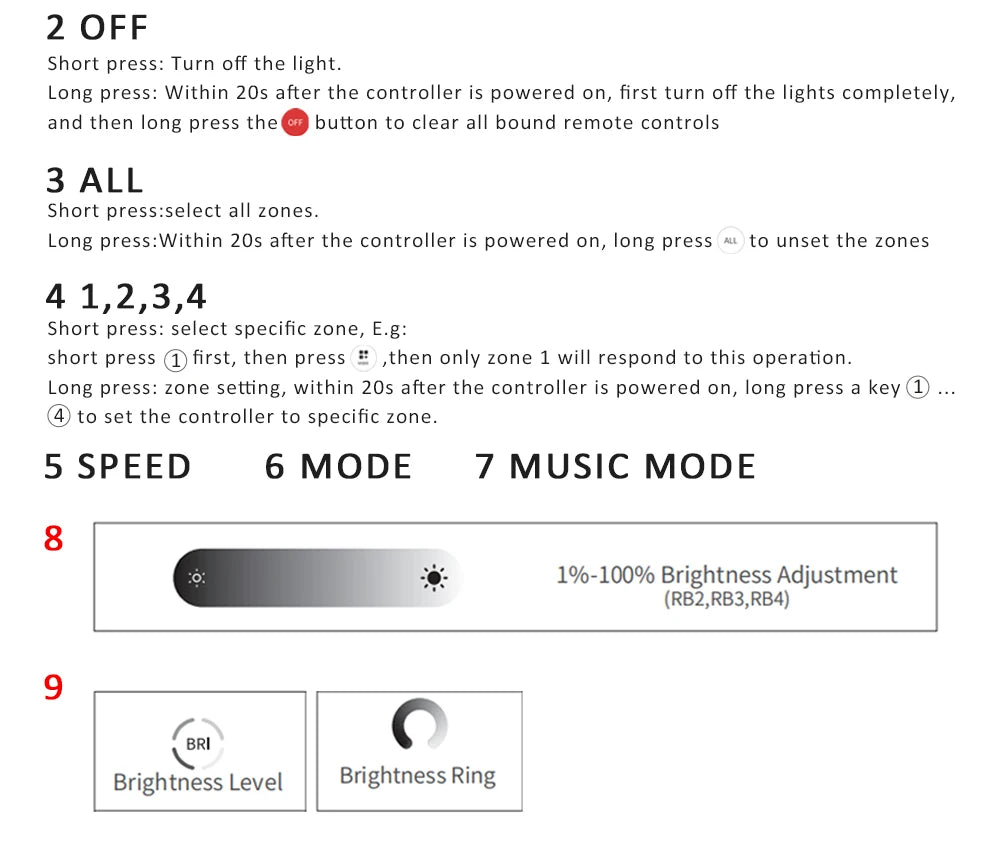

Work with 2.4G Touch Remote Control:

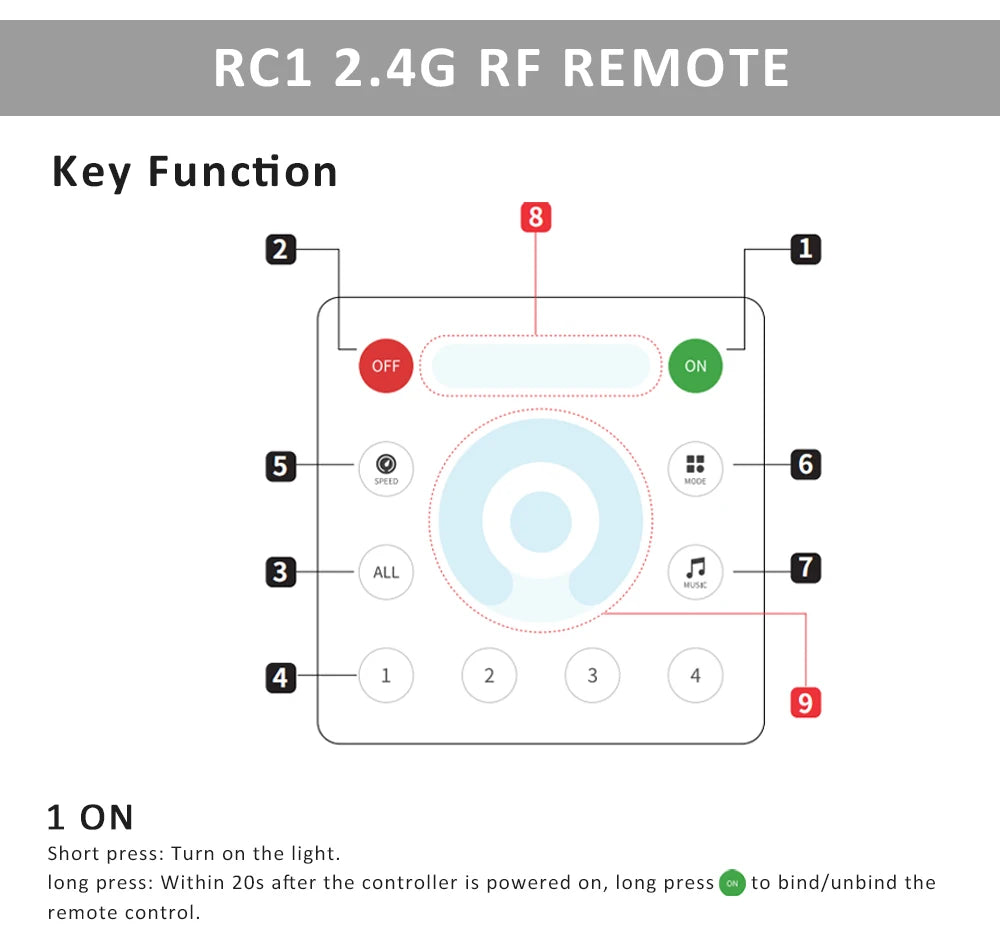

The SP636E controller work with RB1 and RC1 2.4G touch remote control

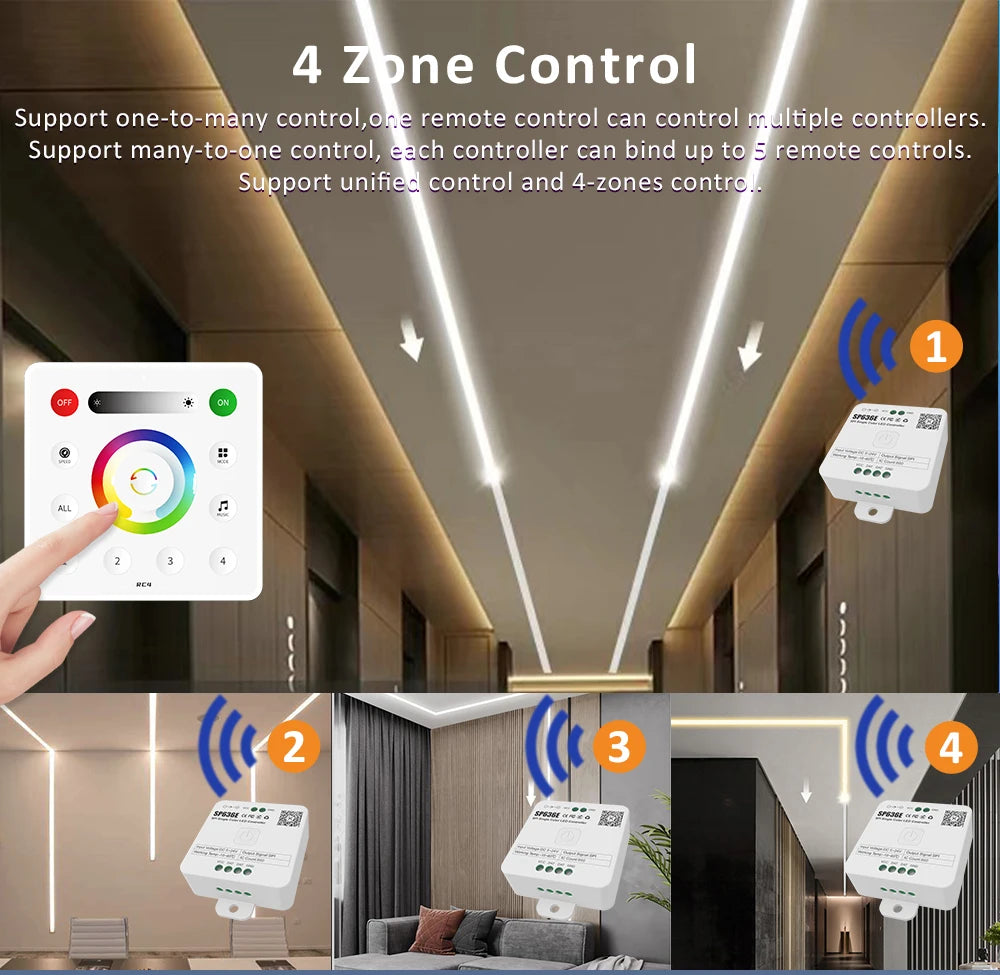

1. Support one-to-many control, one remote control can control multiple controllers,sync or independently.
2. Support many-to-one control,each Sp636E controller can be set up to max 5 remote controls.
3. Support Sync control and 4-Zones control independently. (such as 4 rooms, 4 different effects)
4. With Double-side tape on the back,easy to install at anywhere

Power Supply:

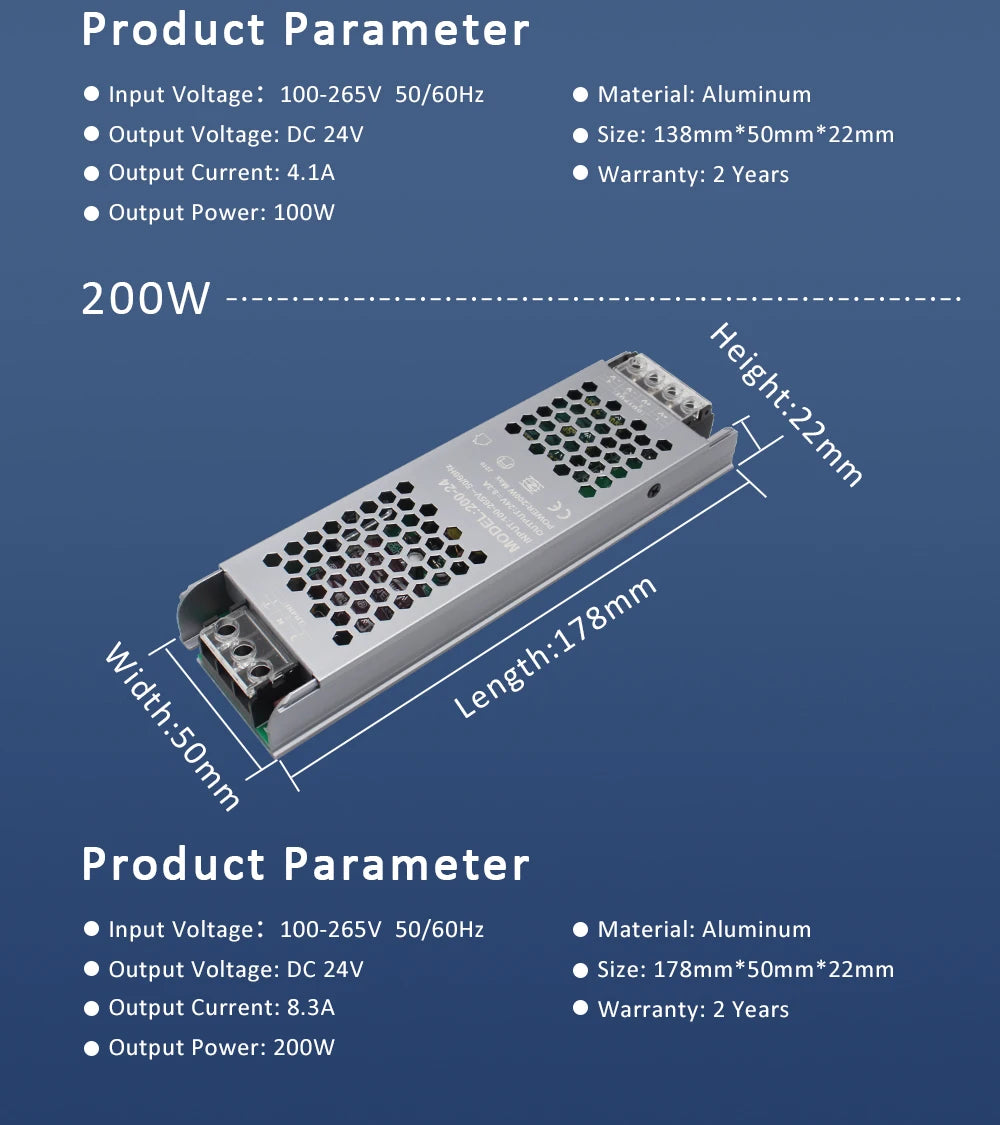

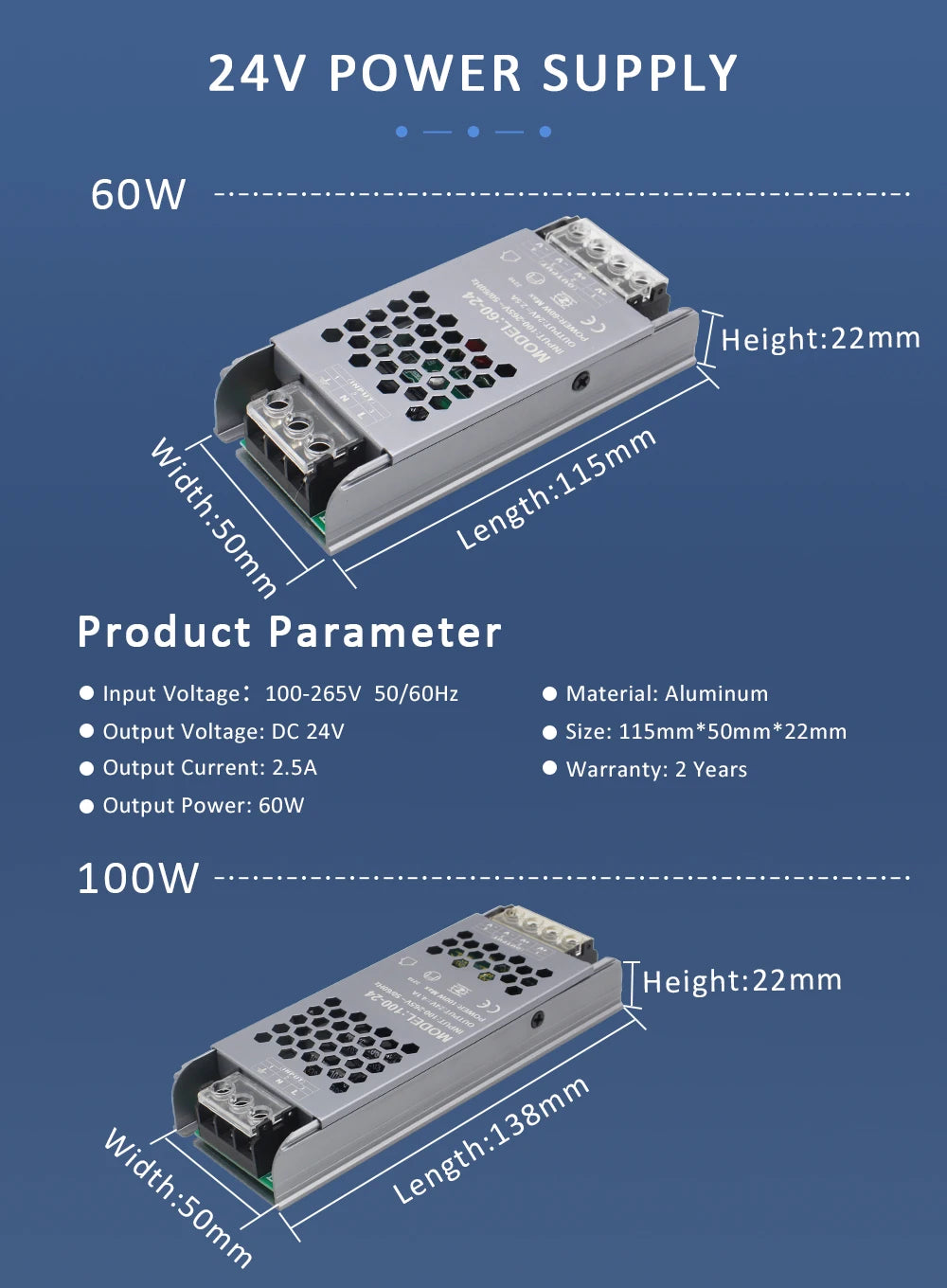

We used high quality DC 24V 60W -200W LED power supply,100% real power output. 1pc DC24V power supply can drive max 20 meters WS2811 horse running pixel led strip.

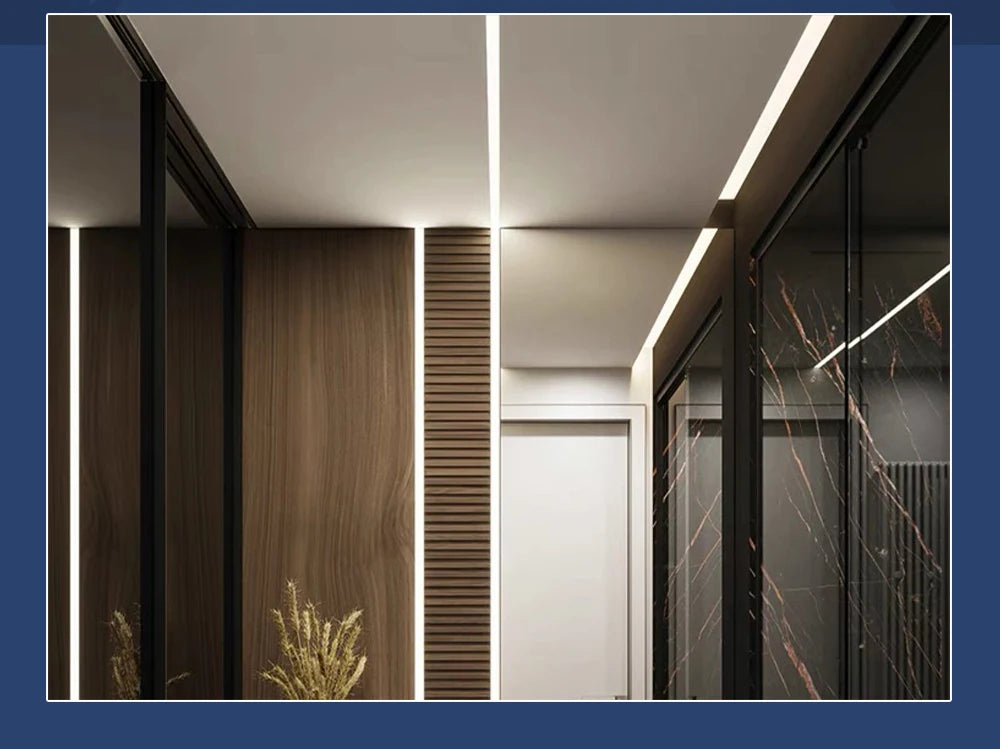

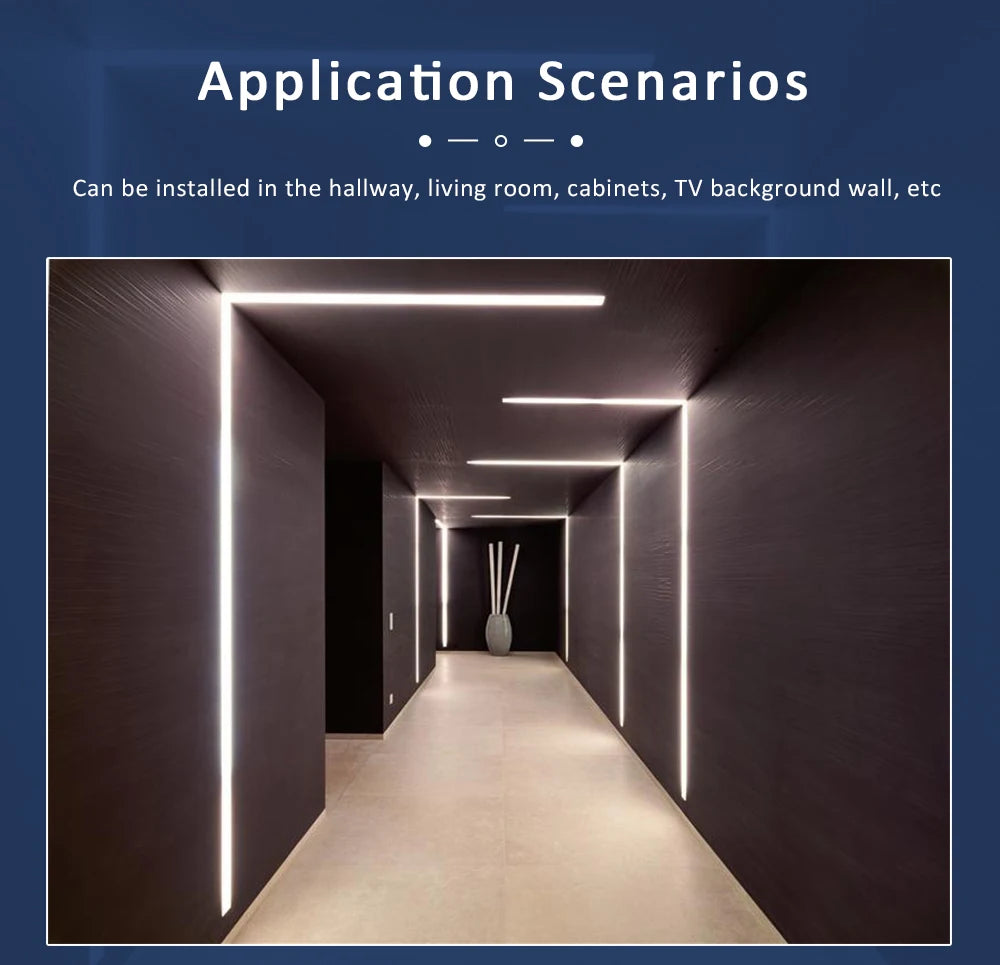

Application

Making led screen,Rooms Staris Flashion Show.led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,the city lighting project, entertainment and leisure places lighting.

Package Including:

SP636E Controller Only = 1 X SP636E controller (Not with led strip,remote and power supply)
LED strip Only = 24V 2811 led strip (Not with controller,remote and power supply)

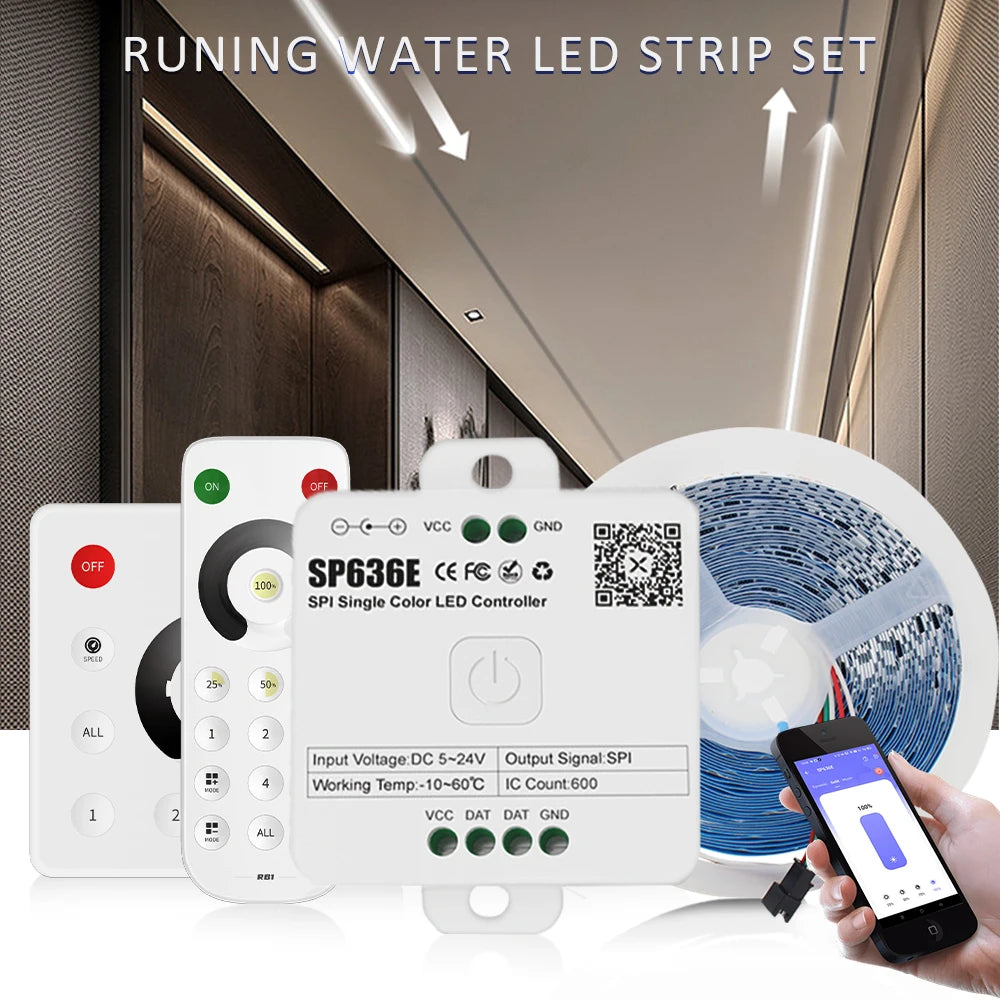

SP636E RB1/RC1 Full Set = SP636E Controller +RB1/RC1 Remote + 24V Led Strip + 24V Power Supply

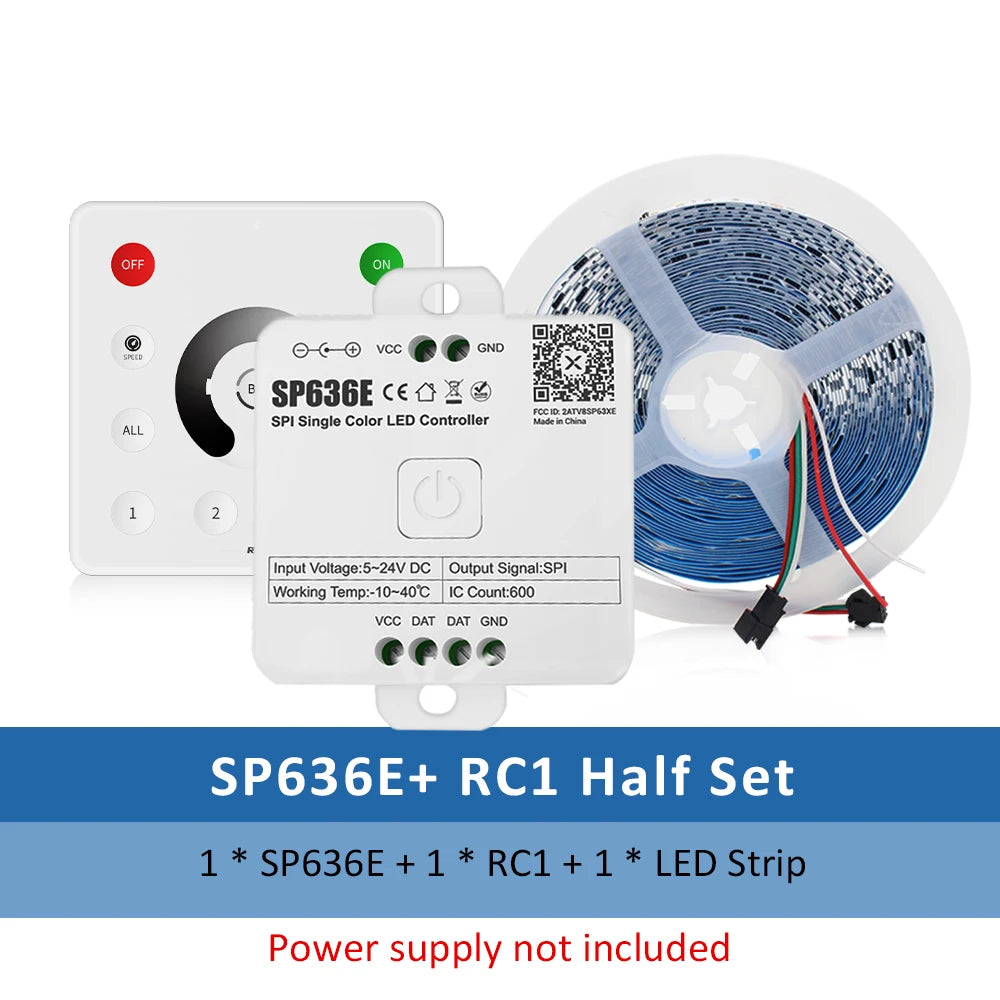

SP636E RB1/RC1 Half Set = SP636E Controller +RB1/RC1 Remote + 24V Led Strip （Not with power supply)
SP636E Strip Power Set = SP636E Controller + 24V Led Strip + 24V Power Supply (Not with Remote)
The RB1/RC1 Remote is not with battery.
