Most VR headsets still rely on lens designs that trace back decades, but a shift is underway. The bulk that sits between your eyes and the display is shrinking, and pancake lenses are the reason why. They don't change the image you see so much as how far that image has to travel before it reaches you.
If you've picked up a recent slim headset — or even just wondered why some models manage to look less like a brick strapped to your face — the explanation lives in a folded light path. The Tidesmit 4K VR Headset with 42mm Pancake Lens for Immersive Gaming is one of the consumer devices that puts this approach to work, and it's a useful reference point for understanding what pancake optics actually do.
What Are Pancake Lenses in VR?
Pancake lenses are catadioptric optics — they combine refraction and reflection to fold the light path back on itself, drastically reducing the distance needed between the display and the lens. The concept dates back to a 1978 SPIE paper, "The Holographic Pancake Window" by LaRussa and Gill, which laid out the folded-path principle that modern VR headsets would later refine.
In practice, this means a headset can be noticeably thinner without sacrificing focal length. Several recent headsets use pancake lenses: the Meta Quest 3, Pico 4 Ultra, Bigscreen Beyond, and Apple Vision Pro all rely on the technology. The Tidesmit 4K VR headset joins that list with a 42mm pancake lens, bringing the design into a gaming-focused consumer device. The 42mm dimension refers to the lens diameter, not the optical module thickness — a distinction that matters when you're comparing slimness across models.
How Pancake Optics Work
The core trick is a folded light path. Light from the display bounces multiple times between partial mirrors and polarizing films before reaching your eye, which lets the optical system achieve a long focal length inside a compact module. According to TRIOPTICS, pancake lens modules for VR typically sit in the 17–21mm range, while the lens itself can be placed less than 1mm from the display. That's a dramatic reduction from the 50mm-plus distance Fresnel designs require.
Aspherical surfaces and polarization elements do the heavy lifting on image quality. The aspherical shaping corrects for spherical aberration, and the polarizing films manage which light passes through and which gets reflected — keeping the image path clean. Geometric distortion can be held under 2% in well-designed pancake systems, which is a meaningful improvement over the pincushion distortion Fresnel lenses often produce.
There's a significant trade-off, though. Pancake lenses are inefficient with light. The multiple reflections and polarization layers mean only 10–25% of the display's brightness actually reaches your eye. That's why headsets using pancake optics need exceptionally bright displays — somewhere between 1,000 and 5,000 nits — to deliver a usable image. The inefficiency also increases power draw, which can reduce battery life by 20–30% compared to simpler lens designs.
Research is pushing against these limits. In 2024, a team at the University of Central Florida demonstrated a Faraday rotator prototype that achieved 93.2% optical efficiency — a massive leap from the conventional 10–25% range. The Tidesmit headset doesn't use this technology, but the prototype shows where the industry is heading. Higher efficiency would mean brighter images with less power, solving one of pancake optics' most stubborn problems.
Pancake Lenses vs. Fresnel Lenses
Stacking pancake and Fresnel lenses side by side reveals a clear split in design philosophy. Fresnel lenses use concentric rings to compress the lens profile, but they still need the display to sit far back — more than 50mm. Pancake lenses fold the light path, so the lens can sit under 1mm from the display. That single difference explains why pancake-equipped headsets can be 40–66% thinner.
The image quality differences are just as stark. Pancake lenses virtually eliminate chromatic aberration, which means no color fringing at the edges of your view. Fresnel designs, by contrast, show severe color fringing that software can only partially correct. God rays — those characteristic streaks of light radiating from bright objects in dark scenes — are a direct result of the concentric ridges in Fresnel lenses. Pancake optics avoid them entirely.
| Lens Type | Optical Design | Typical FOV | Thickness | Light Efficiency | Key Trade-offs |
|---|---|---|---|---|---|
| Pancake | Catadioptric folded path with polarizers | Up to 110° horizontal (varies by headset) | Module: 17–21mm; lens to display: under 1mm | 10–25% | Requires bright displays (1,000–5,000 nits); complex manufacturing; higher cost per module |
| Fresnel | Concentric ring refractive lens | Comparable (varies by design) | Lens to display: over 50mm | Higher than pancake | God rays and pincushion distortion; chromatic aberration; sensitive to stray light; bulkier overall headset |
Cost tells its own story. Consumer pancake modules launched at around $30–40, while complete Fresnel assemblies ran $20–50. That's a moderate gap at the consumer level. But professional-grade pancake modules can cost roughly $1,300 per eye, which puts a ceiling on where the technology shows up. The Tidesmit headset sits at the consumer end of that spectrum, making the pancake lens a practical feature rather than a premium one.
Challenges and Limitations of Pancake Lenses
The biggest practical limitation is light efficiency. When only 10–25% of the display's output reaches your eye, the rest becomes heat and wasted battery. The 20–30% reduction in battery life that comes with this isn't a small inconvenience — it's the difference between a two-hour session and one that cuts out awkwardly early. Headset makers compensate with brighter displays, but that's a trade, not a fix.
Ghost images are a subtler problem. Partial reflections within the lens stack can create faint duplicate images that reduce effective contrast, especially in high-contrast scenes. A 2024 analysis in Optics Express detailed how these ghost images arise from alignment errors and internal reflections, and managing them requires exceptionally precise geometric positioning of every component. The manufacturing difficulty is real — TRIOPTICS notes that the alignment and testing process for pancake optics is significantly more demanding than for simpler lens designs.
Haze adds another layer of complexity. Unwanted reflections on the wrong surfaces can scatter light across the image, reducing contrast and clarity. The optical precision needed to suppress these reflections is high, and it's part of why professional-grade pancake modules remain so expensive. Consumer versions have brought costs down, but the design is inherently less forgiving than a Fresnel lens. Every surface matters.

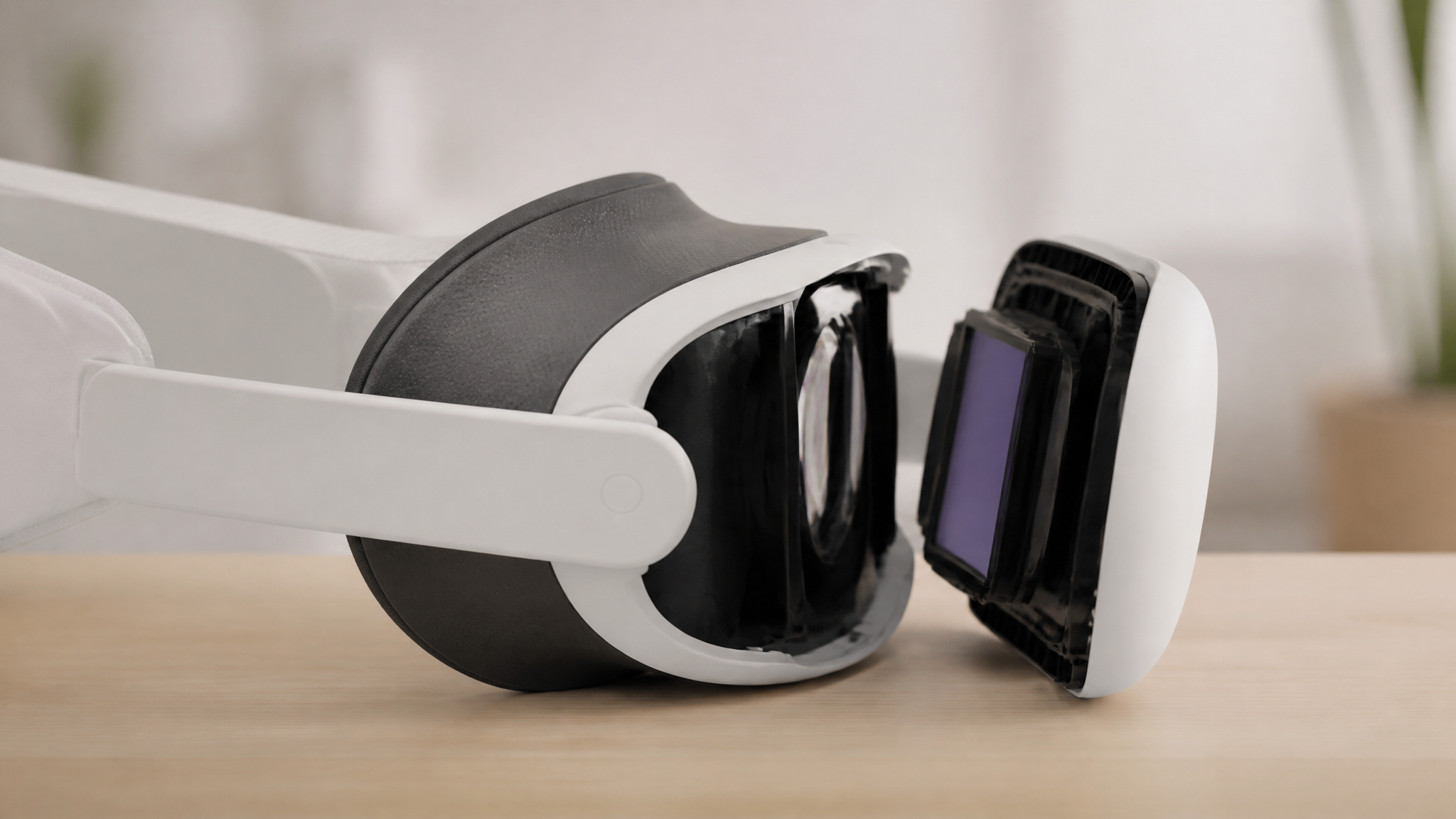

Pancake Lenses in Action: The Tidesmit 4K VR Headset
The Tidesmit 4K VR headset is a gaming-focused device that uses a 42mm pancake lens to reduce bulk — a practical example of the technology in a consumer package. The 4K resolution, combined with pancake optics, can deliver a sharp image, though the actual visual experience depends on the full display and lens system working together, not just the resolution spec on paper.
For gaming, the pancake lens offers several advantages tied to the technology's known characteristics. The absence of god rays — a direct result of the folded-path design rather than concentric rings — means high-contrast scenes stay cleaner, with less glare bleeding across the image. The geometric distortion staying under 2% helps preserve the intended scene geometry, which matters in fast-moving games where spatial cues are critical. And the compact form factor, made possible by the short lens-to-display distance, keeps the headset from feeling front-heavy during longer sessions.
Like any pancake-based headset, the Tidesmit likely requires a bright display to compensate for the lens system's light efficiency. The trade-off is inherent to the technology: you get a slimmer, optically cleaner headset, but you're working against the physics of light loss. The 42mm lens diameter doesn't tell you the module thickness, but it's a reference point for the overall optical scale — and it's a reminder that even compact pancake designs still need enough glass area to deliver a wide, immersive field of view.
Tidesmit 4K VR Headset with 42mm Pancake Lens
The Tidesmit 4K VR Headset with 42mm Pancake Lens for Immersive Gaming stands out as a compact gaming headset that uses pancake optics to reduce bulk. The 42mm lens is the key feature enabling a slim design, and the 4K resolution pairs with the lens's low-distortion characteristics to deliver a clean image. For gaming, the reduced glare and elimination of god rays can make a noticeable difference in dark or high-contrast scenes — the kind of environments where Fresnel-based headsets often show their weaknesses.
It's worth noting that recorded performance figures for the Tidesmit headset aren't available, so the conversation stays grounded in what pancake lenses are known to do well. The lens type's advantages — low distortion, no god rays, and a slimmer profile — are the baseline here, not a guarantee of any specific experience. But for a gaming headset that prioritizes a compact form factor without sacrificing optical clarity, the pancake lens is a sensible choice, and the Tidesmit puts that choice in a straightforward consumer package.
